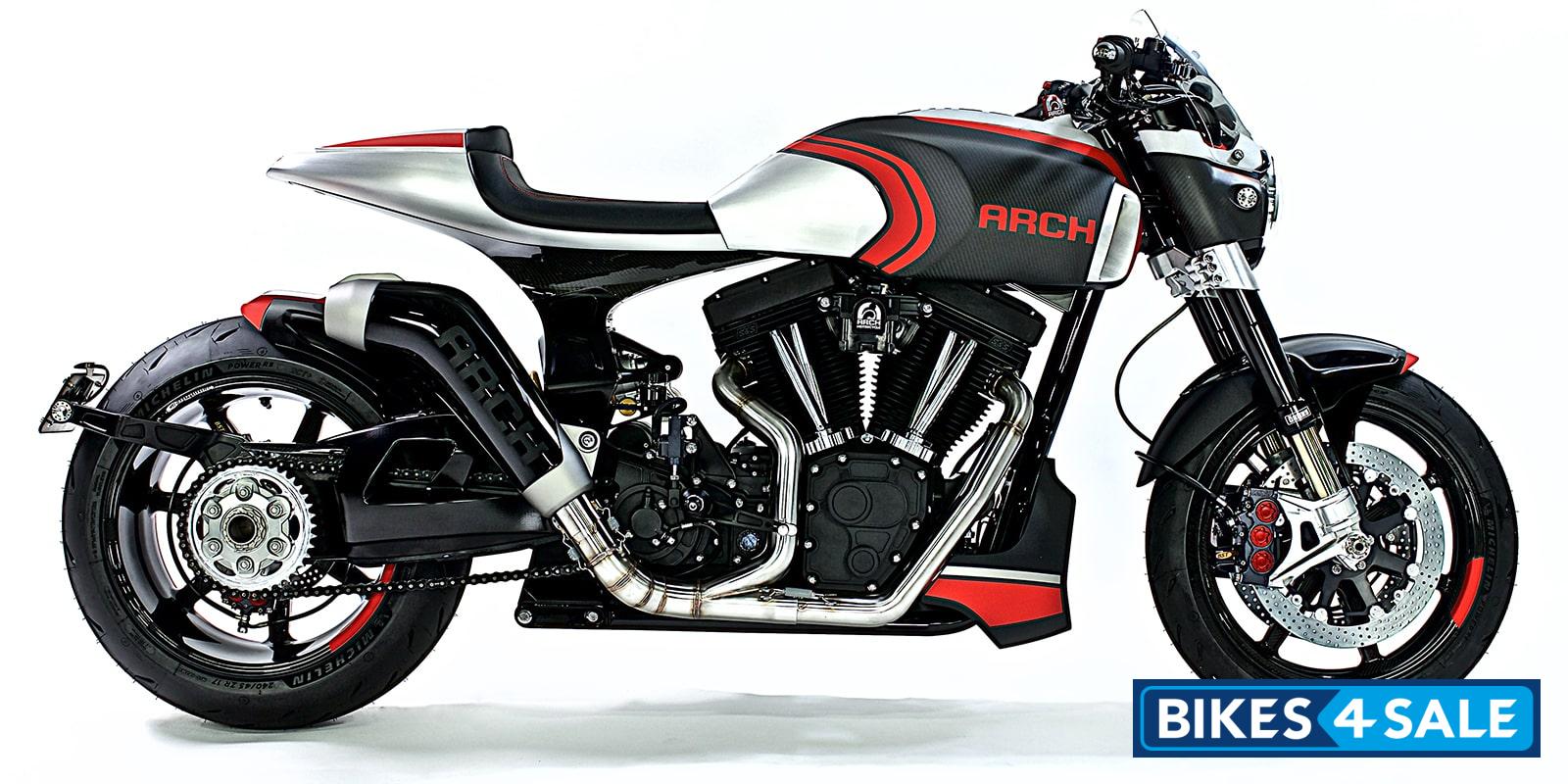

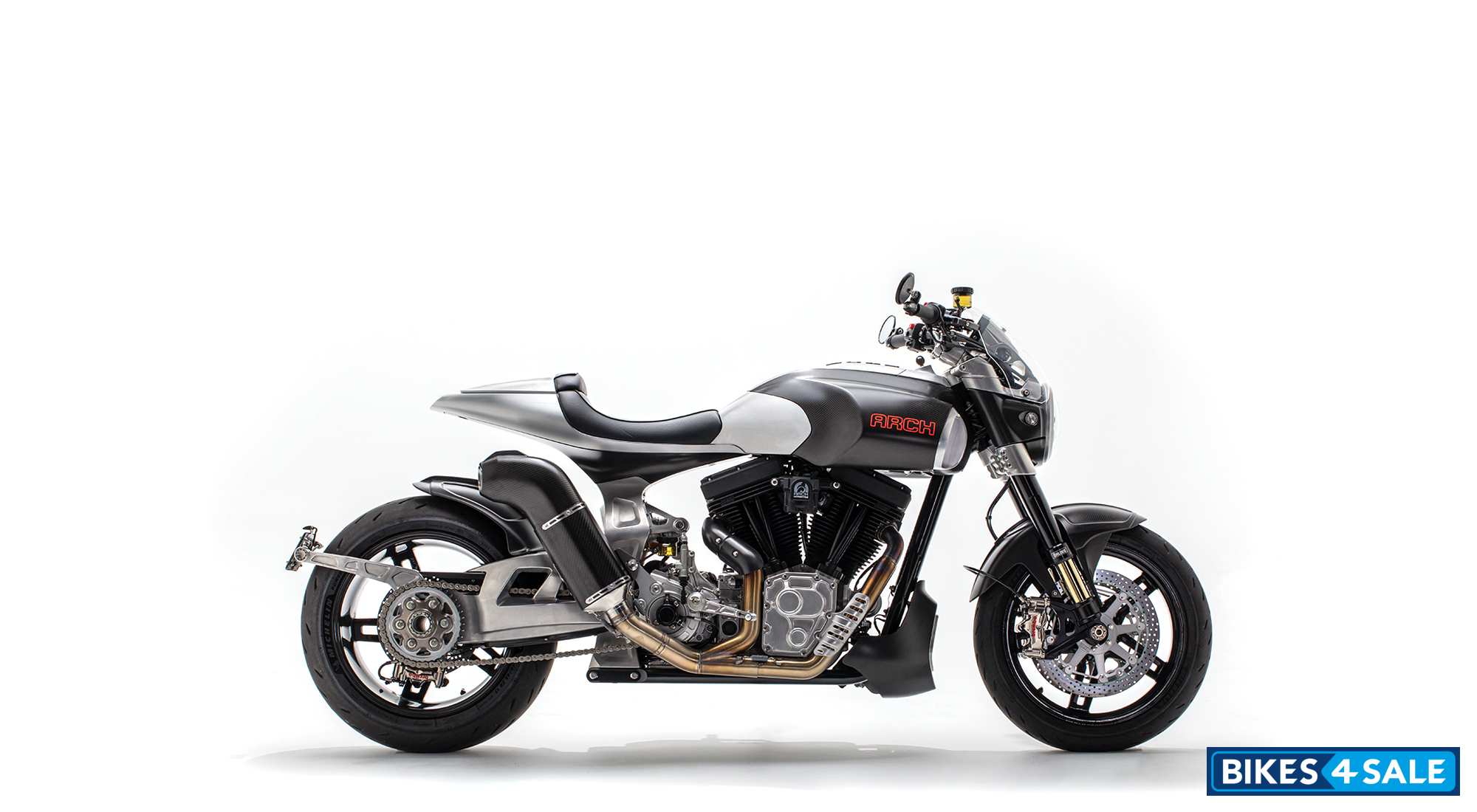

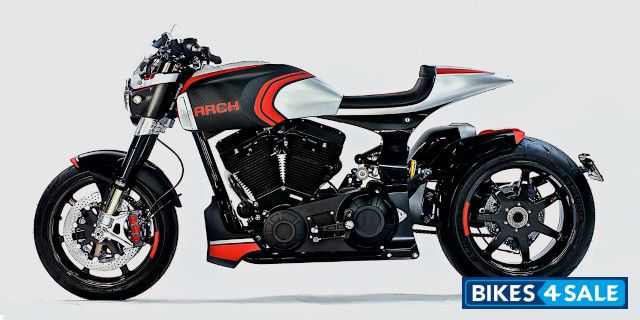

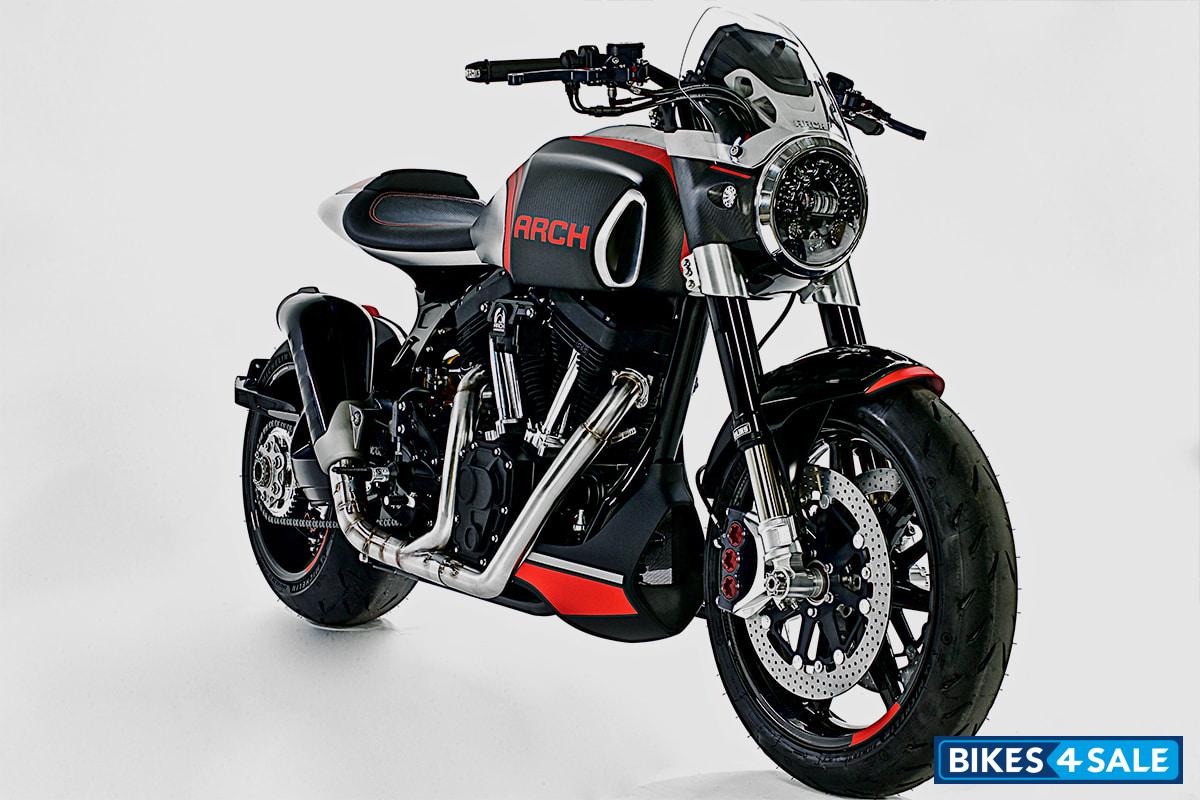

The ARCH 1s motorcycle boasts an impressive engine displacement of 2032.00 cc and is powered by an S&S Cycle T124 45-degree downdraft fuel-injected V-Twin engine. It features a dry clutch and a 6-speed transmission with a gear shift pattern of 1-N-2-3-4-5-6. The drivetrain is a proprietary six-speed system with a compact high-torque mainshaft and compact dry clutch.

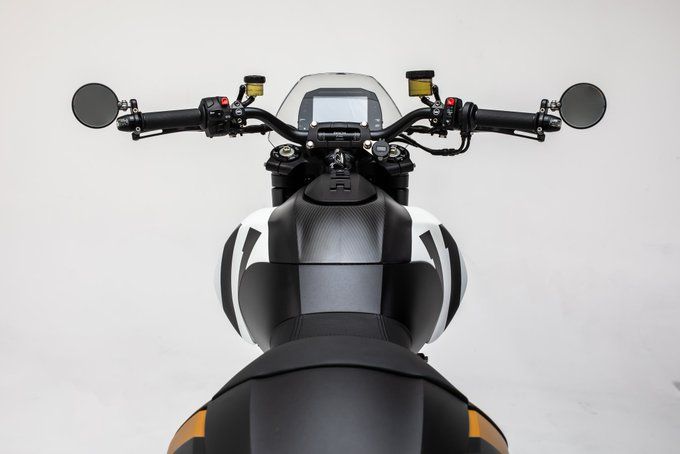

The motorcycle comes with an AIM digital instrumentation display and LED headlights. The brakes are top-notch, with dual ISR 6-piston monobloc radial mount calipers with ISR floating dampened discs at the front and a single ISR 4-piston monobloc radial mount caliper with ISR semi-floating disc at the rear. The bike is equipped with a BOSCH ABS system for added safety.
The ARCH 1s has a tubular steel frame with a CNC-machined aluminum subframe and a single-sided swingarm. The front suspension is a fully adjustable ARCH/Öhlins FGRT series fork, while the rear suspension is a fully adjustable ARCH/Öhlins shock with a reservoir and hydraulic preload adjustment. The bike comes with 17" BST Carbon Fiber wheels/rims and Michelin Power RS tires - a 120/70-17 at the front and a 240/45-17 at the rear.
The given price can change depending on the colour, accessories and other features.
| Country, City | Showroom Price | On Road Price |
|---|---|---|
| United States, California | $ 128000 | -- |
Book a Test Drive through Bikes4Sale and we will try to get you the best offer for ARCH 1s.
Red/Black
| Vehicle Type | Motorcycle |
| Fuel | Petrol |
| Engine Displacement | 2032.00 cc |
| Engine Details | S&S Cycle T124 45-degree downdraft fuel-injected V-Twin engine |
| Clutch | Dry Clutch |
| Transmission | 6-Speed |
| Gear Shift Pattern | 1-N-2-3-4-5-6 |
| Drivetrain | Proprietary Six-speed drivetrain with compact high-torque mainshaft and compact dry clutch |
| Display |
|---|
| AIM Digital instrumentation display |
| Electricals | |
|---|---|
| Head Lamp | LED headlight |
| Brakes | |
|---|---|
| Front Brake | Dual ISR 6-piston monobloc radial mount calipers with ISR floating dampened discs |
| Rear Brake | Single ISR 4-piston monobloc radial mount caliper with ISR semi-floating disc |
| ABS System | BOSCH |
| Chassis and Suspension | |
|---|---|
| Frame | Tubular steel frame with CNC-machined aluminum subframe; single-sided swingarm |
| Front Suspension | Fully adjustable ARCH/Öhlins FGRT series fork |
| Rear Suspension | Fully adjustable ARCH/Öhlins rear shock with reservoir and hydraulic pre-load adjustment |
| Tyres | |
|---|---|
| Wheels / Rim | Front Wheel: 17″ BST Carbon Fiber Rear Wheel: 17″ BST Carbon Fiber |
| Front Tyre | 120/70-17 Michelin Power RS |
| Rear Tyre | 240/45-17 Michelin Power RS |
