CUBE 2022 Kathmandu Hybrid SL 750 Electric Bicycle Price, Specs and Features

Price, features and specs

2022 Kathmandu Hybrid SL 750 is not in production now.

Rate CUBE 2022 Kathmandu Hybrid SL 750:

4.5/5 (2 votes)

Compare
Write a Review

CUBE 2022 Kathmandu Hybrid SL 750 Price

Not Available

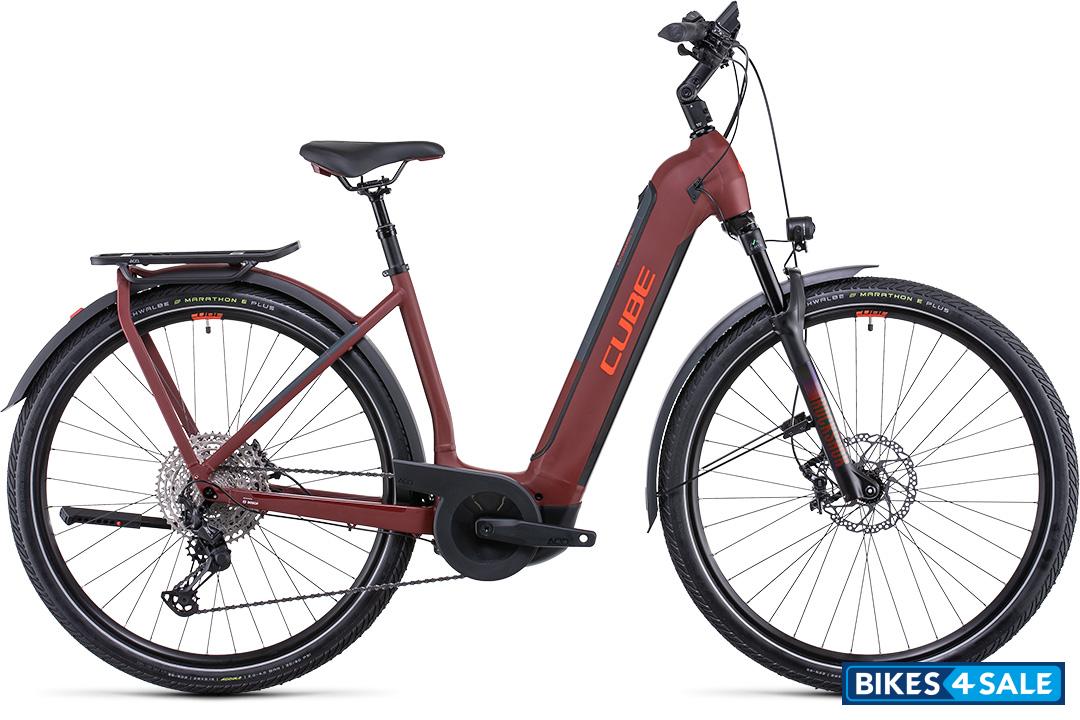

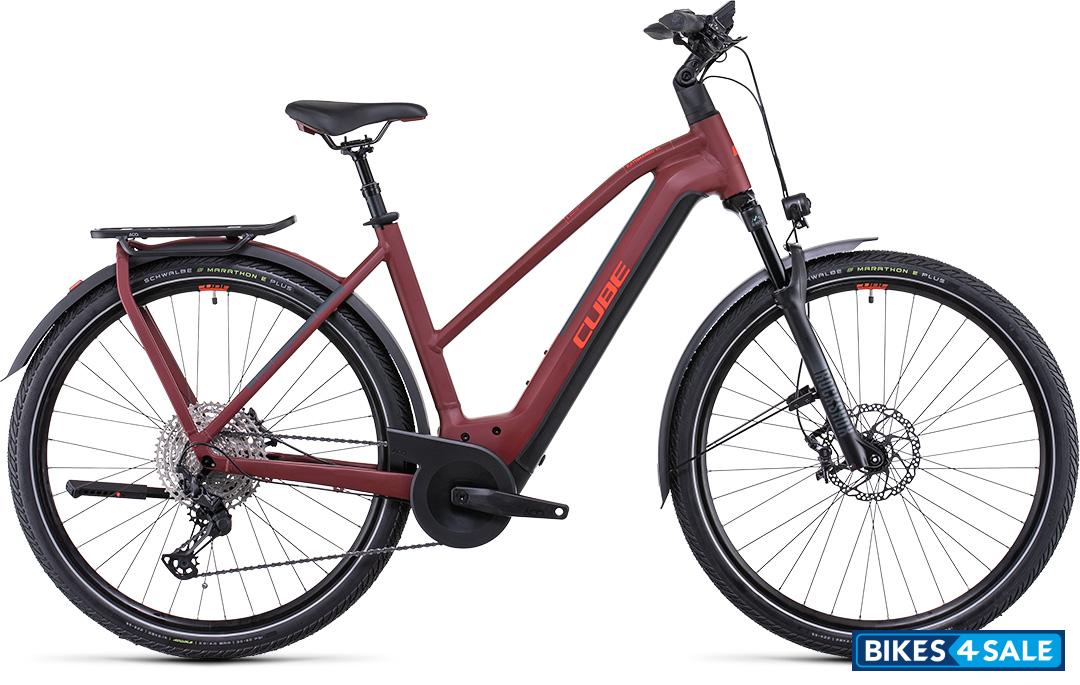

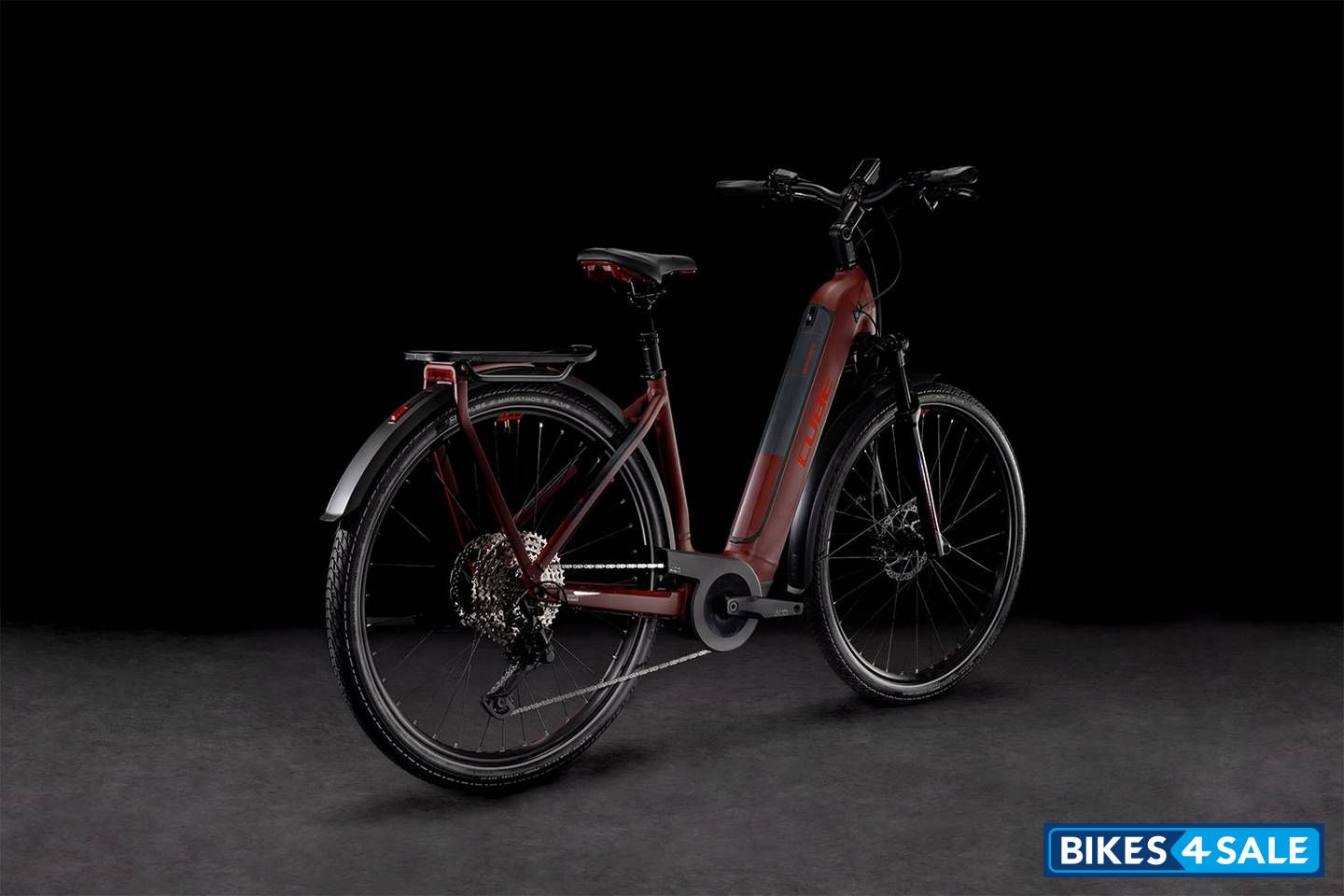

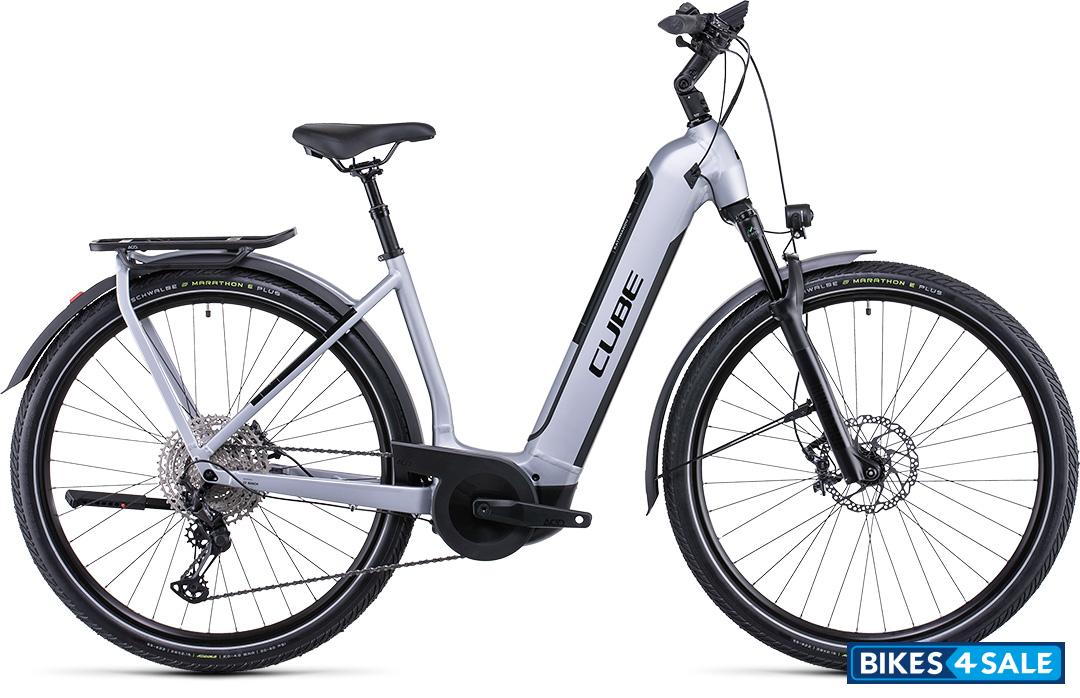

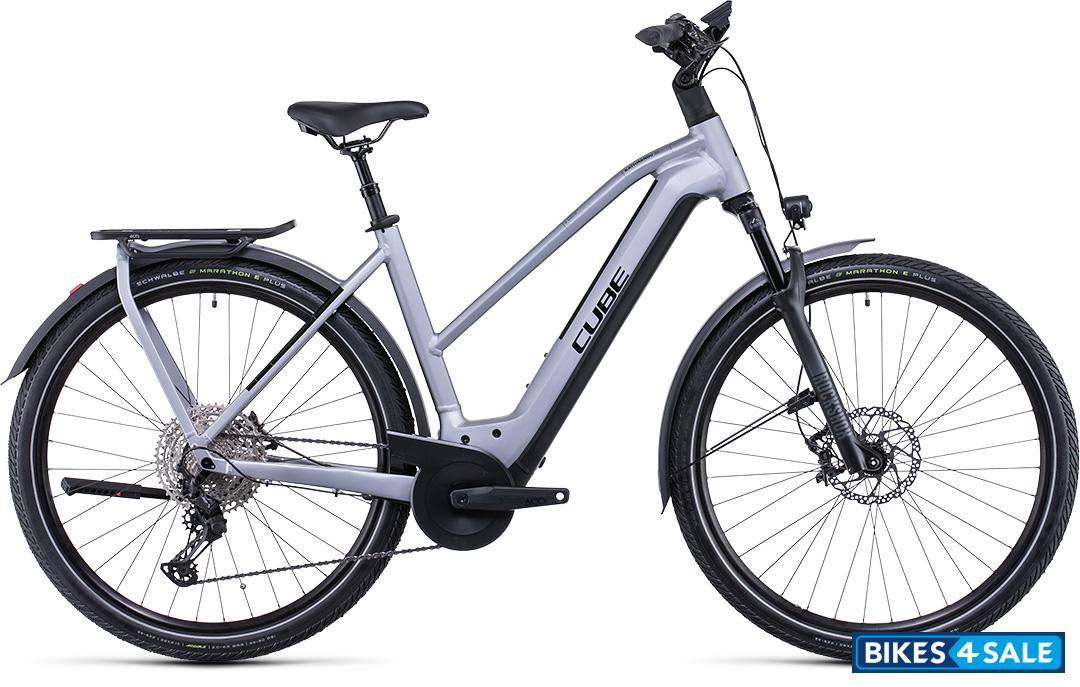

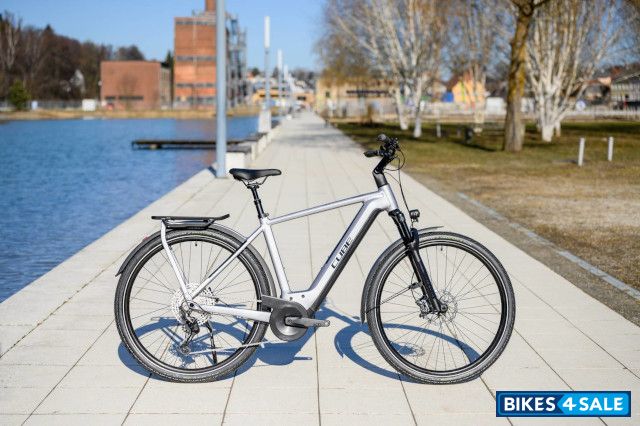

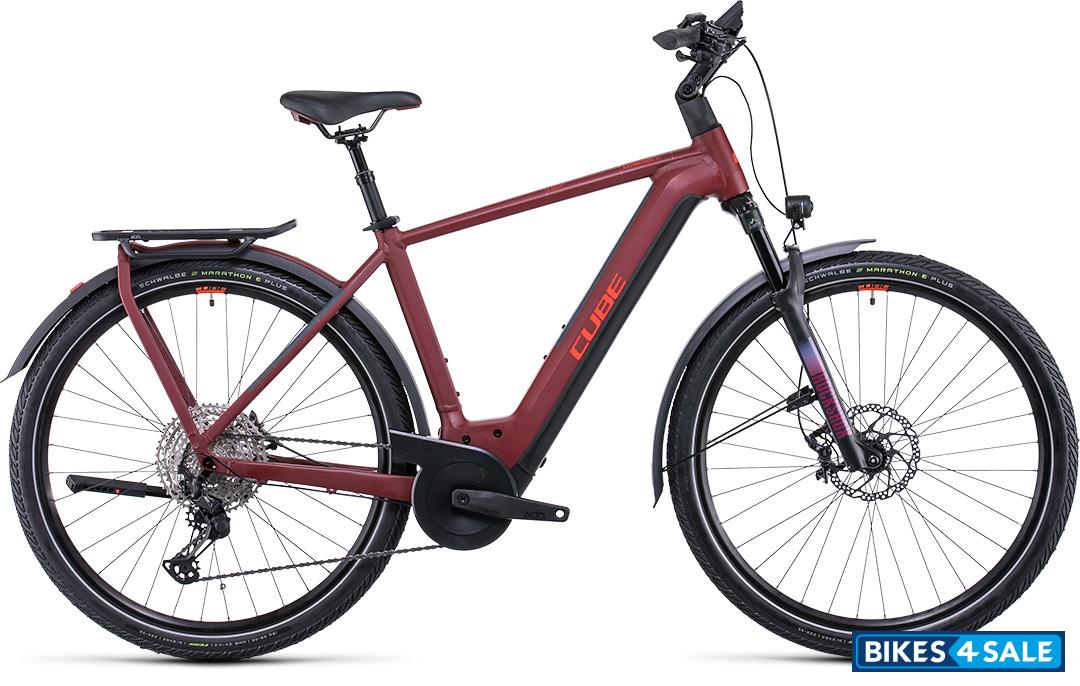

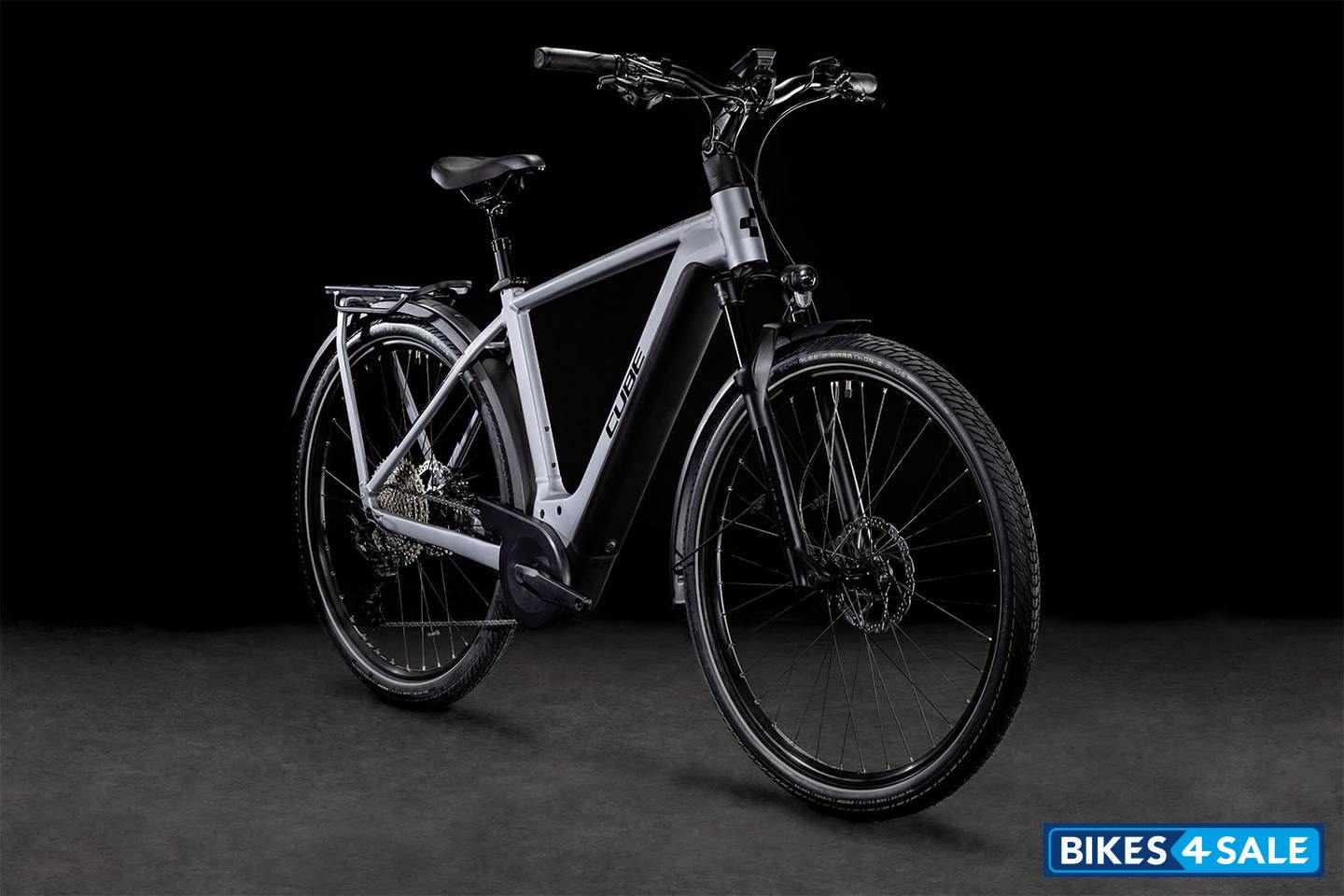

Picture Gallery

Similar Bicycles

Specialized S-Works Turbo Levo 2022

Giant Revolt E Plus 2022

Rieju E-Line 2022

Rieju MRT Cross 4 2022

Rieju MRT Plus Mountain 2022

Rieju MRT Plus Carbon 2022

Colours

Polar Silver and Black
Dark Red and Red

134 Flushing Ave, United States

Via Bergamo 3a, Italy

More Dealers

View all CUBE Showrooms

Technical Specifications

Vehicle Type	Bicycle
Fuel	Electric
Drivetrain	Drive Unit: Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Stem	CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar	CUBE Comfort Trail Bar, 700mm
Fork	RockShox Recon Silver RL Air, Tapered, 15x110mm, 100mm, Lockout
Seat	Clamp: CUBE Screwlock Semi Integrated w/ Hidden Tool, 36mm (EE: CUBE Screwlock Semi Integrated, 36mm)
Seatpost	CUBE Suspension Seatpost HD, 30.9mm
Grip	Natural Fit Comfort
Crankset	ACID E-Crank, 40T, 175mm (EE: 170mm)
Pedals	ACID PP Trekking
Chain	Shimano CN-M6100
Shifters	Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
Saddle	Natural Fit Sequence Comfort
Headset	M/Z: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Derailleur : Rear	Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Hub : Front	Shimano HB-MT400-B, 15mm, Boost, Centerlock
Hub : Rear	Shimano FH-MT410-B, 12mm, Boost, Centerlock
Cassette	Shimano Deore CS-M6100, 10-51T

Display
Bosch Kiox 300

Electricals
Battery	Bosch PowerTube 750
Charger	Bosch 4A
Head Lamp	ACID Front Light PRO-E 110, 5-16V, DC
Tail Lamp	ACID Mudguard Rear Light PRO-E, 12V, DC

Brakes
Front Brake	Shimano XT BR-M8120/M8100, Hydr. Disc Brake (180/180)
Rear Brake	Shimano XT BR-M8120/M8100, Hydr. Disc Brake (180/180)

Chassis and Suspension
Frame	Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Full Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube (EE: Tapered Headtube)

Tyres
Wheels / Rim	Rims: CUBE EX23, 36H, Disc, Tubeless Ready
Front Tyre	Schwalbe Marathon E-Plus, Smart-DualGuard, 55-622
Rear Tyre	Schwalbe Marathon E-Plus, Smart-DualGuard, 55-622

Dimensions
Weight	27.5 kg

Additional Details
Size: Men: S (50cm), M (54cm), L (58cm), XL (62cm); Trapeze: S (50cm), M (54cm); Easy Entry: XS (46cm), S (50cm), M (54cm), L (58cm) Kickstand: Acid Pro Flat Mount Kickstand Mudguards: Acid 65 Integrated Carrier 3.0 Bell: Ring Bell Carrier: Acid Integrated Carrier 3.0, Cube Adapter Compatible
