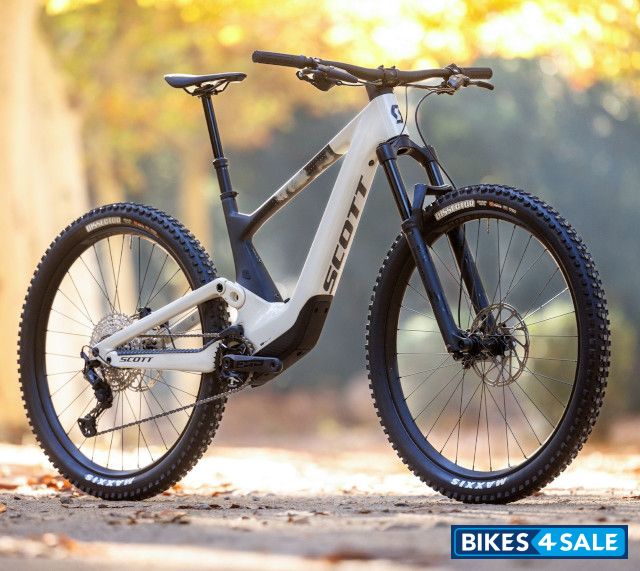

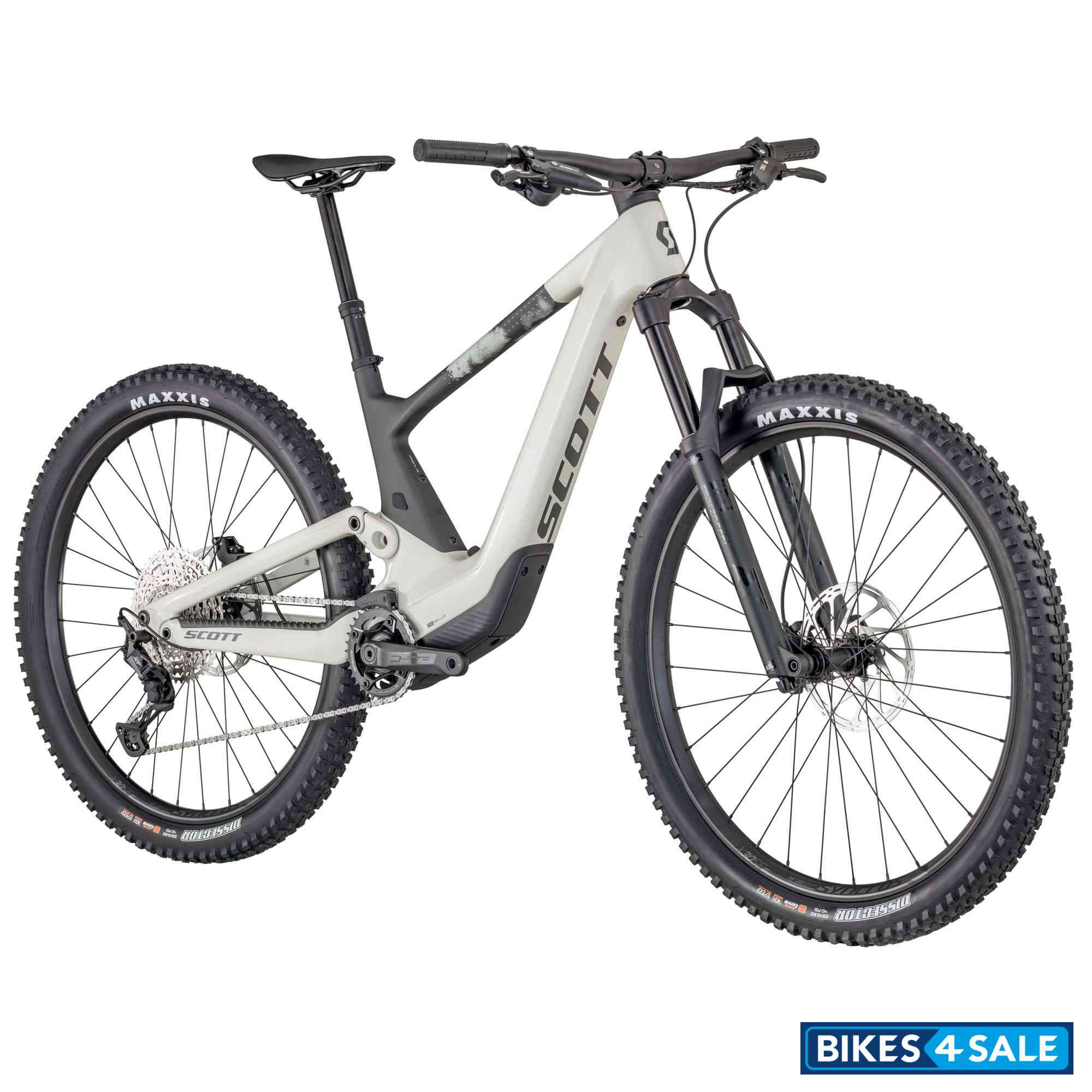

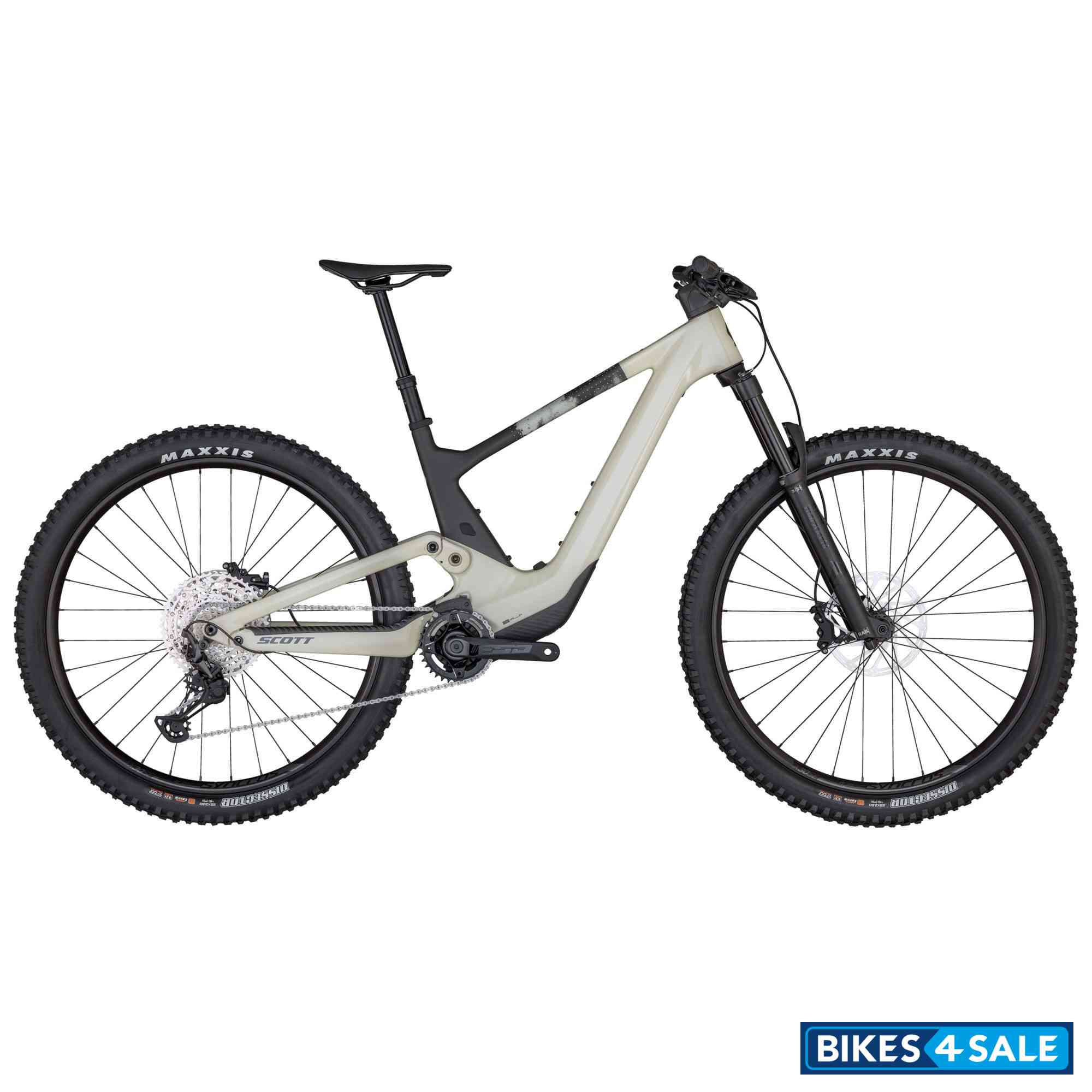

The SCOTT Voltage eRide 920 is an electric bicycle featuring a Carbon HMF Frame with a TQ HPR50 Mid Motor drive. It has a TQ Internal 360Wh battery providing a maximum torque of 50Nm. With a load carrying capacity of 128 kg, it comes equipped with a TQ HPR display that supports Bluetooth/ANT+ and has a dedicated smartphone app.
Not Available
Book a Test Drive through Bikes4Sale and we will try to get you the best offer for SCOTT Voltage eRide 920 Bike.
| Vehicle Type | Bicycle |
| Fuel | Electric |
| Maximum Torque | 50Nm |
| Load Carrying Capacity | 128 kg |
| Speed | EU: 25kmh / US: 20mph |
| Stem | Syncros AM 2.0 Syncros Cable Integration System 4° rise / 6061 Alloy / 31.8mm / 1 1/8" |
| Handlebar | Syncros Hixon 2.0 Alloy 6061 D.B. 12mm Rise / back sweep 8° / 780mm Syncros Endurance lock-on grips |
| Seat | Syncros Tofino 2.0 Regular |
| Seatpost | Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm S size 140mm / M size 180mm / L & XL size 210mm |
| Crankset | FSA Alloy crankset / 175mm / 34T |
| Chain | Shimano CN-M6100 |
| Shifters | Shimano Deore SL-M6100-IR / Rapidfire Plus, I-spec EV clamp |
| Headset | Syncros - Acros Angle adjust & Cable Routing HS System Stainless / +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB |
| Derailleur : Rear | Shimano XT RD-M8100 SGS, Shadow Plus / 12 Speed |
| Hub : Front | Formula CL-811 / 15x110mm |
| Hub : Rear | Formula CL-148M / 12x148mm |
| Spoke | Stainless Black 15G / 1.8mm |
| Cassette | Shimano CS-M6100 / 10-51 T |
| Chainrings | Scott custom spider / FSA 12Speed 34T chainring |
| Motor Details |
|---|
| TQ HPR50 Mid Motor drive |
| Display |
|---|
| TQ HPR, Bluetooth / ANT+ / Dedicated Smartphone app |
| Electricals | |
|---|---|
| Battery | TQ Internal 360Wh |
| Charger | TQ 100-240V-4A |
| Brakes | |
|---|---|
| Front Brake | SRAM DB8 4 Piston Disc, 200mm SRAM Centerline CL Rotors |
| Rear Brake | SRAM DB8 4 Piston Disc, 200mm SRAM Centerline CL Rotors |
| Chassis and Suspension | |
|---|---|
| Frame | Carbon HMF Frame |
| Front Suspension | Marzocchi Z2 Air Rail 3 modes / 15x110mm QR axle / tapered steerer 44mm offset / Reb. Adj. / Lockout / 150mm travel |
| Rear Suspension | FOX Float Custom EVOL Performace Trunnion 3 modes / Lockout-Trail-Descend DPS / Reb. Adj. Travel 155mm / T185X55mm |
| Tyres | |
|---|---|
| Wheels / Rim | Syncros X-30S / 32H / 30mm / Sleeve Joint, Tubeless ready |
| Front Tyre | Maxxis Dissector / 29x2.6" / 60TPI Wire Bead, EXO, Dual |
| Rear Tyre | Maxxis Dissector / 29x2.6" / 60TPI Wire Bead, EXO, Dual |
| Dimensions | |
|---|---|
| Weight | 19.3 kg |
