Price, features and specs
Rate Trek 2023 Fuel EXe 9.9 XTR:
Trek 2023 Fuel EXe 9.9 XTR Price
$
12999
[Chicago, United States]
The given price can change depending on the colour, accessories and other features.
| Country, City |
Showroom Price |
On Road Price |
| United States, Chicago |
$ 12999 |
-- |
Buy new Trek 2023 Fuel EXe 9.9 XTR
Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Trek 2023 Fuel EXe 9.9 XTR.
For Exciting Offers, Book a Test Drive
Picture Gallery

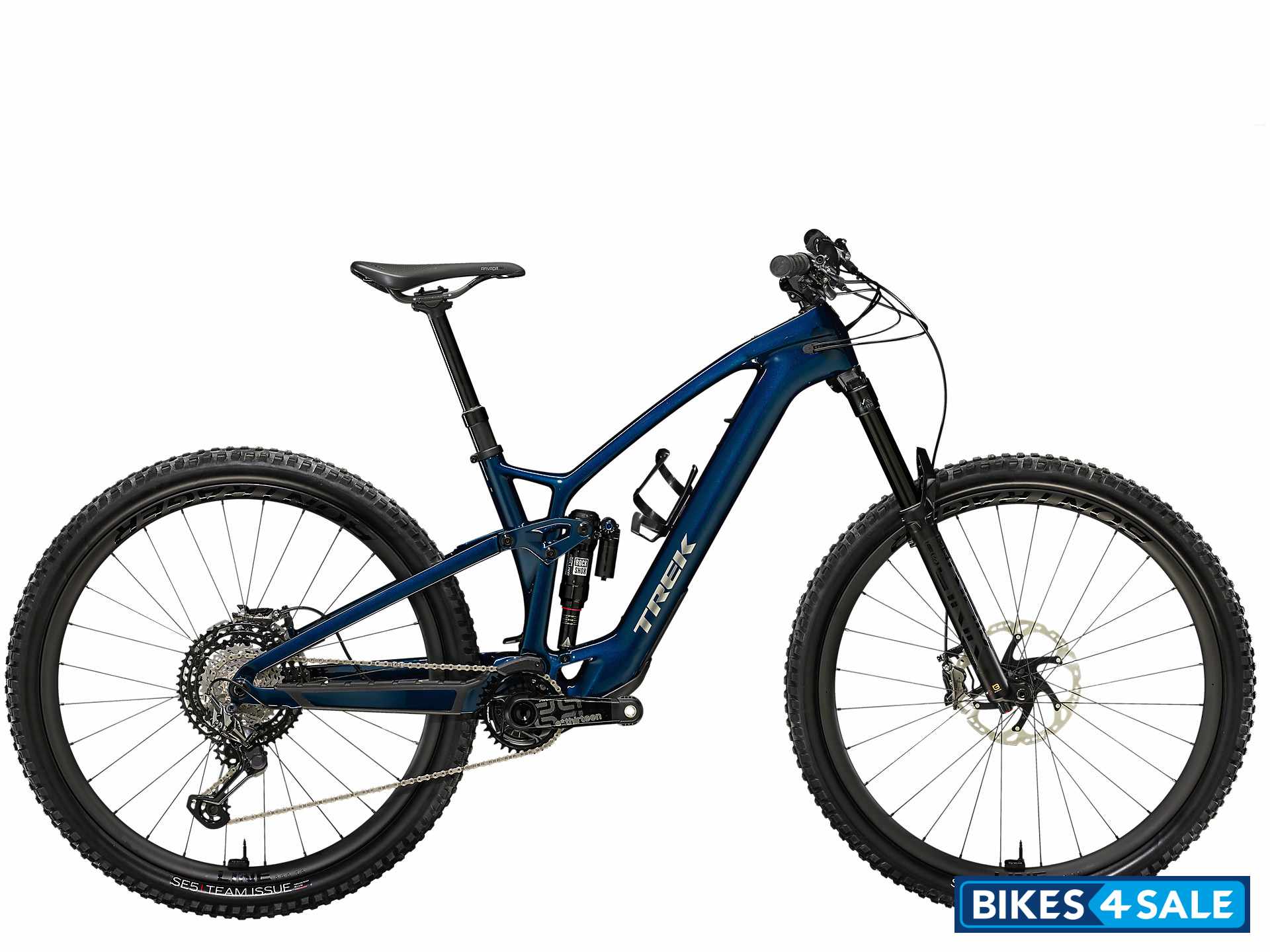

Mulsanne Blue

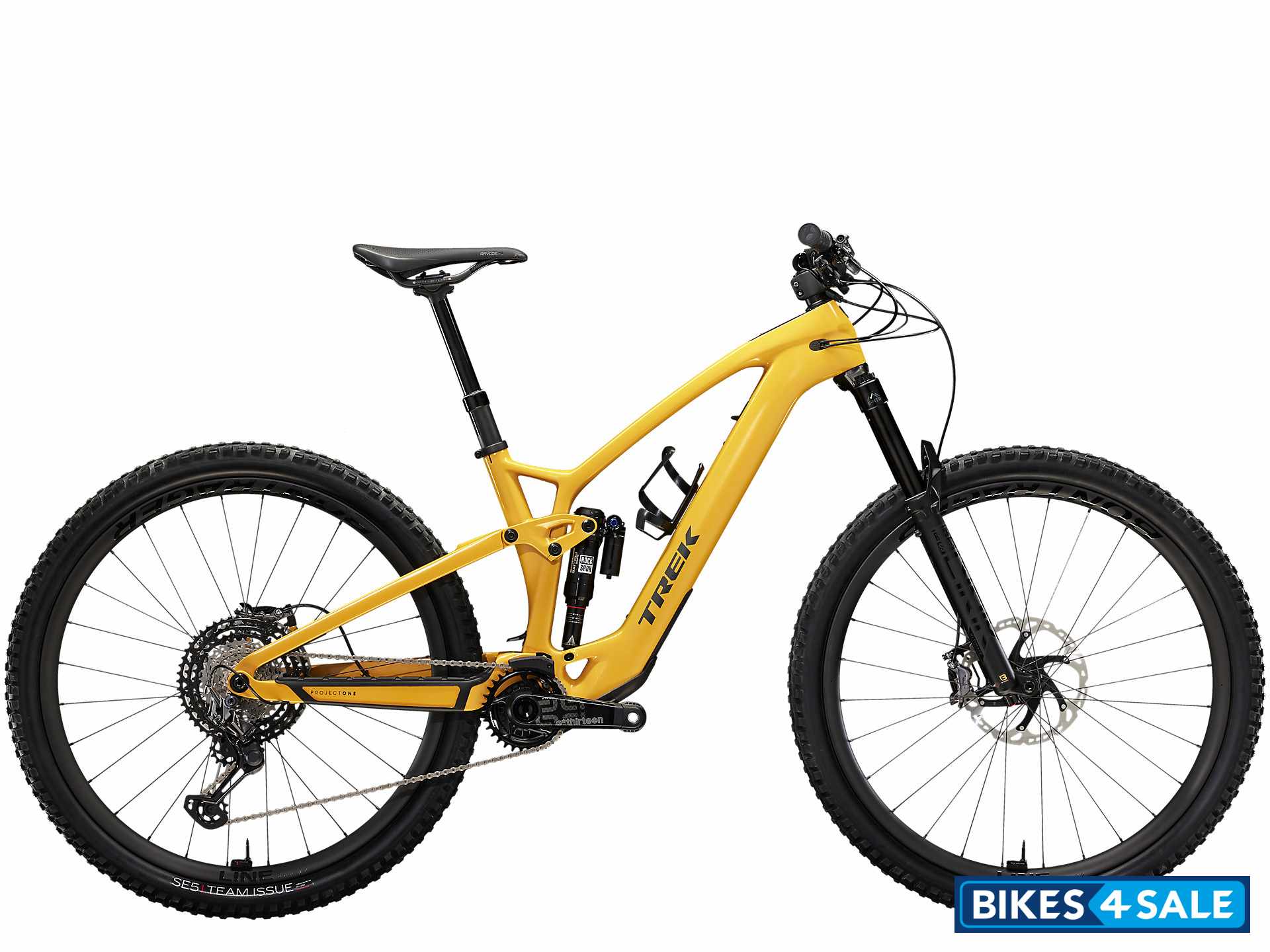

Baja Yellow
Features
- Range Extender
- Removable battery
- RockShox AirWiz and Quarq TireWiz
- Active Braking Pivot
Colours
Mulsanne Blue
Deep Smoke
Baja Yellow
Technical Specifications
| Vehicle Type | Bicycle |
| Fuel | Electric |
| Load Carrying Capacity | 136 kg |
| Stem | Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 45mm stem length |
| Handlebar | Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 45mm stem length |
| Fork | RockShox Lyrik Ultimate, AirWiz, DebonAir spring, Charger 3 RC2 damper, 44mm offset, Boost110, Maxle Stealth, 150mm travel |
| Seatpost | Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length |
| Grip | Bontrager XR Trail Elite, nylon lock-on |
| Chain | Shimano Dura-Ace/XTR M9100, 12 speed |
| Shifters | Shimano XTR M9100, 12 speed |
| Saddle | Bontrager Arvada Pro, carbon rails, 138mm width |
| Derailleur : Rear | Shimano XTR M9100, Shadow Plus, long cage, 51T max cog |
| Cassette | Shimano XTR M9101, 10-51, 12 speed |
| Chainrings | E*thirteen E*spec, 32T alloy ring, 55mm chainline |
| Motor Details |
|---|
| TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power |
| Display |
|---|
| TQ LED display with Bluetooth & ANT+ connectivity |
| Electricals |
|---|
| Battery | TQ 360Wh |
| Brakes |
|---|
| Front Brake | Shimano XTR M9120 4-piston hydraulic disc
Rotor : Shimano RT86, 6-bolt, 180mm |
| Rear Brake | Shimano XTR M9120 4-piston hydraulic disc
Rotor : Shimano RT86, 6-bolt, 203mm |
| Chassis and Suspension |
|---|
| Frame | OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel |
| Tyres |
|---|
| Wheels / Rim | Front : Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Rear : Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle |
| Front Tyre | Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50'' |
| Rear Tyre | Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50'' |
| Additional Details |
|---|
Shock : RockShox Super Deluxe Ultimate AirWiz, RCT2 damper, 205mm x 60mm
Crank arm : E*thirteen E*spec Race carbon, 34T, 165mm length |
