The given price can change depending on the colour, accessories and other features.
| Country, City | Showroom Price | On Road Price |
|---|---|---|
| United States, San Antonio | $ 9999 | -- |

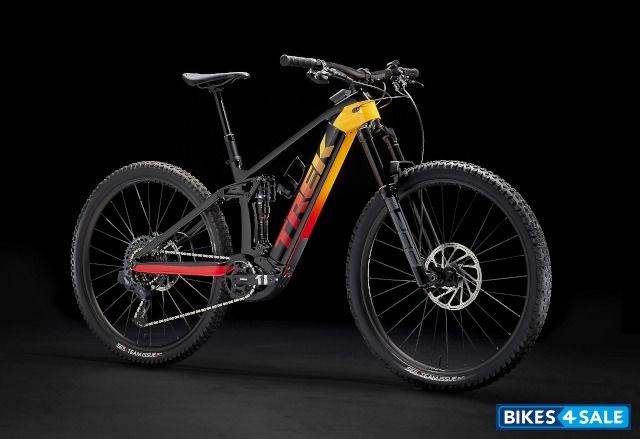

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Trek 2023 Rail 9.8 GX AXS Gen 3.
Dark Prismatic/Trek Black
Trek Black/Marigold to Red Fade
Carbon Red Smoke/Viper Red
| Vehicle Type | Bicycle |
| Fuel | Electric |
| Load Carrying Capacity | 136 kg |
| Stem | Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 45mm length |
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width |
| Fork | RockShox ZEB Select+, DebonAir spring, Charger 2.1 RC damper, eMTB optimized crown, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 160mm travel |
| Seatpost | Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length |
| Grip | Bontrager XR Trail Elite, nylon lock-on |
| Crankset | SRAM X1 1000, 34T, 165mm length |
| Pedals | VP-536 nylon platform |
| Chain | SRAM GX Eagle, 12 speed |
| Shifters | SRAM GX Eagle AXS, 12 speed |
| Saddle | Bontrager Arvada, austenite rails, 138mm width |
| Headset | Knock Block Integrated, cartridge bearing, 1-1/8'' top, 1.8'' bottom |
| Derailleur : Rear | SRAM GX Eagle AXS |
| Hub : Front | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle |
| Hub : Rear | Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12mm thru axle |
| Cassette | SRAM Eagle XG-1275, 10-52, 12 speed |
| Chainrings | SRAM X-SYNC 2, 34T, alloy |
| Motor Details |
|---|
| Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm, 20 mph or 32 km/h max assist (25 km/h max assist) |
| Display |
|---|
| Bosch Kiox 300, smart system |
| Electricals | |
|---|---|
| Battery | Bosch PowerTube 750Wh, smart system |
| Charger | Bosch standard 4A, 110V, smart system |
| Brakes | |
|---|---|
| Front Brake | SRAM Code R 4-piston hydraulic disc Rotor : SRAM CenterLine, 6-bolt, round-edge, 180mm |
| Rear Brake | SRAM Code R 4-piston hydraulic disc Rotor : SRAM CenterLine, 6-bolt, round edge, 200mm |
| Chassis and Suspension | |
|---|---|
| Frame | NEW OCLV Mountain Carbon main frame, 1.8'' lower head tube, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9mm seat tube, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel |
| Tyres | |
|---|---|
| Wheels / Rim | Bontrager Line Comp 30, Tubeless Ready, 28-hole, Presta valve |
| Front Tyre | Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50'' |
| Rear Tyre | Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50'' |
| Dimensions | |
|---|---|
| Weight | 23.40 kg |
| Additional Details |
|---|
| Shock : RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230mm x 57.5mm Max compatible fork travel : 170mm (580mm axle-to-crown) |
