The given price can change depending on the colour, accessories and other features.
| Country, City | Showroom Price | On Road Price |
|---|---|---|
| United States, Alabama | $ 529 | -- |
| United States, Alaska | $ 529 | -- |
| United States, Arizona | $ 529 | -- |
| United States, Atlanta | $ 529 | -- |
| United States, Austin | $ 529 | -- |
| United States, Baltimore | $ 529 | -- |
| United States, Boston | $ 529 | -- |
| United States, Charleston | $ 529 | -- |
| United States, Charlotte | $ 529 | -- |
| United States, Chicago | $ 529 | -- |

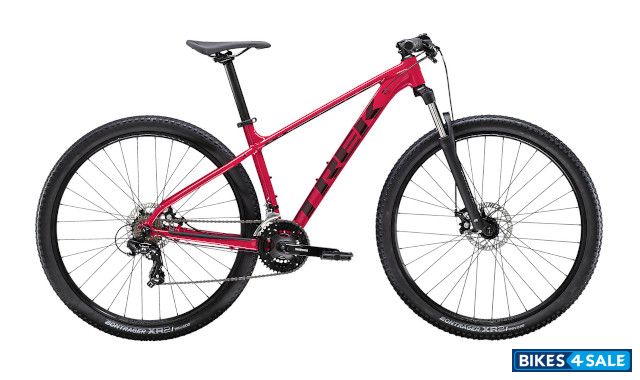

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Trek Marlin 4.
Matte Trek Black
Voodoo Aloha Green
Matte Anthracite
Magenta
| Vehicle Type | Bicycle |
| Load Carrying Capacity | Combined weight of bicycle, rider, and cargo of 300 pounds (136 kg) |
| Stem | Size : XS - Bontrager alloy, 31.8 mm, Blendr compatible, 7 degree, 50 mm length ( Size : S - 60 mm length) Size : M - Bontrager alloy, 31.8 mm, Blendr compatible, 7 degree, 70 mm length Size : ML, L - Bontrager alloy, 31.8 mm, Blendr compatible, 7 degree, 80 mm length Size : XL, XXL - Bontrager alloy, 31.8 mm, Blendr compatible, 7 degree, 90 mm length |
| Handlebar | Size : XS, S - Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width Size : M, ML, L, XL, XXL - Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width |
| Fork | Size : XS - SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5'' wheel, 100 mm QR, 80 mm travel Size : S - SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5'' wheel, 100 mm QR, 100 mm travel Size : M, ML, L, XL, XXL - SR Suntour XCE 28, coil spring, preload, 46 mm offset for 29'' wheel, 100 mm QR, 100 mm travel |
| Seatpost | Size : XS, S - Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length Size : M - Bontrager alloy, 31.6 mm, 12 mm offset, 360 mm length Size : ML, L, XL, XXL - Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
| Grip | Bontrager XR Endurance Comp, lock-on |
| Crankset | Size : XS, S, M - Shimano Tourney TY301, 42/34/24, 170 mm length Size : ML, L, XL, XXL - Shimano Tourney TY301, 42/34/24, 175 mm length |
| Pedals | VP-536 nylon platform |
| Chain | KMC Z7, 7 speed |
| Shifters | Shimano Altus EF500, 7 speed |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
| Headset | Semi-integrated, 1-1/8'' |
| Derailleur : Front | Shimano Tourney TY300, 34.9 mm clamp, down swing, down pull |
| Derailleur : Rear | Shimano Tourney TY300, long cage, 34T max cog |
| Hub : Front | Formula DC-31, alloy, 6-bolt, 6/7/8 speed freewheel, 135 x 5 mm QR |
| Hub : Rear | Formula DC-20, alloy, 6-bolt, 5 x 100 mm QR |
| Spoke | 14g stainless steel |
| Cassette | Shimano TZ500, 14-28, 7 speed |
| Chainrings | 1x/2x : 34T, 3x : 42T |
| Bottom Bracket | VP BC73, 73 mm, threaded cartridge |
| Brakes | |
|---|---|
| Front Brake | Tektro MD-M280 mechanical disc, 160 mm rotor |
| Rear Brake | Tektro MD-M280 mechanical disc, 160 mm rotor |
| Chassis and Suspension | |
|---|---|
| Frame | Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135 x 5 mm QR |
| Tyres | |
|---|---|
| Wheels / Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, schrader valve |
| Front Tyre | Bontrager XR2 Comp, wire bead, 30 tpi, 29 x 2.20'' |
| Rear Tyre | Bontrager XR2 Comp, wire bead, 30 tpi, 29 x 2.00'' |
| Dimensions | |
|---|---|
| Weight | 13.98 kg |
| Additional Details |
|---|
| Max compatible fork travel : 100 mm (XS & S: 490 mm axle-to-crown, M & up: 509 mm axle-to-crown) |
