The given price can change depending on the colour, accessories and other features.
| Country, City | Showroom Price | On Road Price |
|---|---|---|
| Australia, Sydney | $ 749 | -- |

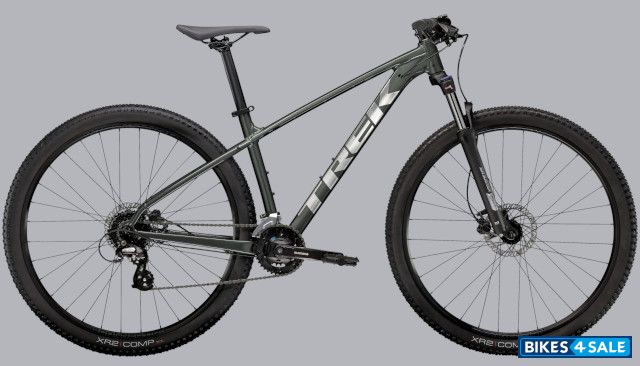

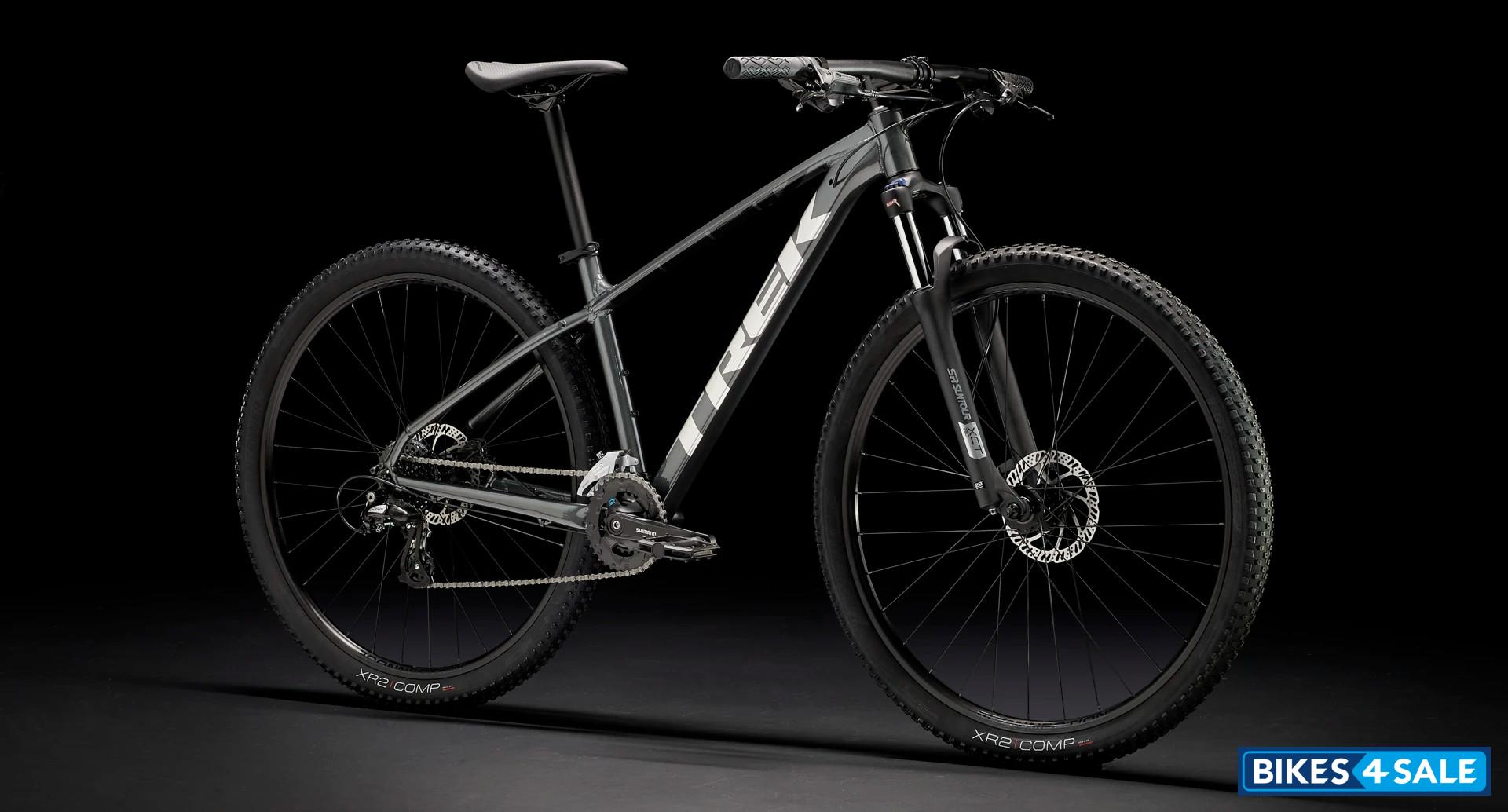

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Trek Marlin 5 Gen 2.
| Vehicle Type | Bicycle |
| Stem | Size: XXS Bontrager Comp, 31.8 mm, 7-degree, 35 mm length Size: XS Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length Size: S Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length Size: M Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length Size: ML , L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length Size: XL , XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length |
| Handlebar | Size: XXS , XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width Size: S , M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width |
| Fork | Size: XXS SR Suntour XCM 30, coil spring, lockout, preload, 100 mm QR, 100 mm travel, 26" wheel Size: XS SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel Size: S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel Size: M , ML , L , XL , XXL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel |
| Seatpost | Size: XXS Bontrager alloy, 31.6 mm, 12 mm offset, 300 mm length Size: XS , S , M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length Size: ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
| Crankset | Size: XXS Prowheel TM-CY10, 36/22, 160 mm length Size: XS , S , M Shimano M315, 36/22, 170 mm length Size: ML , L , XL , XXL Shimano M315, 36/22, 175 mm length |
| Chain | KMC Z8.3, 8 speed |
| Shifters | Size: XXS , XS , S , M , ML , L , XL , XXL Shimano M315, 2-speed Size: XXS , XS , S , M , ML , L , XL , XXL Shimano M315, 8-speed |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
| Headset | Semi-integrated, 1-1/8" |
| Derailleur : Front | Shimano Altus M315, 34.9 mm clamp, top swing, dual pull |
| Derailleur : Rear | Shimano Altus M310 |
| Hub : Front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
| Hub : Rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Cassette | Shimano 8-speed, 12-32T |
| Bottom Bracket | Sealed cartridge, 73mm |
| Brakes | |
|---|---|
| Front Brake | Tektro HD-M275 hydraulic disc, 180 mm rotor |
| Rear Brake | Tektro HD-M275 hydraulic disc, 180 mm rotor |
| Chassis and Suspension | |
|---|---|
| Frame | Alpha Silver Aluminium, curved top tube, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5 mm QR |
| Tyres | |
|---|---|
| Wheels / Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Front Tyre | Bontrager XR2 Comp, wire bead, 30 tpi, 26x2.20" |
| Rear Tyre | Bontrager XR2 Comp, wire bead, 30 tpi, 26x2.20" |
| Dimensions | |
|---|---|
| Weight | 13.97 kg |
