The given price can change depending on the colour, accessories and other features.
| Country, City | Showroom Price | On Road Price |
|---|---|---|
| United States, Alabama | $ 10499 | -- |
| United States, Alaska | $ 10499 | -- |
| United States, Arizona | $ 10499 | -- |
| United States, Atlanta | $ 10499 | -- |
| United States, Austin | $ 10499 | -- |
| United States, Baltimore | $ 10499 | -- |
| United States, Boston | $ 10499 | -- |
| United States, Charleston | $ 10499 | -- |
| United States, Charlotte | $ 10499 | -- |
| United States, Chicago | $ 10499 | -- |

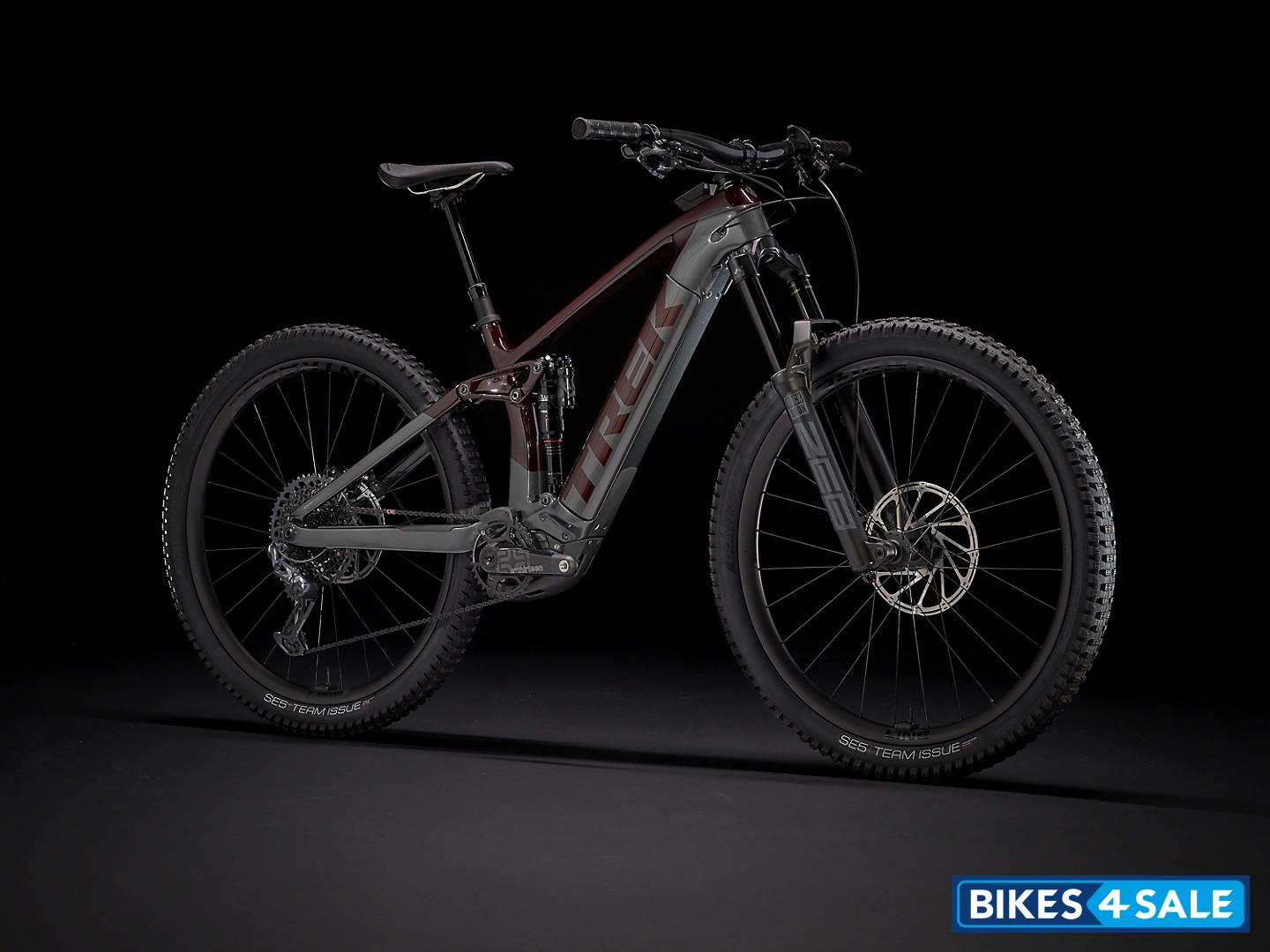

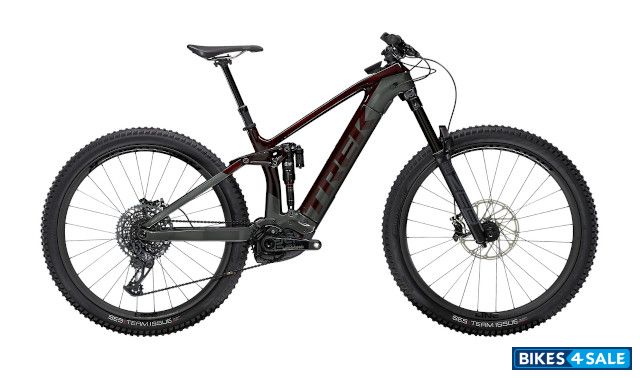

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Trek Rail 9.9.
Carbon Red Smoke/Lithium Grey
Gloss Purple Phaze/Matte Raw Carbon
Solid Charcoal/Radioactive Orange
Solid Charcoal to Root Beer Ano Decal
| Vehicle Type | Bicycle |
| Fuel | Electric |
| Load Carrying Capacity | Combined weight of bicycle, rider, and cargo of 300 pounds (136 kg) |
| Top Speed | 32 kmph |
| Stem | Bontrager Line Pro, 35 mm, Knock Block, Blendr compatible, 0 degree, 45 mm length |
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width |
| Fork | RockShox ZEB Ultimate, DebonAir spring, Charger 2.1 RC2 damper, e-MTB optimzed crown, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel |
| Seatpost | Size : S - Bontrager Line Elite Dropper, 100 mm travel, internal routing, 31.6 mm, 340 mm length Size : M - Bontrager Line Elite Dropper, 150 mm travel, internal routing, 31.6 mm, 440 mm length Size : L, XL - Bontrager Line Elite Dropper, 170 mm travel, internal routing, 31.6 mm, 480 mm length |
| Grip | Bontrager XR Trail Elite, nylon lock-on |
| Crankset | E*thirteen E*spec Race carbon, 34T, 165 mm length |
| Pedals | VP-536 nylon platform |
| Chain | SRAM XX1 Eagle, 12 speed |
| Shifters | SRAM X01 Eagle, 12 speed |
| Saddle | Bontrager Arvada, austenite rails, 138 mm width |
| Headset | Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom |
| Derailleur : Rear | SRAM X01 Eagle |
| Hub : Front | Bontrager alloy, sealed bearing, 6-bolt, 108T Rapid Drive, SRAM XD driver, Boost148, 12 mm thru axle |
| Hub : Rear | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
| Cassette | SRAM Eagle XG-1275, 10-52, 12 speed |
| Motor Details |
|---|
| Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 20mph |
| Electricals | |
|---|---|
| Battery | Bosch PowerTube 625 |
| Charger | Bosch standard 4A (100-240V) charger |
| Controller | Bosch Kiox with Anti-theft solution |
| Brakes | |
|---|---|
| Front Brake | SRAM Code RSC hydraulic disc Brake Rotor : SRAM CenterLine, 6-bolt, round-edge, 180 mm |
| Rear Brake | SRAM Code RSC hydraulic disc Brake Rotor : SRAM CenterLine, 6-bolt, round edge, 200 mm |
| Chassis and Suspension | |
|---|---|
| Frame | OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB), tapered head tube, Knock Block, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel |
| Tyres | |
|---|---|
| Wheels / Rim | Front : NEW Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle Rear : Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru axle |
| Front Tyre | Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewall, aramid bead, 60 tpi, 29 x 2.60'' |
| Rear Tyre | Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewall, aramid bead, 60 tpi, 29 x 2.60'' |
| Dimensions | |
|---|---|
| Weight | 22.42 kg |
| Additional Details |
|---|
| Shock : NEW RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230 x 57.5 mm |
