Urban Arrow Family Electric Bicycle Price, Specs and Features

Price, features and specs

Family Active PLUS Disc Deore 400Wh Price : € 4.590
Family Performance Disc Deore 500Wh Price : € 4.990
Family Cargo Line Disc Zee 500Wh Price : € 5.390

Rate Urban Arrow Family:

3.0/5 (4 votes)

Compare
Write a Review

Urban Arrow Family Price € 4390 [Almere, Netherlands]

The given price can change depending on the colour, accessories and other features.

Country, City	Showroom Price	On Road Price
Netherlands, Almere	€ 4390	--
Netherlands, Amsterdam	€ 4390	--
Netherlands, Rotterdam	€ 4390	--
Netherlands, The Hague	€ 4390	--

Buy new Urban Arrow Family

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Urban Arrow Family.

For Exciting Offers, Book a Test Drive

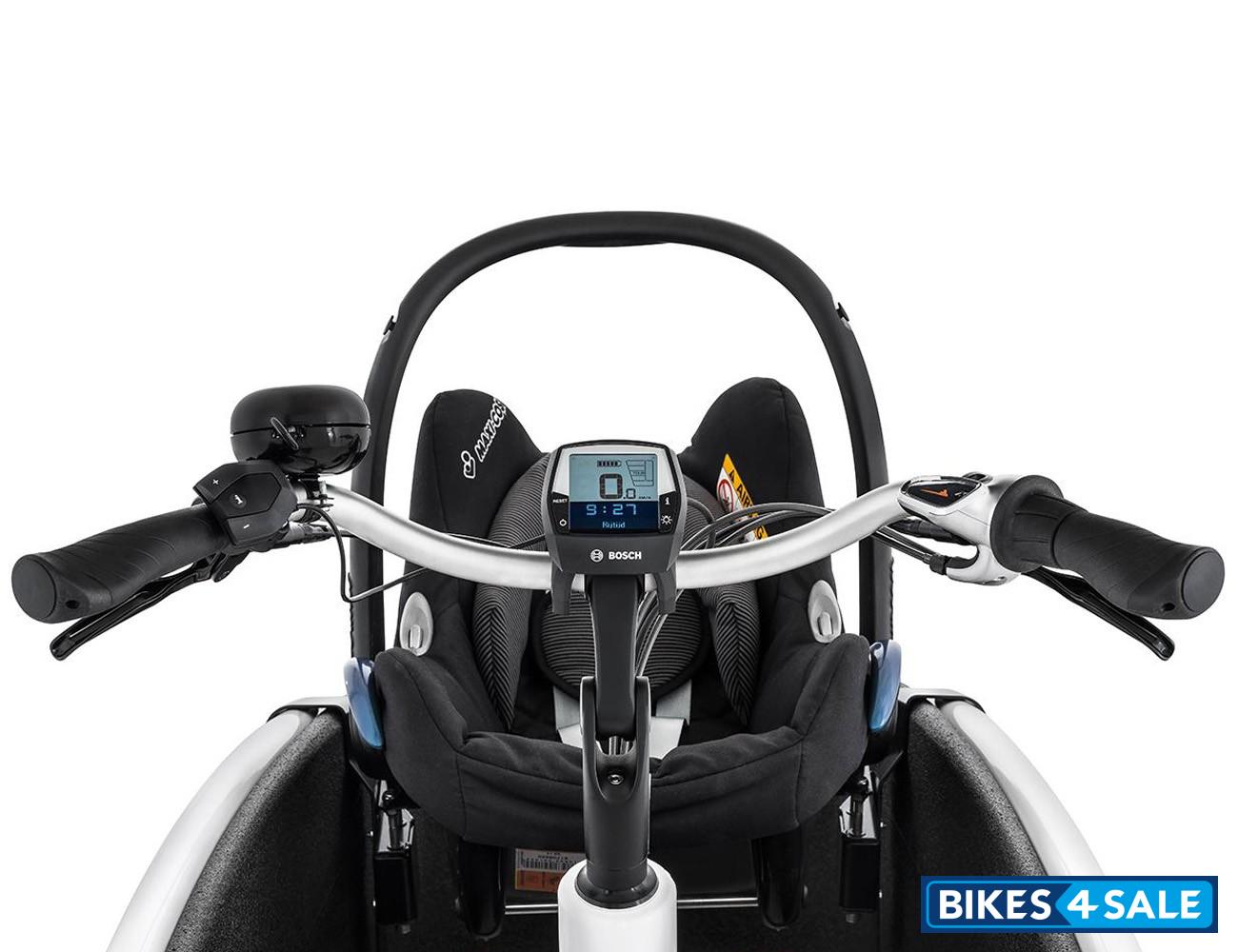

Picture Gallery

Similar Bicycles

Jasion EB7 2.0

Gyroor C3

Retrospec Chatham Rev 2

Rad Power Bikes RadKick 7

Revi Rebel 2

Velotric Fold 1

Colours

Black
White

Urban Arrow Dealers

More Dealers

View all Urban Arrow Showrooms

View All Showrooms

Technical Specifications

Vehicle Type	Bicycle
Fuel	Electric
Stem	TranzX JD-ST17-2 black 1-1/8 25,4 110 mm
Handlebar	Ergotec Moon cruiser 25,4 black
Fork	UA rigid fork
Seatpost	Satori Trident 31,6 400 mm black
Grip	Ergon GC10
Crankset	Lasco EB05 BNI 170 mm
Pedals	C558
Shifters	Enviolo CT - City
Saddle	Selle Royal Rio Plus
Hub : Front	Shimano IM40, 36H
Hub : Rear	Enviolo Trekking, 36H

Motor Details
Bosch Active Line Plus Gen 3, 250 W

Display
Bosch Purion

Electricals
Battery	Bosch 400 Wh
Head Lamp	Spanninga Axendo 40
Tail Lamp	Spanninga Plateo XE 6V-36V

Brakes
Front Brake	Shimano Rollerbrake ABRC6000FB; Trektro CL-530-TS (lever)
Rear Brake	Shimano Rollerbrake ABRC6000RC (brake); Trektro CL-530-TS (lever)

Chassis and Suspension
Frame	UA4.2, aluminium

Tyres
Wheels / Rim	Rear rim : Ryde Andra 40 Double wall 26" x 1.75; Sapim spokes (13G) Front rim : Ryde Andra 40 Double wall 20" x 1.75; Sapim spokes (14G)
Front Tyre	Schwalbe Big Ben Plus 55-406
Rear Tyre	Schwalbe Big Ben Plus 55-559

Dimensions
Length	2600 mm
Width	700 mm
Height	1100 mm
Weight	51 kg

Accessories
- The Raincover Plus - Black Seat Straps - Extra Bench - Maxi Cosi Adapter - The Poncho - The Rear Carrier - The Yepp Mini Adapter - THe Bike parka - The Box Cover - The Luggage Net - The Floor Mat

Additional Details
Drive line : Chain, KMC X1 Silver 102L Rear sprocket : Enviolo 17T flat Front sprocket : Lasco 38T, 4 hole, 104BCD Chainguard : Hebie chainglider front 38T, 350R NV16, 16-22T for Enviolo Steering rod : UA Family steering rod & steering rod support 2020 Valve : Schrader Rear fender : SKS 65 mm 26" Black matte Front fender : SKS 65 mm 20" Black matte Max total weight : 200 Kg Bike + Rider + Load
