Brushless DC radial air gap motor
Peak Power: 35kW peak power at motor shaft
Max Current: 275 Amps
Range
5.5 kWh battery (up to 100km of range)
8 kWh battery (up to 150km range)
13 kWh battery (up to 230km of range)
16 kWh pack (up to 280km range)
Charging Time
100 km per hour
Display
LCD Display
Electricals
Battery
Type : LiCoxNiyMnzO with STOBA
Capacity : From 5,4 to 14,4kwh
Battery Deep Discharge Cycles : 1800
Estimated Battery Life : 8 year or 80.000 km
Rated Voltage : 133,3VDC
Charger
3,3 or 6,6 kw On-board
Recharge Requirements: 110V-230V (50/60Hz)
Warranty for Battery
3 Years Warranty
Tail Lamp
LED
Brakes
Front Brake
Brembo hydraulic brake
Rear Brake
Brembo hydraulic brake
Chassis and Suspension
Frame
Lightweight aluminium frame
Tyres
Wheels / Rim
Type : Grimeca Aluminum Rim
Front: 120/70 – 14″
Rear: 140/60 – 13″
Front Tyre
32 psi (2.2 bar)
Rear Tyre
40 psi (2.8 bar)
Dimensions
Seat Height
774 mm
Wheelbase
1525 mm
Additional Details

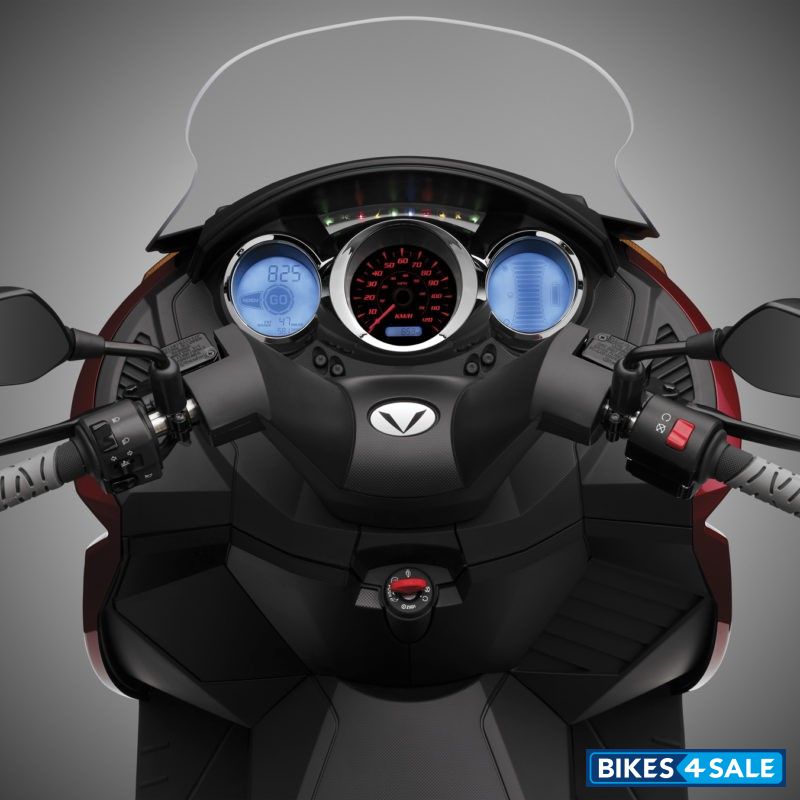

Instrumentation: LCDs display speed, odometer, energy consumption, battery status, estimated range and system status, Turn signals, Low/high beam ,Reverse gear , Side stand , Battery voltage warning , High temperature warning , Service wrench
Controller : DSP and IGTB based all-digital electronic control and motor drive system
BMS : Vectrix; Architecture built on Linear Technology battery stack monitor, 48 voltage channels, 16 temperature channels

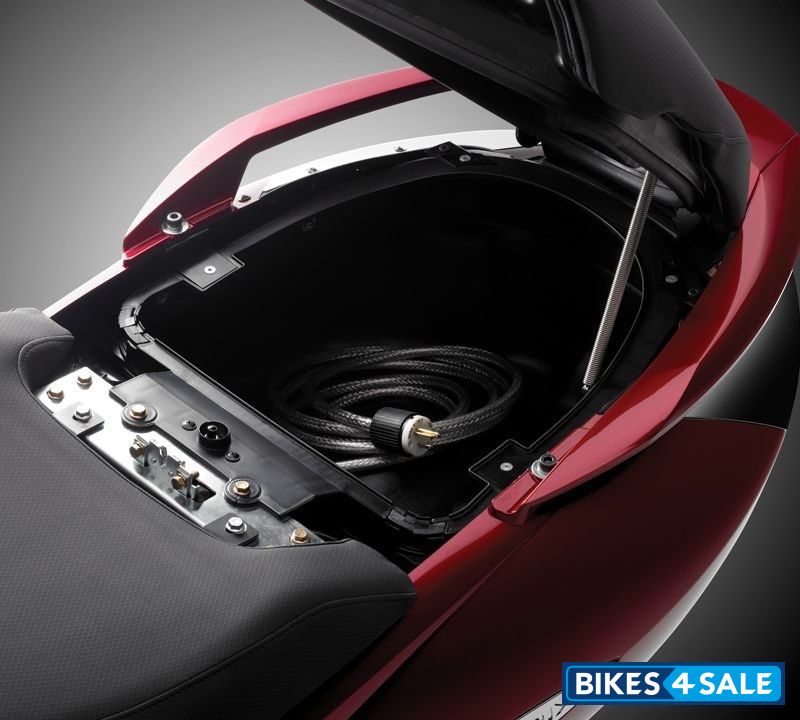

Storage Capacity : Under-Seat storage for one full-faced helmet, glove compartment below dash
Gearbox : Integrated rear-wheel mounted planetary gear drive – single stage
Underseat/ Trunk Capacity -: 12kg (26lbs)
Glovebox Capacity: 2kg (4lbs)
Cargo Box and Contents not to exceed : 9kg (20lbs)
