The given price can change depending on the colour, accessories and other features.
| Country, City | Showroom Price | On Road Price |
|---|---|---|
| Germany, Hamburg | € 4552 | -- |
Book a Test Drive through Bikes4Sale and we will try to get you the best offer for MERIDA eScultura 400.

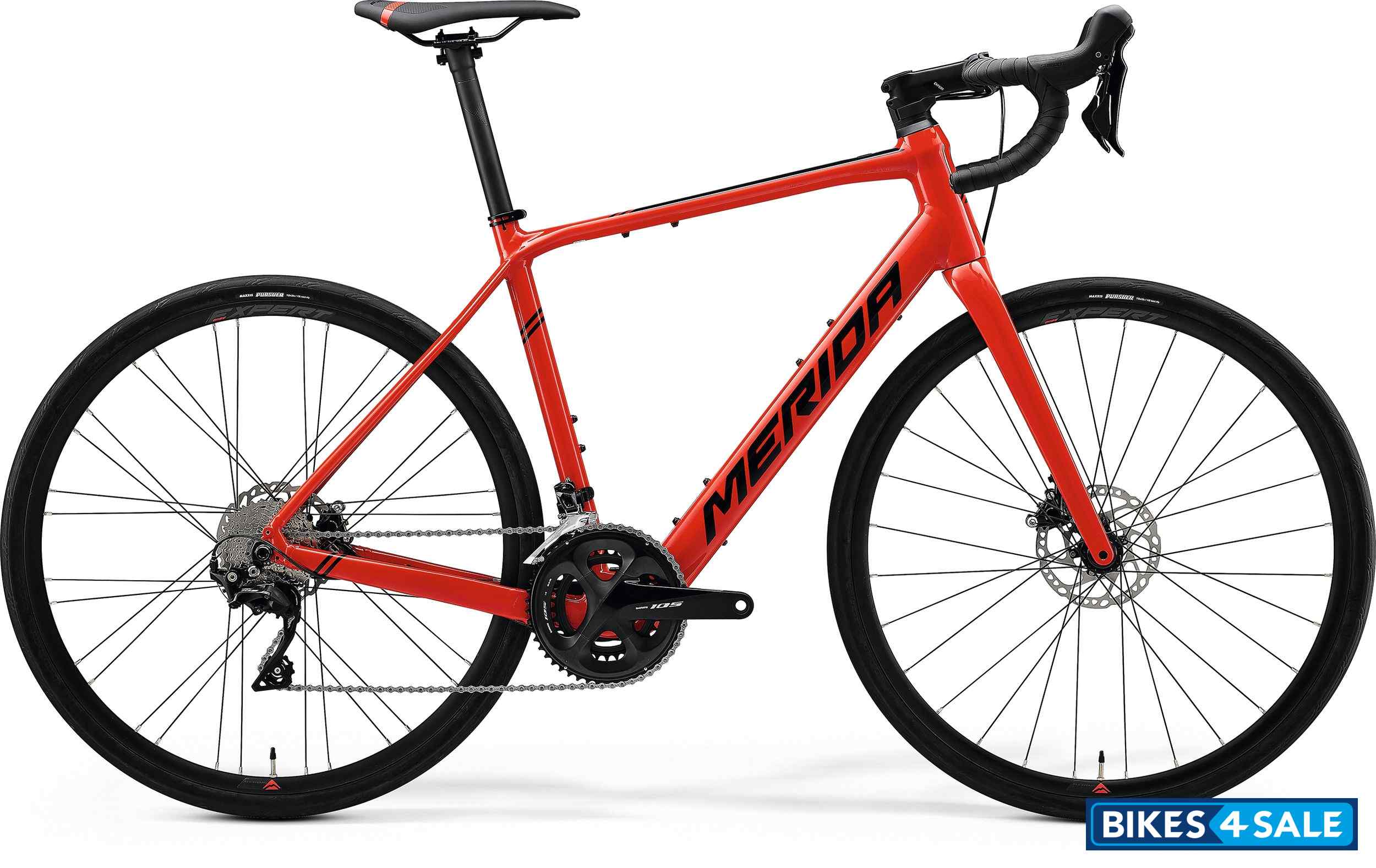

RACE RED (BLACK)

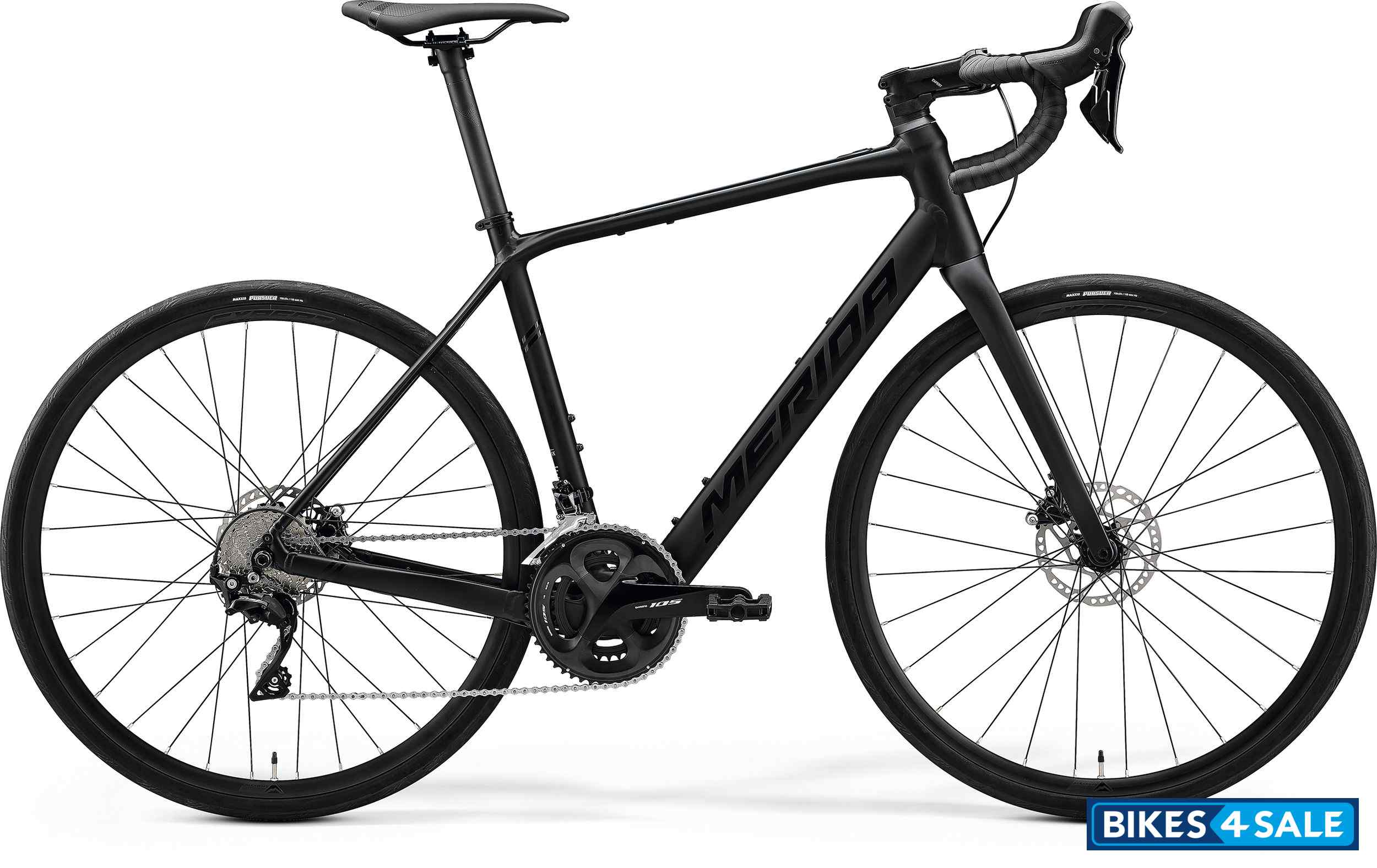

MATT BLACK (GLOSSY BLACK)
| Vehicle Type | Bicycle |
| Fuel | Electric |
| Drivetrain | Mahle X35+ Hub Engine 40Nm |
| Stem | MERIDA EXPERT IR Material: aluminium 31.8mm diameter 5° stem angle 80 mm- XXS/XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL |
| Handlebar | MERIDA EXPERT CW Material: aluminium 400mm (XS/S), 420mm (M/L), 440 (XL) |
| Fork | MERIDA SCULTURA CF MDF09 Material: carbon 700x40C w/ fender max wheelsize |
| Seatpost | MERIDA EXPERT CC Material: carbon 30.9mm diameter 0mm setback |
| Grip | MERIDA ROAD EXPERT |
| Crankset | Shimano 105 50-34 teeth 170 mm-XS/S/SM/ML, 175 mm-L/XL |
| Pedals | VP VPE-891 |
| Chain | KMC e11s |
| Saddle | MERIDA COMP SL V-mount |
| Headset | VP MH-P16 |
| Derailleur : Front | Shimano 105 |
| Derailleur : Rear | Shimano 105 GS |
| Hub : Front | VP CLK170F 100x12mm width front hub 28 spoke holes Centerlock |
| Spoke | Black stainless |
| Bottom Bracket | Shimano BSA |
| Electricals | |
|---|---|
| Battery | Mahle B1-D 250Wh |
| Head Lamp | Dlight CG-119PG STZVO |
| Tail Lamp | Dlight CG-404RG STVZO |
| Brakes | |
|---|---|
| Front Brake | Shimano 105 2 piston |
| Rear Brake | Shimano 105 2 piston |
| Chassis and Suspension | |
|---|---|
| Frame | eSCULTURA LITE Material: aluminium 700x45C / 700x42C (with fender) / 27,5x47C max. wheelsize 100x9/135x9mm axle standard BSA bottom bracket standard FRAME SIZE : XS, S, M, L, XL |
| Tyres | |
|---|---|
| Wheels / Rim | MERIDA EXPERT SL 17mm inner width 22mm height aluminium Tubeless ready (tubeless tape and valves not included) |
| Front Tyre | Maxxis Pursuer 700x32C Fold |
| Rear Tyre | Maxxis Pursuer 700x32C Fold |
| Dimensions | |
|---|---|
| Weight | 120 kg |
| Additional Details |
|---|
| Rotors : Shimano RT64 / Shimano RT66 160 mm Seat Clamp : MERIDA EXPERT FreeWheel : Shimano 105 11-32 teeth 11 speed |
