MERIDA eScultura 400 Electric Bicycle

Price, features and specs

Rate MERIDA eScultura 400:
4.0/5 (4 votes)
MERIDA eScultura 400 Price 4552 [Hamburg, Germany]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
Germany, Hamburg € 4552 --
Buy new MERIDA eScultura 400

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for MERIDA eScultura 400.

For Exciting Offers, Book a Test Drive
By submitting, you agree to our Terms & Conditions.
2772
Features
- MAHLE ebikemotion X35+ hub motor gives natural feeling assistance
- Efficient, low drag pedalling above assistance limit
- Slick Shimano 105 groupset with double chainset
- Triple butted aluminium frame with built-in 250 Wh battery
- Sleek 'normal bike' silhouette and low weight

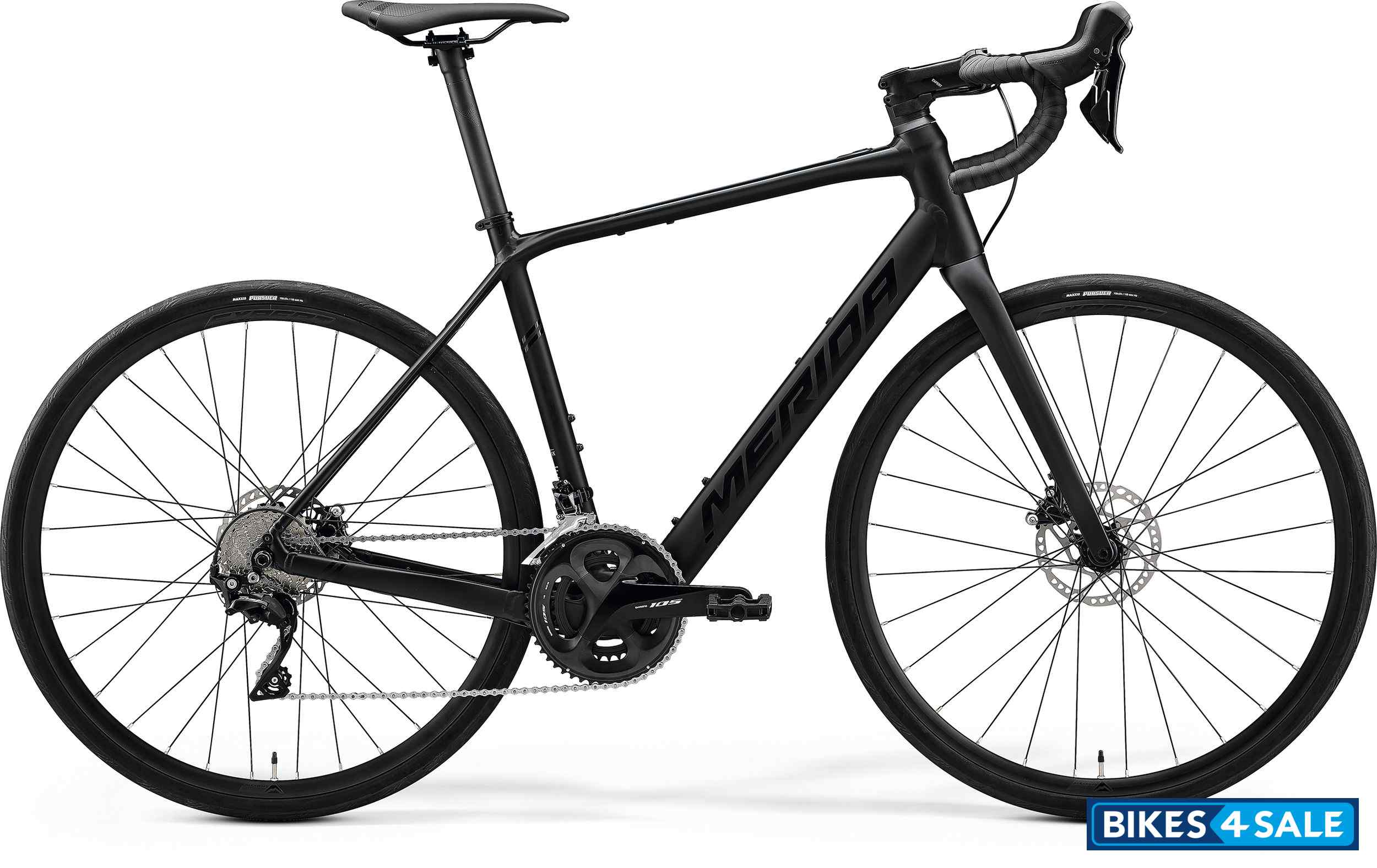

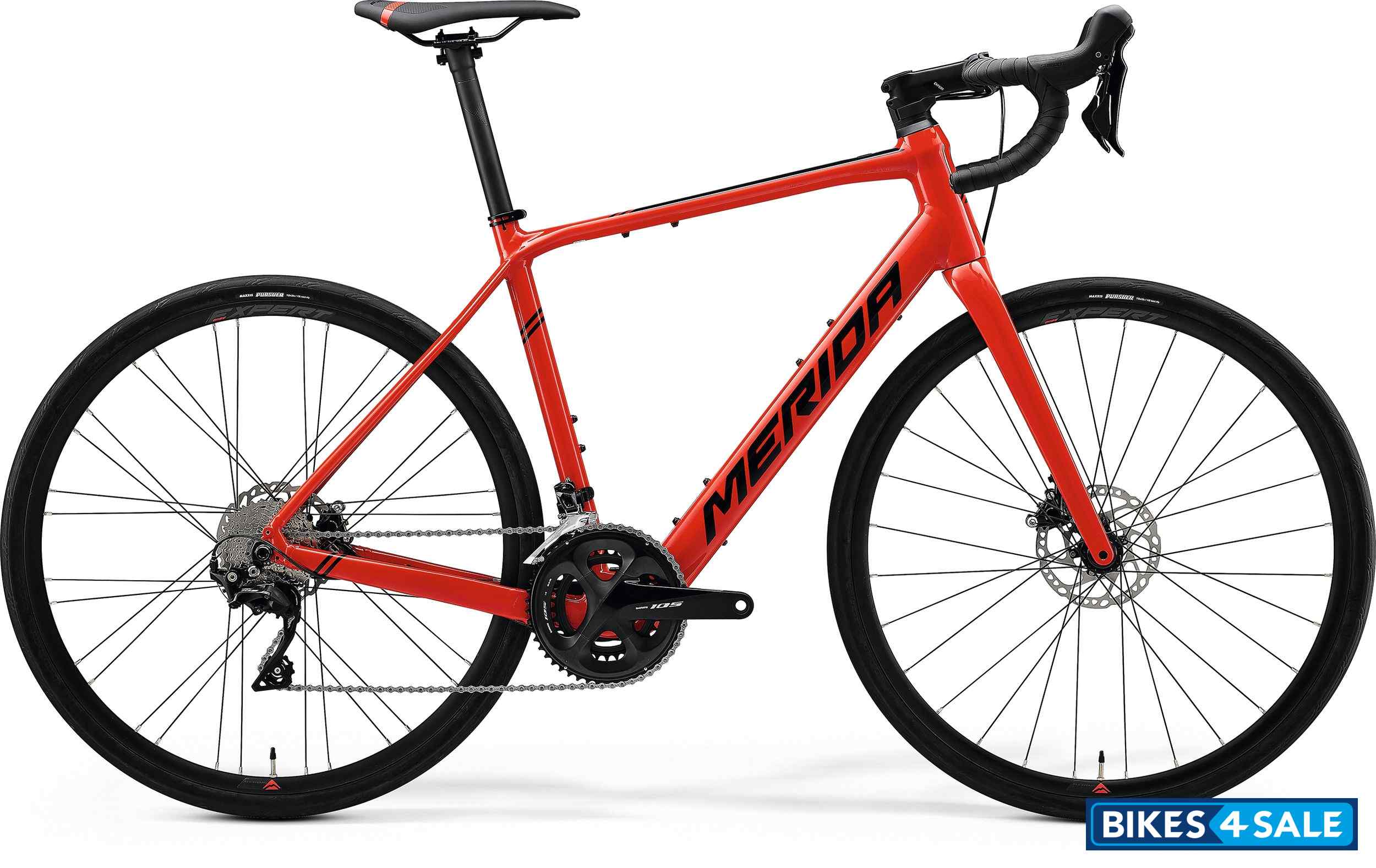

Colours

RACE RED (BLACK)
MATT BLACK (GLOSSY BLACK)

Technical Specifications
Vehicle TypeBicycle
FuelElectric
DrivetrainMahle X35+ Hub Engine
40Nm
StemMERIDA EXPERT IR
Material: aluminium
31.8mm diameter
5° stem angle
80 mm- XXS/XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL
HandlebarMERIDA EXPERT CW
Material: aluminium
400mm (XS/S), 420mm (M/L), 440 (XL)
ForkMERIDA SCULTURA CF
MDF09
Material: carbon
700x40C w/ fender max wheelsize
SeatpostMERIDA EXPERT CC
Material: carbon
30.9mm diameter
0mm setback
GripMERIDA ROAD EXPERT
CranksetShimano 105
50-34 teeth
170 mm-XS/S/SM/ML, 175 mm-L/XL
PedalsVP VPE-891
ChainKMC e11s
SaddleMERIDA COMP SL
V-mount
HeadsetVP MH-P16
Derailleur : FrontShimano 105
Derailleur : RearShimano 105
GS
Hub : FrontVP CLK170F
100x12mm width front hub
28 spoke holes
Centerlock
SpokeBlack stainless
Bottom BracketShimano BSA
Electricals
BatteryMahle B1-D
250Wh
Head LampDlight CG-119PG
STZVO
Tail LampDlight CG-404RG
STVZO
Brakes
Front BrakeShimano 105
2 piston
Rear BrakeShimano 105
2 piston
Chassis and Suspension
FrameeSCULTURA LITE
Material: aluminium
700x45C / 700x42C (with fender) / 27,5x47C max. wheelsize
100x9/135x9mm axle standard
BSA bottom bracket standard
FRAME SIZE : XS, S, M, L, XL
Tyres
Wheels / RimMERIDA EXPERT SL
17mm inner width
22mm height aluminium
Tubeless ready (tubeless tape and valves not included)
Front TyreMaxxis Pursuer
700x32C
Fold
Rear TyreMaxxis Pursuer
700x32C
Fold
Dimensions
Weight120 kg
Additional Details
Rotors : Shimano RT64 / Shimano RT66
160 mm
Seat Clamp : MERIDA EXPERT
FreeWheel : Shimano 105
11-32 teeth
11 speed
