The given price can change depending on the colour, accessories and other features.
| Country, City | Showroom Price | On Road Price |
|---|---|---|
| United States, Alabama | $ 6299 | -- |
| United States, Alaska | $ 6299 | -- |
| United States, Arizona | $ 6299 | -- |
| United States, Atlanta | $ 6299 | -- |
| United States, Austin | $ 6299 | -- |
| United States, Baltimore | $ 6299 | -- |
| United States, Boston | $ 6299 | -- |
| United States, Charleston | $ 6299 | -- |
| United States, Charlotte | $ 6299 | -- |
| United States, Chicago | $ 6299 | -- |

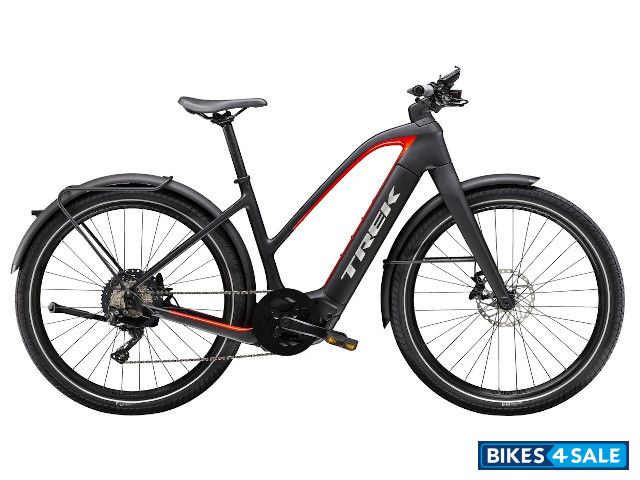

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Trek Allant Plus 9.9S Stagger.
Matte Trek Black/Gloss Red
| Vehicle Type | Bicycle |
| Fuel | Electric |
| Load Carrying Capacity | Combined weight of bicycle, rider, and cargo of 300 pounds (136 kg) |
| Stem | Size : S - Allant+ forged alloy, integrated cable routing, 45 mm length, 31.8 mm clamp Size : M - Allant+ forged alloy, integrated cable routing, 75 mm length, 31.8 mm clamp Size : L - Allant+ forged alloy, integrated cable routing, 95 mm length, 31.8 mm clamp |
| Handlebar | Size : S, M - Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 600 mm width Size : L - Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 660 mm width |
| Fork | Allant Carbon fork, post mount disc, 100 x 15 mm thru axle |
| Seatpost | Size : S, M - Bontrager Comp, 6061 alloy, 31.6 mm, 8 mm offset, 330 mm length Size : L - Bontrager Comp, 6061 alloy, 31.6 mm, 8 mm offset, 400 mm length |
| Grip | Bontrager Satellite IsoZone Plus, lock-on, ergonomic |
| Crankset | Size : S, M - ProWheel alloy, 170 mm Size : L - ProWheel alloy, 175 mm |
| Pedals | Bontrager City pedals |
| Chain | Shimano SLX M7100, 12 speed |
| Shifters | Shimano XT M8100, 12 speed |
| Saddle | Bontrager Commuter Comp |
| Derailleur : Rear | Shimano XT M8120, long cage, Shadow Plus design |
| Hub : Front | Shimano Deore XT, 32h, centerlock disc, 12 mm thru-axle |
| Hub : Rear | Shimano Deore XT M8110, centerlock disc, 15 mm thru-axle |
| Spoke | DT Swiss 14g, black |
| Cassette | Shimano SLX M7100, 10-45T, 12 speed |
| Chainrings | ProWheel 46T narrow/wide steel, w/alloy guard |
| Stand | Pletscher Comp Flex 18 |
| Motor Details |
|---|
| Bosch Performance Speed, 75 Nm, 28 mph / 45 kph |
| Display |
|---|
| Bosch SmartphoneHub |
| Electricals | |
|---|---|
| Battery | Bosch PowerTube 625 |
| Charger | Bosch standard 4A (100-240V) charger |
| Controller | Bosch SmartphoneHub |
| Head Lamp | Trek Lync headlight, 500 lumens |
| Tail Lamp | Trek Lync taillight, 50 lumens |
| Brakes | |
|---|---|
| Front Brake | Shimano MT520 4-piston hydraulic disc, post-mount, 180 mm rotor Brake Rotor : Shimano RT64, 180 mm, centerlock |
| Rear Brake | Shimano MT520 4-piston hydraulic disc, 180 mm rotor Brake Rotor : Shimano EM600, 180 mm, centerlock |
| Brake Lever | Shimano MT520 4-piston hydraulic disc |
| Chassis and Suspension | |
|---|---|
| Frame | OCLV Carbon, Removable Integrated Battery, Range Boost compatible, Motor Armor, internal cable routing, post-mount disc, 12 mm thru axle |
| Tyres | |
|---|---|
| Wheels / Rim | Alex MD35, tubeless compatible, 32-hole, 35 mm width, presta valve |
| Front Tyre | Bontrager E6 Hard-Case Lite, reflective, wire bead, 60tpi, 27.5 x 2.40'' |
| Rear Tyre | Bontrager E6 Hard-Case Lite, reflective, wire bead, 60tpi, 27.5 x 2.4'' |
| Dimensions | |
|---|---|
| Weight | 21.89 kg |
| Additional Details |
|---|
| Cargo rack : Allant integrated rear rack, aluminum |
