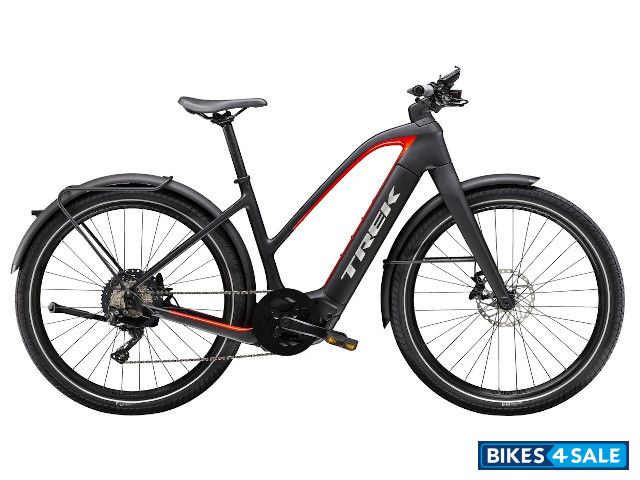

Trek Allant Plus 9.9S Stagger

Price, review, features and specs

Rate Trek Allant Plus 9.9S Stagger:
3.8/5 (4 votes)
Add To Compare
Write a Review
Trek Allant Plus 9.9S Stagger Price $ 6299 [Alabama, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Alabama $ 6299 --
United States, Alaska $ 6299 --
United States, Arizona $ 6299 --
United States, Atlanta $ 6299 --
United States, Austin $ 6299 --
United States, Baltimore $ 6299 --
United States, Boston $ 6299 --
View price in other cities
Buy new Trek Allant Plus 9.9S Stagger

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Trek Allant Plus 9.9S Stagger.

For Exciting Offers, Book a Test Drive
6975
Features
- Bosch Smartphone Hub Display
- Bosch Powertube
- Removable Integrated Battery (RIB) System - Pavement
- Cable Guide
Similar Bicycles
Colours

Matte Trek Black/Gloss Red

Technical Specifications
Vehicle TypeBicycle
FuelElectric
Load Carrying CapacityCombined weight of bicycle, rider, and cargo of 300 pounds (136 kg)
StemSize : S - Allant+ forged alloy, integrated cable routing, 45 mm length, 31.8 mm clamp
Size : M - Allant+ forged alloy, integrated cable routing, 75 mm length, 31.8 mm clamp
Size : L - Allant+ forged alloy, integrated cable routing, 95 mm length, 31.8 mm clamp
HandlebarSize : S, M - Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 600 mm width
Size : L - Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 660 mm width
ForkAllant Carbon fork, post mount disc, 100 x 15 mm thru axle
SeatpostSize : S, M - Bontrager Comp, 6061 alloy, 31.6 mm, 8 mm offset, 330 mm length
Size : L - Bontrager Comp, 6061 alloy, 31.6 mm, 8 mm offset, 400 mm length
GripBontrager Satellite IsoZone Plus, lock-on, ergonomic
CranksetSize : S, M - ProWheel alloy, 170 mm
Size : L - ProWheel alloy, 175 mm
PedalsBontrager City pedals
ChainShimano SLX M7100, 12 speed
ShiftersShimano XT M8100, 12 speed
SaddleBontrager Commuter Comp
Derailleur : RearShimano XT M8120, long cage, Shadow Plus design
Hub : FrontShimano Deore XT, 32h, centerlock disc, 12 mm thru-axle
Hub : RearShimano Deore XT M8110, centerlock disc, 15 mm thru-axle
SpokeDT Swiss 14g, black
CassetteShimano SLX M7100, 10-45T, 12 speed
ChainringsProWheel 46T narrow/wide steel, w/alloy guard
StandPletscher Comp Flex 18
Motor Details
Bosch Performance Speed, 75 Nm, 28 mph / 45 kph
Display
Bosch SmartphoneHub
Electricals
BatteryBosch PowerTube 625
ChargerBosch standard 4A (100-240V) charger
ControllerBosch SmartphoneHub
Head LampTrek Lync headlight, 500 lumens
Tail LampTrek Lync taillight, 50 lumens
Brakes
Front BrakeShimano MT520 4-piston hydraulic disc, post-mount, 180 mm rotor
Brake Rotor : Shimano RT64, 180 mm, centerlock
Rear BrakeShimano MT520 4-piston hydraulic disc, 180 mm rotor
Brake Rotor : Shimano EM600, 180 mm, centerlock
Brake LeverShimano MT520 4-piston hydraulic disc
Chassis and Suspension
FrameOCLV Carbon, Removable Integrated Battery, Range Boost compatible, Motor Armor, internal cable routing, post-mount disc, 12 mm thru axle
Tyres
Wheels / RimAlex MD35, tubeless compatible, 32-hole, 35 mm width, presta valve
Front TyreBontrager E6 Hard-Case Lite, reflective, wire bead, 60tpi, 27.5 x 2.40''
Rear TyreBontrager E6 Hard-Case Lite, reflective, wire bead, 60tpi, 27.5 x 2.4''
Dimensions
Length x Width x Height-- x -- x -- mm
Weight21.89 kg
Additional Details
Cargo rack : Allant integrated rear rack, aluminum
