Bombtrack Arise Geared

Price, review, features and specs

Rate Bombtrack Arise Geared:
3.5/5 (6 votes)
Add To Compare
Write a Review
Bombtrack Arise Geared Price

Not Available

Buy new Bombtrack Arise Geared

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Bombtrack Arise Geared.

For Exciting Offers, Book a Test Drive
- Double butted crmo frame with sliding dropouts and internal light cable routing

Glossy Metallic Green
Glossy Dark Cherry

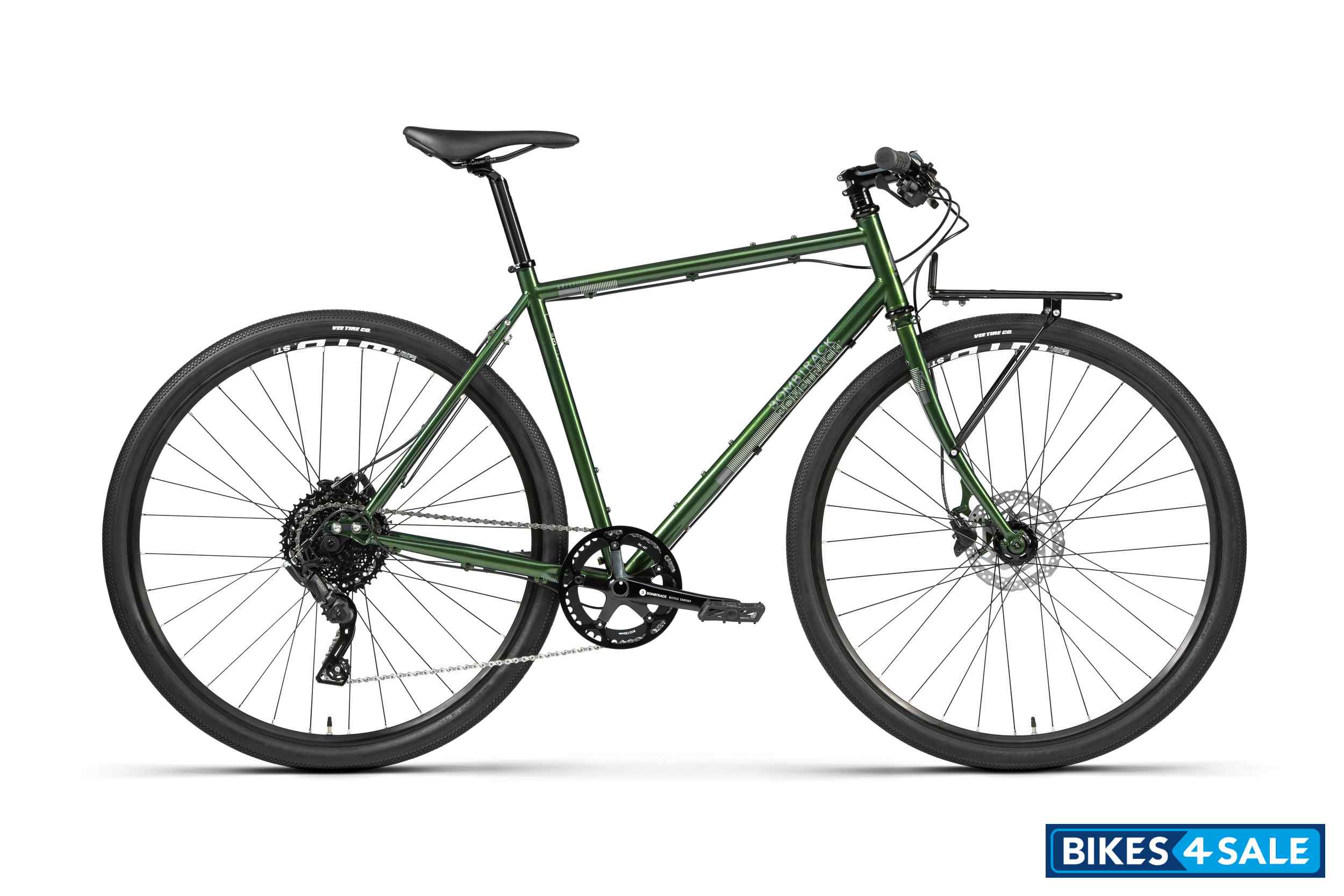

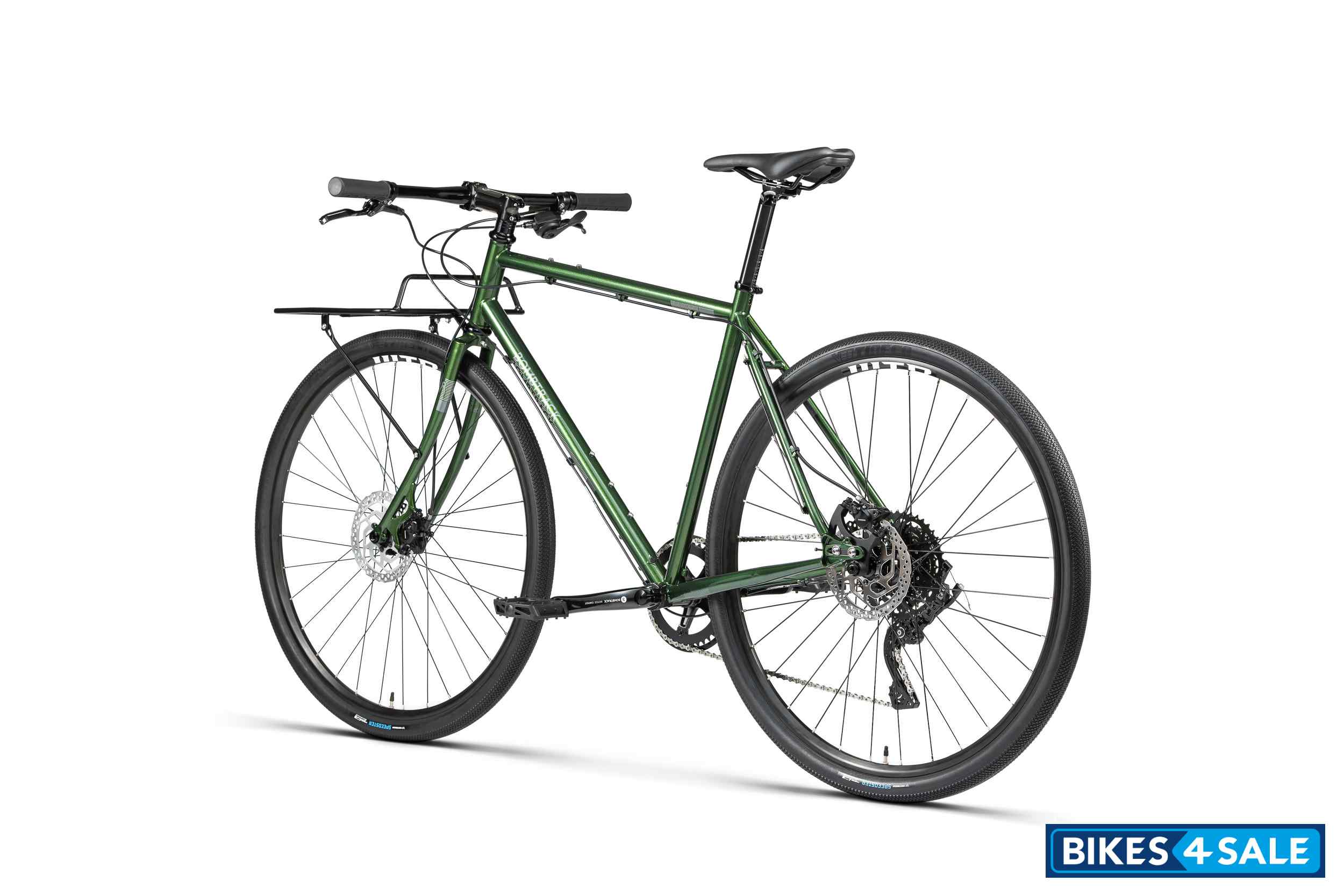

Bombtrack Arise Geared
Bombtrack Arise Geared
Technical Specifications
Vehicle TypeBicycle
StemBombtrack ROAM forged aluminium stem, -7°
HandlebarBombtrack ORIGIN flat bar, 31.8 mm, 8° backsweep
Fork4130 crmo, TA, rack / fender mounts, internal hubdynamo cable routing
SeatSeat Clamp : Bombtrack ORIGIN forged aluminium seat clamp, 29.8 mm
SeatpostBombtrack BEECH aluminium seatpost, 27.2 mm x 300 mm
GripBombtrack SCROLL grips
CranksetMICROSHIFT ADVENT SL-M819-R Shifter 1 x 9
PedalsWELLGO B109N flat pedal
ChainKMC X9 chain, 1/2'' x 11/128'', 114L
ShiftersMICROSHIFT ADVENT SL-M819-R Shifter 1 x 9
SaddleBombtrack ORIGIN saddle
HeadsetNECO H282 sealed external aheadset, 1.1/8''
Derailleur : RearMicroshift ADVENT RD-M6195M wide range, clutch
Hub : FrontBombtrack ARC sealed disc hub, 6-bolt disc
Hub : RearBombtrack ARC sealed disc hub, 11-speed, 6-bolt disc
CassetteMICROSHIFT ADVENT CS-H093 9-speed, 11 - 42 T
ChainringsBombtrack RIDGE aluminium chainring, narrow-wide,42 T, incl. chainguard
Front BrakeSHIMANO BR-MT200 post mount hydraulic disc brake with 160 mm rotors
Rear BrakeSHIMANO BR-MT200 post mount hydraulic disc brake with 160 mm rotors
Chassis and Suspension
Frame4130 double butted crmo, heat treated front triangle,TA sliding dropouts, rack / fender mounts,68 mm BSA BB shell
Wheels / Rim
Front Tyre650B VEE TIRE SPEEDSTER 38-584
Rear Tyre650B VEE TIRE SPEEDSTER 38-584
Length x Width x Height-- x -- x -- mm
Weight12.6 kg
Additional Details
Levers : SHIMANO BL-M200 hydraulic brake levers
Bottom Bracket : BSA sealed BB, external cups
Through axle : 12 x 100 mm / 12 x 142 mm
Rack : Bombtrack DECK frontrack, aluminium
Maximum rider weight : 120 kg incl. luggage
ASTM riding condition : 2
