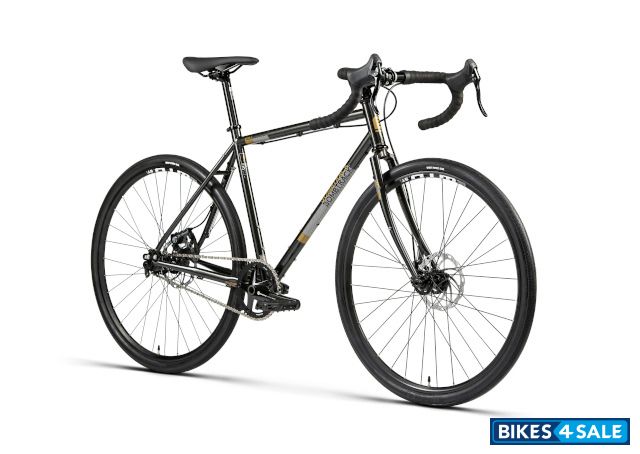

Bombtrack Arise

Price, review, features and specs

Rate Bombtrack Arise:
3.7/5 (3 votes)
Add To Compare
Write a Review
Bombtrack Arise Price

Not Available

Buy new Bombtrack Arise

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Bombtrack Arise.

For Exciting Offers, Book a Test Drive
5389
Features
- Double butted crmo frame with sliding dropouts, internal light cable routing, rack and fender mounts
- Crmo fork with internal light cable routing, rack and fender mounts
- Jagwire KEB-SL compressionless cable housing
- Narrow wide chainring for simple 1x conversion
- WTB ST tubeless ready rims
- Bombtrack ARC disc brake hubs with 12 mm through axles
Colours

Glossy Coffee Black
Glossy Metallic Pearl Blue

Technical Specifications
Vehicle TypeBicycle
StemBOMBTRACK ROAM forged aluminium stem, -7°
HandlebarBOMBTRACK CX-10 drop bar, 31.8 mm, 10° flare
Fork4130 crmo, TA, rack / fender mounts, internal hubdynamo cable routing
SeatSeat Clamp : BOMBTRACK ORIGIN 29.8 mm
SeatpostBOMBTRACK BEECH 27.2 mm x 300 mm
GripBOMBTRACK CONTROL bar tape
CranksetBOMBTRACK TAF19 aluminium crank, 24 mm spindle
PedalsWELLGO B109N flat pedal
ChainKMC X9 chain, 1/2'' x 11/128'', 98L
SaddleBOMBTRACK ORIGIN saddle
HeadsetNECO H282 sealed external aheadset, 1.1/8''
Hub : FrontBOMBTRACK ARC sealed disc hub, 11-speed, 6-bolt disc
Hub : RearBOMBTRACK ARC sealed disc hub, 6-bolt disc
Cassette16 T heat treated crmo cog, 1/2'' x 11/128''
ChainringsBOMBTRACK RIDGE aluminium chainring, narrow-wide, 42 T
Electricals
Battery
Brakes
Front BrakeTEKTRO MIRA post mount mechanic disc brakes with 160 mm rotors
Rear BrakeTEKTRO MIRA post mount mechanic disc brakes with 160 mm rotors
Chassis and Suspension
Frame4130 double butted crmo, heat treated front triangle,TA sliding dropouts, rack / fender mounts,68 mm BSA BB shell
Tyres
Wheels / Rim
Front TyreXS - S 650B VEE TIRE SPEEDSTER 38-584M - XL 700C VEE TIRE SPEEDSTER 40-622
Rear TyreXS - S 650B VEE TIRE SPEEDSTER 38-584M - XL 700C VEE TIRE SPEEDSTER 40-622
Dimensions
Length x Width x Height-- x -- x -- mm
Weight11.4 kg
Additional Details
Levers : TEKTRO RL-340 brake levers
Bottom Bracket : BSA sealed BB, external cups
Through axle : 12 x 100 mm / 12 x 142 mm
Weight frameset : 2480 g frame (size M, incl. TA, hanger) 1370 g fork (300 mm steerer, incl. TA)
Maximum rider weight : 120 kg incl. luggage
ASTM riding condition : 2
