CUBE Aim EX 2022 Bicycle

Price, features and specs

Rate CUBE Aim EX 2022:
4.2/5 (5 votes)
CUBE Aim EX 2022 Price

Not Available

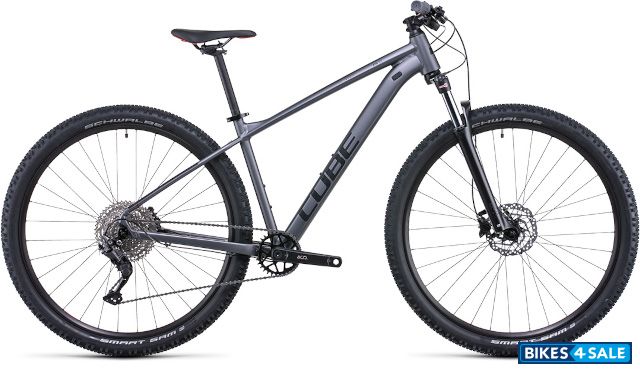

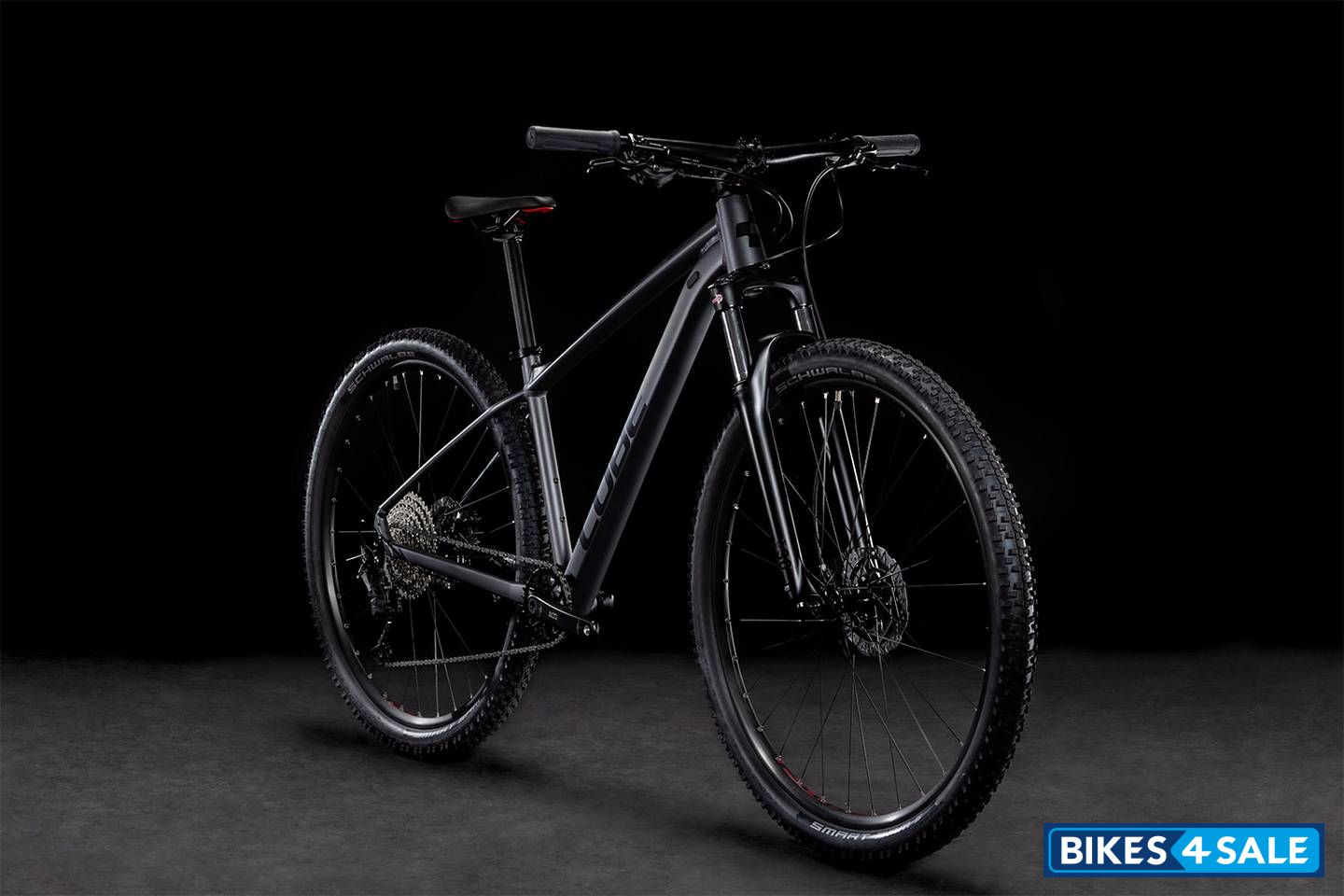

Grey and Red

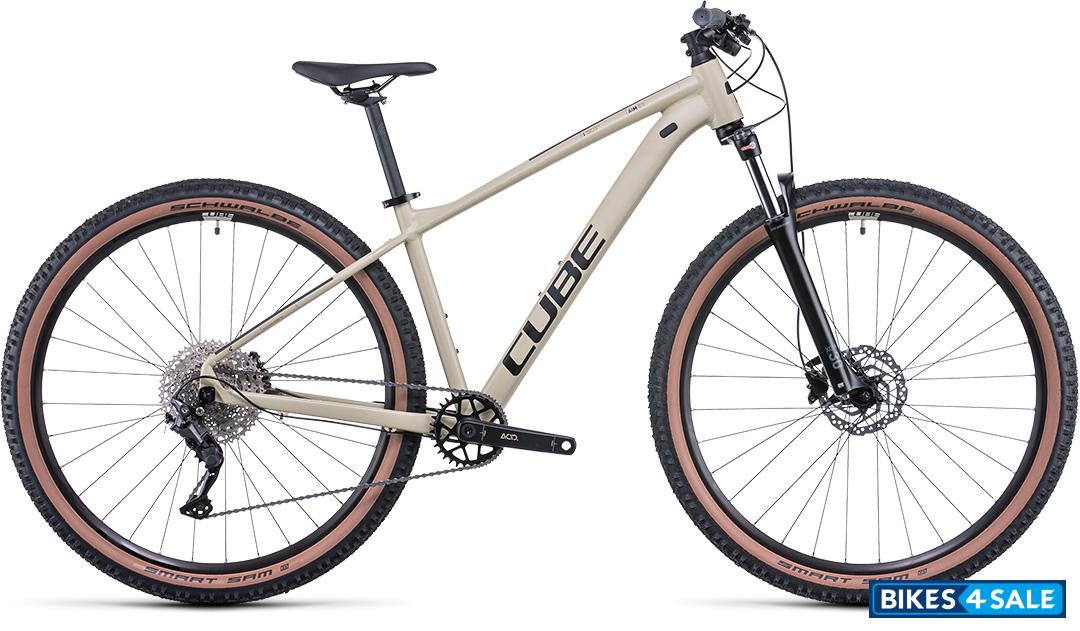

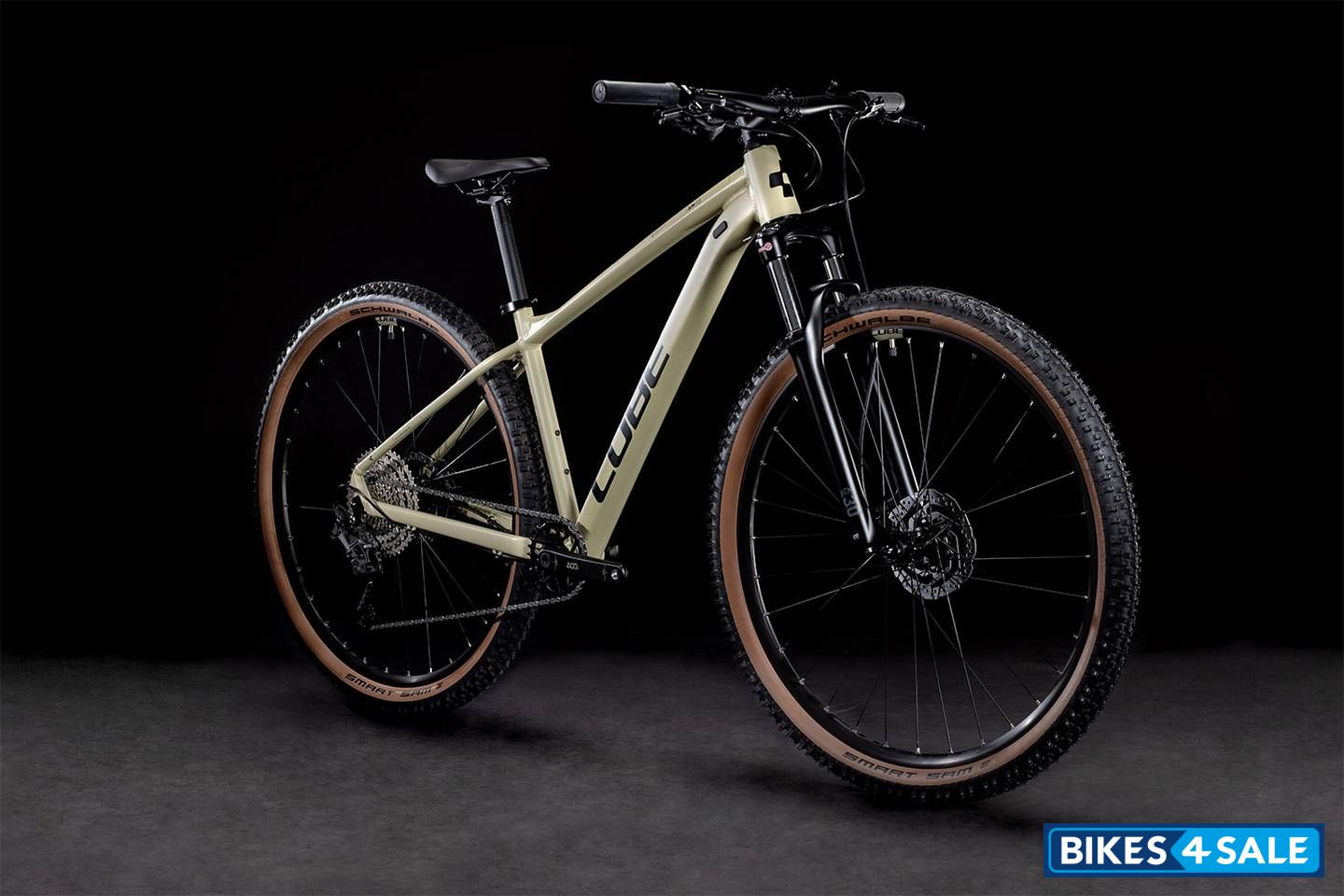

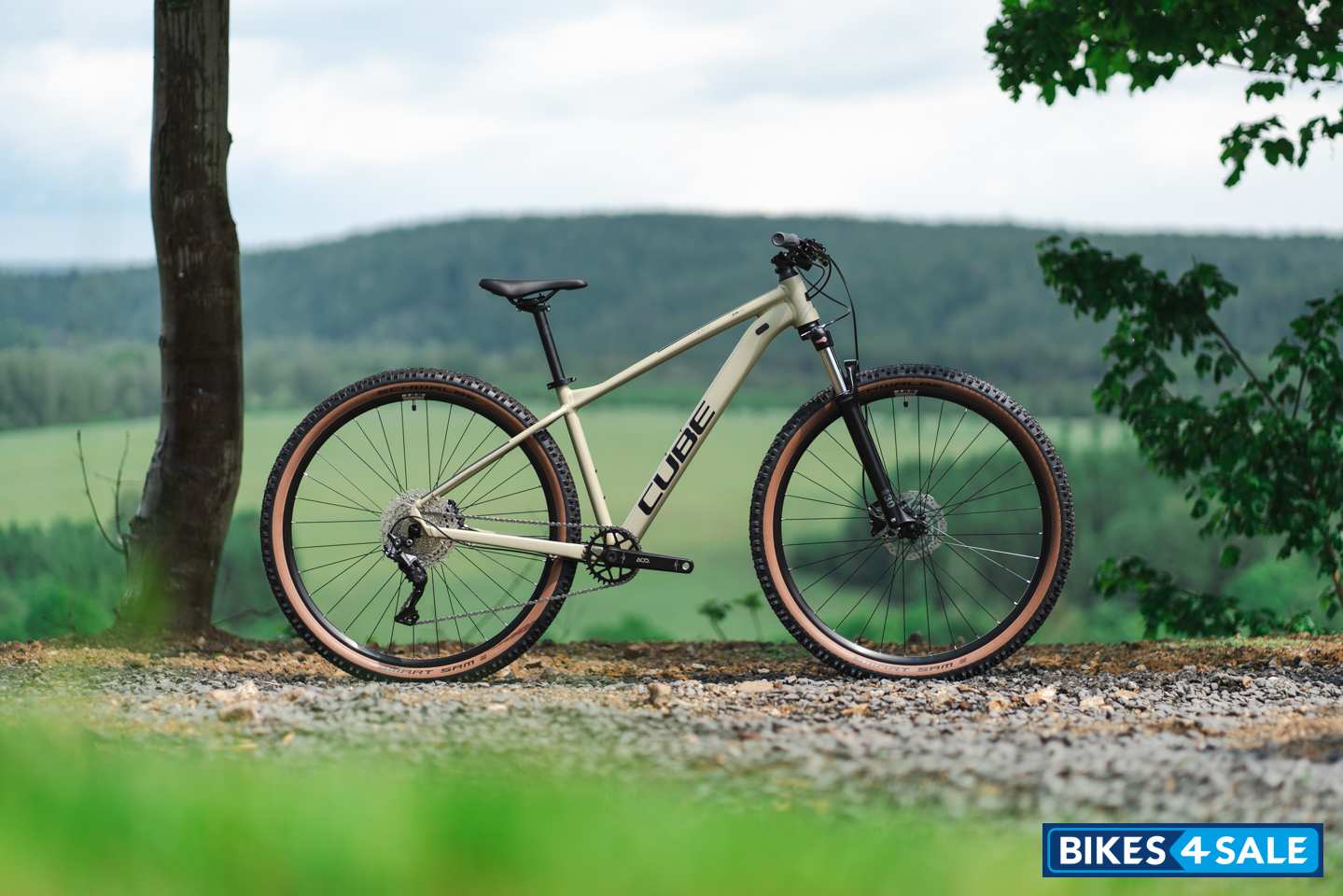

Desert and Black

Technical Specifications
Vehicle TypeBicycle
StemCUBE Performance Stem Pro, 31.8mm
HandlebarCUBE Rise Trail Bar, 680mm
ForkSR Suntour XCM Disc, 100mm, Remote Lockout
SeatSeatClamp: CUBE Varioclose, 31.8mm
SeatpostCUBE Performance Post, 27.2mm
GripACID React
CranksetACID MTB Alloy 32T
ChainKMC X10
ShiftersShimano Deore SL-M4100, Rapidfire-Plus
SaddleNatural Fit Venec Lite
HeadsetCUBE FPH868, Top 1 1/8", Bottom 1 1/2", Semi-Integrated
Derailleur : RearShimano Deore RD-M5120-SGS, 10-Speed
Hub : FrontCUBE Alloy Light, QR, 6-Bolt
Hub : RearCUBE Alloy Light, QR, 6-Bolt
CassetteSunrace CSM52, 11-46T
Bottom BracketThun Paso-ML, 73mm BSA
Front BrakeClarks Clout 1, Hydr. Disc Brake (160/160)
Rear BrakeClarks Clout 1, Hydr. Disc Brake (160/160)
Chassis and Suspension
FrameAluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Wheels / RimRims: CUBE ZX20, 32H, Disc
Front TyreSchwalbe Smart Sam, Active, 2.25
Rear TyreSchwalbe Smart Sam, Active, 2.25
Weight13.9 kg
Additional Details
Size Split: 27.5: XS (14"), S (16") // 29: M (18"), L (20"), XL (22"), XXL (24")
