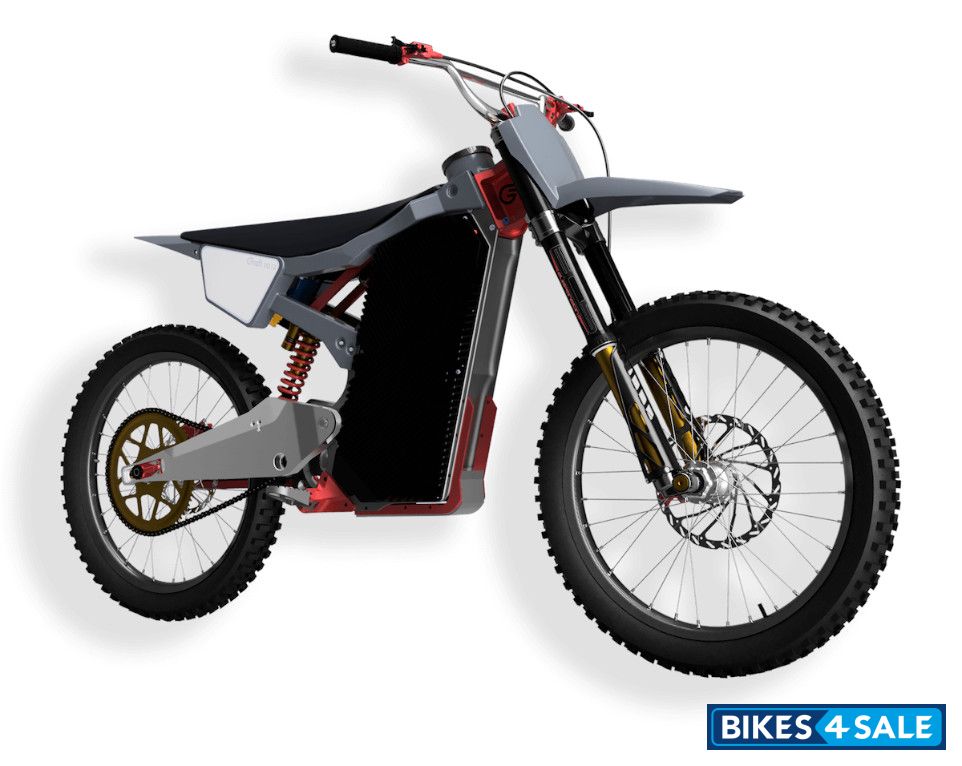

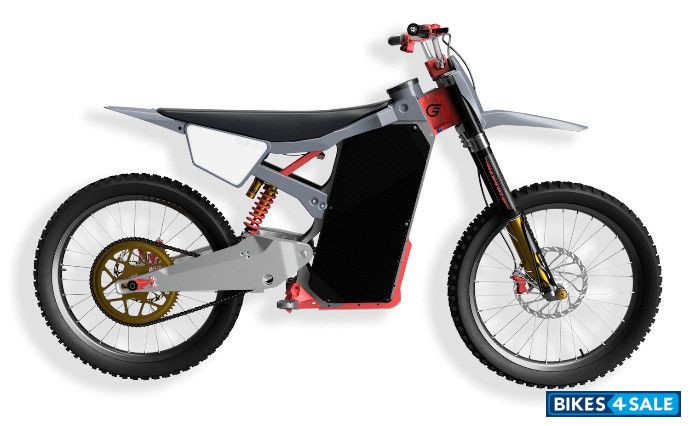

Graft EO.12 Factory Team Edition Electric Motorcycle

Price, features and specs

The Graft EO.12 electric motorcycle from Graft EV is a new electric motor bike made by the Taiwan-based company . It features an 18 kW/24 hp Graft Outrunner BLDC Motor, which provides plenty of power for a thrilling ride. The motorcycle's handlebar is a Spank Vibracore Highrise, which is designed for comfort and control, and the fork is a RST Killah 2-way adjustable fork that provides excellent suspension.

The motorcycle's rear hub is a Graft billet zero dish pin drive, and the spokes are 2.3-2.0 butted steel spokes with Graft Big Head Aluminum double drive nipples. The sprocket is a Graft Billet Aluminum Pin drive, which adds to the bike's overall durability and strength.

The Graft EO.12 also features a 3-inch color touch screen display that allows the rider to easily monitor the motorcycle's performance and battery life. The electrical system is powered by a Graft Powerbox-275 controller, which provides smooth and efficient power delivery.

The motorcycle's braking system includes a 225 mm disc brake in the front and rear, ensuring reliable stopping power in all conditions. The frame of the Graft EO.12 is made of Graft Billet Aluminum, which makes it both lightweight and incredibly strong.

Rate Graft EO.12 Factory Team Edition:
4.0/5 (2 votes)
Graft EO.12 Factory Team Edition Price $ 9000 [Los Angeles, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Los Angeles $ 9000 --
Buy new Graft EO.12 Factory Team Edition

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Graft EO.12 Factory Team Edition.

For Exciting Offers, Book a Test Drive
By submitting, you agree to our Terms & Conditions.
5735
Features
- CNC Machined Frame
- 21 inch Motorcycle Tires
- Touch Screen Display
- Topology Optimization
- Premium Suspensions
- Titanium Components
- Carbon Fiber Wheels
Graft Eo 12 Factory Team Edition

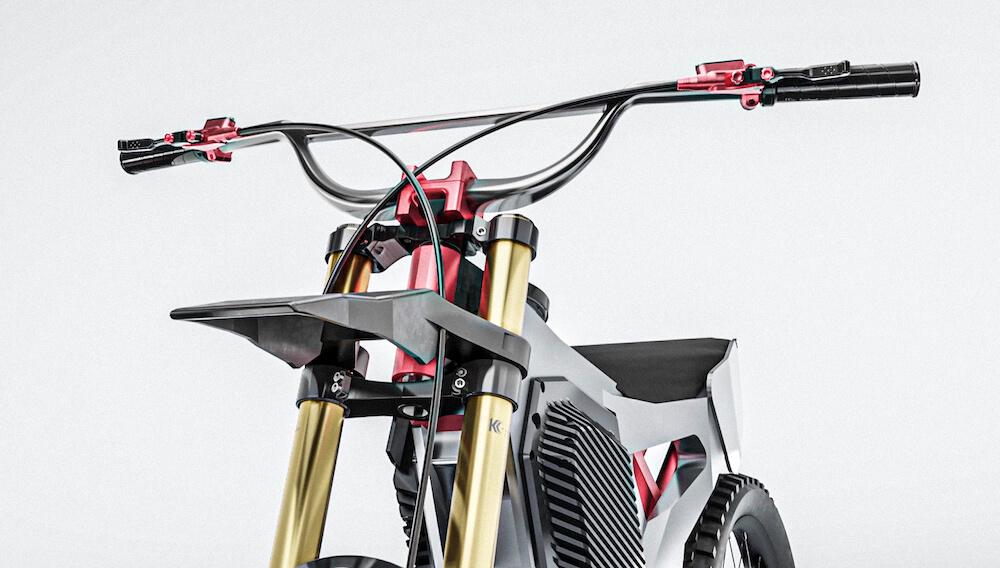

Spank Vibracore Highrise Handlebar

Graft Eo 12 Factory Team Edition

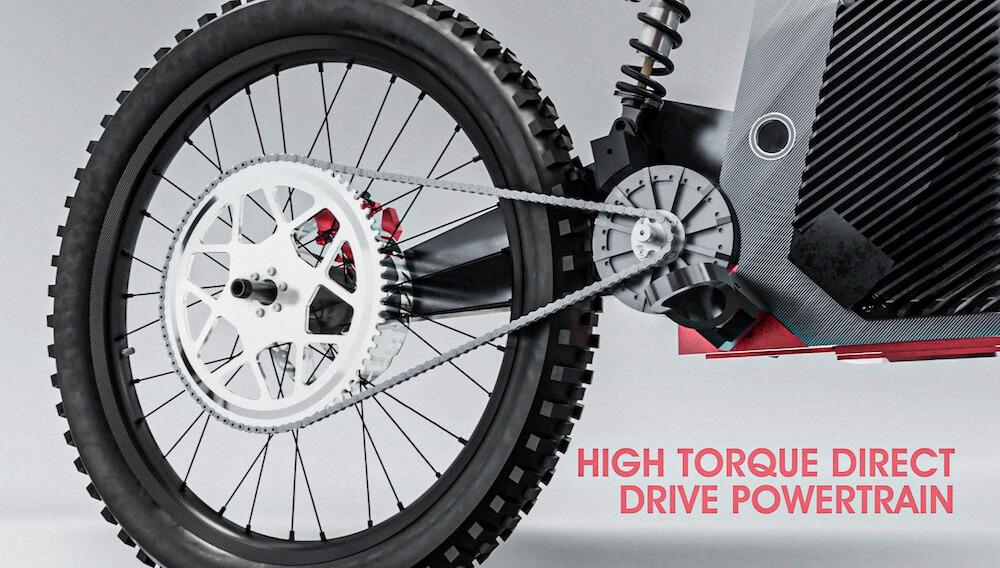

High Torque Direct Drivetrain Power
Similar Motorcycles
Technical Specifications
Vehicle TypeMotorcycle
FuelElectric
Maximum Power25 kW / 33.5 hp
HandlebarSpank Vibracore Highrise
ForkBOS Obsys inverted fork, 42mm stanchions, 3 way adjustable, hydraulic bump stop, Custom Graft Damping calibration
Hub : FrontGraft billet zero dish hub
Hub : RearGraft billet zero dish pin drive
Spoke2.3-2.0 butted steel spokes
Spoke nipples: Graft Big Head Aluminum double drive nipples
SprocketRear Sprocket: Graft Billet Aluminum Pin drive
Motor Details
Graft Outrunner BLDC Motor
Display
3 inch color touch screen display
Electricals
ControllerGraft Powerbox – 300
Brakes
Front Brake246 mm TRP DH-R EV 4 piston calipers
Rear Brake225 mm TRP DH-R EV 4 piston calipers
Chassis and Suspension
FrameGraft Billet Aluminum Factory Edition
Front SuspensionFront Suspension Travel: 220 mm / 8.6 in
Rear SuspensionRear Suspension Travel: 230 mm / 9.0 in
Tyres
Wheels / RimFront Wheel size: 21 inch
Rear Wheel size: 21 inch
Rim: Graft Carb on Rim 21 x 1.6 32 hole
Front TyreDunlop K990 70/100-21 (Bridgestone Gritty 2.75-21)
Rear TyreKenda Ibex 80/100-21
Dimensions
Seat Height878 mm
Wheelbase1400 mm
Weight50 kg
Ground Clearance270 mm
Additional Details
Rotor: Galfer 246 x 2.3 stainless rotor
Wire harness: Fully sealed Motorsport style harness
Vehicle Control unit: Remote Diagnostics / OTA
