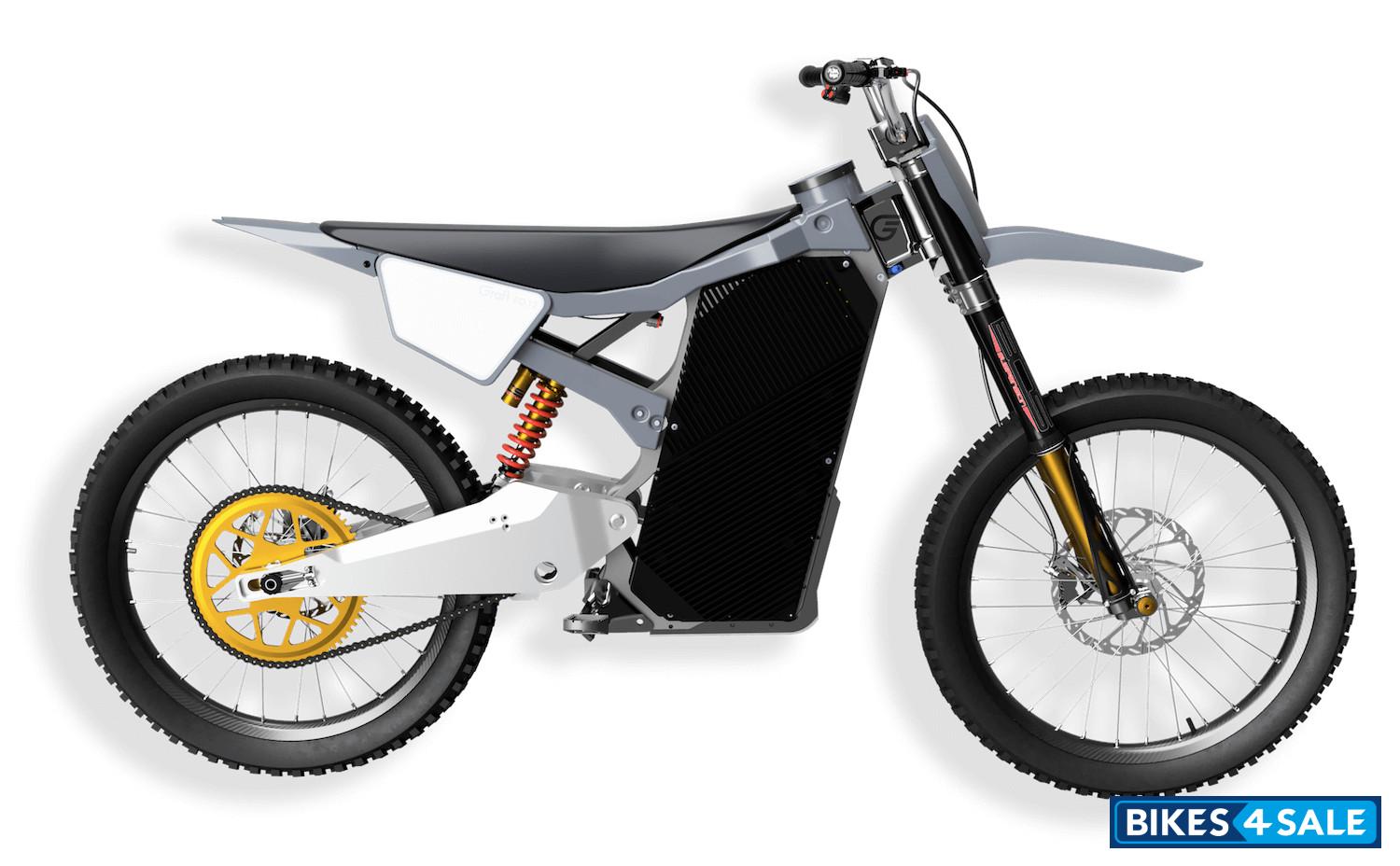

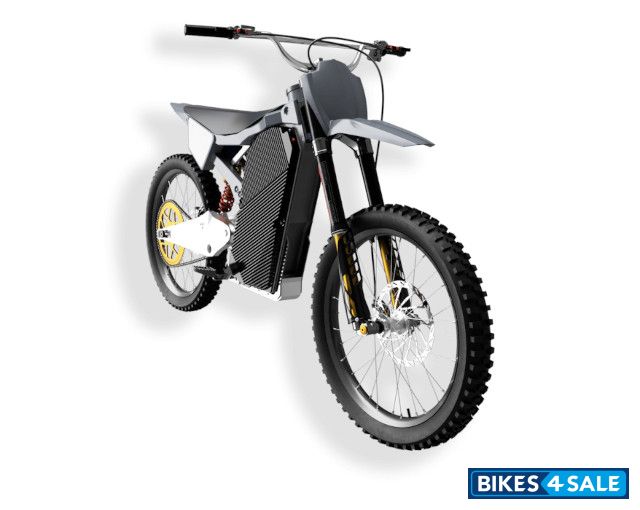

Graft EO.12

Price, review, features and specs

Graft EO.12 has two variants. Base Model Edition and the Factory Team Edition. The specification given below is for the Graft EO.12 Base Model Edition.

Rate Graft EO.12:
4.0/5 (2 votes)
Add To Compare
Write a Review
Graft EO.12 Price $ 6500 [New York, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, New York $ 6500 --
Buy new Graft EO.12

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Graft EO.12.

For Exciting Offers, Book a Test Drive
By submitting, you agree to our Terms & Conditions.
962
Features
- CNC Machined Frame
- 21 inch Motorcycle Tires
- Touch Screen Display
- Topology Optimization
- Premium Suspensions
- Titanium Components
- Carbon Fiber Wheels

Graft Eo 12

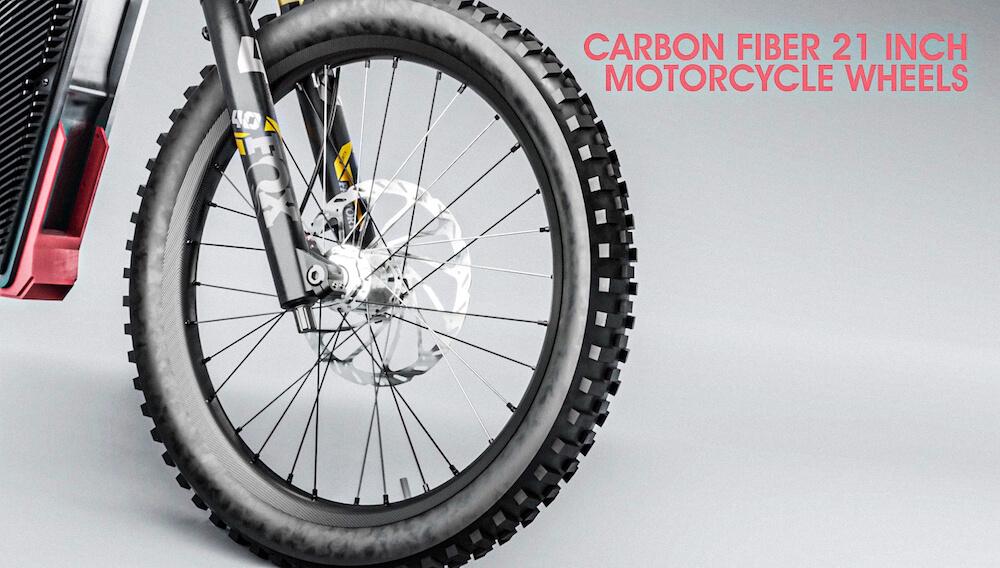

Carbon Fiber Wheels
Similar Motorcycles
Technical Specifications
Vehicle TypeMotorcycle
FuelElectric
Maximum Power18 kW / 24 hp
HandlebarSpank Vibracore Highrise
ForkRST Killah 2 way adjustable
Hub : RearGraft billet zero dish pin drive
Spoke2.3-2.0 butted steel spokes
Spoke nipples: : Graft Big Head Aluminum double drive nipples
SprocketGraft Billet Aluminum Pin drive
Motor Details
Graft Outrunner BLDC Motor
Display
3 inch color touch screen display
Electricals
ControllerGraft Powerbox – 275
Brakes
Front Brake225 mm Disc
Rear Brake225 mm Disc
Chassis and Suspension
FrameGraft Billet Aluminum
Front SuspensionFront Suspension Travel: 200 mm / 7.8 in
Rear SuspensionRear Suspension Travel: 218 mm / 8.6 in
Tyres
Wheels / RimFront Wheel size: 21 inch
Rear Wheel size: 21 inch
Rim: Excel Aluminum 21 x 1.6 32 hole
Front TyreKenda K270 2.75-21
Rear TyreKenda K270 2.75-21
Dimensions
Seat Height878 mm
Wheelbase1400 mm
Weight58 kg
Ground Clearance270 mm
Additional Details
Rotor: Tektro 225 x 1.8 stainless rotor
Foot pegs: Aluminum High Grip
Rear Shock: RPM GII rebound adjustable
Wire harness: Fully sealed Motorsport style harness
Vehicle Control unit: Remote Diagnostics / OTA
