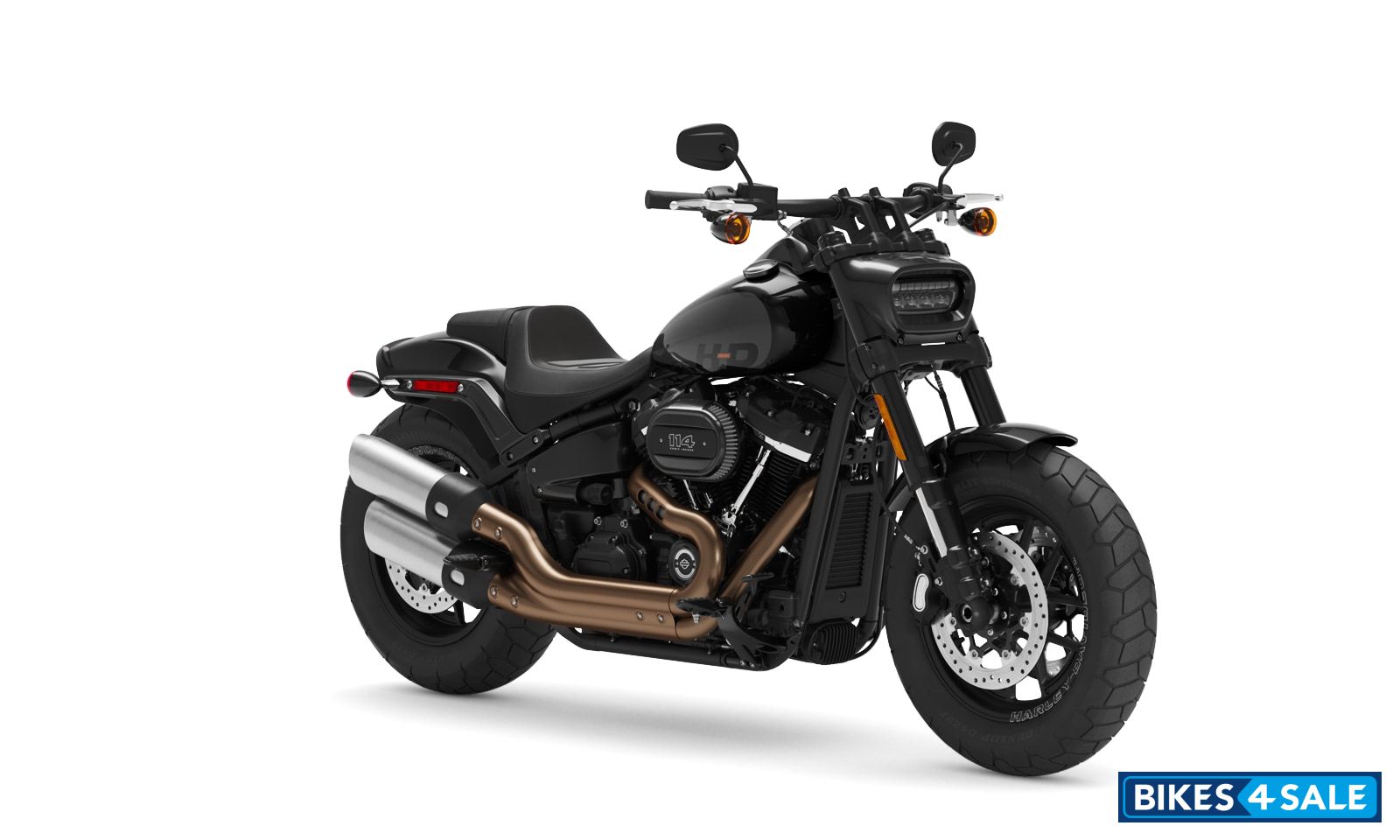

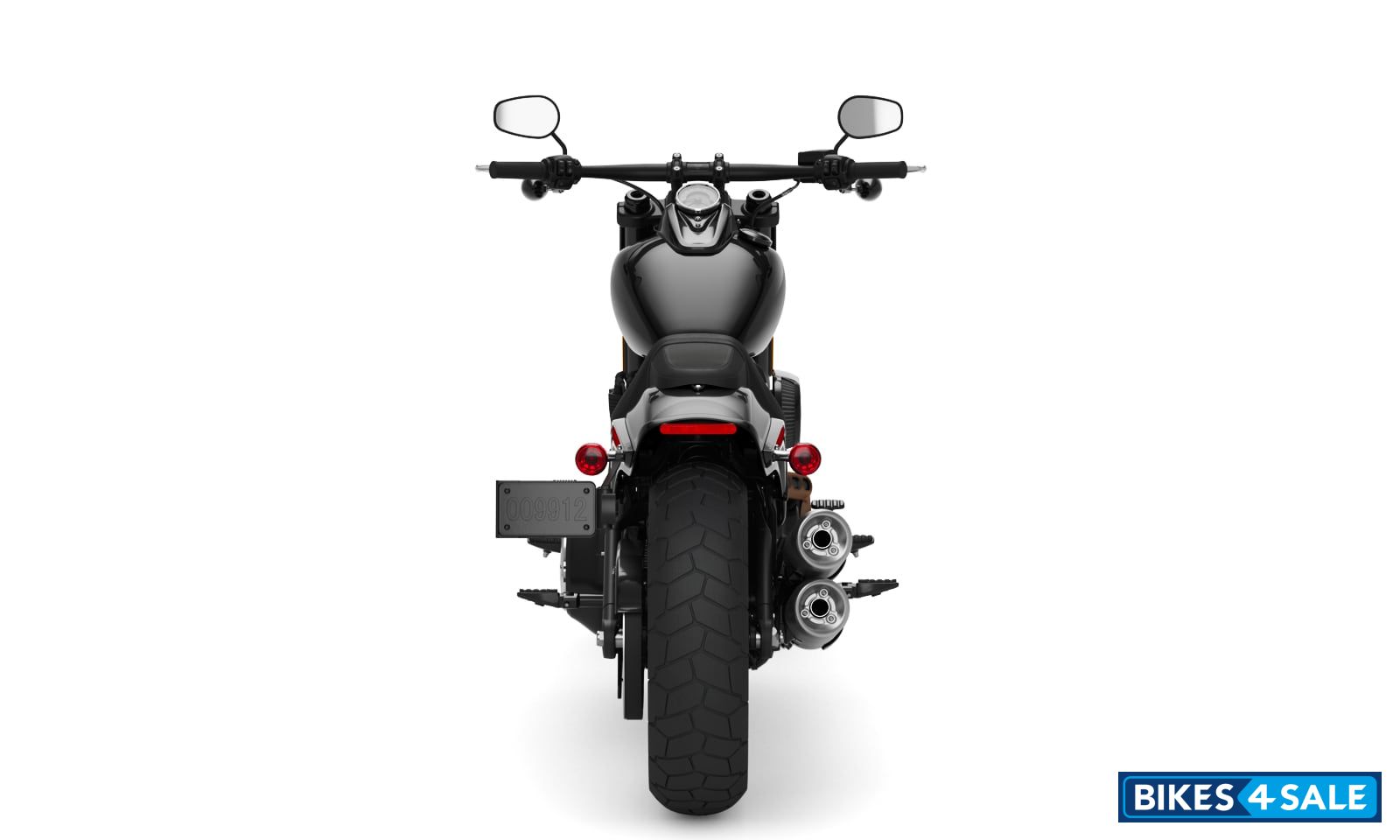

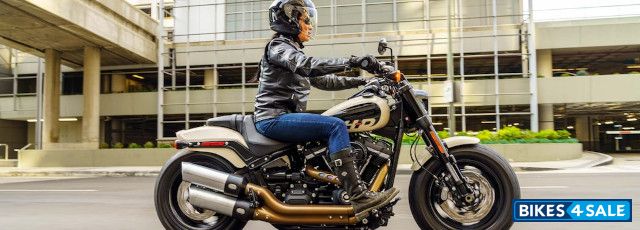

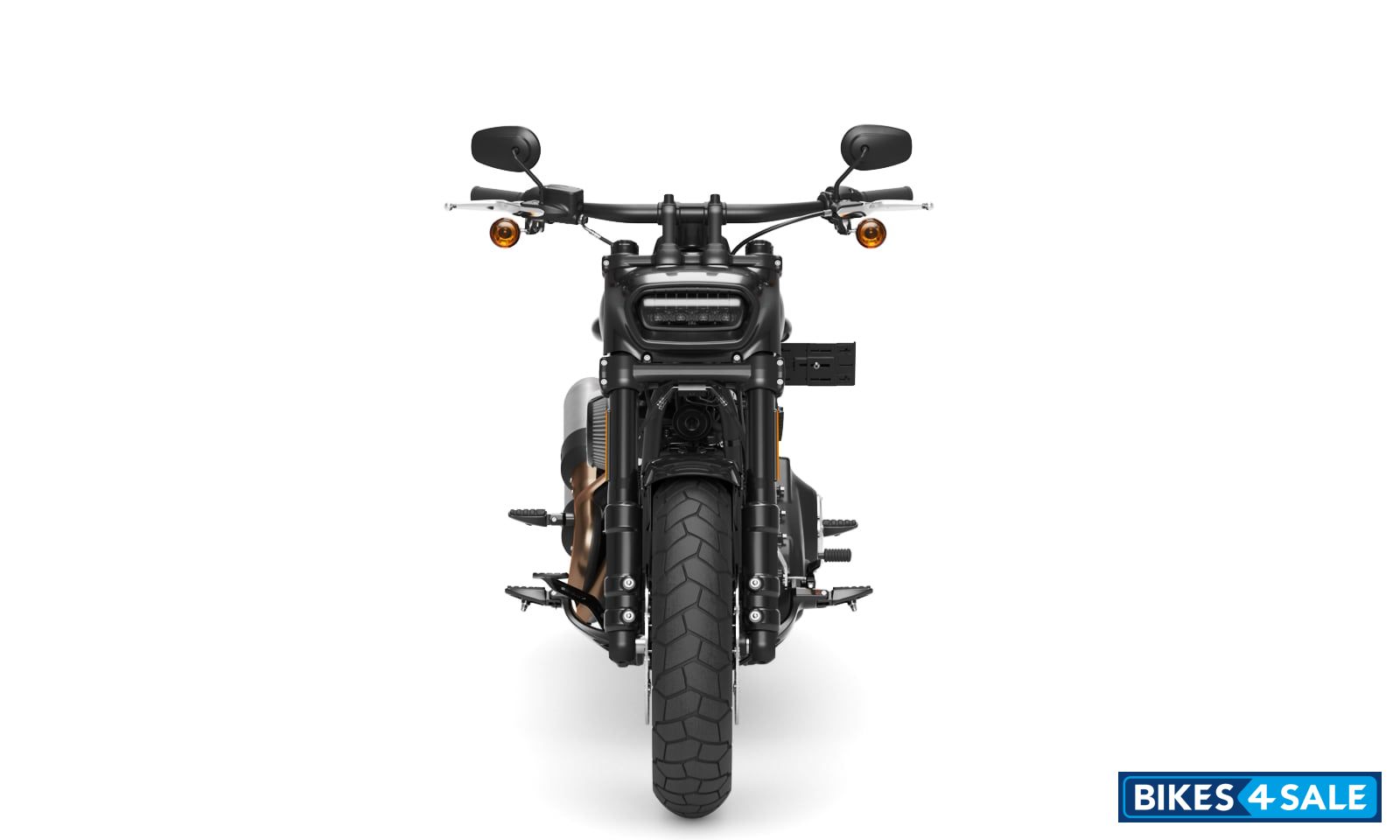

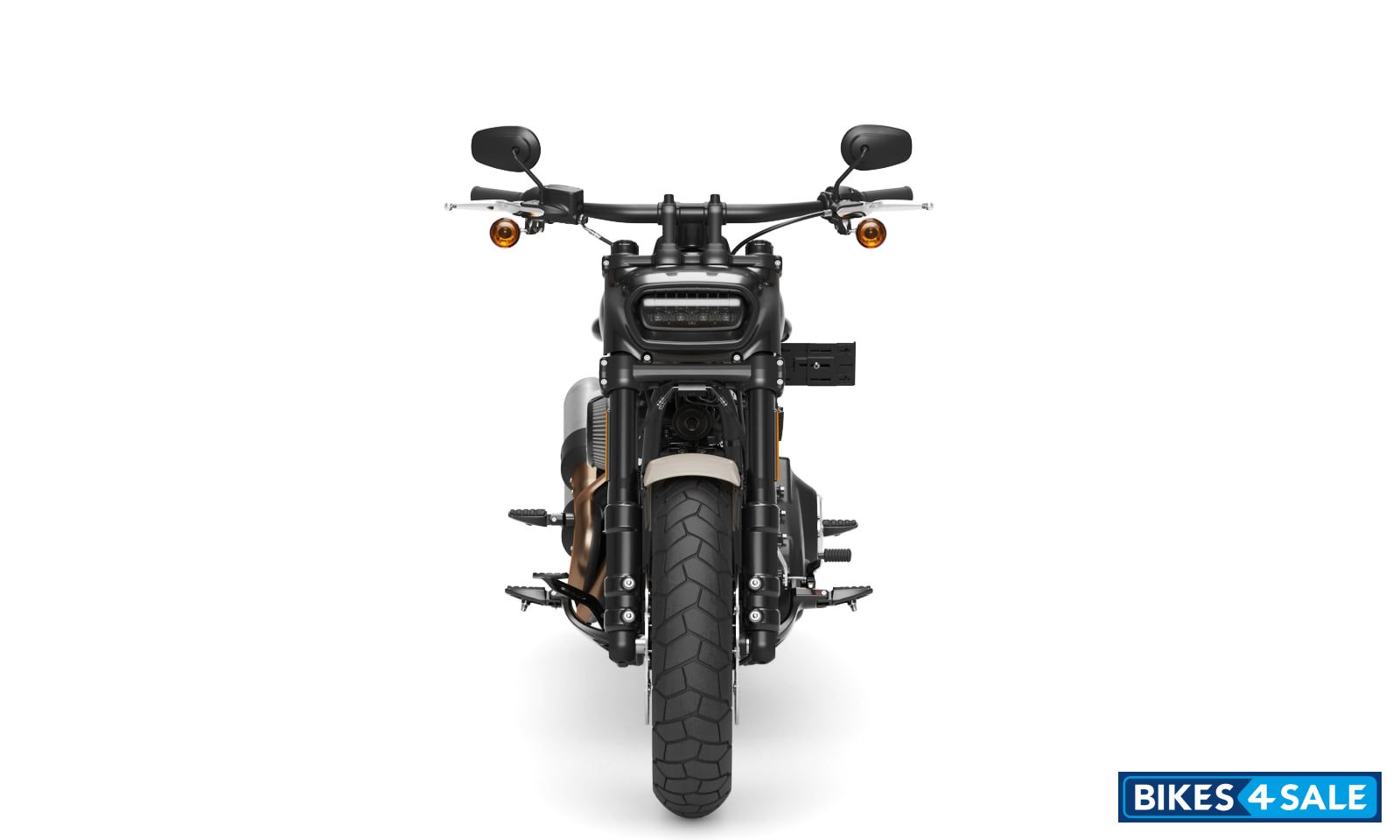

Harley Davidson 2022 Fat Bob 114

Price, review, features and specs

Rate Harley Davidson 2022 Fat Bob 114:
4.0/5 (3 votes)
Add To Compare
Write a Review
Harley Davidson 2022 Fat Bob 114 Price $ 18330 [Chicago, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Chicago $ 18330 --
Buy new Harley Davidson 2022 Fat Bob 114

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Harley Davidson 2022 Fat Bob 114.

For Exciting Offers, Book a Test Drive
By submitting, you agree to our Terms & Conditions.
2976
Features
- MILWAUKEE-EIGHT BIG TWIN ENGINE
- DUAL DISC FRONT BRAKES
- 2-1-2 EXHAUST
- RACE-STYLE FORK TECHNOLOGY
Colours

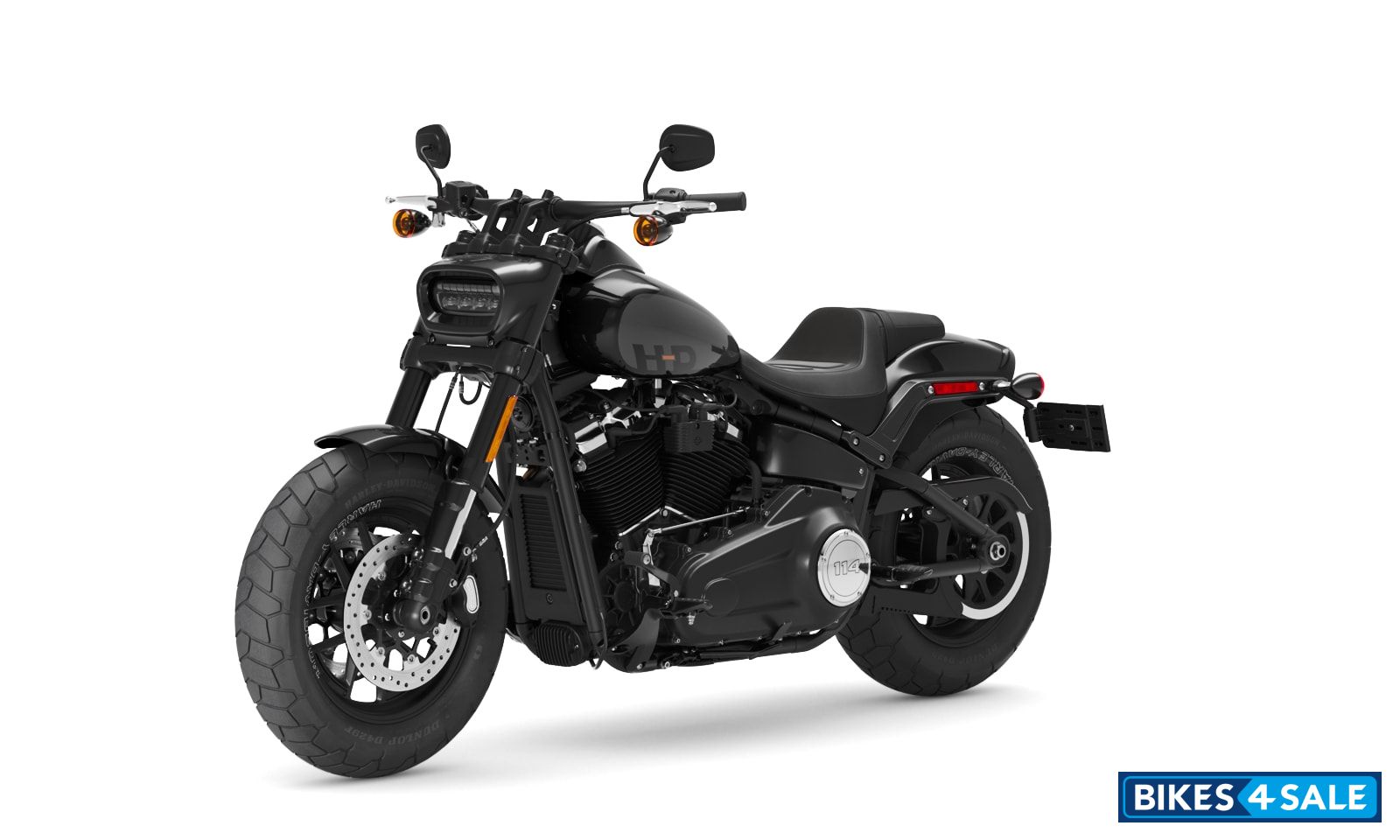

Vivid Black

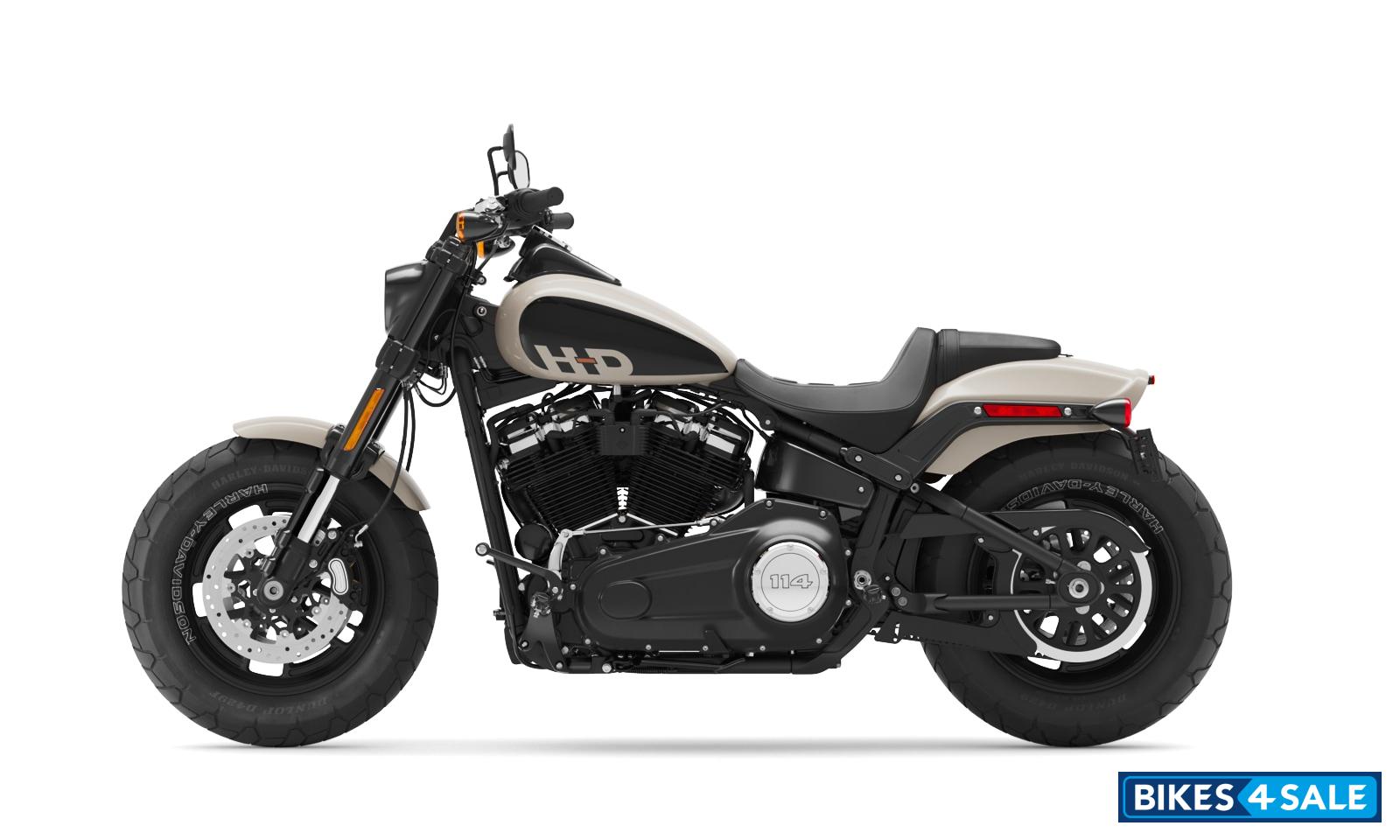

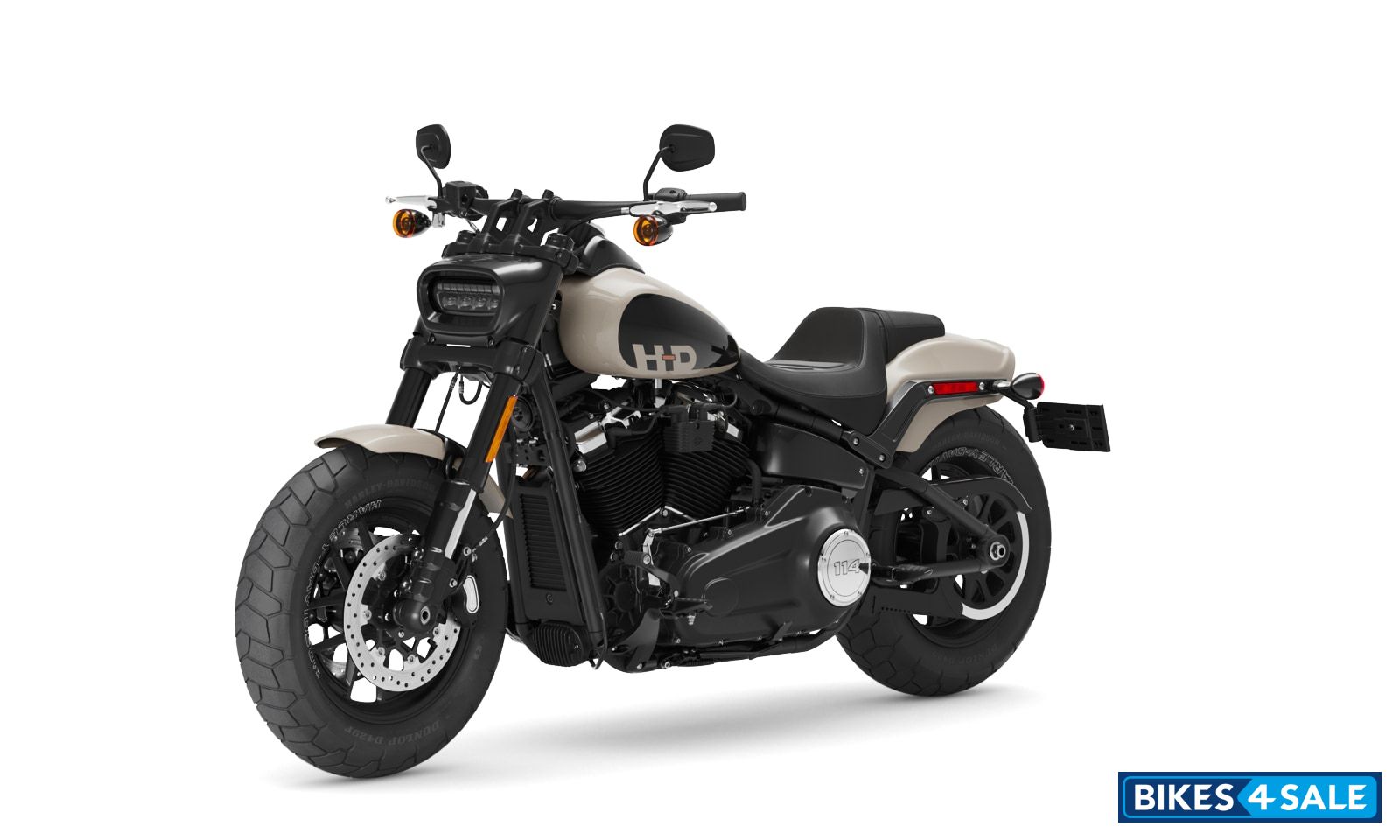

White Sand Pearl

Technical Specifications
Vehicle TypeMotorcycle
FuelPetrol
Engine Displacement1868.00 cc
Engine DetailsMilwaukee-Eight 114
Bore x Stroke102mm x 114mm
Compression Ratio10.5:1
Fuel SystemElectronic Sequential Port Fuel Injection (ESPFI)
Maximum Torque160 NM @ 3500 RPM
ForkSingle cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring
Electricals
Head LampLED
Tail LampLED
Brakes
Front Brake4-piston fixed
Front and rear black, Split 7-spoke floating rotors
Rear Brake2-piston floating
Front and rear black, Split 7-spoke floating rotors
Chassis and Suspension
Front SuspensionDenim black, Structure cast aluminum with laser etched graphics
Rear SuspensionDenim black, Structure cast aluminum with laser etched graphics
Tyres
Front Tyre150/80-16,71H,BW
Dunlop Harley-Davidson Series, bias blackwall
Rear Tyre180/70B16,77H,BW
Dunlop Harley-Davidson Series, bias blackwall
Dimensions
Length2339 mm
Seat Height704 mm
Wheelbase1615 mm
Weight296 kg
Kerb Weight306 kg
Ground Clearance119 mm
Fuel Tank Capacity13 litres
Additional Details
RAKE : 28
TRAIL : 5.2 in.
OIL CAPACITY (W/FILTER) : 5 qt.
EXHAUST : 2-into-2 shorty dual; catalyst in muffler
ENGINE TORQUE TESTING METHOD : J1349
LEAN ANGLE, RIGHT (DEG.) : 31
LEAN ANGLE, LEFT (DEG.) : 32
FUEL ECONOMY TESTING METHOD : Estimated City/Hwy
FUEL ECONOMY : 47 mpg
PRIMARY DRIVE : Chain, 34/46 ratio
GEAR RATIOS (OVERALL) 1ST : 9.311
GEAR RATIOS (OVERALL) 2ND : 6.454
GEAR RATIOS (OVERALL) 3RD : 4.793
GEAR RATIOS (OVERALL) 4TH : 3.882
GEAR RATIOS (OVERALL) 5TH : 3.307
GEAR RATIOS (OVERALL) 6TH: 2.79
REAR SHOCKS : Hidden, free piston, coil-over monoshock; 56mm stroke; toolless hydraulic preload adjustment
GAUGES : 4-inch analog tachometer with digital speedometer, gear, odometer, fuel level, clock, trip and range indication
