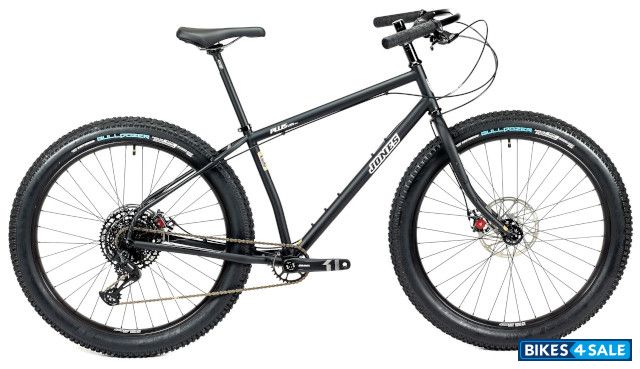

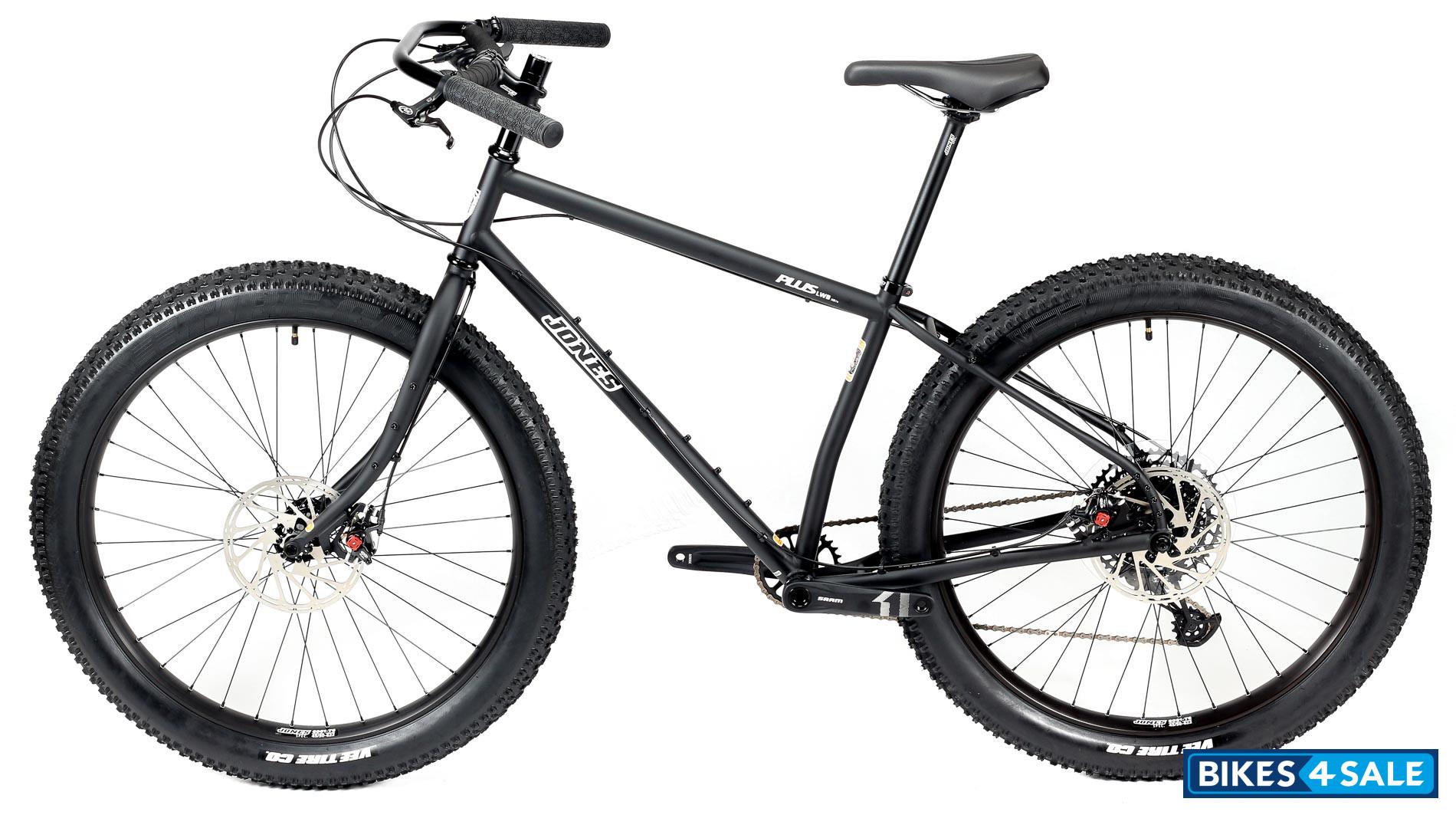

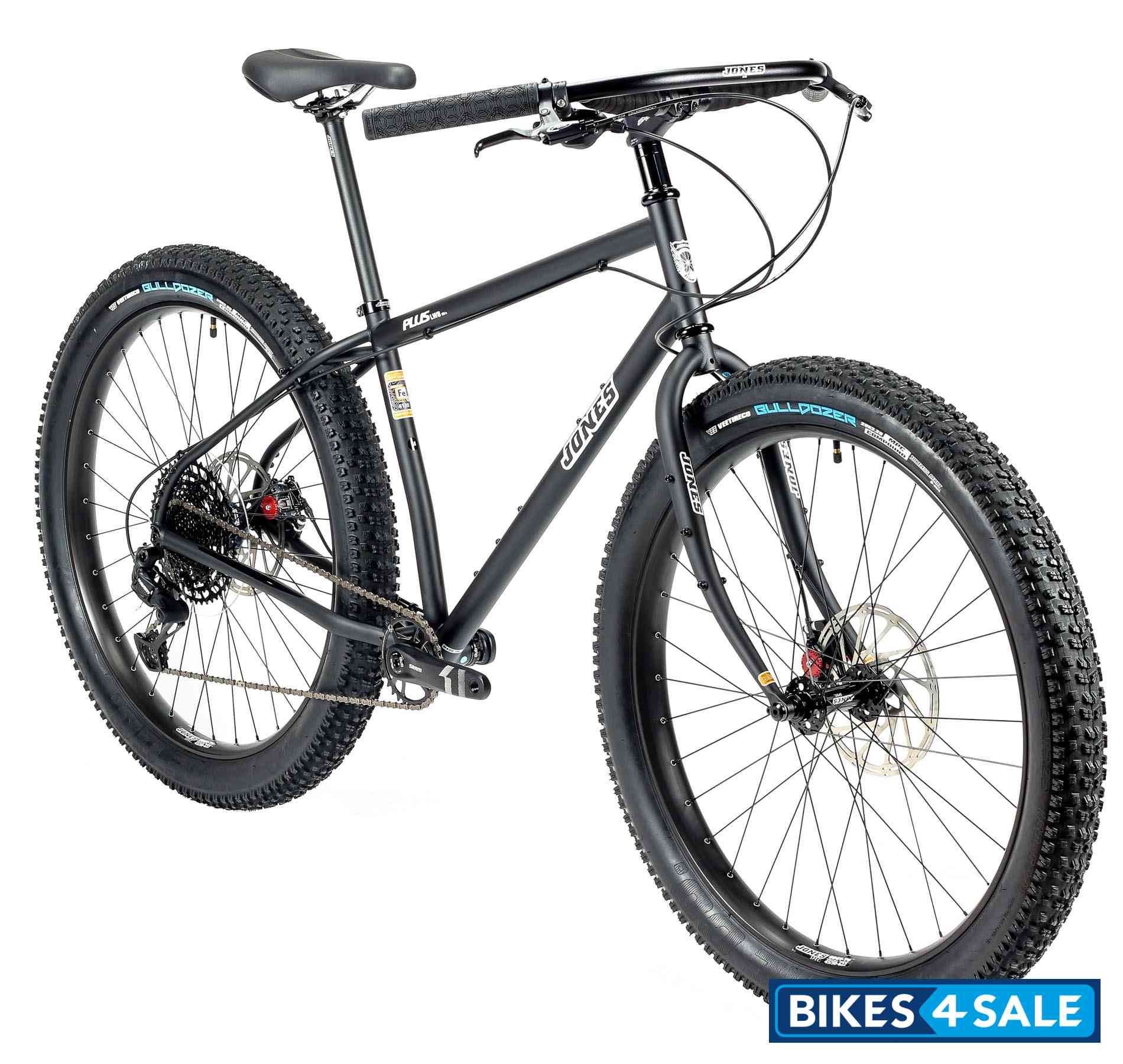

Jones Plus LWB HD/e Complete Bike Bicycle

Price, features and specs

Rate Jones Plus LWB HD/e Complete Bike:
4.0/5 (3 votes)
Jones Plus LWB HD/e Complete Bike Price $ 3495 [Philadelphia, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Philadelphia $ 3495 --
Buy new Jones Plus LWB HD/e Complete Bike

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Jones Plus LWB HD/e Complete Bike.

For Exciting Offers, Book a Test Drive
By submitting, you agree to our Terms & Conditions.
6865
Features
- Jones Plus LWB HD/e Geometry for a great ride in a wide range of conditions.
- Frame and fork designed to work together, a frameset.
- Frame is compatible with Jones Truss Fork for Plus LWB
- These steel frames have a great feel that is stiffer, stronger and with a little more weight, ~ 300 grams. Perfect for heavy loads.
- Super tough heat treated 4130 chromoly steel frame and fork with butted tubing.
- Longer chainstays, 20", provide a longer wheelbase with more stability, smoother ride, keeps the front end down on steep climbs. It also creates more chainring clearance and room for a center kickstand mount.
- Big and tall Jones Spec. wheelset with 29" x 3.25"/700c x 82 mm knobby, tubeless ready tires on 50 mm wide rims allow you to run very low pressure for maximum suppleness, better traction, more flotation and comfort along with lower rolling resistance, less flats and more safety, on or off road!
- 36 spokes for ultimate strength and durability.
- Schrader (automotive type) valves are easier to use and are more durable. More airflow for easier tubeless set up.
- Big tire clearance.
- Jones 710 mm Loop H-Bar and H-Grips.
- Wide range 11 - 50 SRAM SX 1 x 12 drivetrain.
- Single click shifter for quiet, reliable shifting with greater durability.
- Mechanical disk brakes with large 203 mm rotors front and rear for more power and better cooling.
- Multiple rear rack and fender braze-on mounts for the best rack/fender/tire size fit, or for mounting water bottles. The fork can hold two more water bottles.
- Bosses located at top of seat stays for ease of mounting racks.
- Available in black with semi-matte clear coat applied over the decals.
Colours

Matte Black

Technical Specifications
Vehicle TypeBicycle
StemJones Spec. Near-Net Forged aluminum alloy. Super strong and light. 31.8 mm clamp, anodized black. Length is 60 mm on small, 70 mm on medium, and 80 mm on large, all with 17 degrees of rise
HandlebarJones SG Aluminum Loop H-Bar. 710 mm, Black. The straight gauge version of our most popular H-Bars
ForkJones LWB HD/e Unicrown Fork. Heat treated 4130 Chromoly butted tubing. Long steerer tube for maximum adjustment, with butted, tapered and oval legs, 150 mm x 15 mm thru axle spacing
SeatpostJones Spec. Straight, forged aluminum alloy anodized back. 400 mm. This is a reliable, easy to adjust seatpost
Seatpost Clamp : Jones Spec. machined aluminum with laser etched logo. 31.8 mm. Stainless steel bolt uses a 5 mm hex wrench
GripJones Kraton H-Grip sized for 710 mm H-Bars
CranksetSRAM SX Eagle with Boost spacing. 170 mm crank arms, DUB bottom bracket, for direct mount boost X-SYNC 2 chainring
ChainSRAM SX Eagle 12 speed with powerlock link
ShiftersSRAM SX E-MTB. Single click shifter designed for durability
SaddleJones Spec. HD/e. Deeper foam and a cut out shell design for a comfortable ride. Hollow CR-MO rails for strength, durability, and weight savings. 152 mm wide x 273 mm long, black
HeadsetJones Sealed Cartridge H-Set. Durable and simple with with readily available replaceable cartridge bearings. Excellent tolerances. Compression ring design is easy to install and slide on the steerer tube. Quality materials throughout
Derailleur : RearSRAM SX Eagle design with a clutch to keep the chain tighter and in place, with less chain slap
Hub : FrontJones Spec. 36 hole, 150 mm x 15 mm thru axle hub with sealed cartridge bearings. Canted flanges angle the spokes in toward the spoke holes in the rim, and the wide and even flange spacing makes for an extremely strong and stiff wheel. Cutaways in the flanges and relief inside the hub keep weight to a minimum, making this the perfect center for a super stiff, super strong wheel
Hub : RearJones Spec. HD/e 36 hole, 148 mm x 12 mm Boost hub. Black. Like the front hub, this is a simple, durable hub. The axle and Shimano HG driver body are both made from chromoly steel for maximum stiffness and durability. The 4 freehub pawls and the ratchet teeth are larger than what’s found in most hubs adding to the overall strength. Canted flanges angle the spokes in toward the spoke holes in the rim, and the wide flange spacing makes for an extremely strong and stiff wheel. Cutaways in the fl
Spoke14 gauge/2 mm stainless steel. Black
Spoke Nipples : Brass nipples. Black.
CassetteSRAM SX Eagle 12 speed, 11 - 50T
ChainringsSRAM SX X-SYNC 2 Eagle direct mount, 3 mm offset, 30T chainring. Steel for durability
Bottom BracketSRAM DUB
Brakes
Brake LeverAvid FR-5, for one or two finger braking with reach adjustment. Qwik-Adjust barrel adjuster
Chassis and Suspension
FrameJones Plus LWB HD/e, 4130 chromoly custom butted tubing that is TIG welded and post heat treated
Frame Size : S, M, L
Tyres
Wheels / RimRim Tape : Tubeless compatible rim tape
Rims : Jones Spec. 50 mm wide, double wall, 36 hole, eyeleted, 6061-T6 aluminum with bead lock to keep the tire on the rim even at low pressures. Tubeless ready. Anodized black.
Front TyreVee Tire Co Bulldozer 29” x 3.25” tires with 72 TPI, MPC compound and tubeless ready
Rear TyreVee Tire Co Bulldozer 29” x 3.25” tires with 72 TPI, MPC compound and tubeless ready
TubeVee Tire Co 29" x 2.6" - 3.25" Schrader Valve, Butyl Rubber
Additional Details
Front Thru-Axle : Aluminum 150 mm x 15 mm thru axle bolt. 181 mm x 15 mm, M15 x 1.50 thread pitch. Uses a 6 mm hex wrench. Simple and tough

Rear Thru-Axle : Aluminum 148 mm x 12 mm thru axle bolt. 171 mm x 12 mm, M12 x 1.75 thread pitch. Uses a 6 mm hex wrench. Simple and tough

Stem/Headset Spacers : Aluminum, anodized black. Tall stack with variety of sizes for maximum adjustment

Bar Tape : Jones H-Bar Tape on the rear crossbar for the full range of hand positions

Brake Calipers : Avid BB7. Easy to adjust mechanical/cable actuated disc brakes. Super durable with plenty of stopping power.

Rotors/Disks : SRAM Centerline 203 mm front rear, 6 bolt. Bigger disks for more power and better cooling

Brake Cables : Jagwire KEB-SL Elite Ultra-Slick. These highly polished stainless steel cables offer the ultimate in low-friction, smooth performance

Brake Cable Housing : Jagwire KEB-SL, Pro Compressionless brake housing. Linear strand, Kevlar® reinforced, compressionless brake housing with Slick-Lube liner. This is the same great housing we use on all of our bikes that come with mechanical brakes because it gives an extremely smooth and solid feel at the lever with more stopping power

Shift Housing : Jagwire LEX-SL, 5 mm. This is Jagwire's best standard shift cable housing. Linear strands of steel are used to encircle the Slick-Lube Liner creating a compressionless ring. This delivers responsive, precise shifting. 5 mm housing is more durable and has more room for the inner wire to slide smoothly even if contaminated with dirt, compared to standard 4 mm shift housing

Shifter Cable : Jagwire KEB-SL Elite Ultra-Slick, highly polished stainless steel.

Chain Stay Protector : Clear plastic decal.
