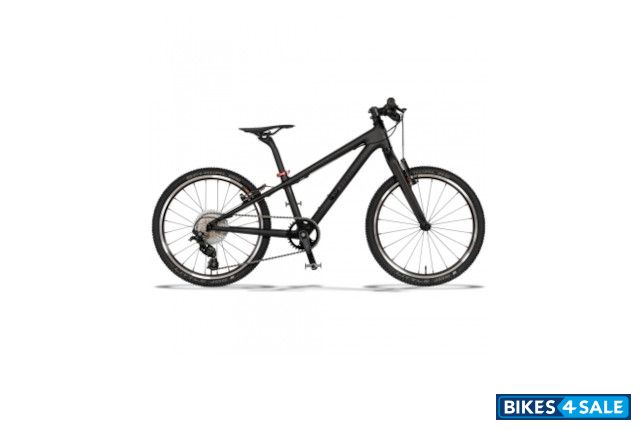

KUbikes 20L CF

Price, review, features and specs

Rate KUbikes 20L CF:
4.0/5 (4 votes)
Add To Compare
Write a Review
KUbikes 20L CF Price 1290 [Munich, Germany]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
Germany, Munich € 1290 --
Buy new KUbikes 20L CF

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for KUbikes 20L CF.

For Exciting Offers, Book a Test Drive
By submitting, you agree to our Terms & Conditions.
2382
Features
- The lightest KUbikes 20 inch CF (carbon fibre) in size L for bikers from 5 years of age made of carbon
- Super light carbon frame developed by us
- Four individually selectable designs: beautiful princess, daring pirate, jumping cheetah or sparkling stars
- Perfectly tuned frame geometry: sporty driving without losing track
- 10-speed drive for best performance and easy gears
- Lightweight handlebars, hubs, double wall rims, crankset and seat posts
- Configuration of many ultra-light carbon parts possible
- Lightweight double wall rims for maximum stability
- Very light tuning stem from KCNC
- Threadless fork with Ahead headset
- Handles tested for harmful substances
- 127 mm short aluminum cranks
- Small brake handles with grip width adjustment adapted to children's hands
- Smooth brakes
- With chainstay protection made of neoprene
Colours

Black

Technical Specifications
Vehicle TypeBicycle
Stem52 parts, length: 60mm
HandlebarConfigurable
ForkConfigurable
SeatpostConfigurable
Crankset52parts aluminum length: 127mm, chainring configurable
PedalsConfigurable
Chain10 times
ShiftersShimano Deore Rapid Fire
SaddleConfigurable
Derailleur : FrontShimano Zee Shadow Plus
Derailleur : RearShimano Zee Shadow Plus
Hub : FrontIndustrial bearings, aluminum hollow axle, rotor suitable for 8- to 11-speed cassettes, 20/24 holes
Hub : RearIndustrial bearings, aluminum hollow axle, rotor suitable for 8- to 11-speed cassettes, 20/24 holes
SpokeBlack, VR radial, RW laced twice crossed
CassetteConfigurable
Bottom BracketNeco cartridge
Brakes
Front BrakeConfigurable
Rear BrakeConfigurable
Brake LeverConfigurable
Chassis and Suspension
FrameKUbikes carbon, frame height 260 mm
Tyres
Wheels / RimRims : Aluminum double wall rim black
Front TyreConfigurable
Rear TyreConfigurable
Dimensions
Kerb Weight5.24 kg
Additional Details
Decor : Embossed aluminum plaque, design: stars
Optional: design cheetah, princess, pirate; without badge
Seat clamp : configurable
Handles : Screw grips 52 parts tested for harmful substances
Tax rate : KUbikes aluminum, black
Production-related weight deviation of +/- 3% possible.
Maximum rider weight: 45 kg

KUbikes offer various components to choose .
If you are unsure which components are best suited for your desired application, we would like to support you in your choice with the following explanations:

Tires
Kenda APTOR 20 x 1.75: All-round tire, ideal for asphalt and light terrain. Very light tire with good rolling properties.
Schwalbe Marathon Racer 20 x 1.50: Road tires, mainly for asphalt. Very low rolling resistance due to negative profile and good visibility thanks to reflective strips. Ideal for the city.
Schwalbe Durano 20 x 1.10: Road tires, mainly for asphalt. Narrow folding tire with very low weight for maximum speed.
Schwalbe Little Joe 20 x 1.40: All-round tire, ideal for asphalt and paved paths. Narrow, very light tire with very good rolling properties.
Schwalbe Little Joe 20 x 2.0: Very wide MTB tire for off-road and unpaved paths. great grip

Brakes
Shimano V-brakes: very smooth-running rim brakes with a good pressure point
KCNC V-Brakes: CNC-milled brakes, optimized lightweight construction, minimal weight

Fork
Carbon fork: rigid fork, absolute lightweight construction
Fork: Spinner Grind Air, 50mm travel, with lockout

Rim
Kinlin black up to tire width 1.75: Kinlin stable and very light double wall rim for 20 inches, eyelets, flanks CNC machined. 20 / 24 holes; Width: 18.5mm, height: 18.7mm, color: black, up to tire width 1.75

Cassette
Number of teeth: The fastest gear is always the same. The easiest gear is determined by the maximum number of teeth. The more teeth, the steeper mountains can be driven.
Shimano CS-5700-10 11 - 28 teeth: Cassette with very good shifting performance, Aluspider
Shimano CS HG81-10 11 - 36 teeth: Cassette with very good shifting performance, Aluspider
Recon full aluminum cassette 10-speed gold 11-36 teeth: Ultra- light cassette, maximum lightweight construction, limited shifting performance

Chainring
KUbikes with 32 teeth narrow/wide: Gear ratio recommended by KUbikes
KUbikes with 28 teeth narrow/wide: Easier gear than chain ring with 32 teeth, enables riding in extremely steep terrain. Pedaling is therefore not always possible when driving downhill. Moderate top speed.

Spokes
High-quality stainless steel spokes in black
Extremely light with 2.0/1.5/2.0mm

Pedals
Aluminum pedals: low weight, very smooth bearing and non-slip.
Aluminum Pedals Platform: 52parts; low weight, very smooth-running storage and non-slip thanks to pins (caution: risk of injury if you slip off!).

Saddle
52parts: narrow ergonomic shape, comfortable padding. Aluminum seat post.
KUbikes Carbon: Extremely light and relatively narrow saddle with carbon frame .

Seat c
