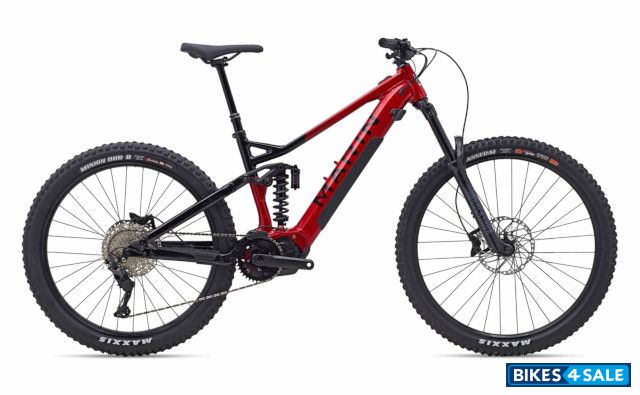

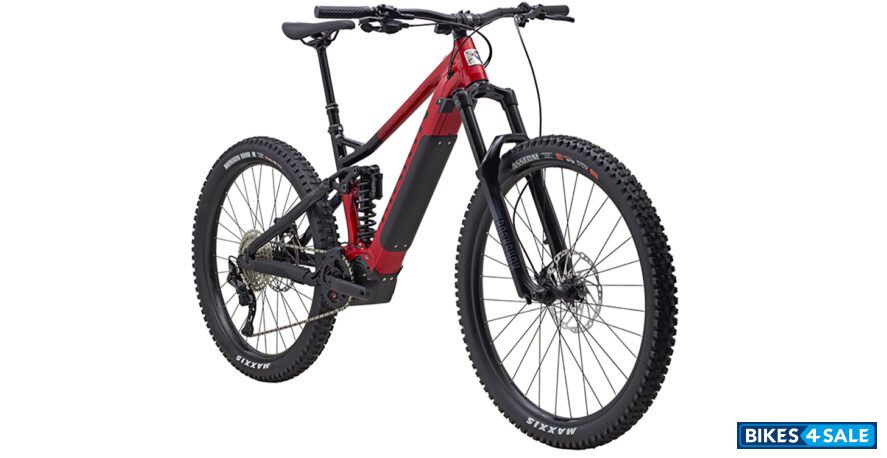

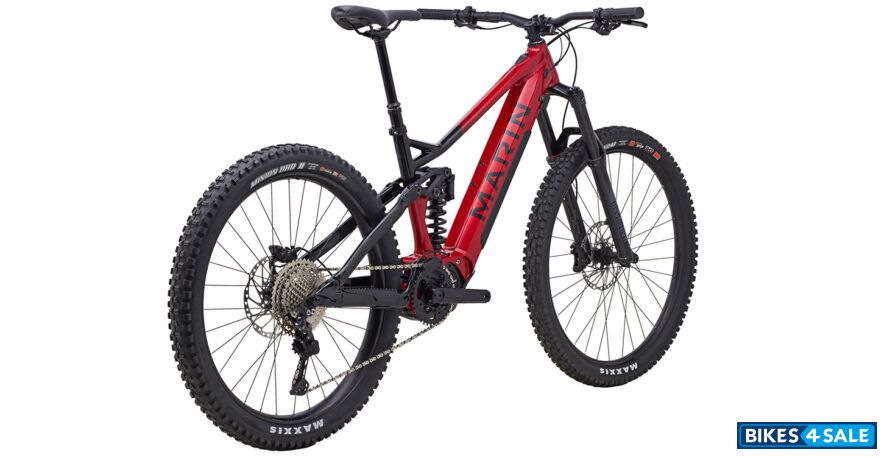

Marin 2022 Alpine Trail E1

Price, review, features and specs

The Marin 2022 Alpine Trail E1 mountain bike is an advanced full-suspension electric bike designed for serious mountain biking enthusiasts. It is built around a lightweight carbon fiber frame with a powerful Shimano EP8 motor and a 630Wh battery, giving riders the ability to tackle even the most challenging terrain with ease.

This bike features 160mm of front and rear travel, as well as a progressive suspension system that provides excellent traction and control on technical descents. It also has a modern geometry that strikes a balance between stability and agility, making it suitable for a variety of riding styles.

Other notable features of the Marin 2022 Alpine Trail E1 mountain bike include a wide range of gears, hydraulic disc brakes, and tubeless-ready wheels and tires. With its high-performance components and advanced technology, this bike is a great choice for riders who want to push their limits on the trail.

Rate Marin 2022 Alpine Trail E1:
4.0/5 (2 votes)
Add To Compare
Write a Review
Marin 2022 Alpine Trail E1 Price $ 4899 [Phoenix, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Phoenix $ 4899 --
Buy new Marin 2022 Alpine Trail E1

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Marin 2022 Alpine Trail E1.

For Exciting Offers, Book a Test Drive
By submitting, you agree to our Terms & Conditions.
1647
Technical Specifications
Vehicle TypeBicycle
FuelElectric
StemMarin 3D Forged Alloy, 35 mm
HandlebarMarin Mini-Riser, 6061 Double Butted Aluminum, 780 mm Width, 28 mm Rise, 5º Up, 9º Back
ForkRock Shock 35 Gold RL 29", Motion Control Damper, 160 mm Travel, Maxle Stealth Axle, 44 mm Offset
SeatpostTranzX, YSP23JL, 1x Remote, Size S 125 mm Travel, Size M and L 150 mm Travel, Size XL 170 mm Travel, 30.9 mm
GripMarin Single Clamp Locking
CranksetMarin Forged Alloy 165 mm Length, Narrow Wide 38T Chainring, e13 Plus Chain guide, Aluminum Plate
PedalsMarin MTB Plastic
ChainKMC X-10E, E-Bike Specific, Silver
SaddleMarin E-MTB Saddle
HeadsetFSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Derailleur : RearShimano Deore 5100 Direct Attachment, 10-Speed
Hub : FrontShimano MT-410B, 110 x 15 mm, Centerlock Disc, 32H
Hub : RearShimano HB-MT400B, 148 x 12 mm, Centerlock, Standard Freehub Body
Spoke14g Black Stainless Steel
CassetteShimano Deore M4100-10 10-speed 11-46T
Motor Details
Shimano STEPS E7000, 250W, 60Nm
Display
SC-E7000 Display
Electricals
BatteryBT-8035, Internal 504Wh
Brakes
Front BrakeShimano MT420, 4-Piston Hydraulic Disc Brake, 203 mm Rotor
Rear BrakeShimano MT420, 4-Piston Hydraulic Disc Brake, 203 mm Rotor w/ Speed Sensor
Brake LeverShimano MT4100 Hydraulic Lever, I-Spec EV Compatible
Chassis and Suspension
FrameAll New Series 4 Alloy Frame, 150 mm Multitrac suspension, Integrated Battery/On-switch/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
Tyres
Wheels / RimFront : Marin Aluminum Double Wall, 29" Diameter, 32 mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
Rear : Marin Aluminum Double Wall, 27.5" Diameter, 38 mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
Front TyreVee Tire Co Attack HPL, 29 x 2.5", Top 40 Tubeless Compatible
Rear TyreVee Tire Co Crown Gem, 27.5 x 2.8”, TACKEE Compound, Tubeless Compatible
Additional Details
Size Range : S, M, L, XL
Shock : Rock Shock Super Deluxe Coil R, Rebound Adjustment, 205 x 65 mm, 25 mm x M8 Lower Hardware, S/M Spring Rate = 300lb, L/XL Spring Rate = 400lb
Shift Lever : Shimano Deore M4100-R, I-Spec EV, 10-Speed
Switch : SW-E7000 Left Hand Switch for Assist Mode Change
Shimano Battery Charger EC-E6002, Bolt-on Thru-Axle
