Midual Type 1

Price, review, features and specs

Rate Midual Type 1:
3.8/5 (11 votes)
Add To Compare
Write a Review
Midual Type 1 Price

Not Available

Buy new Midual Type 1

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Midual Type 1.

For Exciting Offers, Book a Test Drive
5501

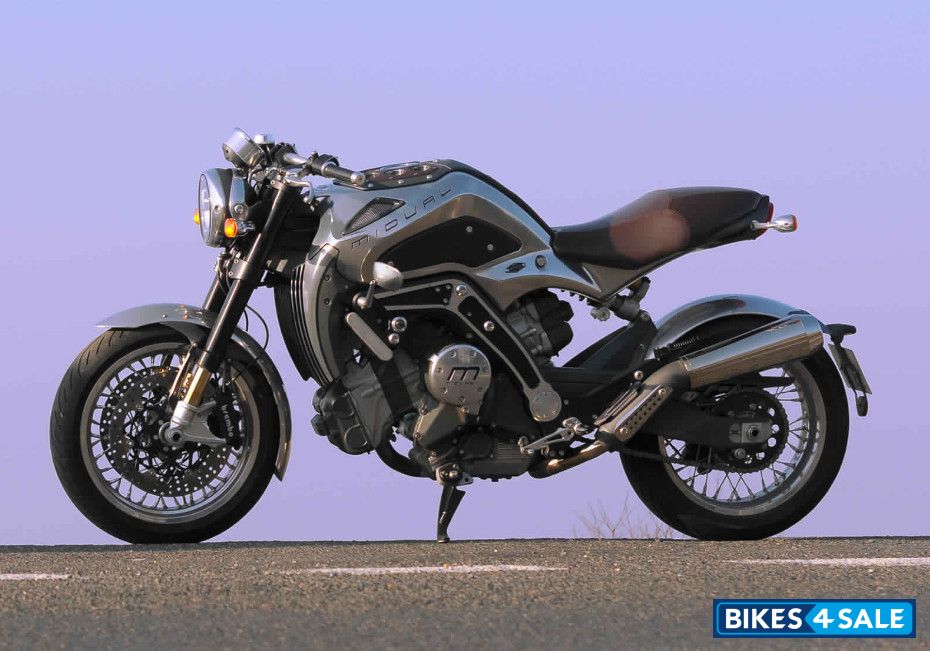

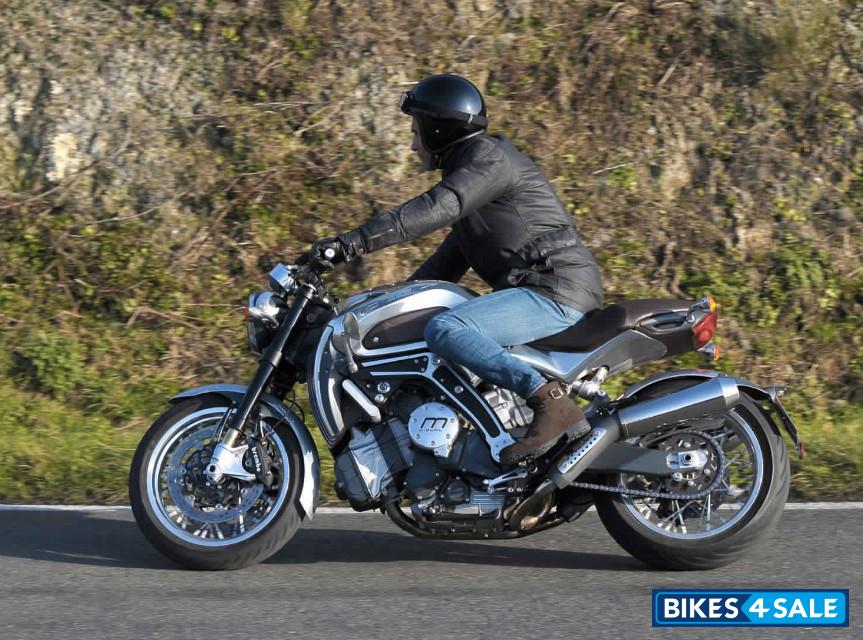

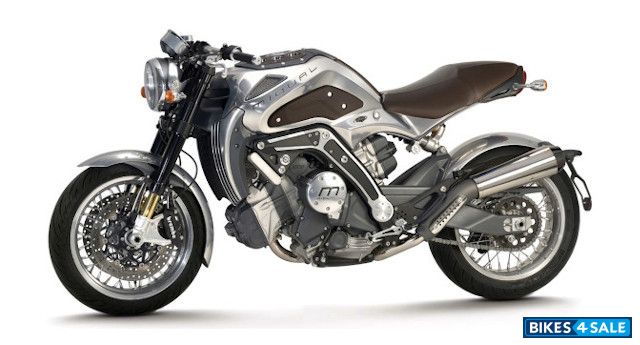

Midual Type 1
Midual Type 1
Midual Type 1
Technical Specifications
Vehicle TypeMotorcycle
FuelPetrol
Engine Displacement1036.00 cc
Engine Details25°-sloping flat-twin, transversal crankshaft, DOHC, 4 valves per cylinder, INT 36 mm, EXH 31 mm
Engine StartingElectric
Bore x Stroke100mm x 66mm
Compression Ratio12:1
ClutchMulti-plate, oil bath
Fuel SystemElectronic injection, diam. 54 mm throttle bodies
Cooling SystemLiquid, with an expansion chamber + 2 oil radiators
Maximum Power106 Hp @ 8200 Rpm
Maximum Torque93 Nm @ 5500 Rpm
Transmission6-speed, type 525 chain
GearPrimary gear : Spur gears
Electricals
Battery
Brakes
Front Brake2 four-piston Brembo calipers, diam. 320 mm floating discs
Rear BrakeTwo-piston Brembo caliper, diam. 245 mm disc
Chassis and Suspension
Frame
Front SuspensionDiam. 43 mm Ohlins FGRT fork, displacement 120 mm / 4.7 in
Rear SuspensionCantilever, Ohlins TTX 36 shock absorber, displacement 120 mm / 4.7 in
Tyres
Wheels / RimTubeless spoked wheels width 3.5 in (front) and 5.5 in (rear)
Front Tyre120/70 x 17
Rear Tyre180/55 x 17
Dimensions
Length x Width x Height-- x -- x -- mm
Wheelbase1505 mm
Weight239 kg
Fuel Tank Capacity14 litres
Additional Details
Crankshaft : 180° Boxer configuration, plain bearings
Timing : spur gears, roller chains, hydraulic chain idlers
Exhaust : 2 catalytic converters + Lambda sensor
Oiling : dry sump lubrication system
Swinging arm : Integral aluminium molded part
Head angle : Adjustable from 24° to 25°
Trail : 100 mm (for head angle of 24.5°)
Mass distribution (front/rear) : 48,2%/51,8%
Seat height : 800 mm / 31.5 in
