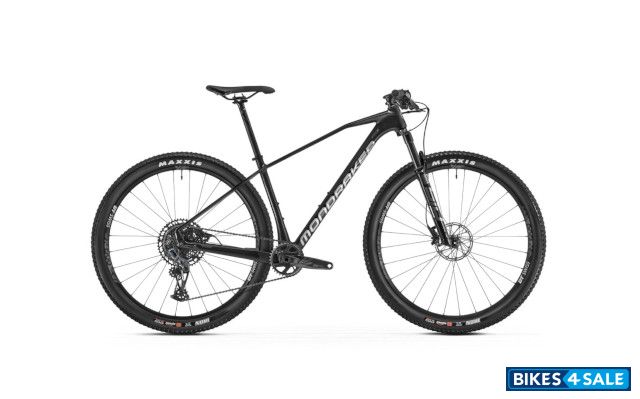

Mondraker Chrono Carbon RR Bicycle

Price, features and specs

Rate Mondraker Chrono Carbon RR:
4.5/5 (2 votes)
Mondraker Chrono Carbon RR Price

Not Available

Buy new Mondraker Chrono Carbon RR

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Mondraker Chrono Carbon RR.

For Exciting Offers, Book a Test Drive
By submitting, you agree to our Terms & Conditions.
9197
Technical Specifications
Vehicle TypeBicycle
HandlebarONOFF Sulfur 0.2, double butted 6061 alloy, height: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, diameter 31.8mm
ForkRockshox SID SL Ultimate RL 29, 100mm, Charger Race day, Debonair, tapered tube, 15x110mm Boost axle, 32mm alloy rods, 44mm offset. Settings: 2-position OneLock remote compression (open / lock), low rebound, air preload
ChainSRAM SX Eagle, 12v, Powerlock
SaddleMondraker XC series, steel rails
Derailleur : RearSRAM GX Eagle, Type 3 needle bearing clutch, box lock, 1x12v, X-ACTUATION 1: 1
Hub : FrontDT 370, Boost 12x148mm, LN 18 pawl system, IS 6 bolt
Hub : RearDT 370, Boost 15x110mm, IS 6 bolts
Spoke34T, CNC machined alloy, X-SYNC 2
Brakes
Front BrakeSRAM Level T, two-piece caliper, one-piece IS 160mm 6-bolt Centerline rotor, organic pickups
Rear BrakeSRAM Level T, two-piece caliper, one-piece IS 160mm 6-bolt Centerline rotor, organic pickups
Brake LeverSRAM Level T, Direct Link actuation, reach adjust with tools, lever spindle with bushings
Tyres
Front TyreMaxxis Ikon 29x2.20, 3C MAXX SPEED compound, tubeless ready, 120TPI, folding bead
Rear TyreMaxxis Ikon 29x2.20, 3C MAXX SPEED compound, tubeless ready, 120TPI, folding bead
Additional Details
Pinions : SRAM XG-1230, 11-50T, 12v
Derailleur hanger : Mondraker M068
Controls - change buttons :SRAM Trigger NX Eagle, 12v, X-ACTUATION 1: 1
Shank : ONOFF Sulfur 0-R, 6061 T6 Alloy, 3D forged, 27.2mm bore, 400mm length
Power : MDK, 6061 T6 alloy, for 31.8mm handlebars, rise: +/- 5º, length depending on bike size: S: 60mm, M: 70mm, L: 80mm, XL: 90mm
Connecting rods : SRAM GX Eagle, Boost, DUB axle, Direct Mount, S: 170mm, M / L / XL: 175mm
Radios : DT Champion, straight rise
Cuffs : ONOFF Diamond, 1 lock-on, 135mm
Damper adjustment : Firm compression, light bounce, token 0.2
Sizes : S: 395mm / M: 430mm / L: 470mm / XL: 520mm
Fork remote control : RockShox OneLoc
