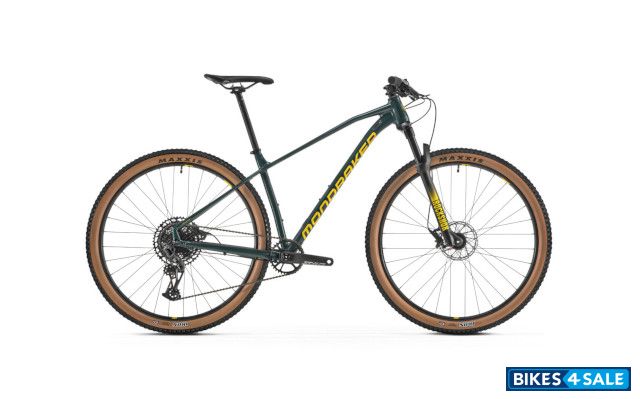

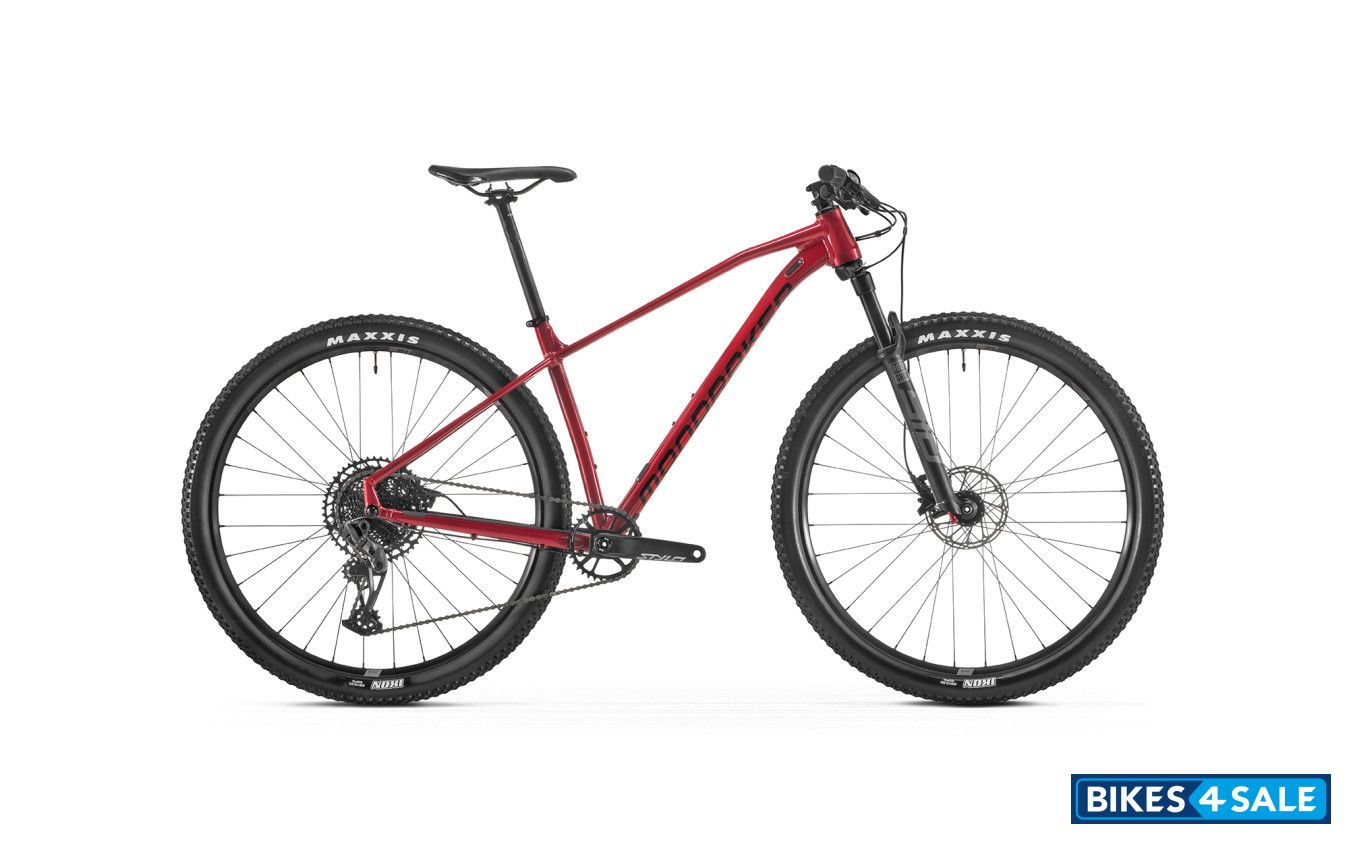

Mondraker Chrono R

Price, review, features and specs

Rate Mondraker Chrono R:
4.7/5 (3 votes)
Add To Compare
Write a Review
Mondraker Chrono R Price

Not Available

Book a new Bicycle

Book a Test Drive through Bikes4Sale and we will try to get you the best offer.

For Exciting Offers, Book a Test Drive
1115
Colours

Red/Black
Yellow/White

Technical Specifications
Vehicle TypeBicycle
HandlebarONOFF Sulfur 0.2, double butted 6061 alloy, height: 4.8mm, width: 740mm, 9º backsweep, 0º upsweep, diameter 31.8mm
ForkRockshox SID SL Base RL 29, 100mm, Charger, Debonair, tapered tube, 15x110mm Boost axle, 32mm alloy rods, 44mm offset. Settings: 2-position OneLock remote compression (open / lock), low rebound, air preload
ChainSRAM SX Eagle, 12v, Powerlock
SaddleMondraker XC series, steel rails
Derailleur : RearSRAM GX Eagle, Type 3 needle bearing clutch, box lock, 1x12v, X-ACTUATION 1: 1
Hub : FrontFormula MST148S-4SB, Boost 12x148mm, sealed bearings, IS 6 bolt
Hub : RearFormula DC711, Boost 15x110mm, sealed bearings, IS 6 bolt
Spoke34T, steel, X-SYNC 2
Bottom BracketSRAM DUB BSA, sealed bearings, 73mm
Electricals
Battery
Brakes
Front BrakeSRAM Level, two-piece caliper, one-piece IS 160mm 6-bolt Centerline rotor, organic pads
Rear BrakeSRAM Level, two-piece caliper, one-piece IS 160mm 6-bolt Centerline rotor, organic pads
Chassis and Suspension
Frame
Tyres
Wheels / Rim
Front TyreMaxxis Ikon 29x2.20, 60TPI, rigid bead
Rear TyreMaxxis Ikon 29x2.20, 60TPI, rigid bead
Dimensions
Length x Width x Height-- x -- x -- mm
Additional Details
Pinions : SRAM PG-1210, 11-50T, 12v
Derailleur hanger : Mondraker M068
Controls - change buttons : SRAM Trigger SX Eagle, 12v, X-ACTUATION 1: 1
Shank : ONOFF Sulfur 0-R, 6061 T6 Alloy, 3D forged, 27.2mm bore, 400mm length
Power : ONOFF Sulfur, 6061 T6 Alloy, for 31.8mm handlebar, +/- 7º rise, size S / M: 60mm, L: 80mm, XL: 90mm
Connecting rods : Truvativ Stylo 6K Eagle, 12v, Boost, DUB axle, Direct Mount, S: 170mm, M / L / XL: 175mm
Radios : CN inox round
Cuffs : ONOFF Diamond, 1 lock-on, 135mm
Damper adjustment : Firm compression, light bounce, token 0.2
Sizes : S: 395mm / M: 430mm / L: 470mm / XL: 520mm
Fork remote control : RockShox OneLoc
