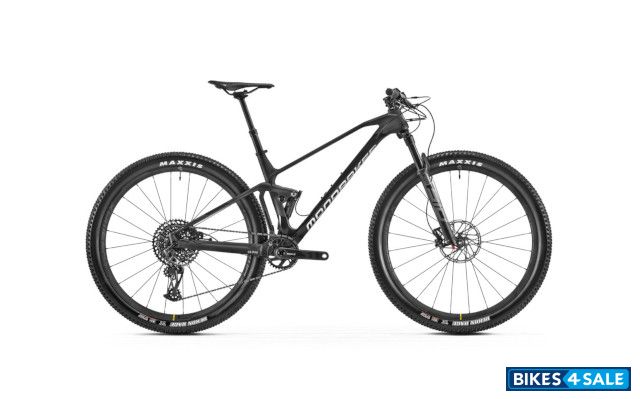

Mondraker F-Podium Carbon DC R

Price, review, features and specs

Rate Mondraker F-Podium Carbon DC R:
4.5/5 (2 votes)
Add To Compare
Write a Review
Mondraker F-Podium Carbon DC R Price

Not Available

Buy new Mondraker F-Podium Carbon DC R

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Mondraker F-Podium Carbon DC R.

For Exciting Offers, Book a Test Drive
9809
Technical Specifications
Vehicle TypeBicycle
HandlebarONOFF Sulfur 0.2, double butted 6061 alloy, height: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, diameter 31.8mm
ChainSRAM GX Eagle, 12v, Powerlock
SaddleFizik Antares R7
Derailleur : RearSRAM X01 Eagle, Type 3 needle bearing clutch, box lock, 1x12v, X-ACTUATION 1: 1
Hub : FrontDT 370, Boost 12x148mm, LN 18 pawl system, IS 6 bolt
Spoke34T, CNC machined alloy, X-SYNC 2
Bottom BracketSRAM DUB BSA, sealed bearings, 73mm
Electricals
Battery
Brakes
Front BrakeSRAM Level TL, two-piece caliper, one-piece IS 180mm 6-bolt Centerline rotor, organic pads
Rear BrakeSRAM Level TL, two-piece caliper, one-piece IS 160mm 6-bolt Centerline rotor, organic pads
Brake LeverSRAM Level TL, Direct Link actuation, reach adjust with tools, lever spindle with bushings
Chassis and Suspension
Frame
Tyres
Wheels / Rim
Front TyreMaxxis Rekon Race 29x2.4, EXO shell, tubeless ready, 120TPI, folding bead
Rear TyreMaxxis Rekon Race 29x2.4, EXO shell, tubeless ready, 120TPI, folding bead
Dimensions
Length x Width x Height-- x -- x -- mm
Additional Details
Pinions : SRAM XG-1275, 10-50T, 12v
Derailleur hanger : SRAM UDH
Controls - change buttons : SRAM Eagle AXS, 12v
Shank : ONOFF Internally wired prong, diameter 31.6mm, size S: 337x100mm, M / L / XL: 387x125mm
Power : MDK, 6061 T6 alloy, for 31.8mm handlebars, rise: +/- 5º, length depending on bike size: S / M: 50mm, L: 60mm, XL: 70mm
Shock absorber : Rockshox SID Luxe Ultimate RLR Debonair, 185x50mm. Settings: OneLock, low rebound, air preload. Trunnion top anchor, 22.2x10mm bottom bushings.
Connecting rods : SRAM X1 Carbon Eagle, Boost, DUB axle, Direct Mount, S: 170mm, M / L / XL: 175mm
Radios : DT Competition, straight pull
Cuffs : ONOFF Diamond, 1 lock-on, 135mm
Damper adjustment : Firm compression, light bounce, token 0.2
Sizes : S: 390mm / M: 420mm / L: 470mm / XL: 510mm
Fork remote control : RockShox OneLoc
