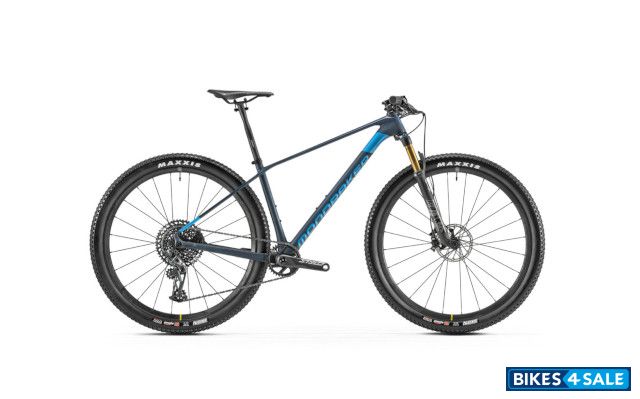

Mondraker Podium Carbon R

Price, review, features and specs

Rate Mondraker Podium Carbon R:
4.7/5 (3 votes)
Add To Compare
Write a Review
Mondraker Podium Carbon R Price

Not Available

Buy new Mondraker Podium Carbon R

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Mondraker Podium Carbon R.

For Exciting Offers, Book a Test Drive
7177
Colours

Blue

Technical Specifications
Vehicle TypeBicycle
HandlebarONOFF Helium Carbon 0.2, height: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, diameter 31.8mm
ForkFox 32 Step Cast Float FIT4 Evol Factory Kashima, 100mm, tapered tube, Boost 15x110mm axle, 44mm offset. Settings: 2pos Push-unlock remote control, micro adjustable low compression, rebound, air preload
ChainSRAM SX Eagle, 12v, Powerlock
SaddleFizik Antares R7
Derailleur : RearSRAM X01 Eagle, Type 3 needle bearing clutch, box lock, 1x12v, X-ACTUATION 1: 1
Hub : FrontDT 350, Boost 12x148mm, SL 36-pawl system, IS 6-bolt, XD freehub
Hub : RearDT 350, Boost 15x110mm, IS 6 bolts
Spoke34T, steel, X-SYNC 2
Bottom BracketSRAM DUB BSA, sealed bearings, 73mm
Electricals
Battery
Brakes
Front BrakeSRAM Level TLM, two-piece caliper, one-piece IS 160mm 6-bolt Centerline rotor, organic pads
Rear BrakeSRAM Level TLM, two-piece caliper, one-piece IS 160mm 6-bolt Centerline rotor, organic pads
Brake LeverSRAM Level TLM, Direct Link actuation, reach adjust with tools, lever spindle with bushings
Chassis and Suspension
Frame
Tyres
Wheels / Rim
Front TyreMaxxis Rekon Race 29x2.35, EXO shell, tubeless ready, 120TPI, folding bead
Rear TyreMaxxis Rekon Race 29x2.35, EXO shell, tubeless ready, 120TPI, folding bead
Dimensions
Length x Width x Height-- x -- x -- mm
Additional Details
Pinions :SRAM XG-1275, 10-50T, 12v
Derailleur hanger : SRAM UDH
Controls - change buttons : SRAM Eagle AXS, 12v Rocker paddle
Shank : ONOFF Helium Carbon 0-R VFLEX, diameter 27.2mm, length 400mm
Power : MDK, 6061 T6 alloy, for 31.8mm handlebars, rise: +/- 5º, length depending on bike size: S / M: 60mm, L: 70mm, XL: 80mm
Connecting rods : Truvativ Stylo Carbon Eagle, 12v, Boost, DUB axle, Direct Mount, S: 170mm, M / L / XL: 175mm
Radios : DT Champion, straight pull
Cuffs : ONOFF Diamond, 1 lock-on, 135mm
Damper adjustment : Firm compression, light bounce, token 0.2
Sizes : S: 390mm / M: 420mm / L: 470mm / XL: 510mm
Fork remote control :Single shot fox
