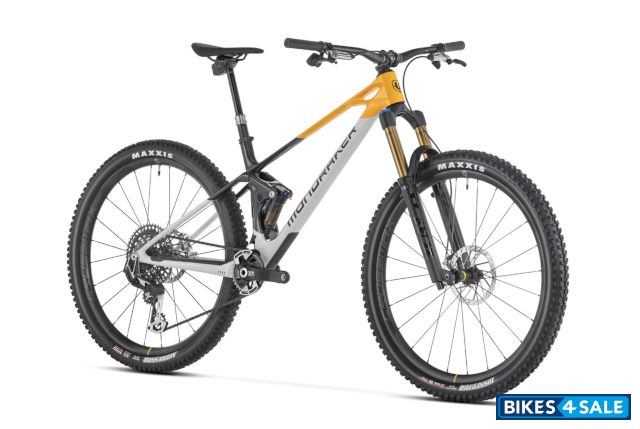

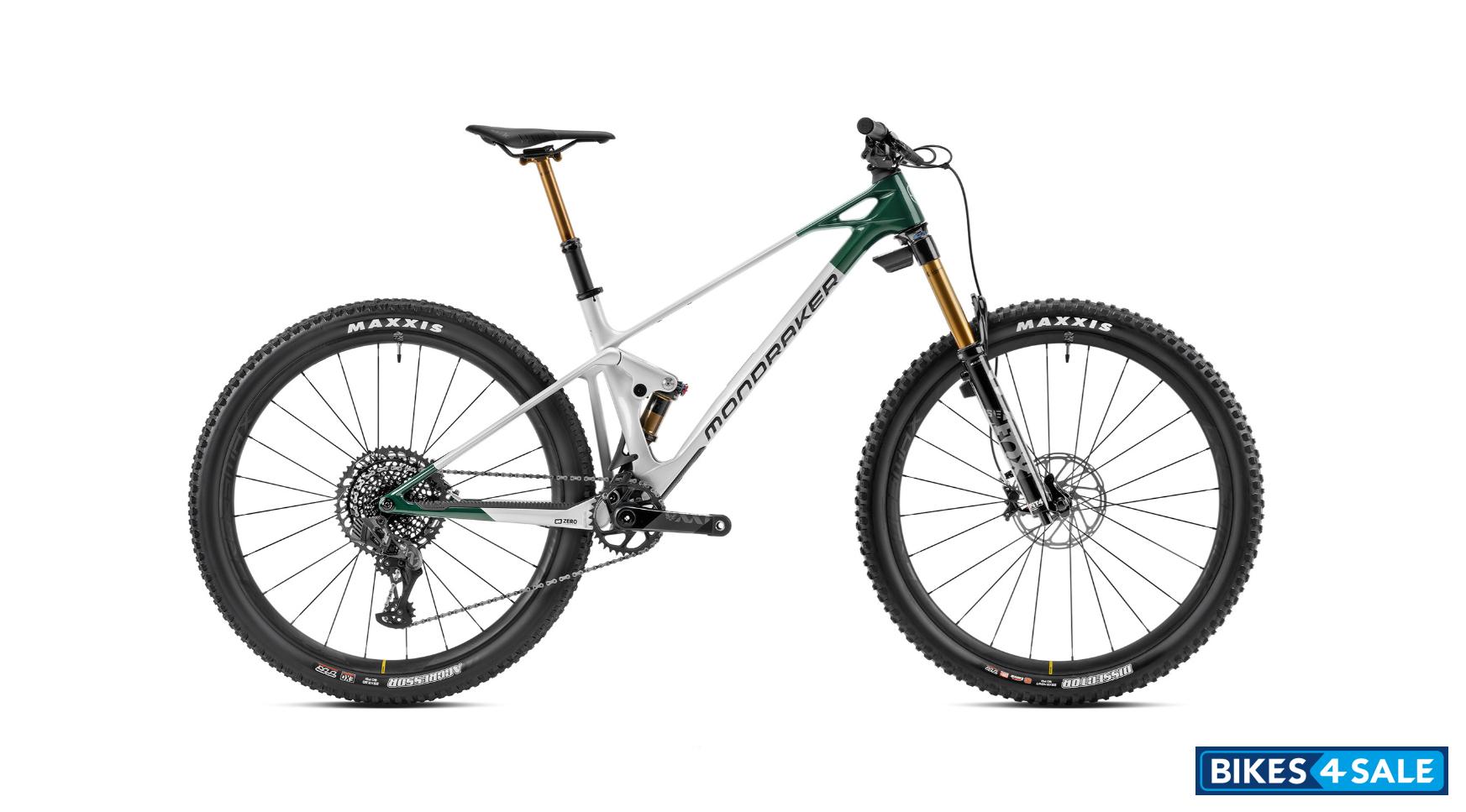

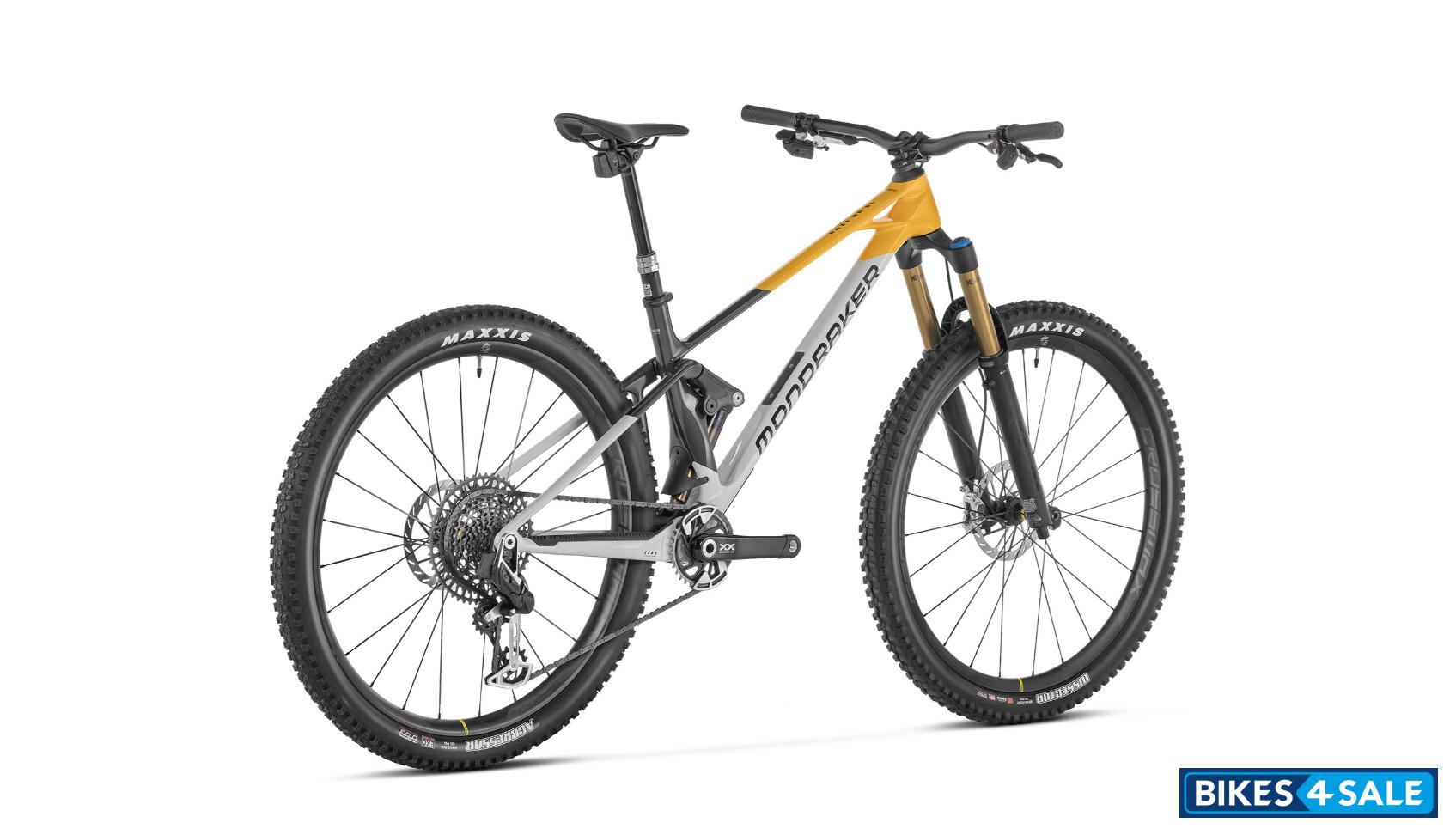

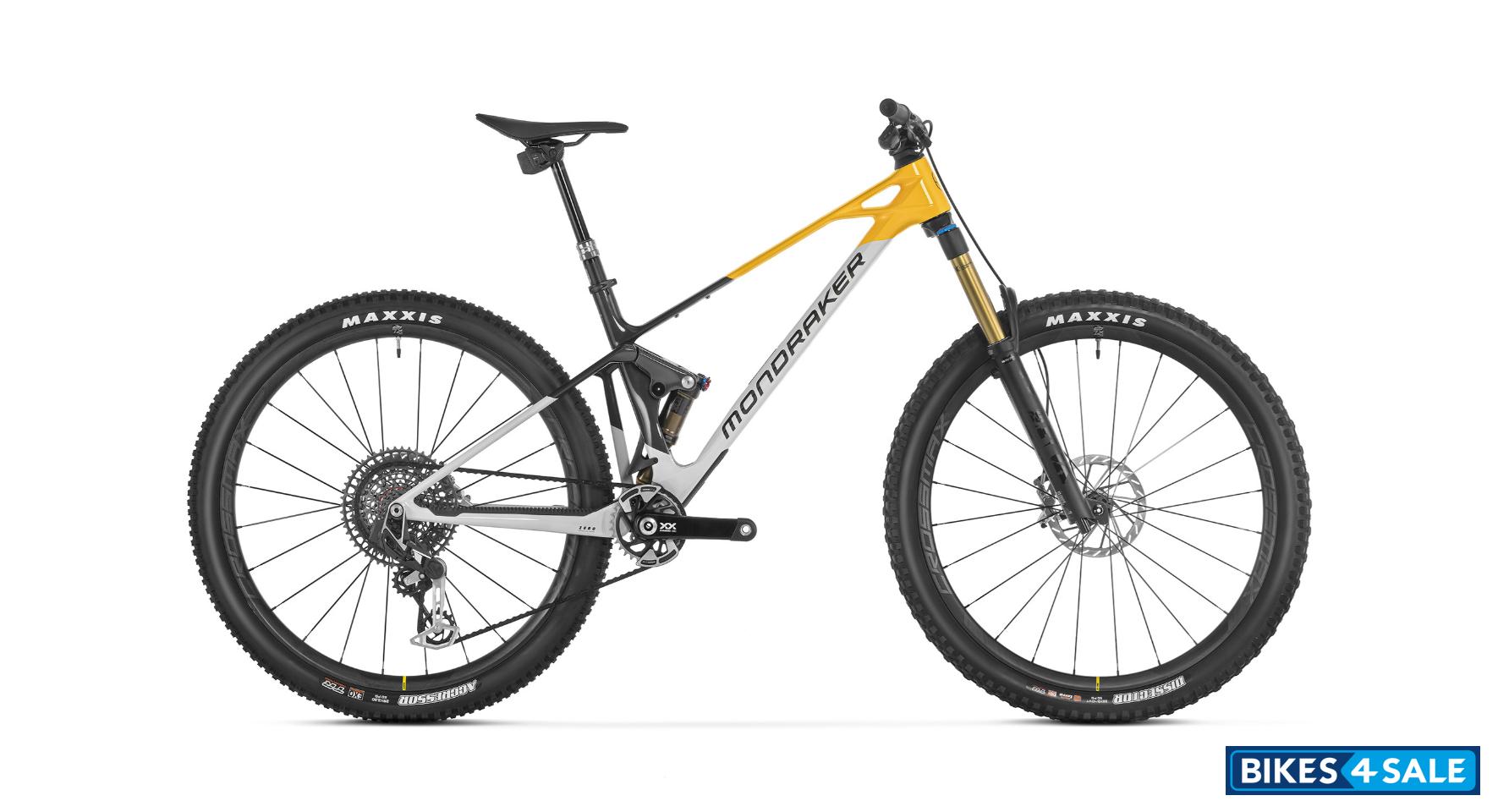

Mondraker Raze Carbon RR SL Bicycle Price, Specs and Features

Price, features and specs

The Mondraker Raze Carbon RR SL is an elite 13.3 kg trail bike featuring a Stealth Air full carbon frame and a high-performance Fox 36 Factory Kashima fork. It is equipped with a wireless Sram XX Eagle AXS drivetrain and Mavic CrossMax Carbon wheels, delivering a perfect blend of climbing efficiency and aggressive descending power.

Rate Mondraker Raze Carbon RR SL:

4.0/5 (2 votes)

Compare
Write a Review

Mondraker Raze Carbon RR SL Price

Not Available

Picture Gallery

Similar Bicycles

Mondraker Arid Carbon RR SL

Salsa Flyway C DLX RED XPLR

Salsa Spearfish C Deore Di2

Salsa Blackthorn 125 Eagle 70 Transmission

Orbea Laufey H-LTD

Rocky Mountain Growler 50

Mondraker Dealers

BIOBIKE

Calle Lanzarote Nº 15 Local – 1 Spain

Contact Dealer

Bikeobiker

AVENIDA FRANCISCO AGUIRRE, 426, TALAVERA DE LA REINA Spain

Contact Dealer

More Dealers

View all Mondraker Showrooms

View All Showrooms

Technical Specifications

Vehicle Type	Bicycle
Stem	Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar	Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Fork	Fox 36 29 Float GRIP2 Factory Kashima, 150mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Seatpost	RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm
Grip	Onoff Desert, 1lock-on, 135mm
Crankset	Sram XX Carbon Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL55
Chain	Sram X0 Eagle T-Type, 12s, Powerlock
Shifters	Sram Eagle AXS Pod MMX, 12s
Saddle	Fizik Vento Argo X5
Headset	Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Derailleur : Rear	Sram XX Eagle AXS, T-Type roller bearing clutch, cage lock, long carbon cage, 1x12s
Hub : Front	Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Hub : Rear	Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, XD freehub
Spoke	Mavic 24 straight-pull double butted spokes
Cassette	Sram XS-1295, 10-52T, T-Type, 12s
Chainrings	32T, CNC-machined alloy, T-Type
Bottom Bracket	Sram DUB BSA, sealed bearings, 73mm

Brakes
Front Brake	Sram Level Ultimate Stealth, 4-piston caliper, HS2 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear Brake	Sram Level Ultimate Stealth, 4-piston caliper, HS2 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake Lever	Sram Level Ultimate, tools-free reach adjust, lever pivot bearings, carbon lever

Chassis and Suspension
Frame	Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors
Rear Suspension	Fox Float Factory Kashima EVOL, 205x57.5mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Tyres
Wheels / Rim	Mavic CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Front Tyre	Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear Tyre	Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead

Dimensions
Weight	13.3 kg
