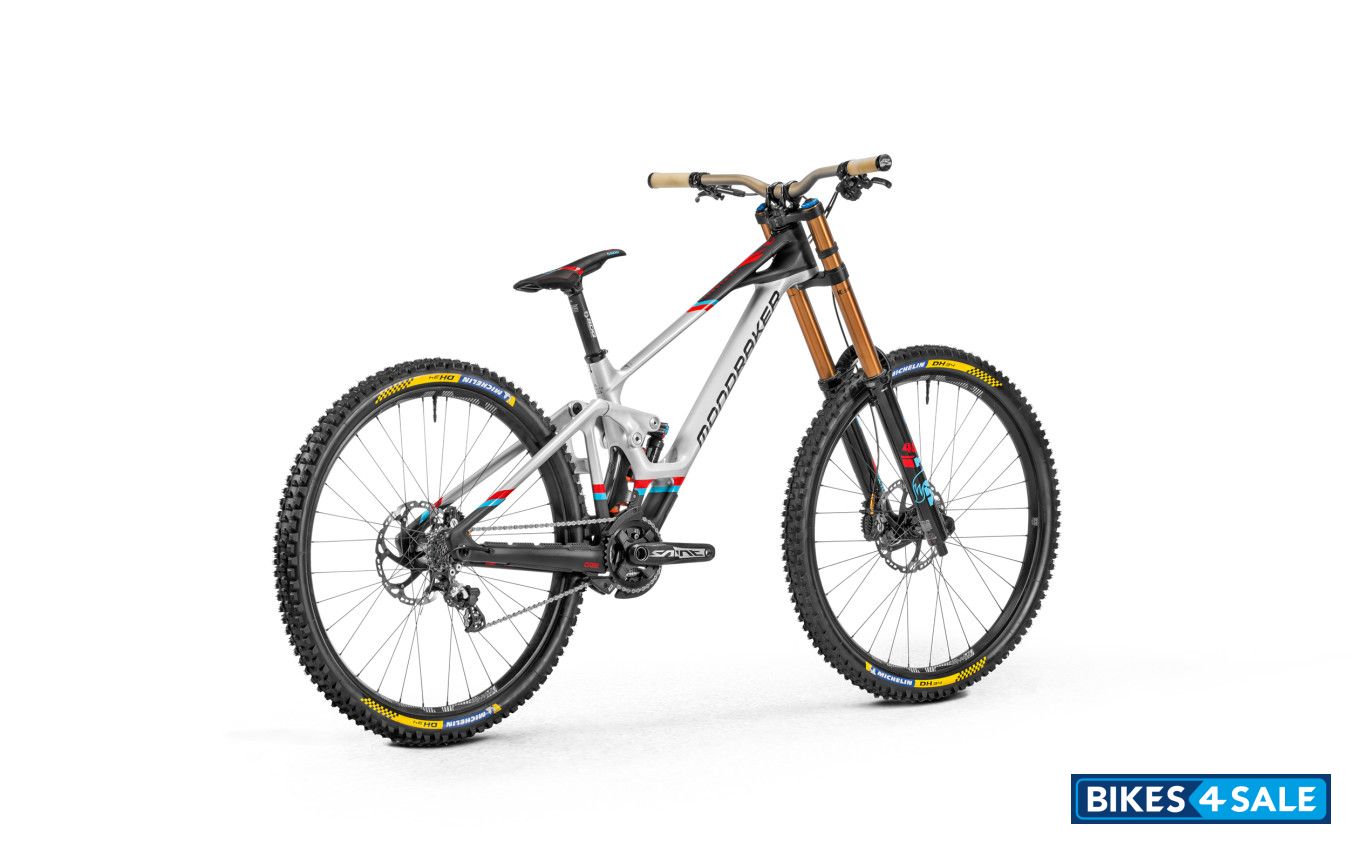

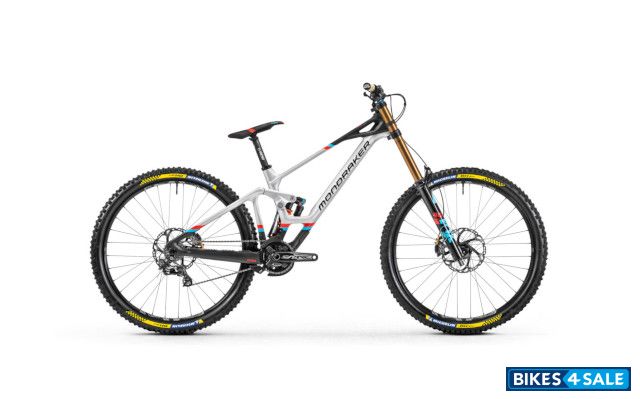

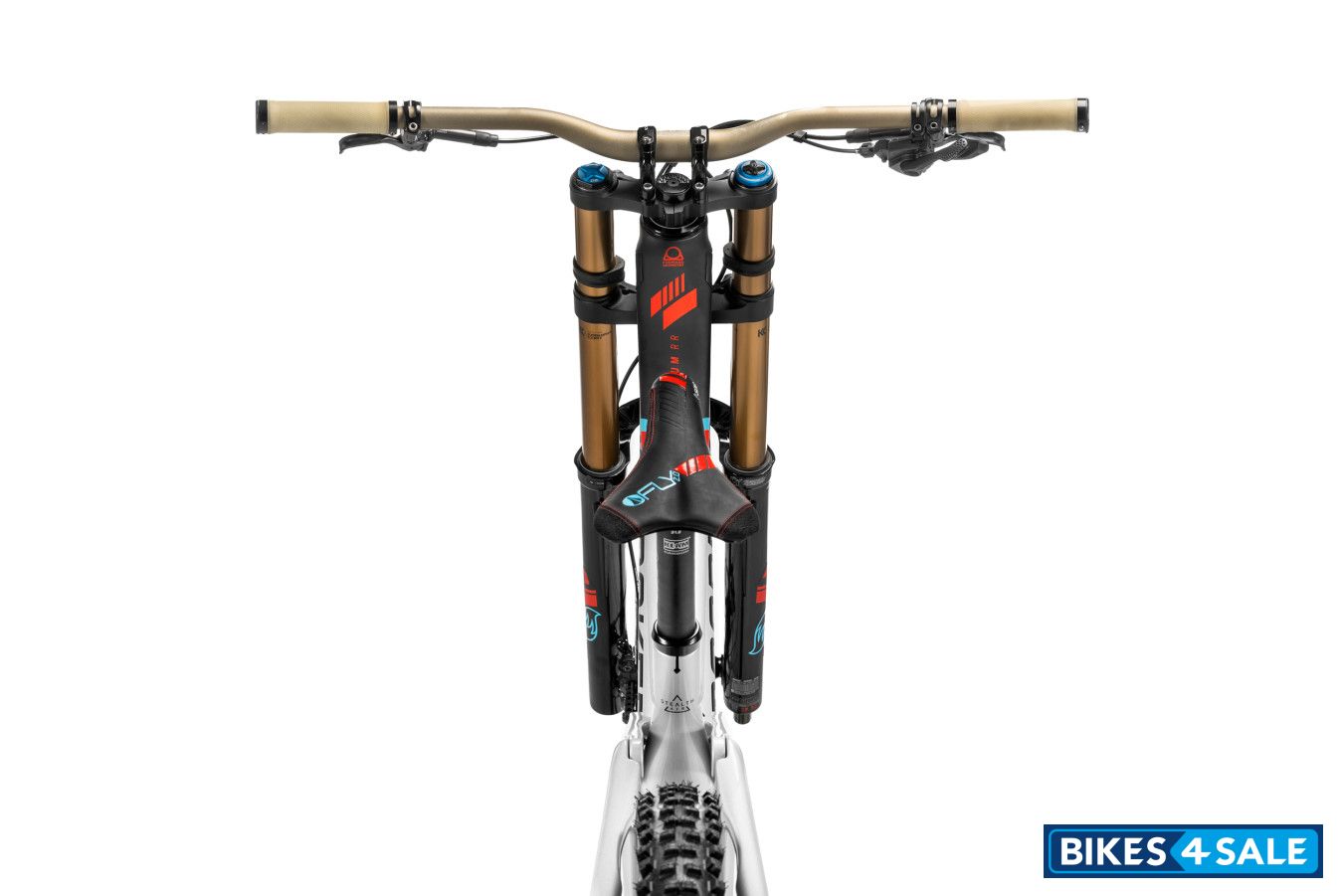

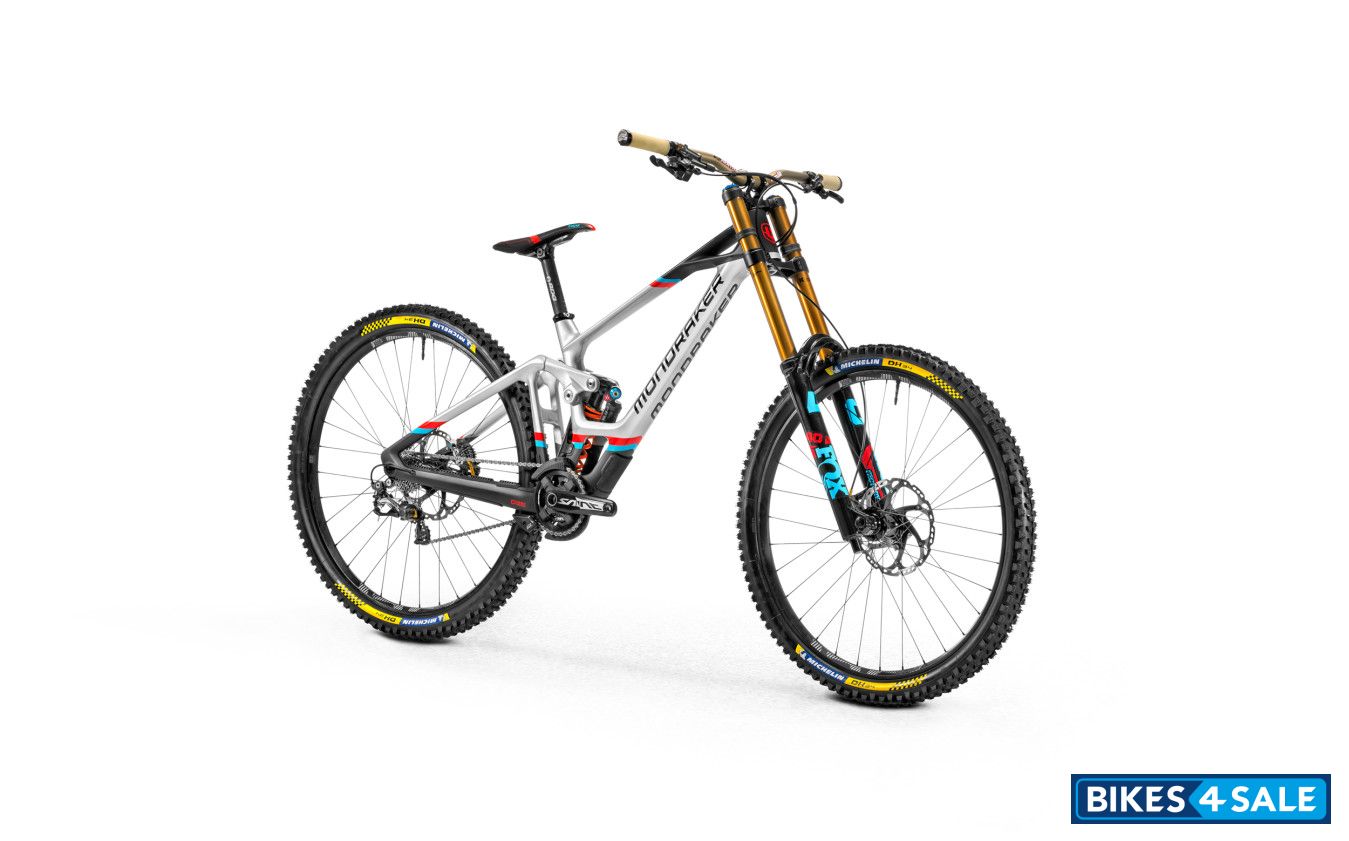

Mondraker Summum Carbon RR MX

Price, review, features and specs

Rate Mondraker Summum Carbon RR MX:
4.5/5 (2 votes)
Add To Compare
Write a Review
Mondraker Summum Carbon RR MX Price

Not Available

Buy new Mondraker Summum Carbon RR MX

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Mondraker Summum Carbon RR MX.

For Exciting Offers, Book a Test Drive
By submitting, you agree to our Terms & Conditions.
2692
Features
- New STEALTH AIR CARBON carbon frame
Technical Specifications
Vehicle TypeBicycle
HandlebarRenthal Fatbar 7 series alloy, rise: 30mm, width: 800mm, 7th backsweep, 5th upsweep, diameter 31.8mm
ForkFox 40 29 Float FIT GRIP2 EVOL Factory Kashima, 203mm, air spring, 1-1 / 8 ”tube, 20x110mm axle, 56mm offset. Settings: high and low compression, high and low rebound, air preload
ChainShimano HG95, 10s
SaddleSDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sidewalls
Derailleur : FrontE.13 Vario Compact Adjustable Upper Slider, Alloy Mount for ISCG 05, DMB, Lower Slider compatible with 34-36t
Derailleur : RearShimano Saint RD-M820-SS, 10s, Shadow +, short cage
Hub : Fronte * thirteen Superboost 12x157mm, triple-sealed, 100% machined aluminum, IS 6 bolt, 6º return angle
Hub : Reare * thirteen Boost 20x110mm, triple-sealed, 100% machined aluminum, IS 6 bolt
Bottom BracketShimano 83mm
Brakes
Front BrakeShimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6-bolt disc with ICE technology, vented resin pads
Rear BrakeShimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6-bolt disc with ICE technology, vented resin pads
Brake LeverShimano Saint, antiskid trigger with servo wave, bite point control and tool-free reach adjustment
Tyres
Wheels / RimSpoke
Front TyreMichelin DH34 29x2.4, tubeless ready, Magi-X DH compound, DH Shield reinforced shell, with rigid bead
Rear TyreMichelin DH34 27.5x2.4, tubeless ready, Magi-X DH compound, DH Shield reinforced shell, with rigid bead
Accessories
Geometry kit included: + -1º / + -2º headset cups
Additional Details
Shock absorber : Fox DHX2 Factory Kashima, 225x70mm. Settings: compression high and low, rebound high and low, spring preload. SLS spring (ultra light). Trunnion upper anchor, 30x8mm lower bushings.
Power : ONOFF Krypton DH CNC FG integrated, 25-30mm adjustable, for 31.8mm handlebar, 6061, 2x6mm spacer
Cuffs : Renthal, double lock-on, kevlar compound, 130mm
Connecting rods : Shimano Saint M825 Hollowtech II, reinforced steel axle, 165mm
Controls - change buttons : Shimano Saint SL-M820 10s, Very Low Friction Multi Bearing, Instant Shift, Multi Shift, Two Way Shift
Pinions : Shimano CS-HG500-10, 11-25T, 10s
Plates : 36T, aluminum, BCD 104
Radios : e * thirteen custom Hive alloy, tri-butted black, alloy nipples, with nipple washers
Shank : SDG Micro I-Beam SP-951 Carbon, diameter 31.6mm, length 300mm, micro-adjustable
Address : ONOFF Mercurium 1.5 ZS for 1-1 / 8 ”tube, 41x30,15x7x45ºx45º ACB sealed bearings, cup kit to change the geometry, external diameter 56mm
Damper adjustment : ECC010 compression, ECR012 rebound. Spring hardness: (depending on bike size) S = 400 lbs, M = 450 lbs, L / XL = 500 lbs
Sizes : S / M / L / XL 29 "and MX
