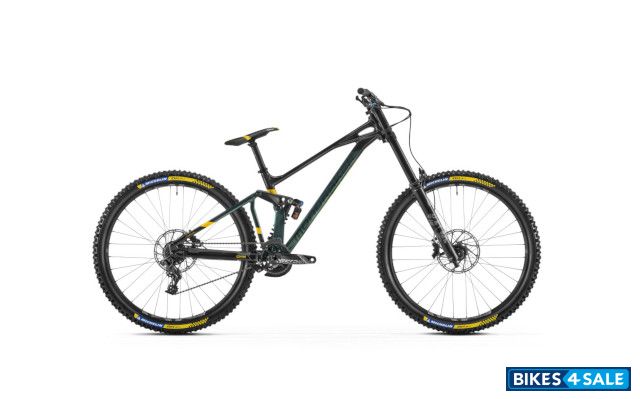

Mondraker Summum R MX Bicycle: Price, Review, Specs and Features

Price, review, features and specs

Rate Mondraker Summum R MX:

4.7/5 (3 votes)

Add To Compare
Write a Review

Mondraker Summum R MX Price

Not Available

Buy new Mondraker Summum R MX

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Mondraker Summum R MX.

For Exciting Offers, Book a Test Drive

Similar Bicycles

A2 SP1.4 Compare

A2 SP1.3 Compare

A2 SP1.2HRD Compare

A2 SP1.2 Compare

A2 SP1.1 Compare

A2 RP3e Compare

Mondraker Dealers

BIOBIKE

Calle Lanzarote Nº 15 Local – 1 Spain

Contact Dealer

Bikeobiker

AVENIDA FRANCISCO AGUIRRE, 426, TALAVERA DE LA REINA Spain

Contact Dealer

More Dealers

View all Mondraker Showrooms

View All Showrooms

Technical Specifications

Vehicle Type	Bicycle
Fork	Fox 40 29 Float FIT GRIP2 EVOL Performance, 203mm, air spring, 1-1 / 8 ”tube, 20x110mm axle, 56mm offset. Settings: low compression, low rebound, air preload
Chain	SRAM PC1110 11s, Powerlock
Saddle	SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sidewalls
Derailleur : Rear	SRAM GX DH, 7s, mid cage, X-ACTUATION 1: 1
Hub : Front	e * thirteen Superboost 12x157mm, triple-sealed, 100% machined aluminum, IS 6 bolt, 6º return angle
Hub : Rear	e * thirteen Boost 20x110mm, triple-sealed, 100% machined aluminum, IS 6 bolt
Bottom Bracket	SRAM DUB BSA, sealed bearings, 83mm

Brakes
Front Brake	SRAM Code R, 4-piston oversized caliper, 6-bolt IS one-piece 203mm Centerline rotor, sintered pads
Rear Brake	SRAM Code R, 4-piston oversized caliper, 6-bolt IS one-piece 203mm Centerline rotor, sintered pads
Brake Lever	SRAM Code R, tool-free reach adjustment

Tyres
Front Tyre	Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, DH Shield reinforced shell, with rigid bead
Rear Tyre	Michelin DH34 27.5x2.4, tubeless ready, Magi-X DH compound, DH Shield reinforced shell, with rigid bead

Additional Details
Shock absorber : Fox DHX2 Performance Elite, 225x70mm. Settings: low compression, low rebound, spring preload. Trunnion upper anchor, 30x8mm lower bushings. Sizes : S / M / L / XL 29 "and MX Damper adjustment : ECC010 compression, ECR012 rebound. Spring hardness (depending on bike size): S = 400 lbs, M = 450 lbs, L / XL = 500 lbs Power : ONOFF Krypton DH CNC FG integrated, 25-30mm adjustable, for 31.8mm handlebar, 6061, 2x6mm spacer Cuffs : ONOFF Diamond, 1 lock-on, 135mm Connecting rods : Truvativ Descendant DH, DUB axle, Direct Mount chainring, 165mm Plates : 34T, steel, X-SYNC Derailleur hanger : Mondraker M068 Pinions : SRAM PG 720 11-25T, 7s Chain guide : E.13 Vario Compact Adjustable Upper Slider, Alloy Mount for ISCG 05, DMB, Lower Slider compatible with 34-36t

Additional Details

Shock absorber : Fox DHX2 Performance Elite, 225x70mm. Settings: low compression, low rebound, spring preload. Trunnion upper anchor, 30x8mm lower bushings.
Sizes : S / M / L / XL 29 "and MX
Damper adjustment : ECC010 compression, ECR012 rebound. Spring hardness (depending on bike size): S = 400 lbs, M = 450 lbs, L / XL = 500 lbs
Power : ONOFF Krypton DH CNC FG integrated, 25-30mm adjustable, for 31.8mm handlebar, 6061, 2x6mm spacer
Cuffs : ONOFF Diamond, 1 lock-on, 135mm
Connecting rods : Truvativ Descendant DH, DUB axle, Direct Mount chainring, 165mm
Plates : 34T, steel, X-SYNC
Derailleur hanger : Mondraker M068
Pinions : SRAM PG 720 11-25T, 7s
Chain guide : E.13 Vario Compact Adjustable Upper Slider, Alloy Mount for ISCG 05, DMB, Lower Slider compatible with 34-36t
