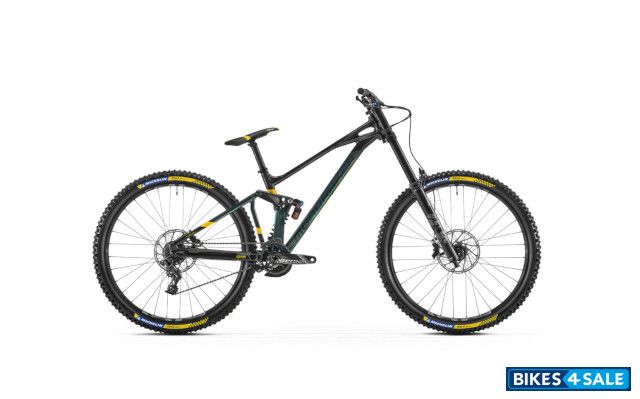

Mondraker Summum R Bicycle

Price, features and specs

Rate Mondraker Summum R:
4.5/5 (2 votes)
Mondraker Summum R Price

Not Available

Buy new Mondraker Summum R

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Mondraker Summum R.

For Exciting Offers, Book a Test Drive
By submitting, you agree to our Terms & Conditions.
2549
Technical Specifications
Vehicle TypeBicycle
HandlebarONOFF Sulfur 1.0 double butted 6061 alloy, height: 20mm, width: 800mm, 9th backsweep, 5th upsweep, diameter 31.8mm
ForkFox 40 29 Float FIT GRIP2 EVOL Performance, 203mm, air spring, 1-1 / 8 ”tube, 20x110mm axle, 56mm offset. Settings: low compression, low rebound, air preload
ChainSRAM PC1110 11s, Powerlock
SaddleSDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sidewalls
Derailleur : RearSRAM GX DH, 7s, mid cage, X-ACTUATION 1: 1
Hub : Fronte * thirteen Superboost 12x157mm, triple-sealed, 100% machined aluminum, IS 6 bolt, 6º return angle
Hub : Reare * thirteen Boost 20x110mm, triple-sealed, 100% machined aluminum, IS 6 bolt
Bottom BracketSRAM DUB BSA, sealed bearings, 83mm
Brakes
Brake LeverSRAM Code R, tool-free reach adjustment
Tyres
Front TyreMichelin DH34 29x2.4, tubeless ready, Magi-X DH compound, DH Shield reinforced shell, with rigid bead
Rear TyreMichelin DH34 29x2.4, tubeless ready, Magi-X DH compound, DH Shield reinforced shell, with rigid bead
Additional Details
Derailleur hanger : Mondraker M068
Controls - change buttons : SRAM trigger GX DH 7v, X-ACTUATION 1: 1
Pinions : SRAM PG 720 11-25T, 7s
Chain guide : E.13 Vario Compact Adjustable Upper Slider, Alloy Mount for ISCG 05, DMB, Lower Slider compatible with 34-36t
Plates : 34T, steel, X-SYNC
Connecting rods : Truvativ Descendant DH, DUB axle, Direct Mount chainring, 165mm
Radios : e * thirteen custom Hive alloy, tri-butted black, alloy nipples, with nipple washers
Cuffs : ONOFF Diamond, 1 lock-on, 135mm
Shank : SDG Micro I-Beam SP-751 Alloy, diameter 31.6mm, length 300mm, micro-adjustable
Power : ONOFF Krypton DH CNC FG integrated, 25-30mm adjustable, for 31.8mm handlebar, 6061, 2x6mm spacer
Shock absorber : Fox DHX2 Performance Elite, 225x70mm. Settings: low compression, low rebound, spring preload. Trunnion upper anchor, 30x8mm lower bushings.
Sizes : S / M / L / XL 29 "and MX
