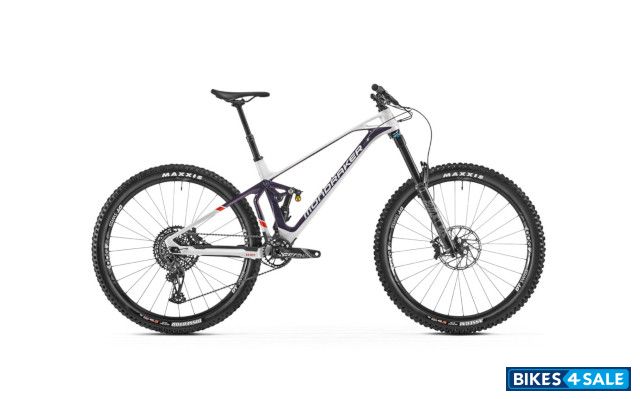

Mondraker Superfoxy Carbon R

Price, review, features and specs

Rate Mondraker Superfoxy Carbon R:
4.5/5 (2 votes)
Add To Compare
Write a Review
Mondraker Superfoxy Carbon R Price

Not Available

Buy new Mondraker Superfoxy Carbon R

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Mondraker Superfoxy Carbon R.

For Exciting Offers, Book a Test Drive
1209
Colours

White / Deep Purple / Red

Technical Specifications
Vehicle TypeBicycle
StemONOFF Sulfur FG 30mm 0º, forged 6061, for 31.8mm handlebars
HandlebarONOFF Sulfur 1.0 double butted 6061 alloy, height: 20mm, width: 800mm, 9th backsweep, 5th upsweep, diameter 31.8mm
ForkFox 38 29 Float FIT GRIP EVOL Performance, 170mm, tapered tube, 15x110mm Boost axle, 44mm offset. Adjustments: 3-position micro-adjust compression, low rebound, air preload
SeatpostONOFF Internally wired pin, diameter 31.6mm, size S: 337x100mm, M: 387x125mm, L: 425x150mm, XL: 465x170mm
GripONOFF Diamond, 1 lock-on, 135mm
CranksetTruvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct Mount chainring, S / M: 170mm, L / XL: 175mm
ChainSRAM NX Eagle, 12v, Powerlock
SaddleSDG BEL-AIR 3.0, LPU foam, steel rails
HeadsetONOFF Titan tapered for 1-1 / 8 ”to 1-1 / 2” tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º
Hub : FrontDT 370, SuperBoost 12x157mm, LN 18-pawl system, CenterLock, XD freehub
Hub : RearDT 370, Boost 15x110mm, CenterLock
SpokeDT Champion, straight rise
CassetteSRAM XG-1275, 10-52T, 12v
Chainrings32T, CNC machined alloy, X-SYNC 2
Bottom BracketSRAM DUB BSA, sealed bearings, 73mm
Electricals
Battery
Brakes
Front BrakeSRAM Code R, 4-piston oversized caliper, Centerline 200mm Centrelock rotor, sintered pads
Rear BrakeSRAM Code R, 4-piston oversized caliper, Centerline 200mm Centrelock rotor, sintered pads
Brake LeverSRAM Code R, tool-free reach adjustment
Chassis and Suspension
FrameSuperFoxy 29 Stealth Air Full Carbon, Zero Suspension System, 160mm travel, Forward Geometry, Monobloc carbon top link, 12x157mm SuperBoost rear axle, tapered head tube, 73mm BSA bottom bracket, designed for single cranks, HHG internal wiring system , Enduro Bearings MAX bearings, shock fender, ISCG 05, custom frame protectors. * Optional geometry kit
Tyres
Wheels / RimRims: DT Swiss E1900 Spline 29, 30mm inner width, jacketed alloy, tubeless ready, 28h
Front TyreMaxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH shell, 60x2TPI, folding bead
Rear TyreMaxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH shell, 60x2TPI, folding bead
Dimensions
Length x Width x Height-- x -- x -- mm
Additional Details
Shock absorber :Compression C20, Rebound R35
Rear shock : Öhlins TTX 22M Coil 205X65mm. Settings: high compression lever with "climb" mode (semi locked), low compression, rebound, air preload. Trunnion top anchor, 22.2x10mm bottom bushings.
Shift levers : SRAM Trigger GX Eagle, 12v, X-ACTUATION 1: 1
Rear drift : SRAM GX Eagle, Type 3 needle bearing clutch, box lock, 1x12v, X-ACTUATION 1: 1
Sizes : S: 380mm / M: 420mm / L: 470mm / XL: 510mm
