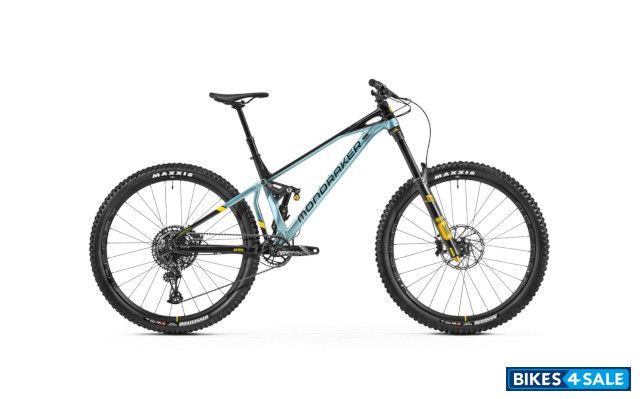

Mondraker Superfoxy R

Price, review, features and specs

Rate Mondraker Superfoxy R:
4.8/5 (4 votes)
Add To Compare
Write a Review
Mondraker Superfoxy R Price

Not Available

Buy new Mondraker Superfoxy R

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Mondraker Superfoxy R.

For Exciting Offers, Book a Test Drive
4966
Technical Specifications
Vehicle TypeBicycle
ForkÖhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered tube, 15x110mm Boost axle, 44mm offset. Settings: High compression with "climb" mode, low compression, rebound, air preload, "ramp" camera
ChainSRAM SX Eagle, 12v, Powerlock
SaddleSDG BEL-AIR 3.0, LPU foam, steel rails
Derailleur : RearSRAM NX Eagle, Type 3 needle bearing clutch, cage lock, 1x12v long cage, X-ACTUATION 1: 1
Hub : FrontMavic, SuperBoost 12x157mm, ID360 ratchet system, IS 6 bolt
Hub : RearMavic, Boost 15x110mm, IS 6 bolts
Spoke32T, CNC machined alloy, X-SYNC 2
Bottom BracketSRAM DUB BSA, sealed bearings, 73mm
Electricals
Battery
Brakes
Front BrakeSRAM Code R, 4-piston oversized caliper, 6-bolt IS one-piece 200mm Centerline rotor, sintered pads
Rear BrakeSRAM Code R, 4-piston oversized caliper, 6-bolt IS one-piece 200mm Centerline rotor, sintered pads
Brake LeverSRAM Code R, tool-free reach adjustment
Chassis and Suspension
Frame
Tyres
Wheels / Rim
Front TyreMaxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH shell, 60x2TPI, folding bead
Rear TyreMaxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH shell, 60x2TPI, folding bead
Dimensions
Length x Width x Height-- x -- x -- mm
Additional Details
Pinions : SRAM XG-1230, 11-50T, 12v
Derailleur hanger : Mondraker M068
Controls - change buttons : SRAM Trigger X01 Eagle, 12v, X-ACTUATION 1: 1
Shank :ONOFF Internally wired pin, diameter 31.6mm, size S: 337x100mm, M: 387x125mm, L: 425x150mm, XL: 465x170mm
Power : ONOFF Krypton FG 30mm, CNC, for 31.8mm handlebars
Shock absorber : Öhlins TTX 22M Coil 205X65mm. Settings: high compression lever with "climb" mode (semi locked), low compression, rebound, air preload. Trunnion top anchor, 22.2x10mm bottom bushings.
Connecting rods : Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct Mount chainring, S / M: 170mm, L / XL: 175mm
Radios : DT Champion, straight rise
Cuffs : ONOFF Diamond, 1 lock-on, 135mm
Damper adjustment : Compression C20, Rebound R35
