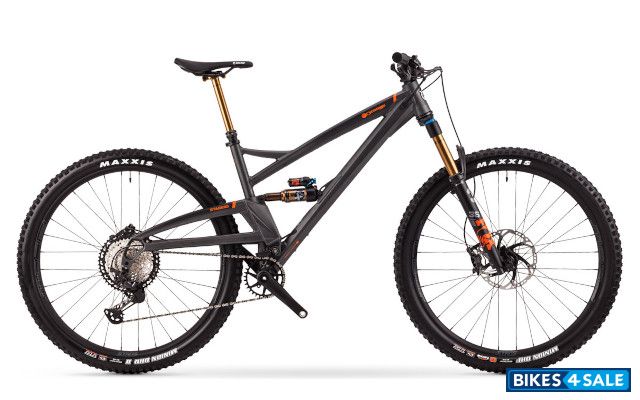

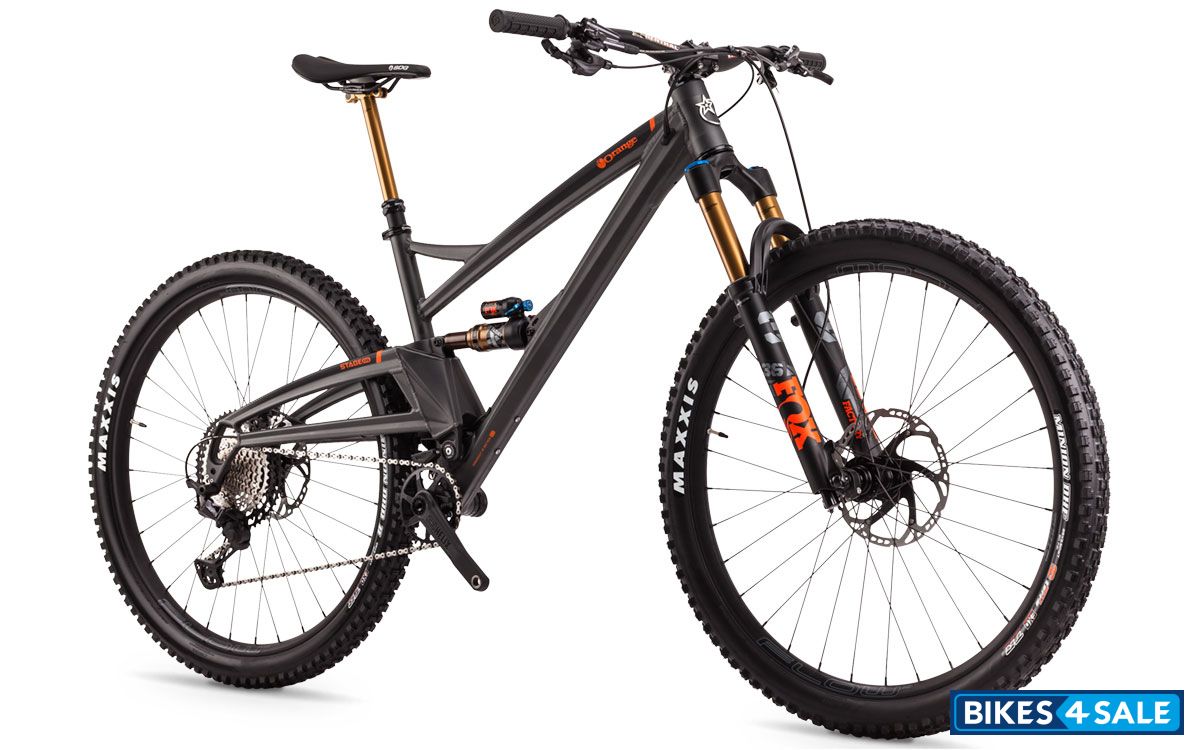

Orange 2022 Stage Evo Factory Bicycle

Price, features and specs

Rate Orange 2022 Stage Evo Factory:
4.0/5 (3 votes)
Orange 2022 Stage Evo Factory Price £ 6100 [London, United Kingdom]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United Kingdom, London £ 6100 --
Features
- Single pivot suspension for the utmost performance, efficiency and reliability
- Radically revised progressive suspension frame curve
- Aggressive Evo geometry optimised for 130mm front/120mm rear travel
- Bottle cage mounts
- 29 inch wheels
- Boost 148 rear hub spacing
- Internal dropper post routing
Colours

Fizzy Orange
Norlando Grey
Matt Charcoal Grey
Smoke White
Gloss Cyan Blue
British Racing Green
Gloss Silver Shadow
Gloss Laser Blue

Technical Specifications
Vehicle TypeBicycle
Seating Capacity1
StemHope M35 x 35mm Black
HandlebarRenthal FatBar M35 800mm
ForkFox Factory 36 Float 130mm 29 (black)
SeatStrange Bolted
SeatpostFox Factory Transfer 175mm Drop
GripStrange Grappler Lock-On
CranksetE13 Helix 32t 170mm
ChainKMC 12spd
ShiftersShimano XT 12spd
SaddleSDG Strange Bel Air III
HeadsetCane Creek 49mm for Tapered Steerer
Hub : Rear12 x 148mm Boost
CassetteShimano XT 10-51T 12spd
Bottom BracketE13
Brakes
Front BrakeShimano XT Trail 203/180
Chassis and Suspension
Frame6061-T6 Monocoque UK Formed Custom Aluminium Tubing
Rear SuspensionFox Float X Factory 190x45
Tyres
Wheels / RimSpoke
Rear TyreMaxxis Minion DHF 2.5 3C Exo / DHR II 2.4 Exo 29
Dimensions
Wheelbase1198 mm
Additional Details
Swingarm: Bolt Type Allen Key Head (Boost 148mm Hub)
Rear Mech: Shimano XT 12spd
Chain Device: E13 Vario Compact Guide
Wheelset: Stans Flow Mk4 + Hope Pro 4 (Black) 29
Fork Offset: 42 mm
Seatpost : 30.9 mm
Seatclamp : 34.9 mm
BB Shell: 73 mm ISCG05
Tapered Headset: Upper: ZS49/28.6
Lower: EC49/40
Vehicle Warranty
5 year frame warranty with Limited Lifetime Crash Replacement
