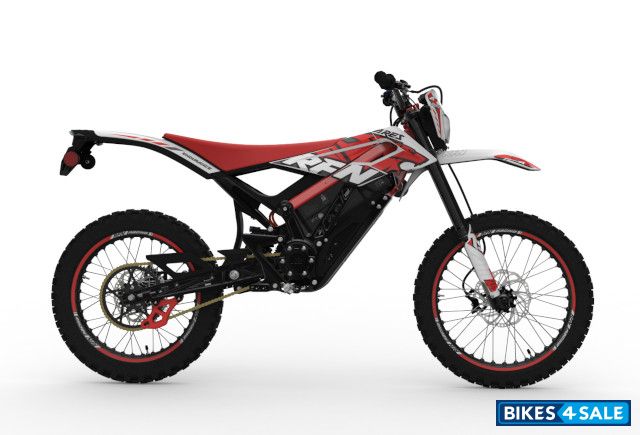

RFN Ares Endurance

Price, review, features and specs

The RFN Ares Endurance impresses with its robust internals, housing an Internal Rotor Permanent Magnet Synchronous Motor. With a commendable range of 160 Km, it proves reliable even under test conditions. Charging is swift, taking only 3 hours for a full charge, and 2 hours for 80%. The 74V 35Ah LG Premium battery ensures ample power. Generating a maximum of 4 kW and boasting a torque of 46 Nm at the motor axle and 242 Nm at the wheel, it handles a load capacity of up to 199 kg. The Ares offers versatile riding with its 4 distinct modes, making it a compelling choice for various journeys.

Rate RFN Ares Endurance:
3.5/5 (2 votes)
Add To Compare
Write a Review
RFN Ares Endurance Price ¥ 46019 [Beijing, China]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
China, Beijing ¥ 46019 --
Australia, Canberra $ 9961 --
United Kingdom, London £ 5161 --
United States, New York $ 6299 --
Buy new RFN Ares Endurance

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for RFN Ares Endurance.

For Exciting Offers, Book a Test Drive
By submitting, you agree to our Terms & Conditions.
202
Technical Specifications
Vehicle TypeMotorcycle
FuelElectric
Maximum Power4 kW
Maximum TorqueTorque (motor axle): 46 Nm
Torque (wheel): 242 Nm
Load Carrying Capacity199 kg
DrivetrainDirect drive, chain
Top Speed45 kmph
Riding ModesTurtle Mode: The Ultimate Energy-Saving Exploration Mode. Current Limit: 30A. Battery Life: 4 Hours
Rabbit Mode: Endurance or Active Off-Road Riding. Current Limit: 45A. Riding Time: 3 Hours
Rocket Mode: Track and Competition Mode. Current Limit: 55A. Riding Time: 2.5 Hour
Reverse mode: Limited to 9 km/h
Handlebar6061 aluminium
Rise: 22mm
Width: 760mm
ForkFork angle: 24 degree
Chain420 chain with DX
Hub : FrontForged and CNC aluminium RFN hubs with 20mm axle
Hub : RearForged and CNC aluminium RFN hubs with 20mm axle
Sprocket11 teeth front sprocket
58 teeth rear sprocket
Motor Details
Internal Rotor Permanent Magnet Synchronous Motor
Range
160 Km (Test data - Load: 75 Kg, 25 Km/h uniform speed, ambient temperature: 25 °C, flat pavement, standard tires, standard tire pressure)
Charging Time
0-: 3 hours
0-80%: 2 hours
Display
LCD instrument panel
Electricals
Battery74V 35Ah / 2590Wh LG Premium 21700 lithium cells (Removable)
ControllerBest-in-class power density and state-of-the-art motor control algorithms
Head LampLED
Tail LampLED
Brakes
Front BrakeStainless steel disc brakes, 210mm diameter, 2.3mm thickness, Four piston calipers
Rear BrakeStainless steel disc brakes, 210mm diameter, 2.3mm thickness, Four piston calipers
Brake LeverAlloy levers
Chassis and Suspension
Frame6082 aluminium - extruded, forged and iron frame
Front Suspension200mm travel, Upside-down air forks featuring 45mm stanchion tubes for extra rigidity and strength, Double shoulder adjustable front damper
Rear Suspension75mm travel, 240mm shock ,Compression damping / rebound damping adjustable + Spring preload adjustable
Tyres
Wheels / RimF 19"/ R 18" (Motorcycle standard), 7116 aluminium rim
Front TyreKENDA 2.75-19" / 3.0-18" Light duty off-road & road hybrid tires
Rear TyreKENDA 2.75-19" / 3.0-18" Light duty off-road & road hybrid tires
Dimensions
Length1937 mm
Width770 mm
Height1080 mm
Seat Height860 mm
Wheelbase1330 mm
Weight99-105 kg
Ground Clearance320 mm
Additional Details
Brake mode 1: Motor brake with energy regeneration
Brake mode 2: Freewheel, no motor brake
Offset: 15mm in triple clamps, 45mm in forks
Trail: 111mm
Material: PP/ABS Plastic
