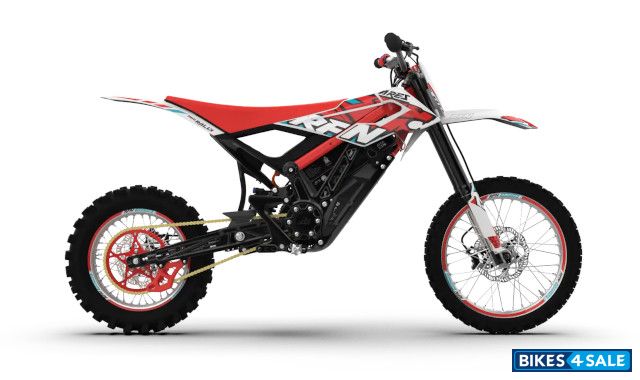

The RFN Ares Mini Rally is a compact electric vehicle equipped with an Internal Rotor Permanent Magnet Synchronous Motor. It offers a range of 140 kilometers, tested under specific conditions. Charging is efficient, taking just 3 hours for a full charge or 2 hours to reach 80%. The 74V 35Ah LG Premium battery with removable 21700 lithium cells is commendable. With a top speed of 50 km/h, the Ares Mini Rally packs 12.5 kW of power and impressive torque of 58 Nm at the motor axle and 305 Nm at the wheel. Its disc brakes ensure solid stopping power. This electric vehicle offers a practical, eco-friendly transportation solution.
The given price can change depending on the colour, accessories and other features.
| Country, City | Showroom Price | On Road Price |
|---|---|---|
| United States, New York | $ 5999 | -- |
| Vehicle Type | Motorcycle |
| Fuel | Electric |
| Maximum Power | 12.5 kW |
| Maximum Torque | Torque (motor axle): 58 Nm Torque (wheel): 305 Nm |
| Load Carrying Capacity | 199 kg |
| Drivetrain | Direct drive, chain |
| Top Speed | 50 kmph |
| Riding Modes | Turtle Mode: The Ultimate Energy-Saving Exploration Mode. Current Limit: 35A. Battery Life: 3.5 Hours Rabbit Mode: Endurance or Active Off-Road Riding. Current Limit: 85A. Riding Time: 1-2 Hours Rocket Mode: Catapult start mode, peak current 150A, single 9 seconds Reverse mode: Limited to 9 km/h |
| Handlebar | 6061 aluminium Rise: 22mm Width: 760mm |
| Fork | Fork angle: 24 degree |
| Chain | 420 chain with DX |
| Sprocket | Front sprocket: 11 teeth Rear sprocket: 58 teeth |
| Motor Details |
|---|
| Internal Rotor Permanent Magnet Synchronous Motor |
| Range |
|---|
| 140 Km (Test data - Load: 75 Kg, 25 Km/h uniform speed, ambient temperature: 25 °C, flat pavement, standard tires, standard tire pressure) |
| Charging Time |
|---|
| 0-: 3 hours 0-80%: 2 hours |
| Display |
|---|
| LED instrument panel |
| Electricals | |
|---|---|
| Battery | 74V 35Ah / 2590Wh LG Premium 21700 lithium cells (Removable) |
| Controller | Best-in-class power density and state-of-the-art motor control algorithms |
| Brakes | |
|---|---|
| Front Brake | Suspension disk, 210mm diameter, 2.3mm thickness, four piston calipers |
| Rear Brake | Suspension disk, 210mm diameter, 2.3mm thickness, four piston calipers |
| Brake Lever | Alloy |
| Chassis and Suspension | |
|---|---|
| Frame | 6082 aluminium - extruded, forged and CNC machined |
| Front Suspension | 200mm travel Upside-down air forks featuring 45mm stanchion tubes for extra rigidity and strength, Double shoulder adjustable front damper. |
| Rear Suspension | 75mm travel, 240mm shock ,Compression damping / rebound damping adjustable + Spring preload adjustable. |
| Tyres | |
|---|---|
| Wheels / Rim | F 17"/ R 14" (Motorcycle standard) re-inforced, Straight Pull Spokes, 7116 aluminium rim |
| Front Tyre | Kenda K783 70/100-17 off-road |
| Rear Tyre | Kenda K783 90/100-14 off-road |
| Dimensions | |
|---|---|
| Length | 1900 mm |
| Width | 770 mm |
| Height | 1025 mm |
| Seat Height | 815 mm |
| Wheelbase | 1330 mm |
| Weight | 95-100 kg |
| Ground Clearance | 280 mm |
| Additional Details |
|---|
| Brake mode 1: Motor brake with energy regeneration Brake mode 2: Freewheel, no motor brake Offset: 15mm in triple clamps, 45mm in forks Trail: 111mm Material: PP/ABS plastic Forged and CNC aluminium RFN hubs with 20mm axle |
