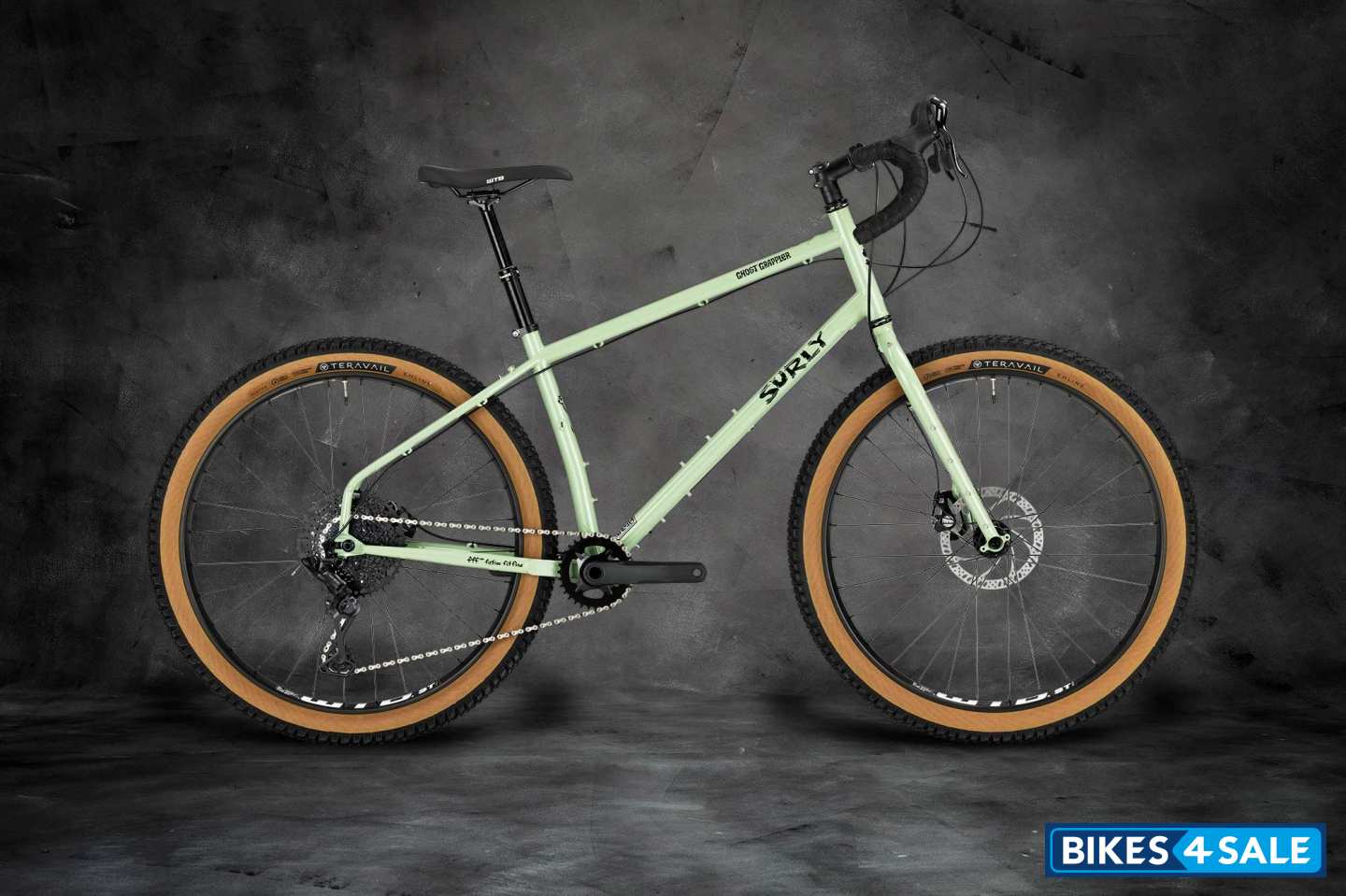

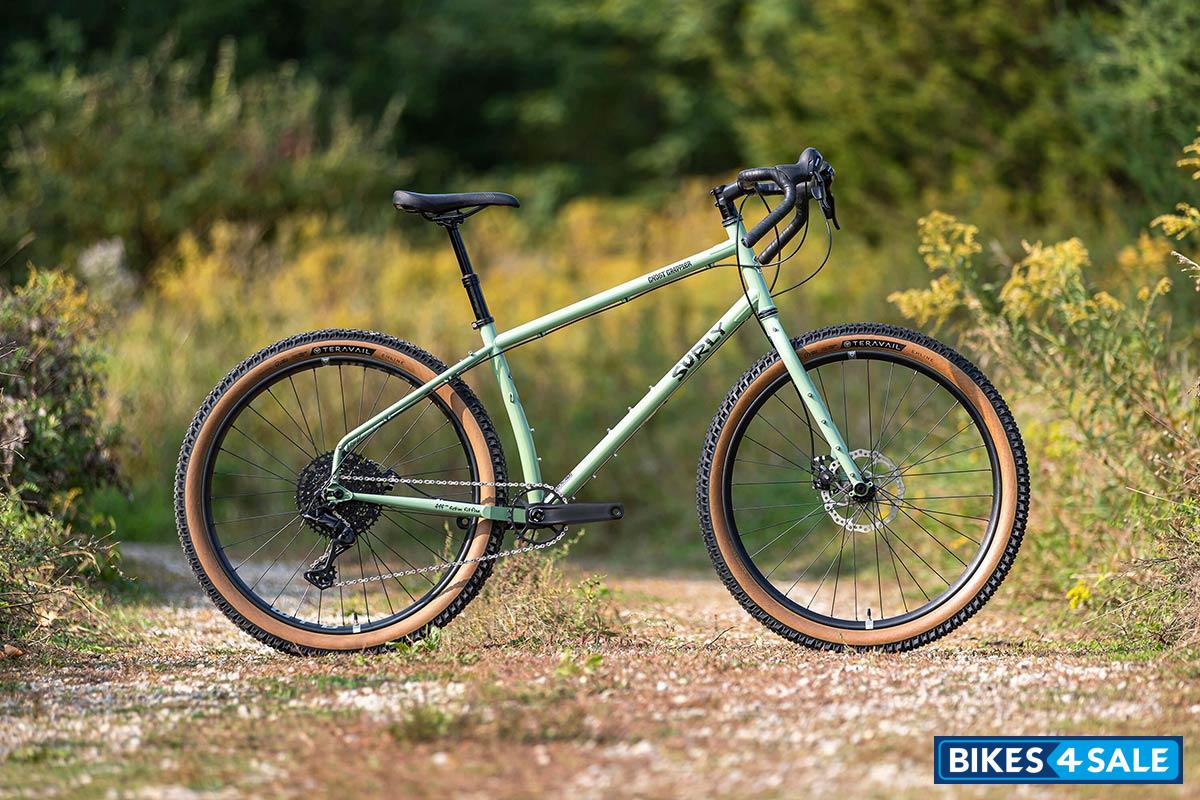

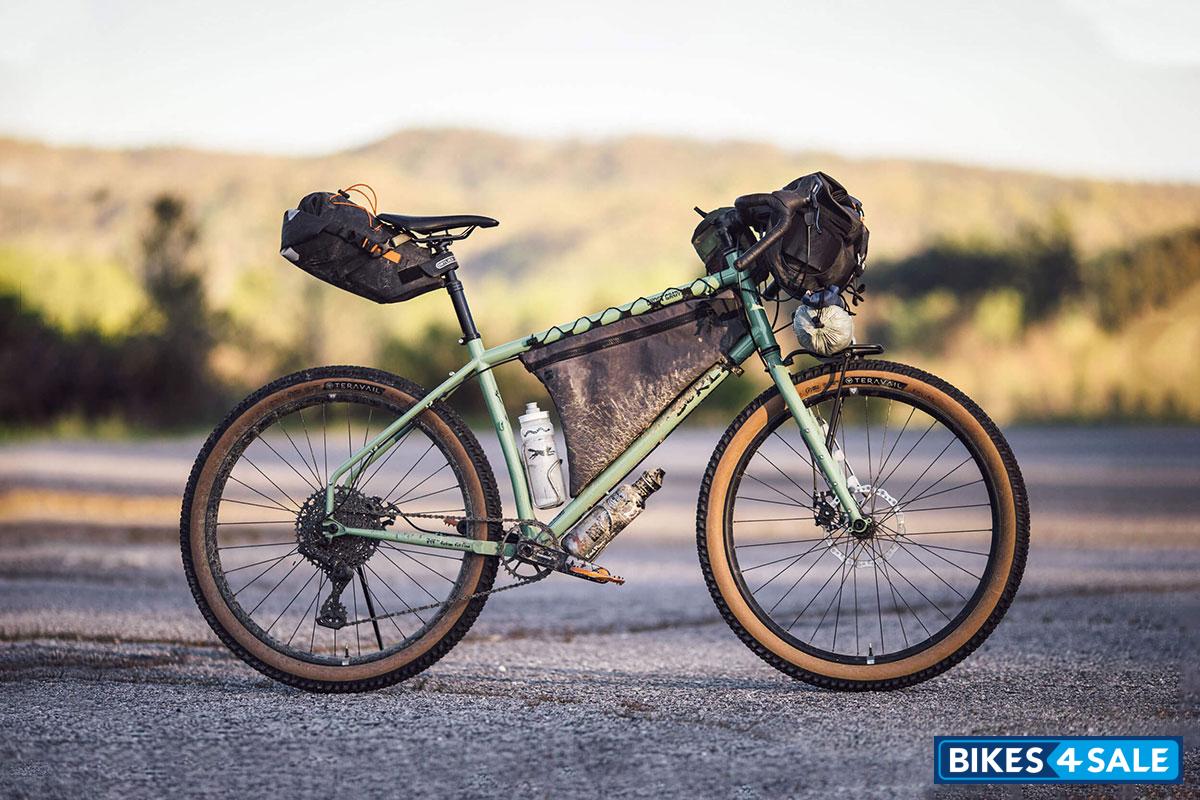

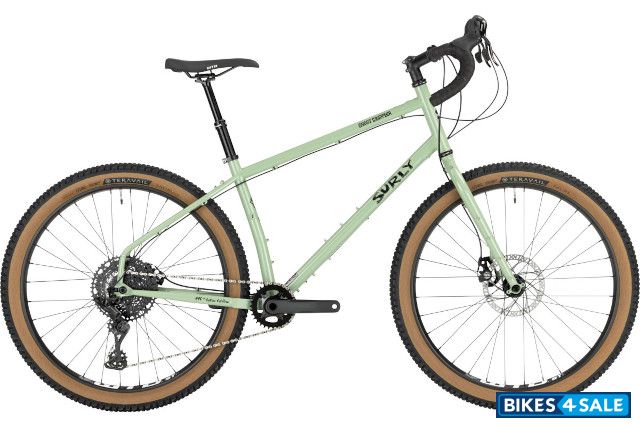

Surly Ghost Grappler Bicycle

Price, features and specs

Rate Surly Ghost Grappler:
4.3/5 (3 votes)
Surly Ghost Grappler Price $ 1899 [Albuquerque, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Albuquerque $ 1899 --
United States, Anchorage $ 1899 --
United States, Atlanta $ 1899 --
United States, Austin $ 1899 --
United States, Baltimore $ 1899 --
United States, Billings $ 1899 --
United States, Birmingham $ 1899 --
United States, Boston $ 1899 --
United States, Bridgeport $ 1899 --
United States, Burlington $ 1899 --
View price in other cities
Buy new Surly Ghost Grappler

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Surly Ghost Grappler.

For Exciting Offers, Book a Test Drive
By submitting, you agree to our Terms & Conditions.
7686
Features
Internal dropper post routing
Seatstay-mounted bottle bosses, plus three-pack mounts at the top and bottom of the down tube
Custom dropouts ready to run single-speed or internally geared hub setups
Colours

Sage Green

Technical Specifications
Vehicle TypeBicycle
StemPromax DA-296, 31.8 or Kalloy AS-007
Stem Angle: 6.0°
HandlebarSalsa Cowchipper 31.8
Handlebar Width: 400mm
Fork100% Chromoly Steel fork, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
Fork Rake: 50mm
Fork Length: 420mm
SeatSeat Tube Angle: 73.0°
Seat Tube Length: 316mm
SeatpostTransX YSP15, 30.9, 100mm travel
30.9mm
Clamp: Surly Stainless 33.1
GripCork Black
CranksetSamox 2PCS Boost 32t
Crank Length: 170mm
ChainKMC X10 Econo Black or NP/BLK
Chainstay Length: 425mm
ShiftersMicroshift SB-M100, AdventX Dual Control Levers
SaddleWTB Volt 142
HeadsetCane Creek 40
Derailleur : RearMicroshift M6205
Hub : FrontNovatec 15x110mm, 32h
Hub : RearNovatec 12x148mm, 32h
Bottom BracketSamox BSA 24
Brakes
Front BrakeTektro Mira MD-C400
Rear BrakeTektro Mira MD-C400
Brake LeverAdventX Dual Control Levers
Chassis and Suspension
Frame100% Chromoly Steel frame, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
Tyres
Wheels / RimRim: WTB ST i40 TCS
Front TyreTeravail Ehline, 27.5 x 2.5", 60tpi
Rear TyreTeravail Ehline, 27.5 x 2.5", 60tpi
TubeTop Tube Length, Effective: 560mm
Head Tube Length: 160mm
Head Tube Angle: 69.5°
Dimensions
Height719 mm
Wheelbase1057 mm
Additional Details
Size:
XS - Rider Height - 1.42m+
SM - Rider Height - 1.52m+
MD - Rider Height - 1.65m+
LG - Rider Height - 1.75m+
XL - Rider Height - 1.85m+

Rotors: Tektro 180/160
Cog or cogset: Microshift 11-48t
BB Drop: 50mm
Stack: 585mm
Reach: 381mm
