Tern Eclipse P20

Price, review, features and specs

Rate Tern Eclipse P20:
3.5/5 (2 votes)
Add To Compare
Write a Review
Tern Eclipse P20 Price $ 1499 [Chicago, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Chicago $ 1499 --
United States, Los Angeles $ 1499 --
United States, New York $ 1499 --
United States, San Diego $ 1499 --
Buy new Tern Eclipse P20

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Tern Eclipse P20.

For Exciting Offers, Book a Test Drive
1887
Features
- Kinetix™ Pro Disc 26” wheels with patented Rolf Paired Spoke design
- Shimano Tiagra drivetrain for 20 speeds and precise, responsive shifting
- Tektro Auriga hydraulic disc brakes for all-weather stopping power
- Adjustable VRO handlebar stem to fine tune your ride position
- High performance Kojak road tires with puncture protection

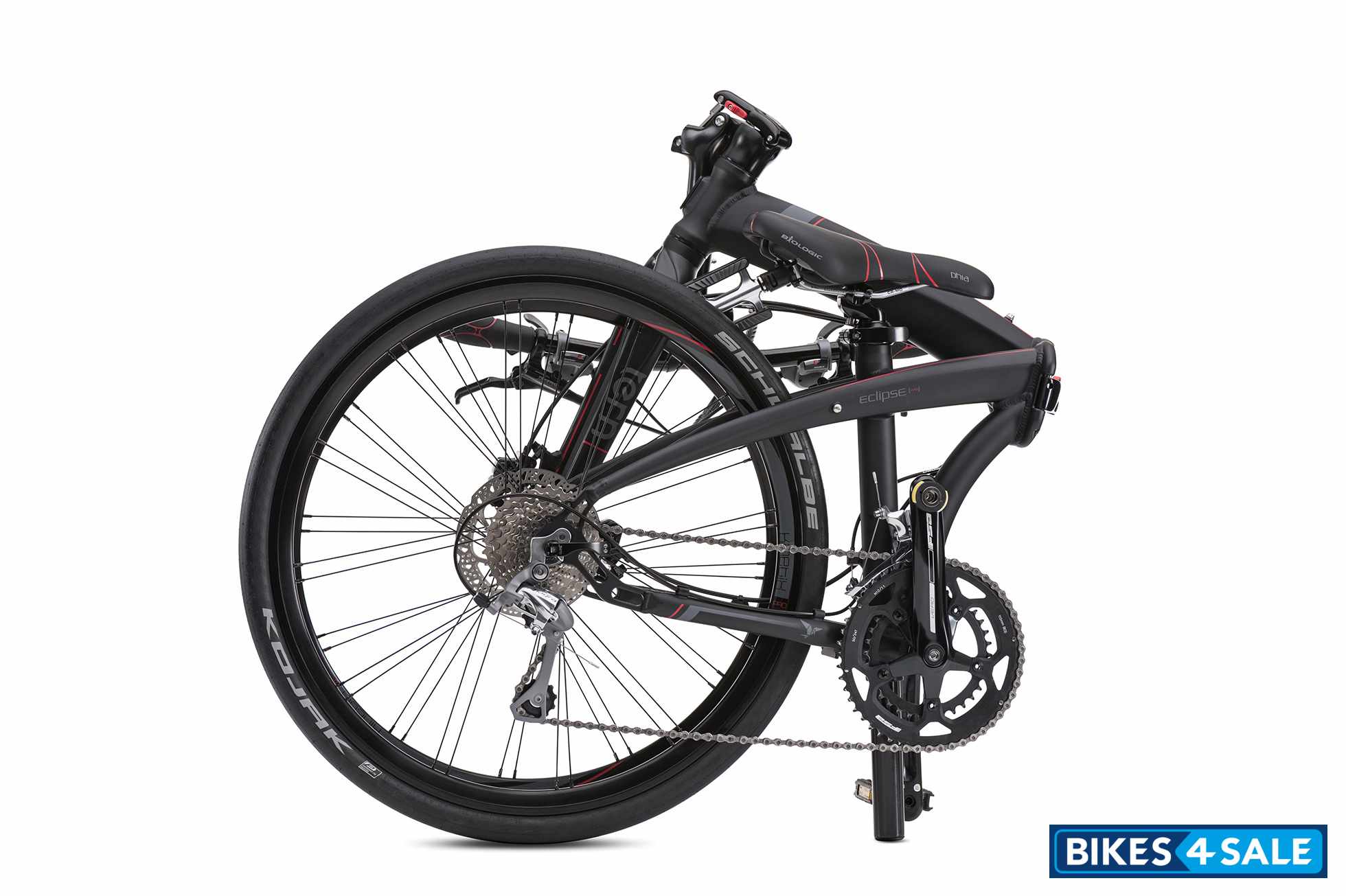

- Folds compactly in 10 seconds for storage and transport
Colours

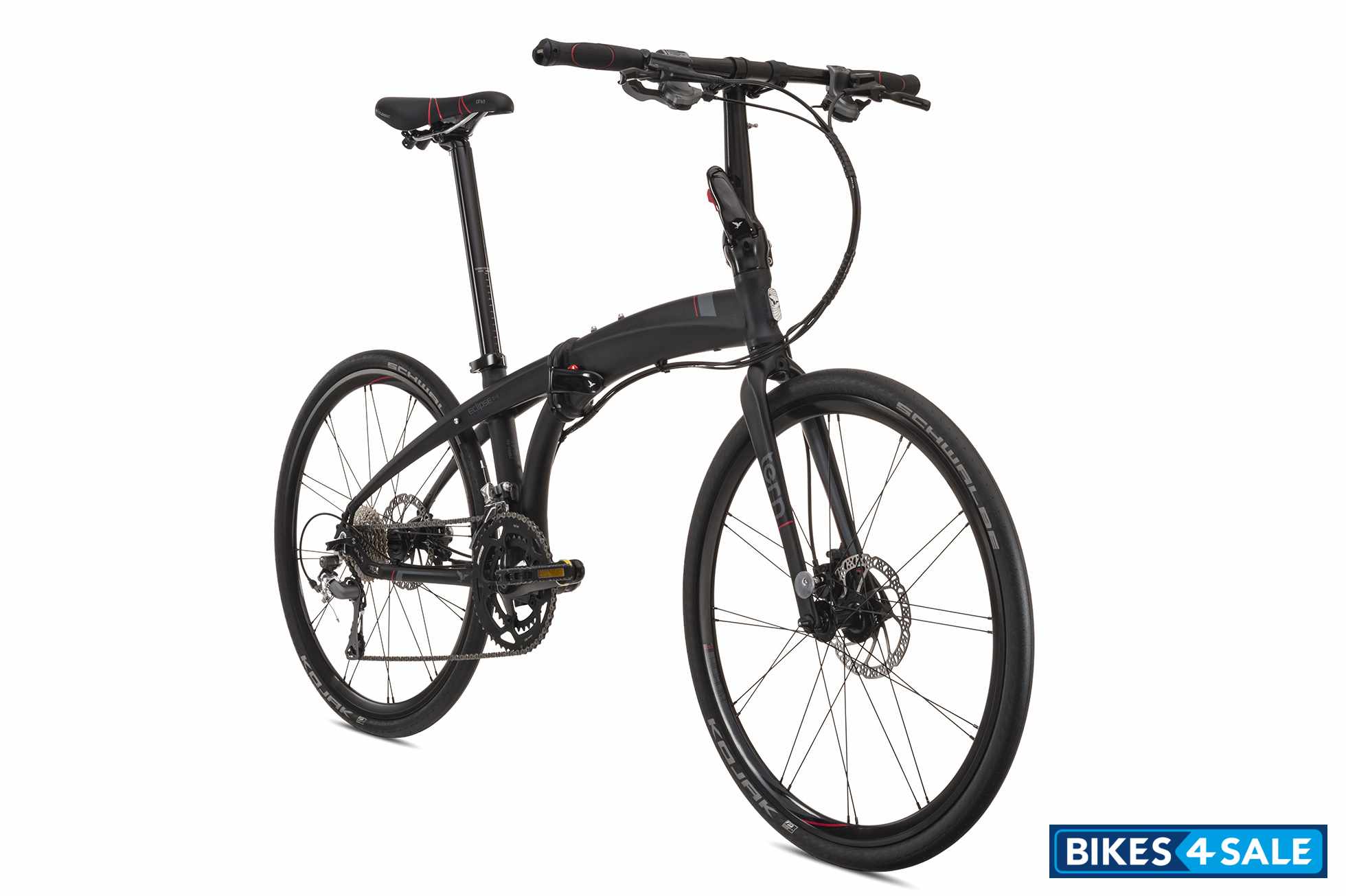

Black/Grey/Red

Tern Eclipse P20
Tern Eclipse P20
Tern Eclipse P20
Tern Eclipse P20
Tern Eclipse P20
Tern Eclipse P20
Technical Specifications
Vehicle TypeBicycle
FuelElectric
StemSyntace VRO, adjustable
HandlebarKinetix Comp, 6061-Al, VRO butted
ForkTarsus, 6061-AL, hydroformed
SeatpostSuperOversize, 6061-Al, forged clamp
GripBioLogic Arx
CranksetFSA Vero, 50/34T
PedalsLiteForm QR, alloy body, QR right/standard left
ChainKMC X10
ShiftersShimano Tiagra trigger, 2x10 spd
SaddleBioLogic Phia, PrimeGel padding
HeadsetFlux, cartridge bearings, Physis integrated
Derailleur : FrontShimano Tiagra
Derailleur : RearShimano Tiagra
Hub : FrontKinetix Pro Disc, 24H
Hub : RearKinetix Pro Disc, 24H
SpokeDouble-butted 18/10 stainless, Sapim Polyax nipples
CassetteShimano Deore, 11-32T, 10 spd
Electricals
Battery
Tail LampBioLogic TailLight
Brakes
Front BrakeTektro Auriga, hydraulic disc
Rear BrakeTektro Auriga, hydraulic disc
Brake LeverTektro Auriga, hydraulic
Chassis and Suspension
FrameTern Eclipse, hydroformed 7005-Al w/ smooth TIG welding, 3 patented technologies
Tyres
Wheels / RimSize : 26" wheels
Rims : Kinetix Pro X, 24H, 6061-T10 aluminum, patented Rolf Paired Spoke design
Front TyreSchwalbe Kojak, 35-559, foldable, puncture protection, 95 psi
Rear TyreSchwalbe Kojak, 35-559, foldable, puncture protection, 95 psi
Dimensions
Length x Width x Height-- x -- x -- mm
Accessories
BELL : Pitch, brass
KICKSTAND : Premium center mount
CLIP SYSTEM : Magnetix 2.0
LUGGAGE SOCKET : Yes
Additional Details
SPEEDS : 2 x 10
FOLDING SIZE : 38 x 90 x 81 cm (15" x 35.4" x 31.9")
FOLDING TIME : 10 sec
FRAME SIZES : One size
GEAR INCHES : 26" - 112" (2.09 - 8.92 m)
DISTANCE: SEATPOST TO HANDLEBAR : Min: 630 mm (24.8") Max: 700 mm (27.6")
DISTANCE: SADDLE TO PEDAL : Min: 770 mm (29.7") Max: 1040 mm (40.6")
SUGGESTED RIDER HEIGHT : 148 - 195 cm (4'10" - 6'5")
BOTTOM BRACKET : Cartridge, sealed bearings
BRAKE CABLE & HOUSING : Tektro Auriga, hydraulic
MAX LOAD WEIGHT : 105 kg (230 lb)
SEATPOST CLAMP : Syntace OverLock
HANDLEPOST : Tern Physis 3D (G2), 3D forged, 5 patented technologies
SHIFTER CABLE & HOUSING : Jagwire LEX-SL, slick treatment, alloy ferrules
