Tern Eclipse X22

Price, review, features and specs

Rate Tern Eclipse X22:
3.5/5 (2 votes)
Add To Compare
Write a Review
Tern Eclipse X22 Price $ 2499 [Chicago, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Chicago $ 2499 --
United States, Los Angeles $ 2499 --
United States, New York $ 2499 --
United States, San Diego $ 2499 --
Buy new Tern Eclipse X22

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Tern Eclipse X22.

For Exciting Offers, Book a Test Drive
6650
Features
- Kinetix Pro X 26” wheels with straight-pull Sapim spokes for a blazingly fast ride
- Shimano Ultegra / 105 drivetrain for 22 speeds and Grand Tour gear inches
- Shimano SLX hydraulic disc brakes for extreme stopping power
- Adjustable VRO handlebar stem to fine tune your ride position
- High performance Kojak road tires with puncture protection
- SR-71 matte finish
- Fold and store indoors for the best theft protection
Colours

Black/Red

Tern Eclipse X22
Tern Eclipse X22
Tern Eclipse X22
Tern Eclipse X22
Tern Eclipse X22
Tern Eclipse X22
Tern Eclipse X22
Tern Eclipse X22
Technical Specifications
Vehicle TypeBicycle
FuelElectric
StemSyntace VRO, adjustable
HandlebarKinetix Pro X, 7050-Al, multi-stage butted
ForkTarsus, 6061-AL, hydroformed
SeatpostStasis by Syntace, 7050-AL, hard-anodized
GripErgon GS1 Leichtbau
CranksetFSA Gossamer Pro, 50/34T, BB386 oversized aluminum spindle
PedalsMKS UB-LITE EZY, QR
ChainShimano 105, 11 spd
ShiftersShimano Ultegra trigger, 2x11 spd
SaddleErgon SMC30 Pro, TiNox Rails
HeadsetFlux Pro, angular contact bearings, Physis integrated
Derailleur : FrontShimano 105
Derailleur : RearShimano Ultegra
Hub : FrontKinetix Pro X Disc, 20H, straight-pull, asymmetric flange
Hub : RearKinetix Pro X Disc, 20H, straight-pull
SpokeSapim CX-Sprint, internal Polyax nipples
CassetteShimano 105, 11-28T, 11 spd
Electricals
Battery
Tail LampBioLogic TailLight
Brakes
Front BrakeShimano SLX, hydraulic disc
Rear BrakeShimano SLX, hydraulic disc
Brake LeverShimano SLX, hydraulic
Chassis and Suspension
FrameTern Eclipse, hydroformed 7005-Al w/ smooth TIG welding, 3 patented technologies
Tyres
Wheels / RimSize :26" wheels
Rim : Kinetix Pro X, 6061-T10 aluminum, patented Rolf Paired Spoke design
Front TyreSchwalbe Kojak, 35-559, foldable, puncture protection, 95 psi
Rear TyreSchwalbe Kojak, 35-559, foldable, puncture protection, 95 psi
Dimensions
Length x Width x Height-- x -- x -- mm
Weight11.3 kg
Accessories
BELL : Pitch, Brass
CLIP SYSTEM : Magnetix 2.0
LUGGAGE SOCKET :Yes
Additional Details
HANDLEPOST : Tern Physis 3D (G2), 3D forged, 5 patented technologies
SEATPOST CLAMP : Syntace OverLock

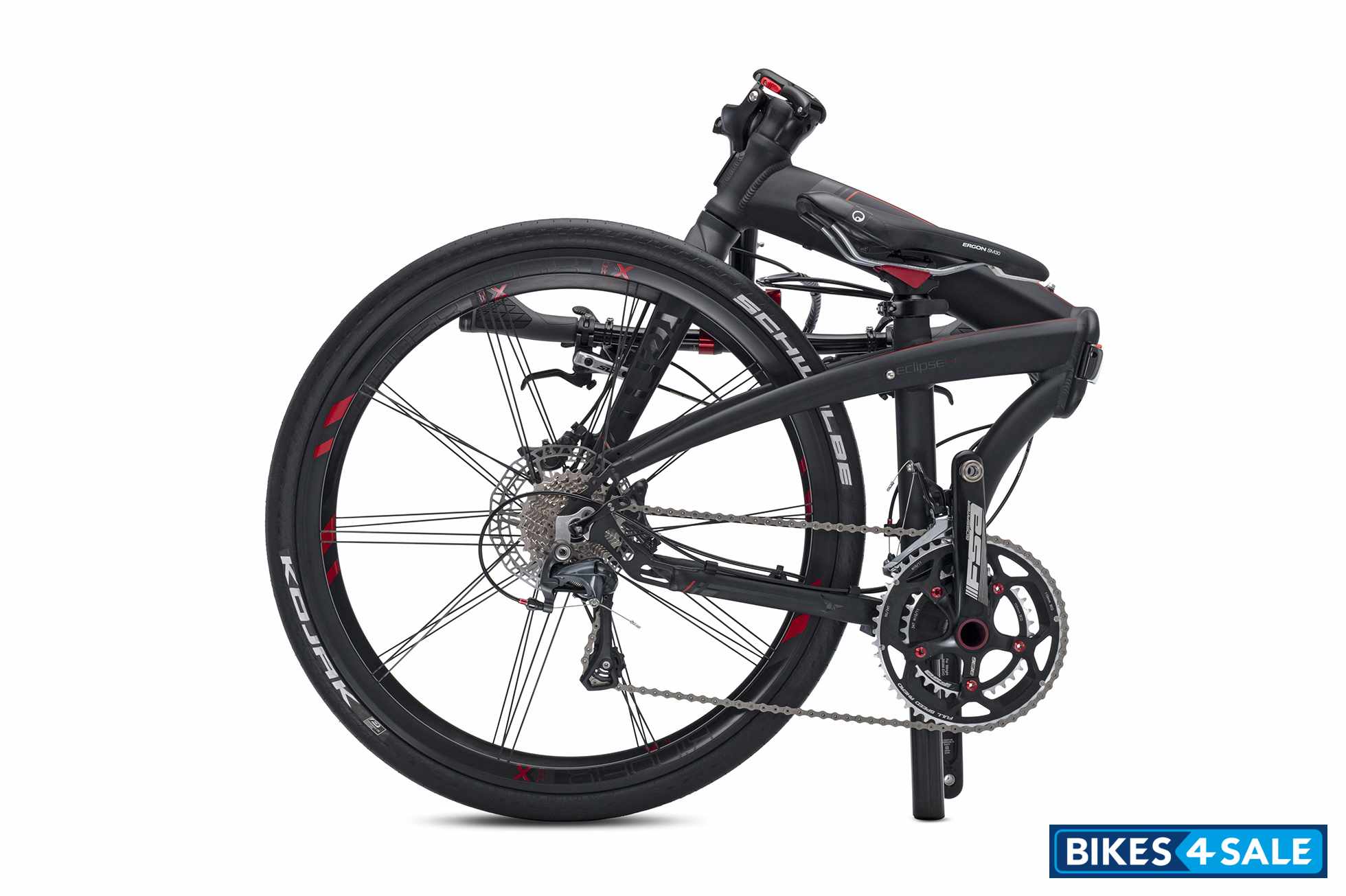

FOLDING SIZE : 42 x 89 x 81 cm (16.5" x 35" x 31.9")
FOLDING TIME : 10 sec
FRAME SIZES : One size
GEAR INCHES : 30" - 112" (2.38 - 8.92 m)
DISTANCE: SEATPOST TO HANDLEBAR : Min: 600 mm (23.6") Max: 640 mm (25.2")
DISTANCE: SADDLE TO PEDAL : Min: 770 mm (30.3") Max: 1040 mm (40.9")
SUGGESTED RIDER HEIGHT : 148 - 195 cm (4'10" - 6'5")
MAX LOAD WEIGHT : 105 kg (230 lb)
SHIFTER CABLE & HOUSING : Jagwire LEX-SD, ultra-slick polymer coating, alloy ferrules
BOTTOM BRACKET : FSA MegaEVO, BB386
