Tern Joe D24

Price, review, features and specs

Rate Tern Joe D24:
3.5/5 (2 votes)
Add To Compare
Write a Review
Tern Joe D24 Price

Not Available

Buy new Tern Joe D24

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Tern Joe D24.

For Exciting Offers, Book a Test Drive
1076
Features
- FBL™ frame joint and DoubleTruss™ technology for a stiff and powerful ride
- Adjustable NVO Axis stem for precise control of your riding position
- SRAM X4 24-speed drivetrain, for maximum versatility
- 11-32T cassette for maximum versatility
- BioLogic Arx™ grips with a hidden multi-tool
- Schwalbe Big Apple tires with Kevlar puncture protection
- Magnetix™ 2.0 lock the bike in place when folded

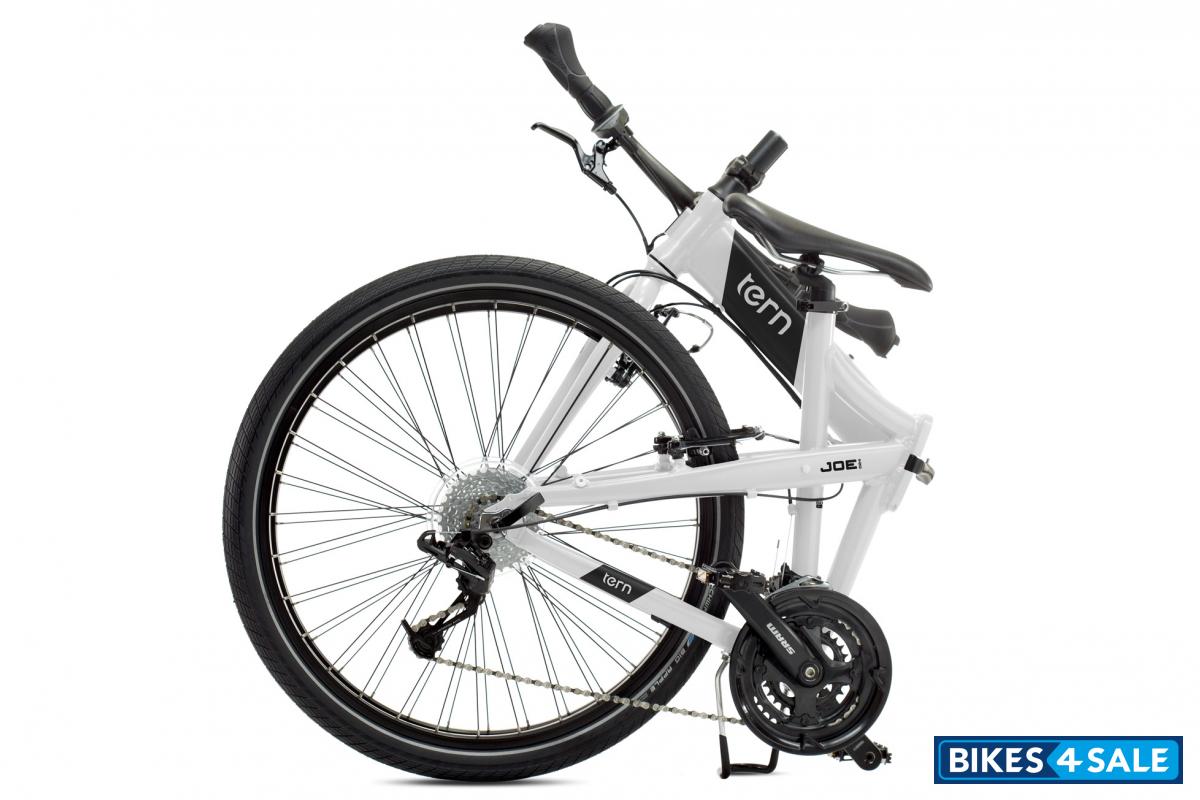

- Folds in 30 seconds to throw in the back of a car and fast-forward to the good part of the ride
- Get the perfect fit, with one of three sizes
Colours

Black/White
Grey/Orange

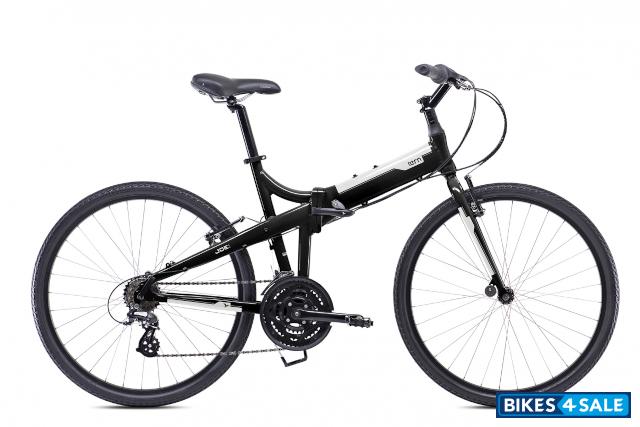

Tern Joe D24
Tern Joe D24
Tern Joe D24
Technical Specifications
Vehicle TypeBicycle
FuelElectric
StemAxis, 3Djust technology
HandlebarRiser, double-butted 6061-AL, 31.8mm
ForkIntegrated, hi-tensile steel
Seatpost6061-AL, forged clamp
GripBioLogic Arx w/ T-Tool, lock on
CranksetSRAM S250
PedalsWellgo, aluminum cage
Chain8 spd
ShiftersSRAM 3.0 Comp, 3 x 8 spd
SaddleVelo Sport
HeadsetCartridge
Derailleur : FrontMicroshift
Derailleur : RearSRAM X4
Hub : FrontFormula mountain, 8 spd aluminum, QR
Hub : RearFormula mountain, aluminum, QR
SpokeStainless steel, brass nipples
CassetteSunrace 8 spd, 12-32T
Electricals
Battery
Brakes
Front BrakeV, aluminum, linear spring
Rear BrakeV, aluminum, linear spring
Brake LeverV, aluminum bracket/lever
Chassis and Suspension
FrameFBL Joint
Tyres
Wheels / RimSize : 26" wheels
Rims : Aluminum
Front TyreSchwalbe Big Apple, 50-559, puncture protection, Reflex
Rear TyreSchwalbe Big Apple, 50-559, puncture protection, Reflex
Dimensions
Length x Width x Height-- x -- x -- mm
Weight14 kg
Accessories
BELL : Aluminum
KICKSTAND : Aluminum, Dacromet bolt
CLIP SYSTEM : Magnetix 2.0
LUGGAGE SOCKET : No
Additional Details
FOLDING SIZE : 35 x 92 x 85 cm
FOLDING TIME : 30 sec
FRAME SIZES : S (16"), M (18"), L (20")
GEAR INCHES : 23" - 105"
DISTANCE: SEATPOST TO HANDLEBAR : Medium -- Min: 640 mm Max: 700 mm
DISTANCE: SADDLE TO PEDAL : Medium -- Min: 700 mm Max: 930 mm
SUGGESTED RIDER HEIGHT : S: 157 - 167 cm ; M: 167 - 183 cm; L: 183 - 190 cm
MAX LOAD WEIGHT : 115 kg
BRAKE CABLE & HOUSING : Anti-compression housing, slick cables
