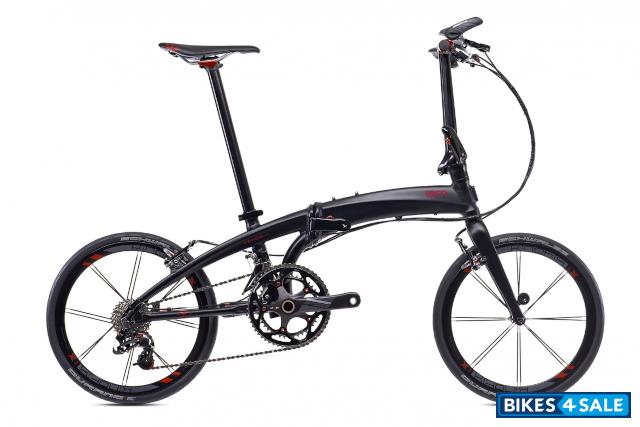

Tern Verge X20

Price, review, features and specs

Rate Tern Verge X20:
3.5/5 (2 votes)
Add To Compare
Write a Review
Tern Verge X20 Price

Not Available

Buy new Tern Verge X20

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Tern Verge X20.

For Exciting Offers, Book a Test Drive
9693
Features
- Top shelf SRAM XO + SRAM Force™ drivetrain for surgically precise shifts
- FSA SL-K carbon crankset for stiffness and minimal extra weight
- Kinetix™ Pro X wheels with straight-pull spokes and smooth-rolling hubs
- Hydroformed Tarsus™ fork with room for internal cable routing
- SR-71 stealth matte finish

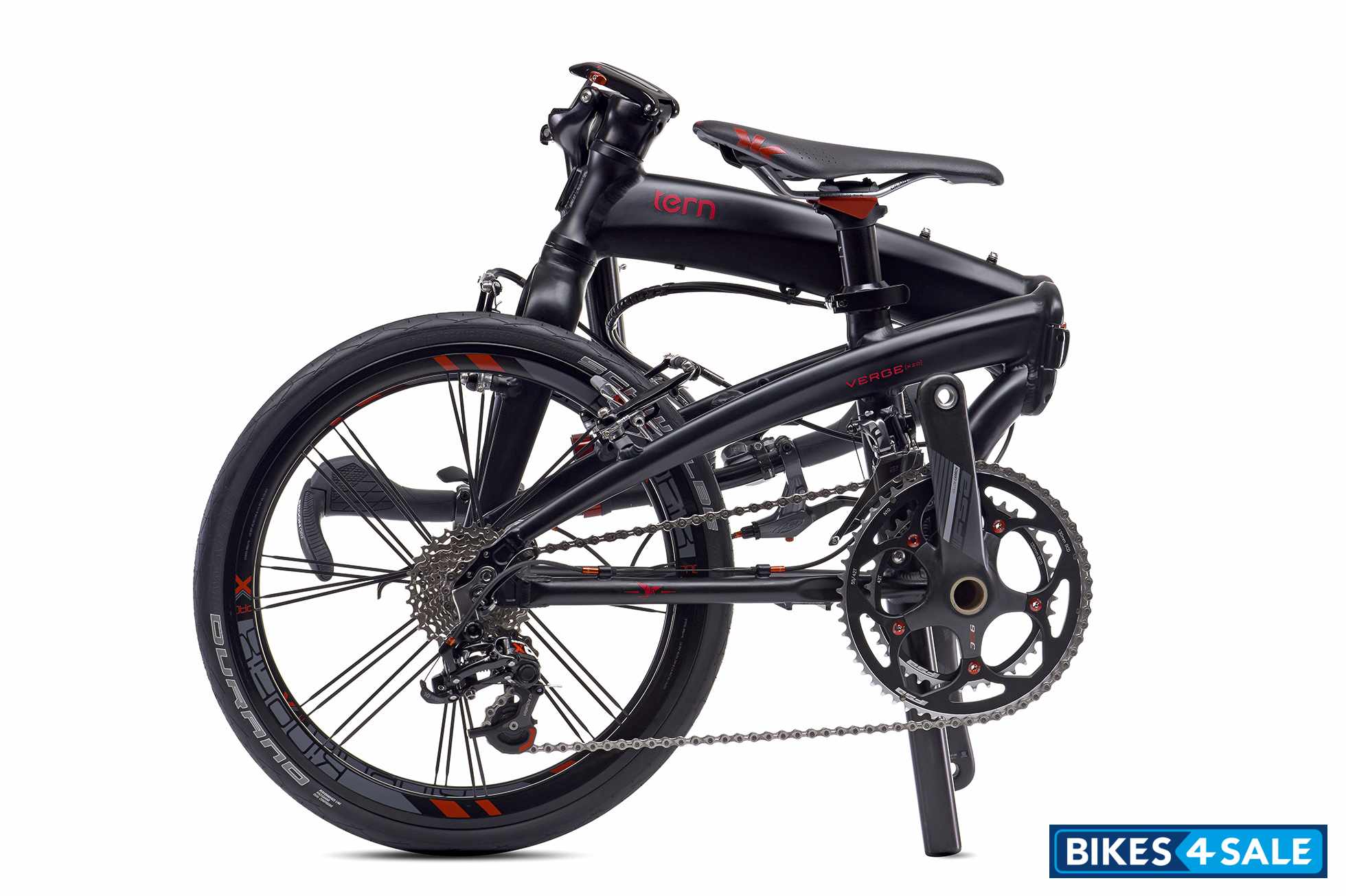

- Folds compactly in 10 seconds for storage and transport
Colours

Black/Red

Tern Verge X20
Tern Verge X20
Tern Verge X20
Technical Specifications
Vehicle TypeBicycle
FuelElectric
StemSyntace VRO, adjustable, Built for Tern
HandlebarKinetix Pro, double-butted 7050-Al, for VRO
ForkTarsus, 6061-AL, hydroformed
SeatpostStasis by Syntace, 7050-Al, hard-anodized
GripErgon GS2 Leichtbau, w/ mini bar end
CranksetFSA SL-K, carbon, 55/42T, MegaEVO BB386, Built for Tern
ChainShimano Ultegra, 10 spd
ShiftersSRAM DoubleTap, 2x10
SaddleKore Road Performance
HeadsetFlux Pro, angular contact bearings, Physis integrated
Derailleur : FrontSRAM Force
Derailleur : RearSRAM XO
SpokeSapim CX-Wing, custom forged, internal Polyax nipples
CassetteShimano Ultegra, 11-28T, 10 spd
Electricals
Battery
Tail LampBioLogic TailLight
Brakes
Front BrakeKinetix Pro X, Ashima Aero CNC cartridge brake pads
Rear BrakeKinetix Pro X, Ashima Aero CNC cartridge brake pads
Brake LeverAvid Speed Dial 7, adjustable leverage
Chassis and Suspension
FrameTern Verge, hydroformed 7005-Al w/ smooth TIG welding, 3 patented technologies
Tyres
Wheels / RimSize : 20" wheels
Front Wheel : Kinetix Pro X, Paired Spoke technology, straight-pull design, 16H, 491 g
Rear Wheel : Kinetix Pro X, Paired Spoke technology, straight-pull design, 20H, asymmetric flange, 657 g
Front TyreSchwalbe Durano, 28-406, foldable, puncture protection, 120 psi
Rear TyreSchwalbe Durano, 28-406, foldable, puncture protection, 120 psi
Dimensions
Length x Width x Height-- x -- x -- mm
Weight9.9 kg
Accessories
BELL : Aluminum
CLIP SYSTEM : Magnetix 2.0
LUGGAGE SOCKET : Yes
Additional Details
SPEEDS : 2 x 10
FOLDING SIZE : 38 x 77 x 71 cm (15" x 30" x 28")
FOLDING TIME : 10 sec
FRAME SIZES : One size
GEAR INCHES : 28" - 93" (2.21 - 7.38 m)
DISTANCE: SEATPOST TO HANDLEBAR : Min: 540 mm (21.2") Max: 680 mm (26.8")
DISTANCE: SADDLE TO PEDAL : Min: 660 mm (26") Max: 930 mm (36.6")
SUGGESTED RIDER HEIGHT : 142 - 190 cm (4'8" - 6'3")
MAX LOAD WEIGHT : 105 kg (230 lb)
SEATPOST CLAMP : Syntace OverLock
HANDLEPOST : Tern Physis 3D, 3D forged, 5 patented technologies
BRAKE CABLE & HOUSING : Jagwire, anti-compression housing, slick cables, Slick Lube liner, alloy ferrules
SHIFTER CABLE & HOUSING : Jagwire LEX-SL, slick treatment, alloy ferrules
BOTTOM BRACKET : FSA BB386
