The given price can change depending on the colour, accessories and other features.
| Country, City | Showroom Price | On Road Price |
|---|---|---|
| United States, New York | $ 13799 | -- |
Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Trek 2022 Rail 9.9 XX1 AXS.

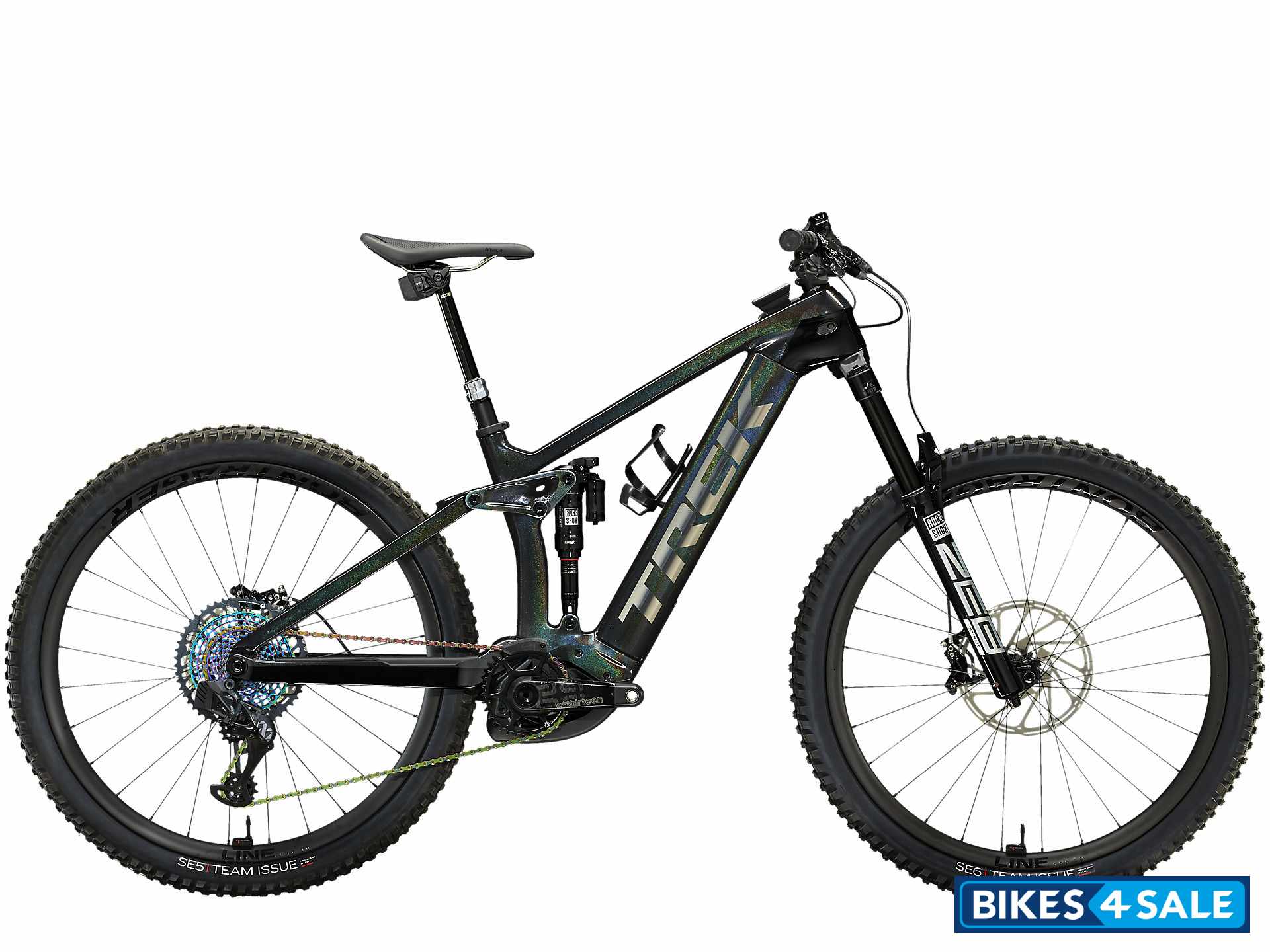

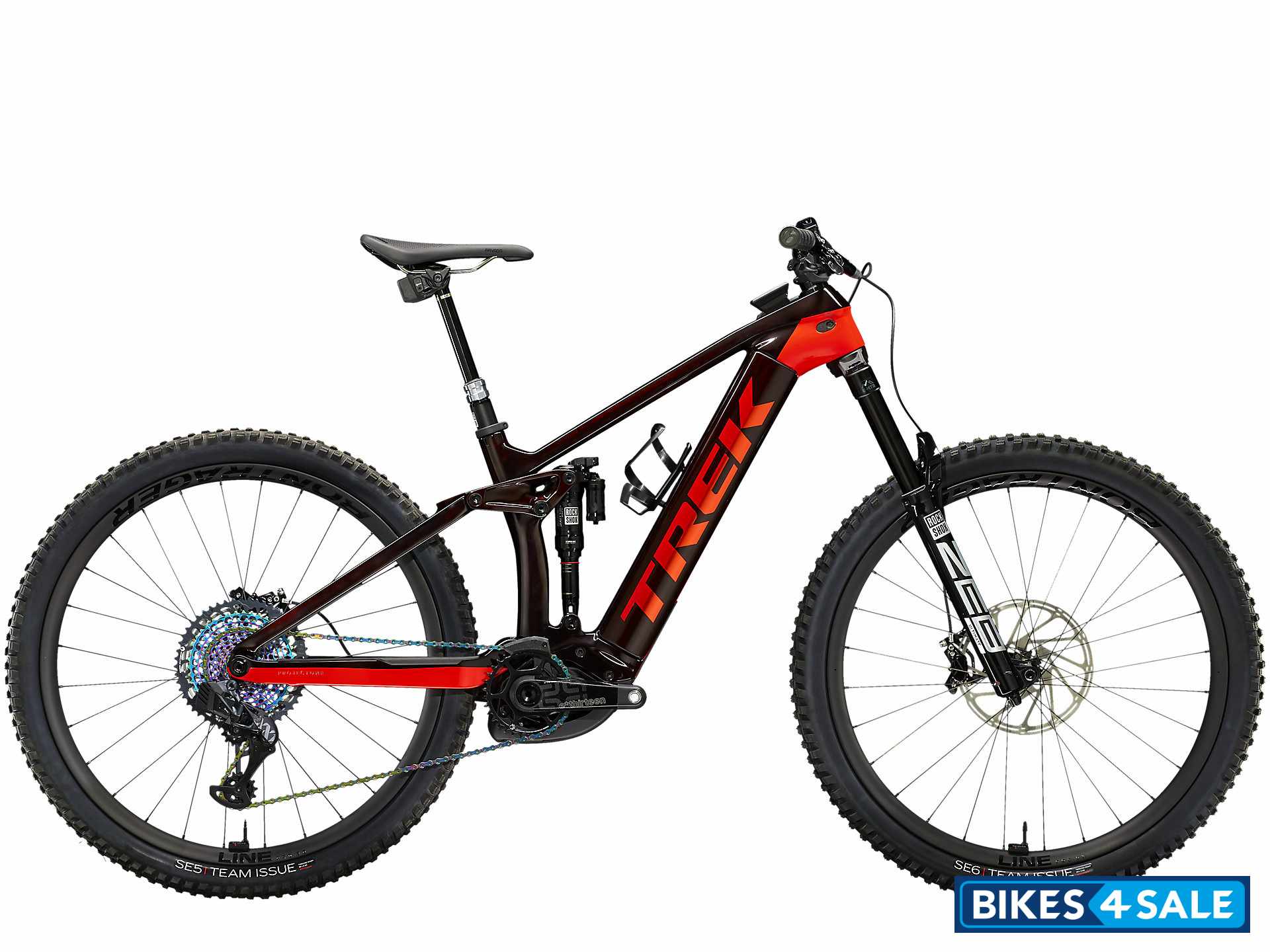

Carbon Red Smoke/Viper Red

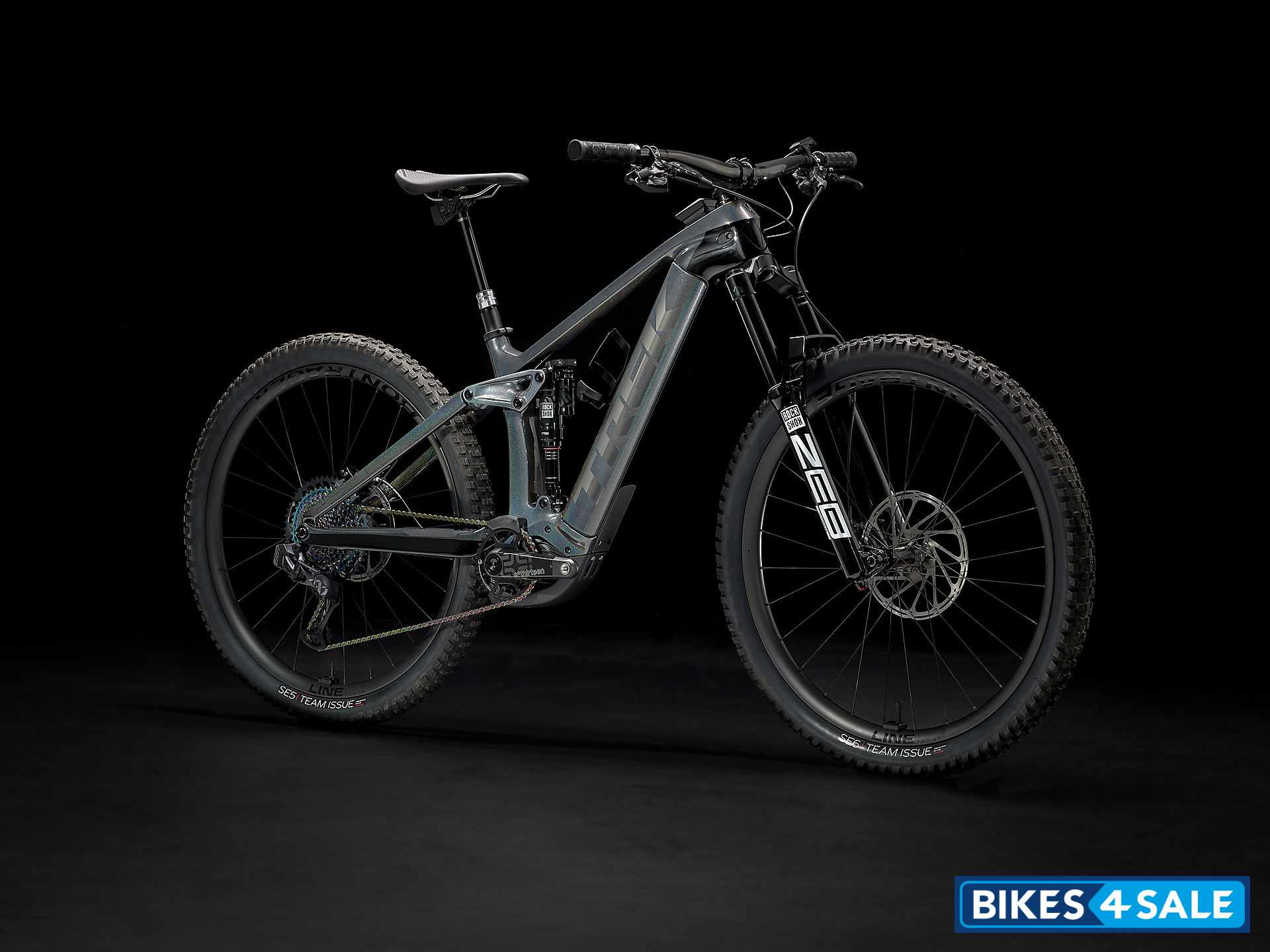

Dark Prismatic/Trek Black

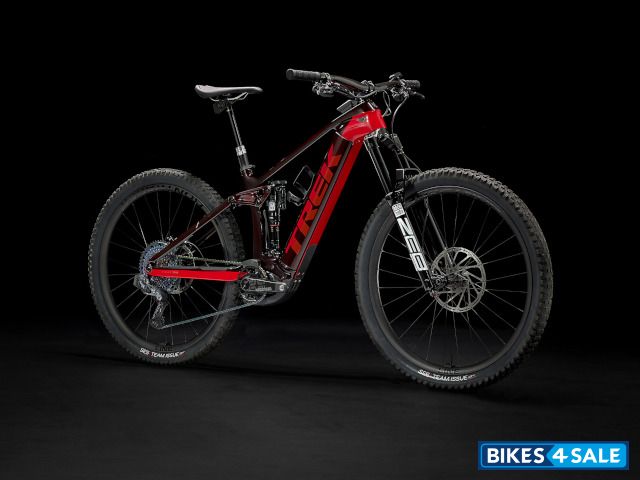

Carbon Red Smoke/Viper Red
| Vehicle Type | Bicycle |
| Fuel | Electric |
| Load Carrying Capacity | 136 Kg |
| Stem | Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 45mm length |
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width |
| Fork | RockShox ZEB Ultimate, AirWiz, DebonAir spring, Charger 2.1 RC2 damper, e-MTB optimzed crown, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 160mm travel |
| Seatpost | Size : M - RockShox Reverb AXS, 150mm travel, wireless, 34.9mm, 440mm length Size : L, XL - RockShox Reverb AXS, 170mm travel, wireless, 34.9mm, 480mm length |
| Grip | Bontrager XR Trail Elite, nylon lock-on |
| Pedals | VP-536 nylon platform |
| Chain | SRAM XX1 Eagle, 12 speed |
| Shifters | SRAM Eagle AXS, wireless, 12 speed |
| Saddle | Bontrager Arvada, austenite rails, 138mm width |
| Headset | Knock Block Integrated, cartridge bearing, 1-1/8'' top, 1.8'' bottom |
| Derailleur : Rear | SRAM XX1 Eagle AXS |
| Cassette | SRAM Eagle XG-1299, 10-52, 12 speed |
| Chainrings | SRAM X-SYNC 2, 34T, alloy |
| Motor Details |
|---|
| Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm, 20 mph or 32 km/h max assist (25 km/h max assist) |
| Electricals | |
|---|---|
| Battery | Bosch PowerTube 750Wh, smart system |
| Charger | Bosch standard 4A, 230V, smart system |
| Brakes | |
|---|---|
| Front Brake | SRAM Code RSC 4-piston hydraulic disc Rotor : SRAM CenterLine, 6-bolt, round-edge, 180 mm |
| Rear Brake | SRAM Code RSC 4-piston hydraulic disc Rotor : SRAM CenterLine, 6-bolt, round-edge, 180 mm |
| Chassis and Suspension | |
|---|---|
| Frame | NEW OCLV Mountain Carbon main frame, 1.8'' lower head tube, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9mm seat tube, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel |
| Tyres | |
|---|---|
| Wheels / Rim | Front : Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle Rear : Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle |
| Front Tyre | Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50'' |
| Rear Tyre | Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50'' |
| Dimensions | |
|---|---|
| Weight | 22.54 kg |
| Additional Details |
|---|
| Shock : RockShox Super Deluxe Thru Shaft, AirWiz, 230mm x 57.5mm Max compatible fork travel : 170 mm (580mm axle-to-crown) Rim strip : Bontrager TLR Max tire size : Frame: 29x2.60" Fork: See manufacturer Crank arm : E*thirteen E*spec Race carbon, 34T, 165mm length |
