Trek 2023 Domane AL 3 Disc

Price, review, features and specs

Available Sizes :44,49,52,54,56,58,61

Rate Trek 2023 Domane AL 3 Disc:
4.0/5 (3 votes)
Add To Compare
Write a Review
Trek 2023 Domane AL 3 Disc Price $ 1450 [New York, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, New York $ 1450 --
Buy new Trek 2023 Domane AL 3 Disc

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Trek 2023 Domane AL 3 Disc.

For Exciting Offers, Book a Test Drive
By submitting, you agree to our Terms & Conditions.
7318
Features
- Premium alloy frame
- Long-haul comfort
- Road-smoothing carbon fork
Colours

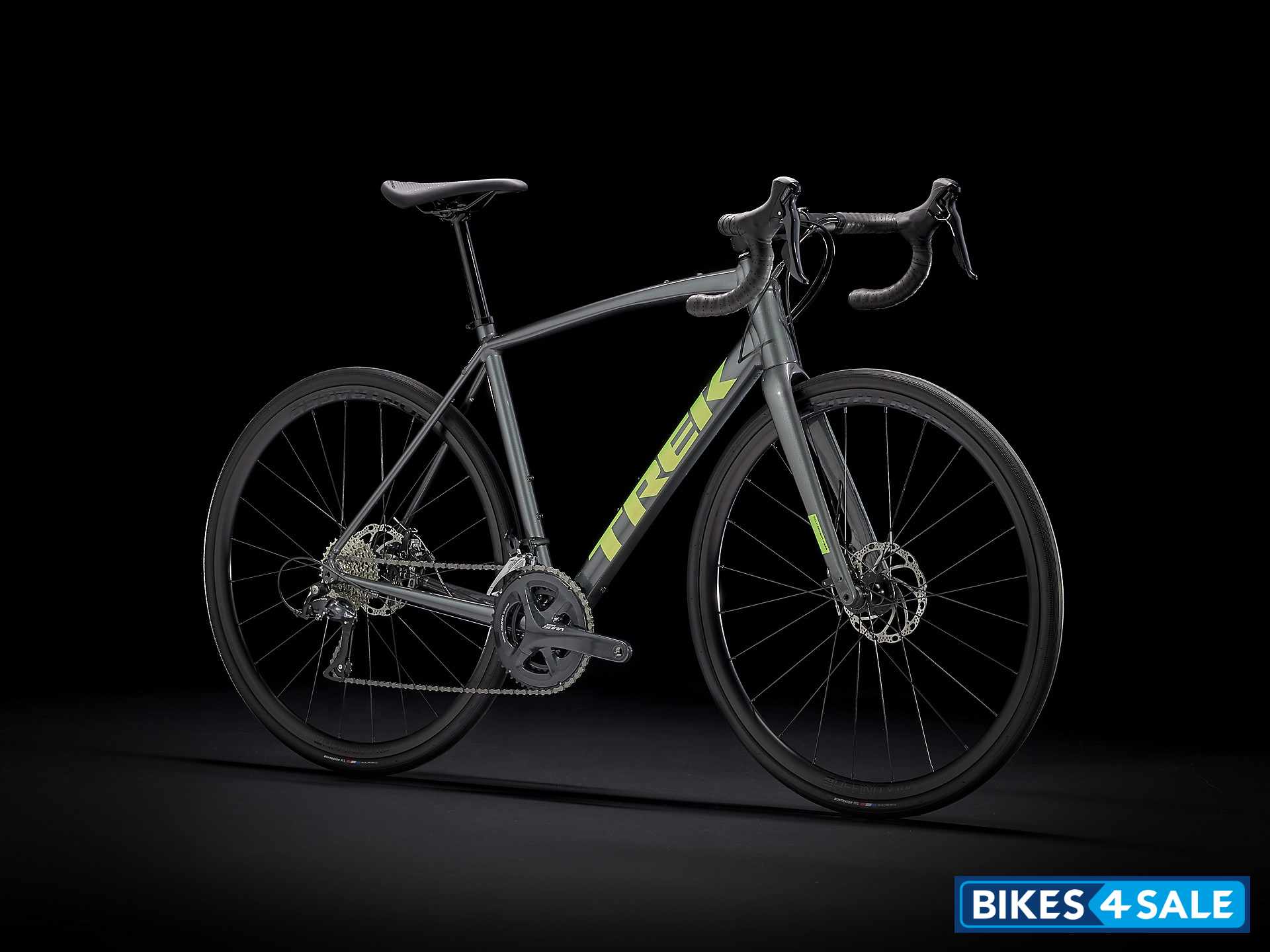

Lithium Grey/Trek BlackMercury

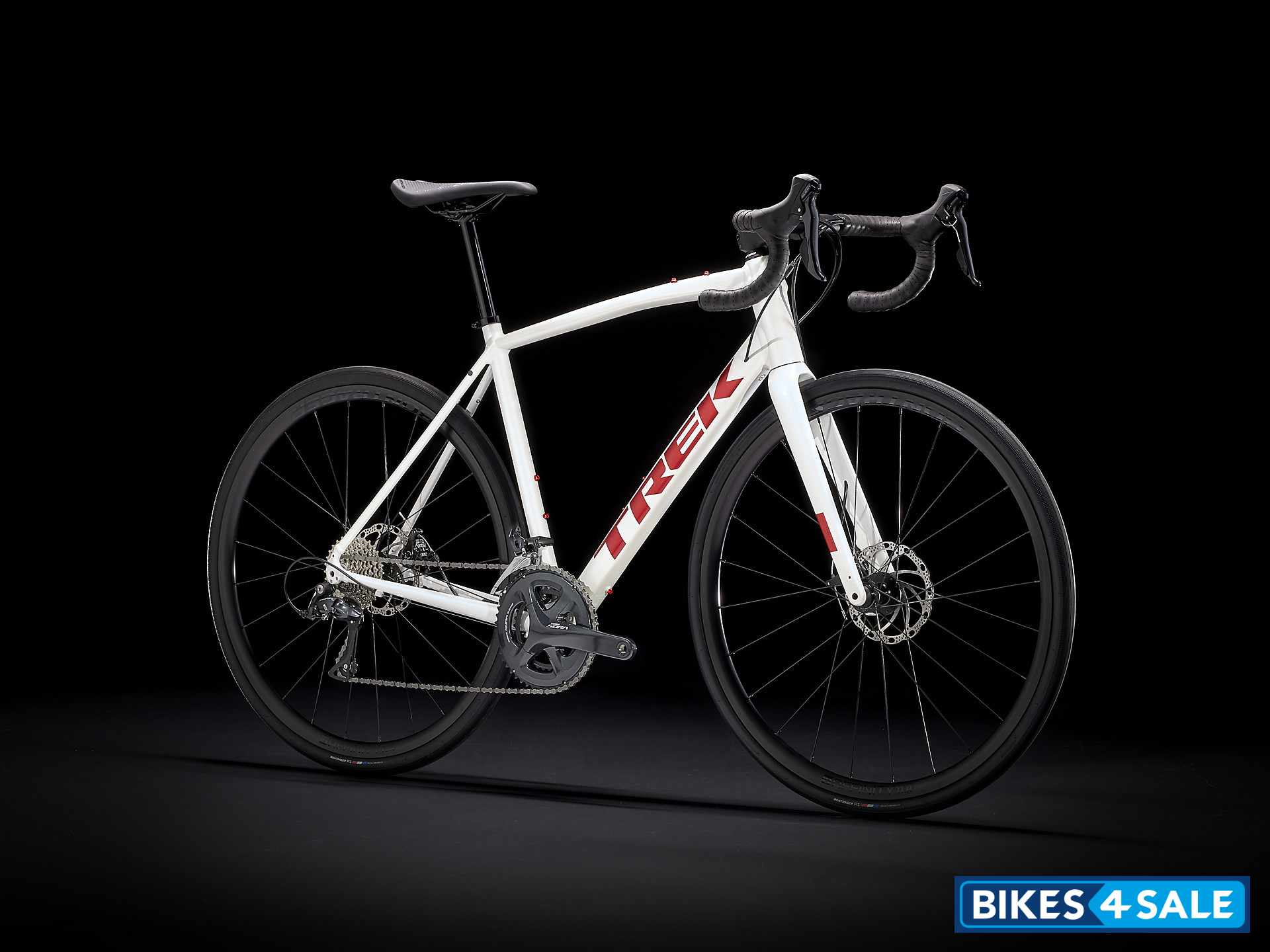

Crystal White/Matte Trek Black

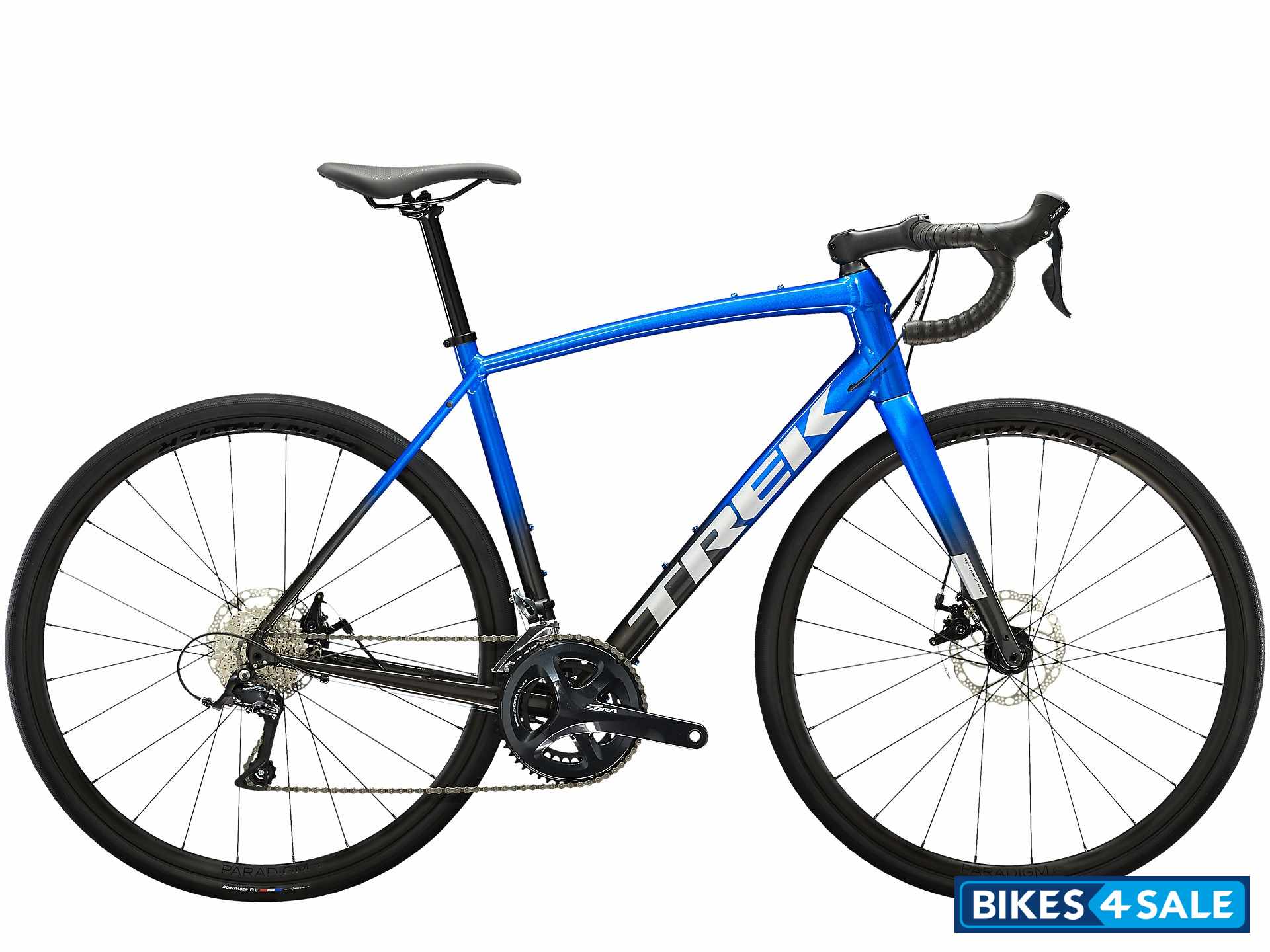

Alpine Blue to Dnister Black Fade

Technical Specifications
Vehicle TypeBicycle
Load Carrying Capacity125 kg (275 lb)
StemSize: 44
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
Size: 49
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: 52, 54
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: 56, 58
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
Size: 61
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
HandlebarSize: 44, 49
Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 38cm width
Size: 52
Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 40cm width
Size: 54, 56
Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width
Size: 58, 61
Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width
ForkDomane AL carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
SeatpostSize: 44, 49
Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length
Size: 52, 54, 56, 58, 61
Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length
CranksetSize: 44
Shimano Sora R3000, 50/34 (compact), 165mm length
Size: 49, 52, 54
Shimano Sora R3000, 50/34 (compact), 170mm length
Size: 56, 58, 61
Shimano Sora R3000, 50/34 (compact), 175mm length
ChainShimano Sora HG53, 9 speed
ShiftersShimano Sora R3000, 9-speed
SaddleSize: 44, 49, 52
Bontrager Verse Comp, steel rails, 155mm width
Size: 54, 56, 58, 61
Bontrager Verse Comp, steel rails, 145mm width
HeadsetFSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Derailleur : FrontShimano Sora R3000, 31.8 mm clamp
Derailleur : RearShimano Sora R3000, mid cage, 34T max cog
Hub : FrontFormula RX-512 alloy, 6-bolt, 100x12 mm thru axle
Hub : RearFormula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12 mm thru axle
Spoke14 g stainless steel
CassetteShimano Sora HG400, 11-32, 9 speed
Bottom BracketShimano RS500, 68mm, threaded external
Brakes
Front BrakeTektro C550 mechanical disc brake, dual piston, flat mount, 160mm rotor
Chassis and Suspension
Frame100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
Frame fit: Endurance
Tyres
Wheels / RimSize: 44, 49, 52, 54, 56, 58, 61
Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21mm width, presta valve
Size: 44, 49, 52, 54, 56, 58, 61
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, presta valve
Front TyreBontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 c
Rear TyreBontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 c
Dimensions
Kerb Weight10.3 kg
Additional Details
Skewer front: Bontrager Switch thru axle, removable lever
Skewer rear: Bontrager Switch thru-axle, removable lever
Max tyre size: 35c without mudguards, 32c with mudguards
Max. chainring size: 1x: 42t, 2x: 50/34
Handlebar tape: Bontrager Supertack Perf tape
Rotor size: Max brake rotor sizes: 160 mm front and rear
