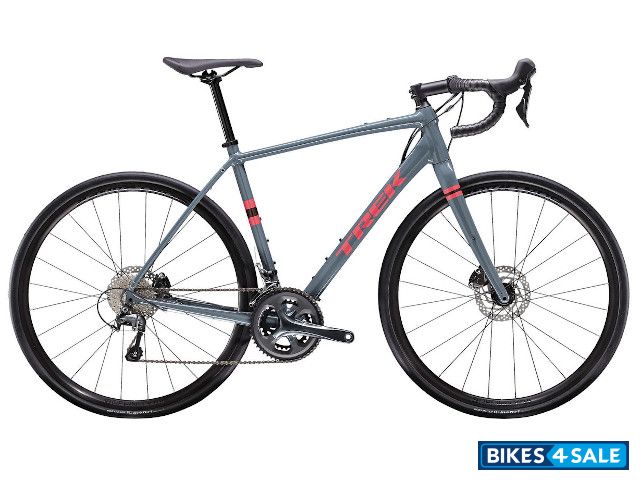

Trek Checkpoint AL 4 Bicycle: Price, Review, Specs and Features

Price, review, features and specs

Rate Trek Checkpoint AL 4:

3.0/5 (1 vote)

Add To Compare
Write a Review

Trek Checkpoint AL 4 Price $ 1599 [Naples, United States]

The given price can change depending on the colour, accessories and other features.

Country, City	Showroom Price	On Road Price
United States, Naples	$ 1599	--

Buy new Trek Checkpoint AL 4

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Trek Checkpoint AL 4.

Outspokin' Bicycles

1904 Walton Way United States

Trek Bicycle Store

9051 N. Tamiami Trail Ste.99 Florida United States

More Dealers

View all Trek Showrooms

Similar Bicycles

Firmstrong Mila Women s 700c 7 Speed Compare

Firmstrong CA-520 3 Speed - Men s 26 Cruiser Bike Compare

Firmstrong Urban Boutique Women s 26 Single Speed Compare

Firmstrong Urban Limited Women s 26 Single Speed Compare

Colours

Battleship Blue
Matte Gravel

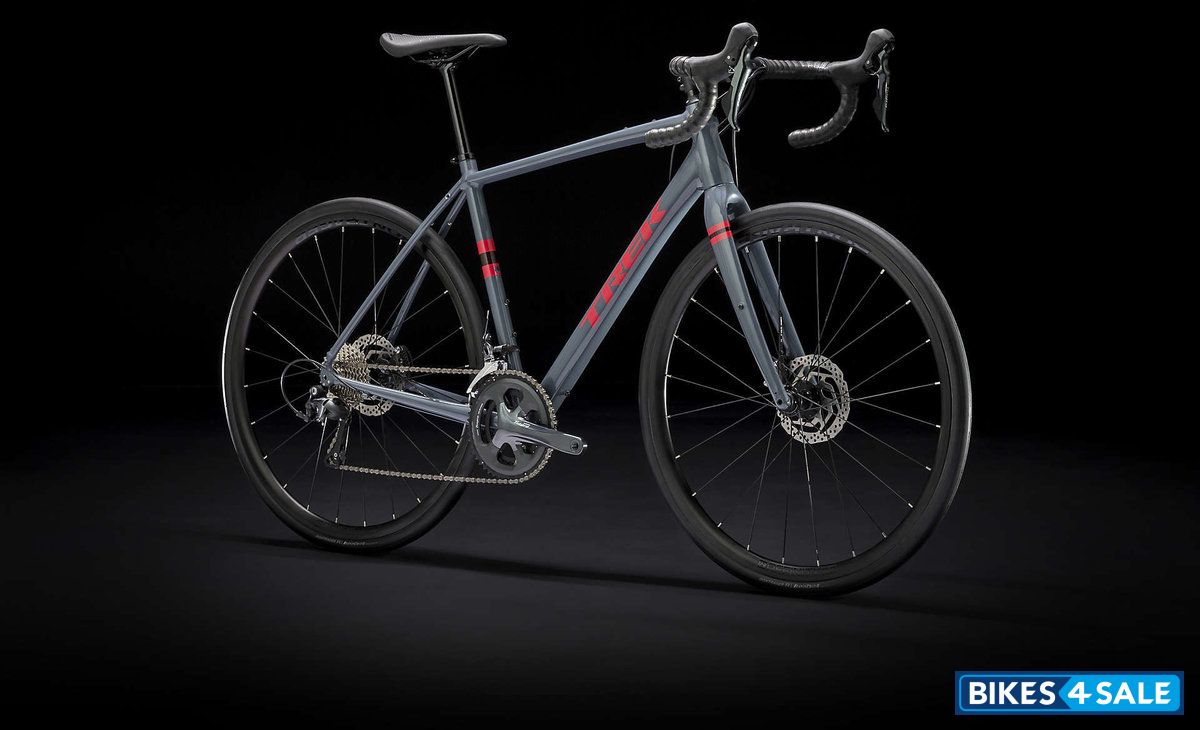

Picture Gallery

Technical Specifications

Vehicle Type	Bicycle
Stem	Bontrager Elite, 31.8 mm, Blendr compatible, 7 degree
Handlebar	Bontrager Comp VR-C, alloy, 31.8 mm
Fork	Checkpoint carbon, tapered alloy steerer, rack & fender mounts, flat mount disc
Seatpost	Bontrager Approved, alloy, 27.2 mm, 8 mm offset
Grip	Bontrager Supertack Perf tape
Crankset	Shimano Tiagra 4700
Chain	Shimano Tiagra HG54, 10 speed
Shifters	Shimano Tiagra R4725, short reach lever, 10 speed
Saddle	Bontrager Arvada Comp, steel rails
Headset	FSA Integrated, sealed cartridge bearing, 1-1/8 top, 1.5 bottom
Derailleur : Front	Shimano Tiagra 4700, 31.8 mm clamp
Derailleur : Rear	Shimano Tiagra 4700, long cage
Hub : Front	Formula RX-512 alloy, 6-bolt
Hub : Rear	Formula RX-512 alloy, 6-bolt
Cassette	Shimano HG500, 11-32, 10 speed
Chainrings	50 / 34 T

Electricals
Battery

Brakes
Front Brake

Chassis and Suspension
Frame	200 Series Alpha Aluminum, tapered head tube, Control Freak internal routing, rack & fender mounts, flat mount disc

Tyres
Wheels / Rim	Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21 mm width, presta valve
Front Tyre	Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700 x 32 c
Rear Tyre	Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700 x 32 c

Dimensions
Length x Width x Height	-- x -- x -- mm

Additional Details
Axles Front : 12 x 100 mm thru-axle Rear : 12 x 142 mm thru-axle Bottom Bracket : Shimano RS500, 68 mm, threaded external
