The given price can change depending on the colour, accessories and other features.
| Country, City | Showroom Price | On Road Price |
|---|---|---|
| United States, Alabama | $ 1699 | -- |
| United States, Alaska | $ 1699 | -- |
| United States, Arizona | $ 1699 | -- |
| United States, Atlanta | $ 1699 | -- |
| United States, Austin | $ 1699 | -- |
| United States, Baltimore | $ 1699 | -- |
| United States, Boston | $ 1699 | -- |
| United States, Charleston | $ 1699 | -- |
| United States, Charlotte | $ 1699 | -- |
| United States, Chicago | $ 1699 | -- |

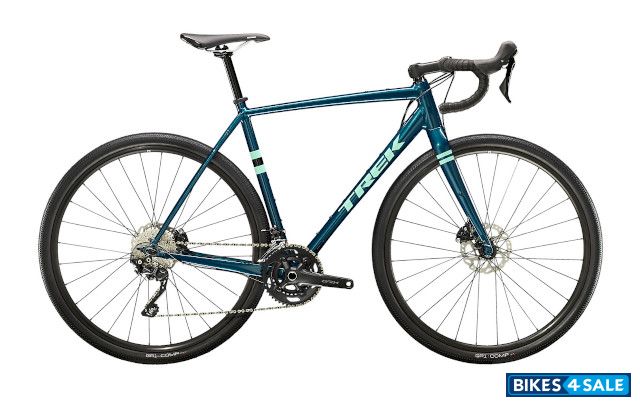

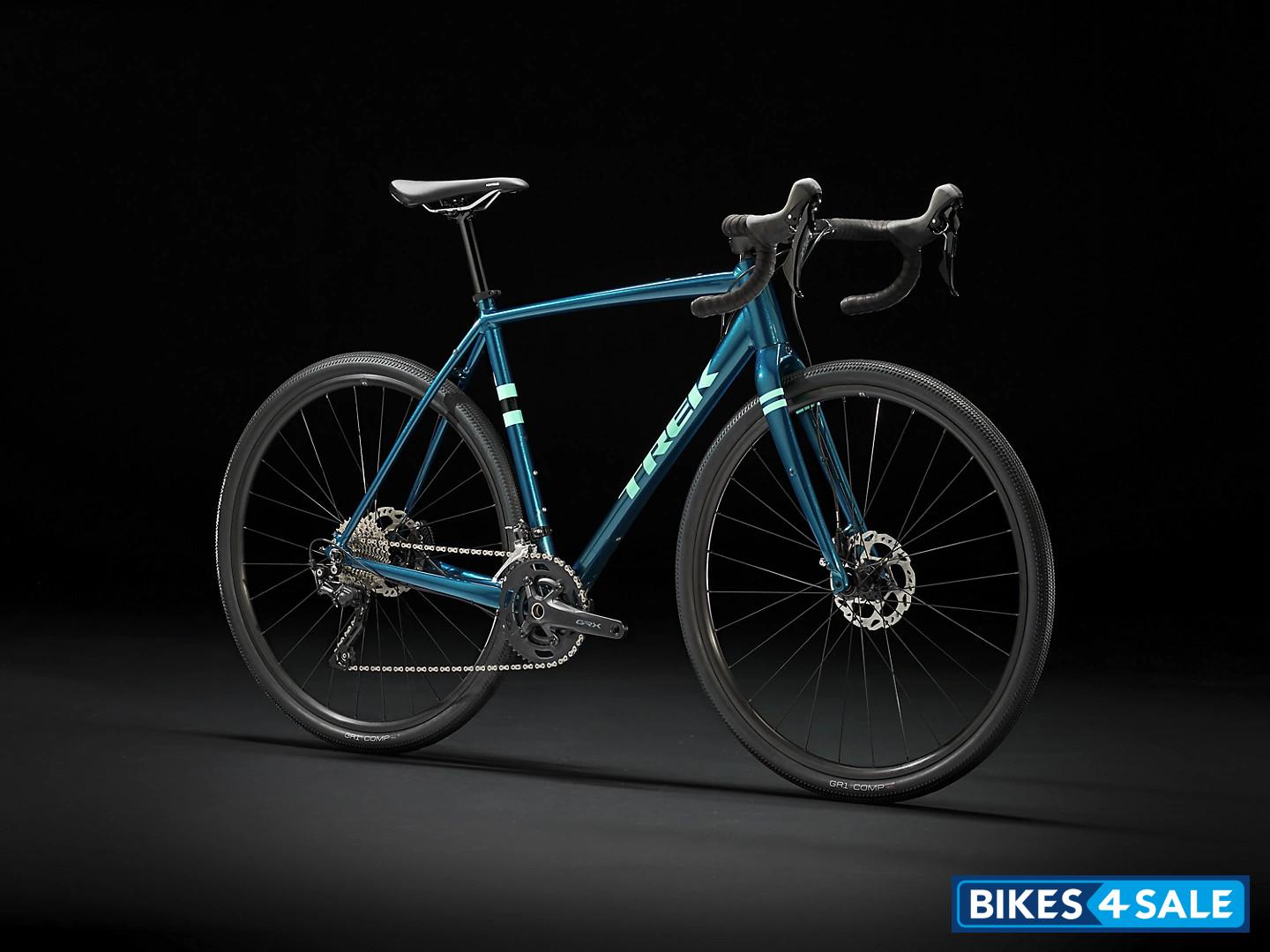

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Trek Checkpoint ALR 4.
Rage Red
Dark Aquatic
| Vehicle Type | Bicycle |
| Load Carrying Capacity | Combined weight of bicycle, rider, and cargo of 275 pounds (125 kg) |
| Stem | Size : 49 - Bontrager Elite, 31.8 mm, Blendr compatible, 7 degree, 80 mm length Size : 52, 54 - Bontrager Elite, 31.8 mm, Blendr compatible, 7 degree, 90 mm length Size : 56, 58 - Bontrager Elite, 31.8 mm, Blendr compatible, 7 degree, 100 mm length Size : 61 - Bontrager Elite, 31.8 mm, Blendr compatible, 7 degree, 110 mm length |
| Handlebar | Size : 49 - Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, 93 mm reach, 123 mm drop, 38cm width Size : 52 - Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, 93 mm reach, 123 mm drop, 40cm width Size : 54, 56 - Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, 93 mm reach, 123 mm drop, 42cm width Size : 58, 61 - Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, 93 mm reach, 123 mm drop, 44cm width |
| Fork | Checkpoint carbon, tapered alloy steerer, rack mounts, fender mounts, flat mount disc, 12 x 100 mm thru axle |
| Seatpost | Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length |
| Crankset | Size : 49 - Shimano GRX RX600, 46/30, 165 mm length Size : 52 - Shimano GRX RX600, 46/30, 170 mm length Size : 54, 56 - Shimano GRX RX600, 46/30, 172.5 mm length Size : 58, 61 - Shimano GRX RX600, 46/30, 175 mm length |
| Chain | KMC X10 |
| Shifters | Shimano GRX RX400, 10 speed |
| Saddle | Bontrager Montrose Comp, steel rails, 138 mm width |
| Headset | FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom |
| Derailleur : Front | Shimano GRX RX400, braze-on |
| Derailleur : Rear | Shimano GRX RX400, long cage, 36T max cog |
| Hub : Front | Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142 x 12 mm thru axle |
| Hub : Rear | Bontrager alloy, sealed bearing, centerlock disc, 100 x 12 mm thru axle |
| Spoke | 14g stainless steel |
| Cassette | Shimano Tiagra HG500, 11-34, 10 speed |
| Bottom Bracket | Shimano RS500, 86mm, PressFit |
| Brakes | |
|---|---|
| Front Brake | Shimano RX400 hydraulic disc, flat mount Brake Rotor : Shimano SM-RT70, centerlock, 160 mm |
| Rear Brake | Shimano RX400 hydraulic disc, flat mount Brake Rotor : Shimano SM-RT70, centerlock, 160 mm |
| Chassis and Suspension | |
|---|---|
| Frame | 300 Series Alpha Aluminum, tapered head tube, Control Freak internal routing, 3S chain keeper, rack and fender mounts, flat mount disc, horizontal sliding dropouts, 142 x 12 mm thru axle |
| Tyres | |
|---|---|
| Wheels / Rim | Bontrager Tubeless Ready, 28-hole, 17 mm width, presta valve |
| Front Tyre | Bontrager GR1 Comp, wire bead, 60 tpi, 700 x 40c |
| Rear Tyre | Bontrager GR1 Comp, wire bead, 60 tpi, 700 x 40c |
| Dimensions | |
|---|---|
| Weight | 10.26 kg |
