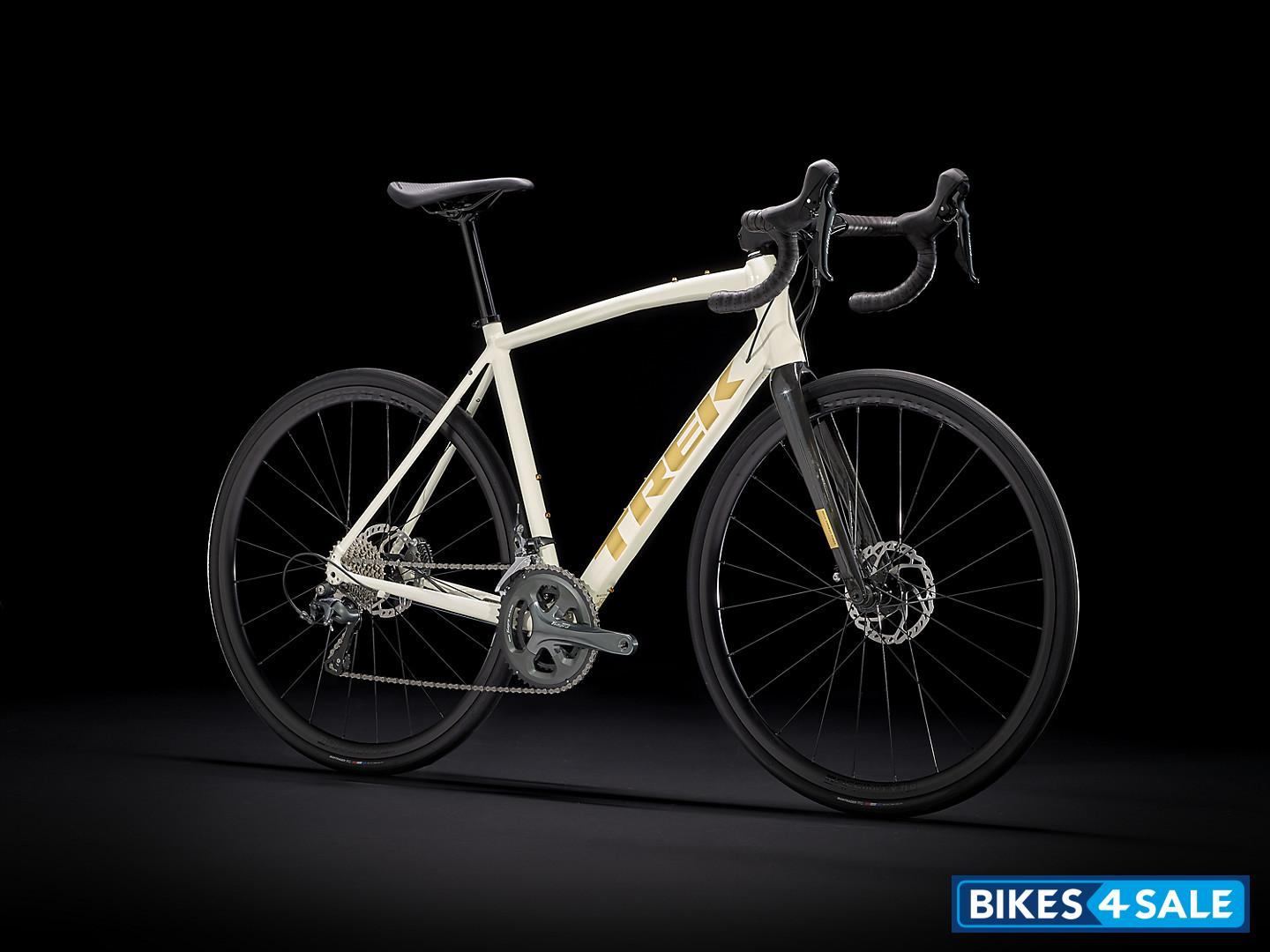

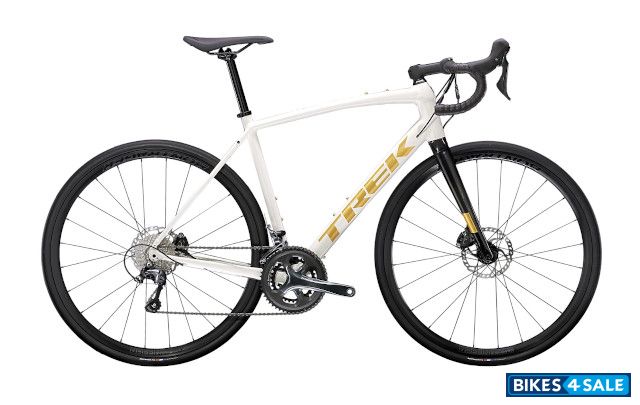

Trek Domane AL 4 Disc Bicycle

Price, features and specs

Rate Trek Domane AL 4 Disc:
4.0/5 (2 votes)
Trek Domane AL 4 Disc Price $ 1729 [Alabama, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Alabama $ 1729 --
United States, Alaska $ 1729 --
United States, Arizona $ 1729 --
United States, Atlanta $ 1729 --
United States, Austin $ 1729 --
United States, Baltimore $ 1729 --
United States, Boston $ 1729 --
United States, Charleston $ 1729 --
United States, Charlotte $ 1729 --
United States, Chicago $ 1729 --
View price in other cities
Buy new Trek Domane AL 4 Disc

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Trek Domane AL 4 Disc.

For Exciting Offers, Book a Test Drive
By submitting, you agree to our Terms & Conditions.
9545
Features
- Rack Mounts
- Endurance Fit
- Endurance Geometry
- Fender Compatible
- Additional Tire Clearance
Colours

Gloss Trek Black/Matte Trek Black
Gloss Radioactive Red/Matte Black
Era White/Carbon Smoke

Technical Specifications
Vehicle TypeBicycle
Load Carrying CapacityCombined weight of bicycle, rider, and cargo of 275 pounds (125 kg)
StemSize : 44 - Bontrager Elite, 31.8 mm, Blendr compatible, 7 degree, 70 mm length
Size : 49 - Bontrager Elite, 31.8 mm, Blendr compatible, 7 degree, 80 mm length
Size : 52, 54 - Bontrager Elite, 31.8 mm, Blendr compatible, 7 degree, 90 mm length
Size : 56, 58 - Bontrager Elite, 31.8 mm, Blendr compatible, 7 degree, 100 mm length
Size : 61 - Bontrager Elite, 31.8 mm, Blendr compatible, 7 degree, 110 mm length
HandlebarSize : 44, 49 - Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 38cm width
Size : 52 - Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 40cm width
Size : 54, 56 - Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42cm width
Size : 58, 61 - Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44cm width
ForkDomane AL carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12 x 100 mm thru axle
SeatpostSize : 44, 49 - Bontrager Comp, 6061 alloy, 27.2 mm, 8mm offset, 250 mm length
Size : 52, 54, 56, 58, 61 - Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
CranksetSize : 44 - Shimano Tiagra 4700, 50/34, 165 mm length
Size : 49, 52 - Shimano Tiagra 4700, 50/34, 170 mm length
Size : 54, 56 - Shimano Tiagra 4700, 50/34, 172.5 mm length
Size : 58, 61 - Shimano Tiagra 4700, 50/34, 175 mm length
ChainShimano Tiagra HG54, 10 speed
ShiftersShimano Tiagra R4725, short reach lever, 10 speed
SaddleSize : 44, 49, 52 - Bontrager P3 Verse Comp, steel rails, 155 mm width
Size : 54, 56, 58, 61 - Bontrager P3 Verse Comp, steel rails, 145 mm width
HeadsetFSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Derailleur : FrontShimano Tiagra 4700, 31.8 mm clamp
Derailleur : RearShimano Tiagra 4700, long cage, 34T max cog
Hub : FrontFormula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142 x 12 mm thru axle
Hub : RearFormula RX-512 alloy, 6-bolt, 100 x 12 mm thru axle
Spoke14g stainless steel
CassetteShimano HG500, 11-32, 10 speed
Bottom BracketShimano RS500, 68 mm, threaded external
Brakes
Front BrakeShimano Tiagra hydraulic disc
Brake Rotor : Shimano RT66, 160 mm, 6-bolt
Rear BrakeShimano Tiagra hydraulic disc
Brake Rotor : Shimano RT66, 160 mm, 6-bolt
Chassis and Suspension
Frame100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, DuoTrap S compatible, flat mount disc, 142 x 12 mm thru axle
Tyres
Wheels / RimBontrager Affinity Disc, Tubeless Ready, 24-hole, 21 mm width, presta valve
Front TyreBontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700 x 32c
Rear TyreBontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700 x 32c
Dimensions
Weight10.48 kg
