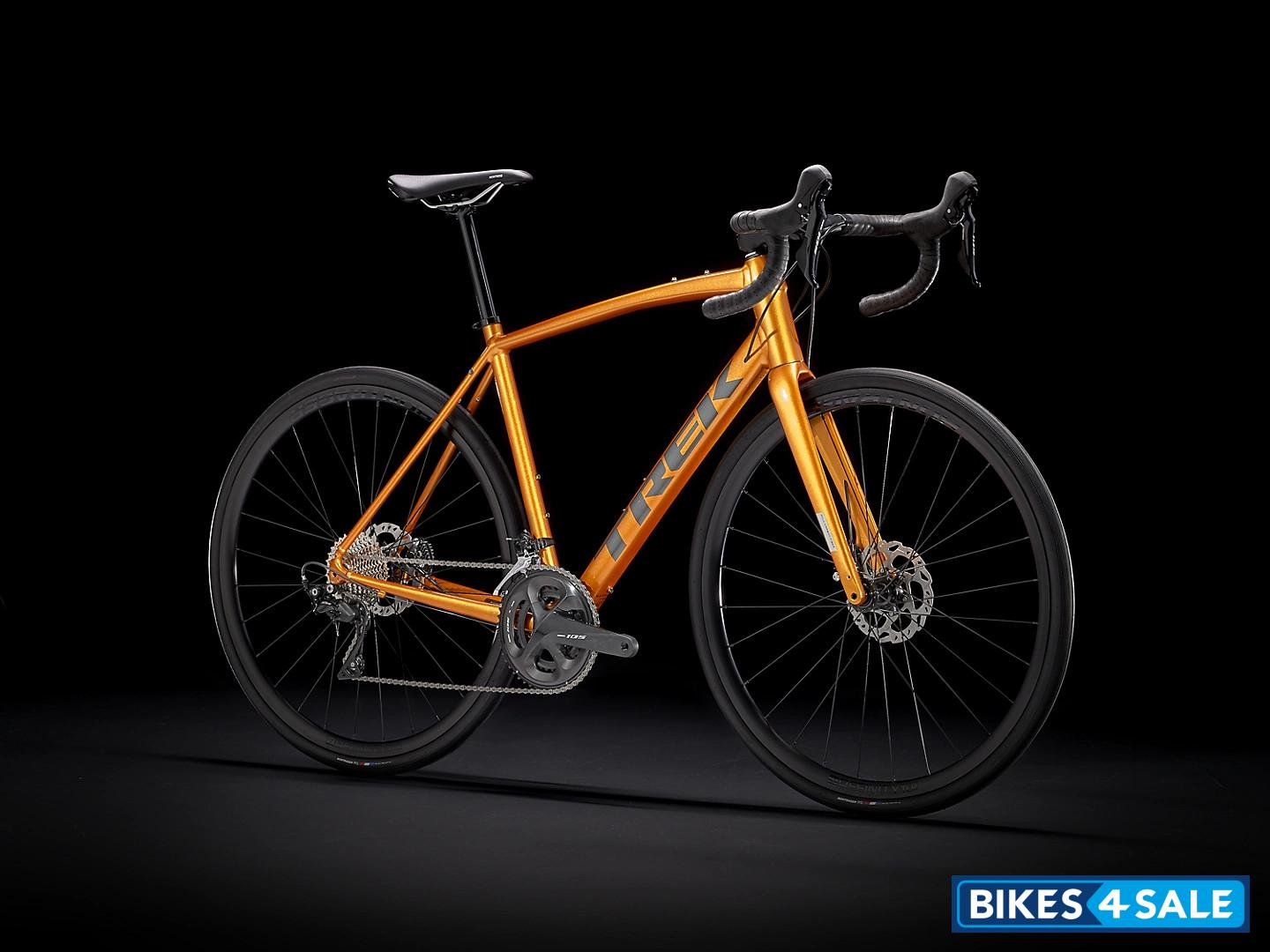

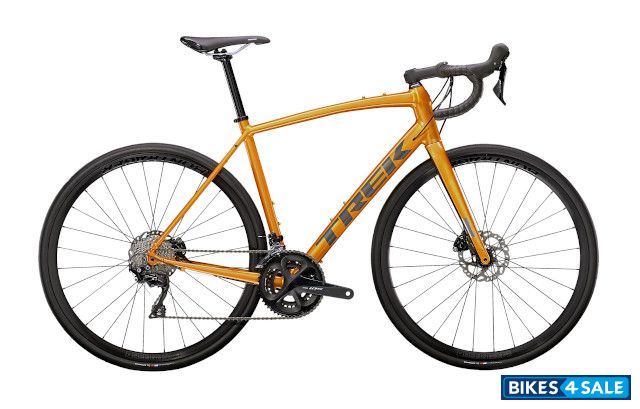

Trek Domane AL 5 Disc

Price, review, features and specs

Rate Trek Domane AL 5 Disc:
4.3/5 (3 votes)
Add To Compare
Write a Review
Trek Domane AL 5 Disc Price $ 1999 [Alabama, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Alabama $ 1999 --
United States, Alaska $ 1999 --
United States, Arizona $ 1999 --
United States, Atlanta $ 1999 --
United States, Austin $ 1999 --
United States, Baltimore $ 1999 --
United States, Boston $ 1999 --
View price in other cities
Buy new Trek Domane AL 5 Disc

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Trek Domane AL 5 Disc.

For Exciting Offers, Book a Test Drive
7484
Features
- Rack Mounts
- Endurance Fit
- Endurance Geometry
- Fender Compatible
- Additional Tire Clearance
Colours

Lithium Grey/Trek Black
Factory Orange/Lithium Grey

Technical Specifications
Vehicle TypeBicycle
Load Carrying CapacityCombined weight of bicycle, rider, and cargo of 275 pounds (125 kg)`
StemSize : 49 - Bontrager Elite, 31.8 mm, Blendr compatible, 7 degree, 80 mm length
Size : 52, 54 - Bontrager Elite, 31.8 mm, Blendr compatible, 7 degree, 90 mm length
Size : 56, 58 - Bontrager Elite, 31.8 mm, Blendr compatible, 7 degree, 100 mm length
Size : 61 - Bontrager Elite, 31.8 mm, Blendr compatible, 7 degree, 110 mm length
HandlebarSize : 49 - Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 38cm width
Size : 52 - Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 40cm width
Size : 54, 56 - Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, internal Di2 routing, 93 mm reach, 123 mm drop, 42cm width
Size : 58, 61 - Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, internal Di2 routing, 93 mm reach, 123 mm drop, 44cm width
ForkDomane AL carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12 x 100 mm thru axle
SeatpostSize : 49 - Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length
Size : 52, 54, 56, 58, 61 - Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
CranksetSize : 49, 52 - Shimano 105 R7000, 50/34 (compact), 170 mm length
Size : 54, 56 - Shimano 105 R7000, 50/34 (compact), 172.5 mm length
Size : 58, 61 - Shimano 105 R7000, 50/34 (compact), 175 mm length
ChainShimano HG601
ShiftersShimano 105 R7020, 11 speed
SaddleSize : 49, 52 - Bontrager P3 Verse Comp, steel rails, 155 mm width
Size : 54, 56, 58, 61 - Bontrager P3 Verse Comp, steel rails, 145 mm width
HeadsetFSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Derailleur : FrontShimano 105 R7000, 31.8 mm clamp
Derailleur : RearShimano 105 R7000, long cage, 34T max cog
Hub : FrontBontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142 x 12 mm thru axle
Hub : RearBontrager alloy, sealed bearing, centerlock disc, 100 x 12 mm thru axle
Spoke14g stainless steel
CassetteShimano 105 HG700-11, 11-34, 11 speed
Bottom BracketShimano RS500, 68 mm, threaded external
Electricals
Battery
Brakes
Front BrakeShimano 105 hydraulic disc, flat mount
Brake Rotor : Shimano SM-RT70, centerlock, 160 mm
Rear BrakeShimano 105 hydraulic disc, flat mount
Brake Rotor : Shimano SM-RT70, centerlock, 160 mm
Chassis and Suspension
Frame100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, DuoTrap S compatible, flat mount disc, 142 x 12 mm thru axle
Tyres
Wheels / RimBontrager Affinity Disc, Tubeless Ready, 28-hole, 21 mm width, presta valve
Front TyreBontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700 x 32c
Rear TyreBontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700 x 32c
Dimensions
Length x Width x Height-- x -- x -- mm
Weight10.05 kg
