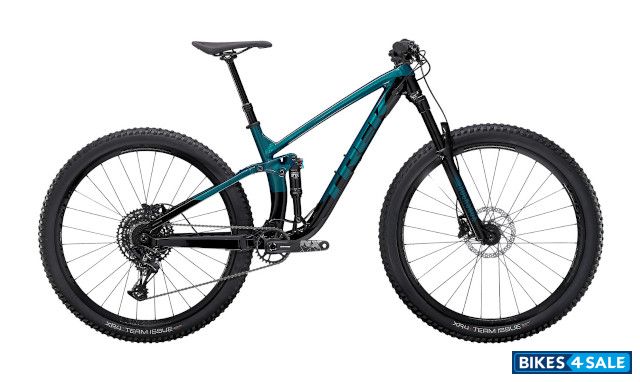

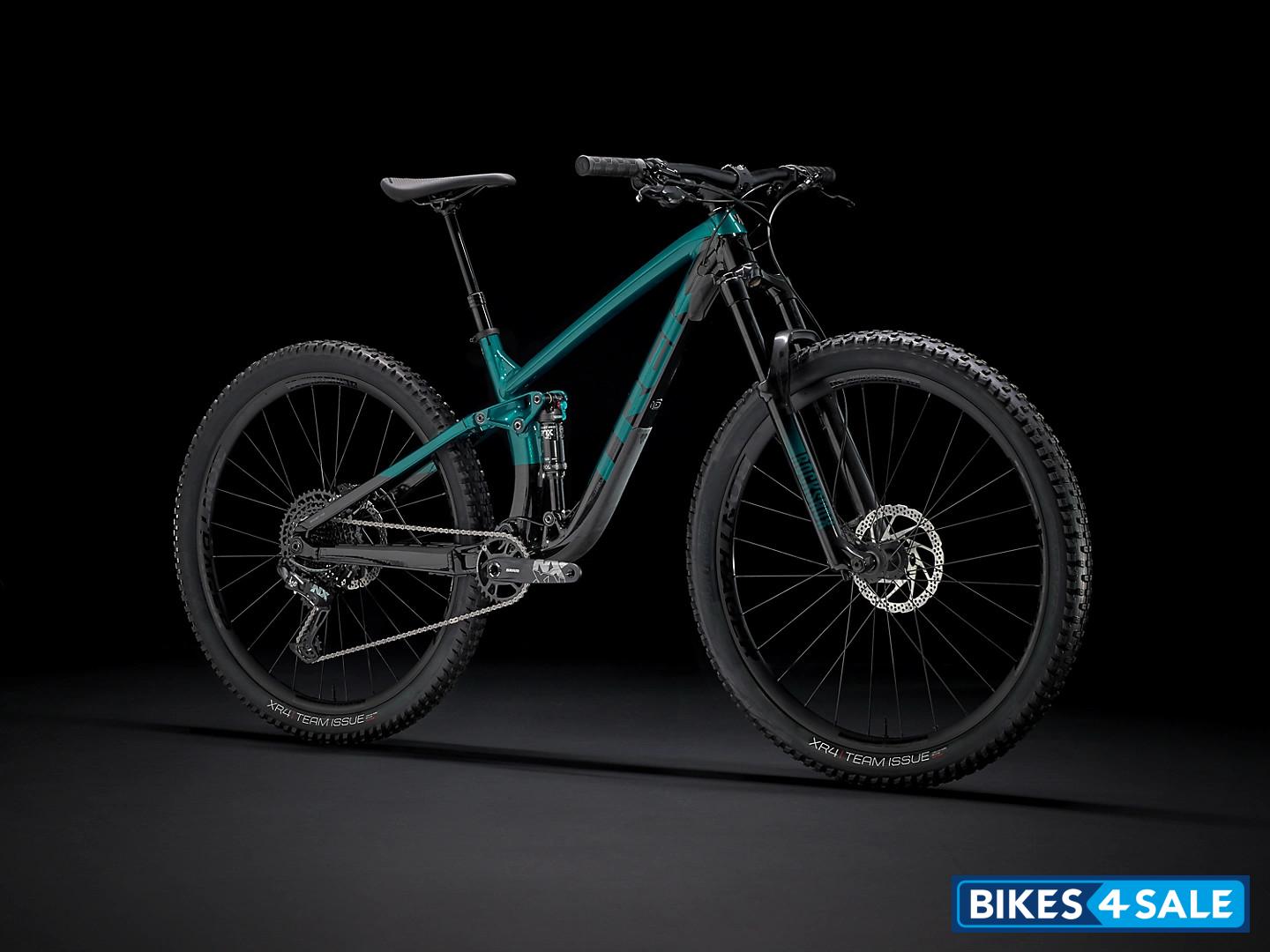

Trek Fuel EX 7 NX

Price, review, features and specs

Rate Trek Fuel EX 7 NX:
3.8/5 (4 votes)
Add To Compare
Write a Review
Trek Fuel EX 7 NX Price $ 3249 [Alabama, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Alabama $ 3249 --
United States, Alaska $ 3249 --
United States, Arizona $ 3249 --
United States, Atlanta $ 3249 --
United States, Austin $ 3249 --
United States, Baltimore $ 3249 --
United States, Boston $ 3249 --
View price in other cities
Buy new Trek Fuel EX 7 NX

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Trek Fuel EX 7 NX.

For Exciting Offers, Book a Test Drive
2
Features
- Straight Shot with Knock Block
- Active Braking Pivot
- Control Freak Cable Management
- Complete Tubeless System
- Suspension Calculator
- Mino Link Adjustable Geometry
- Alpha Platinum Aluminium
Colours

Trek Black/Radioactive Red
Dark Aquatic/Trek Black

Technical Specifications
Vehicle TypeBicycle
Load Carrying CapacityCombined weight of bicycle, rider, and cargo of 300 pounds (136 kg)
StemBontrager Rhythm Comp, 31.8 mm, Knock Block, 0 degree, 50 mm length
HandlebarBontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
ForkRockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 140 mm travel
SeatpostSize : XS, S - TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size : M, ML, L, XL, XXL - TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 445 mm length
GripBontrager XR Trail Comp, nylon lock-on
CranksetSize : XS, S - SRAM NX Eagle, DUB, 30T steel ring, Boost (52 mm chainline), 170 mm length
Size : M, ML, L, XL, XXL - SRAM NX Eagle, DUB, 30T steel ring, Boost (52 mm chainline), 175 mm length
ChainSRAM NX Eagle, 12 speed
ShiftersSRAM NX Eagle, 12 speed
SaddleBontrager Arvada, steel rails, 138 mm width
HeadsetKnock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Derailleur : RearSRAM NX Eagle
Hub : RearBontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
CassetteSRAM PG-1230 Eagle, 11-50, 12 speed
Chainrings34T
Bottom BracketSRAM DUB, 92 mm, PressFit
Electricals
Battery
Brakes
Front BrakeShimano hydraulic disc, MT4100 lever, MT410 caliper
Brake Rotor : Shimano RT56, 6-bolt, 180 mm
Rear BrakeShimano hydraulic disc, MT4100 lever, MT410 caliper
Brake Rotor : Shimano RT56, 6-bolt, 180 mm
Chassis and Suspension
FrameAlpha Platinum Aluminum, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel
Tyres
Wheels / RimFront : Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Rear : Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle
Front TyreBontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29 x 2.40''
Rear TyreBontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29 x 2.40''
Dimensions
Length x Width x Height-- x -- x -- mm
Weight31.92 kg
Additional Details
Shock : Fox Performance Float EVOL, 3-position DPS damper, tuned by Trek Suspension Lab, 210 mm x 55 mm
Max compatible fork travel : 150 mm (561 mm axle-to-crown)
