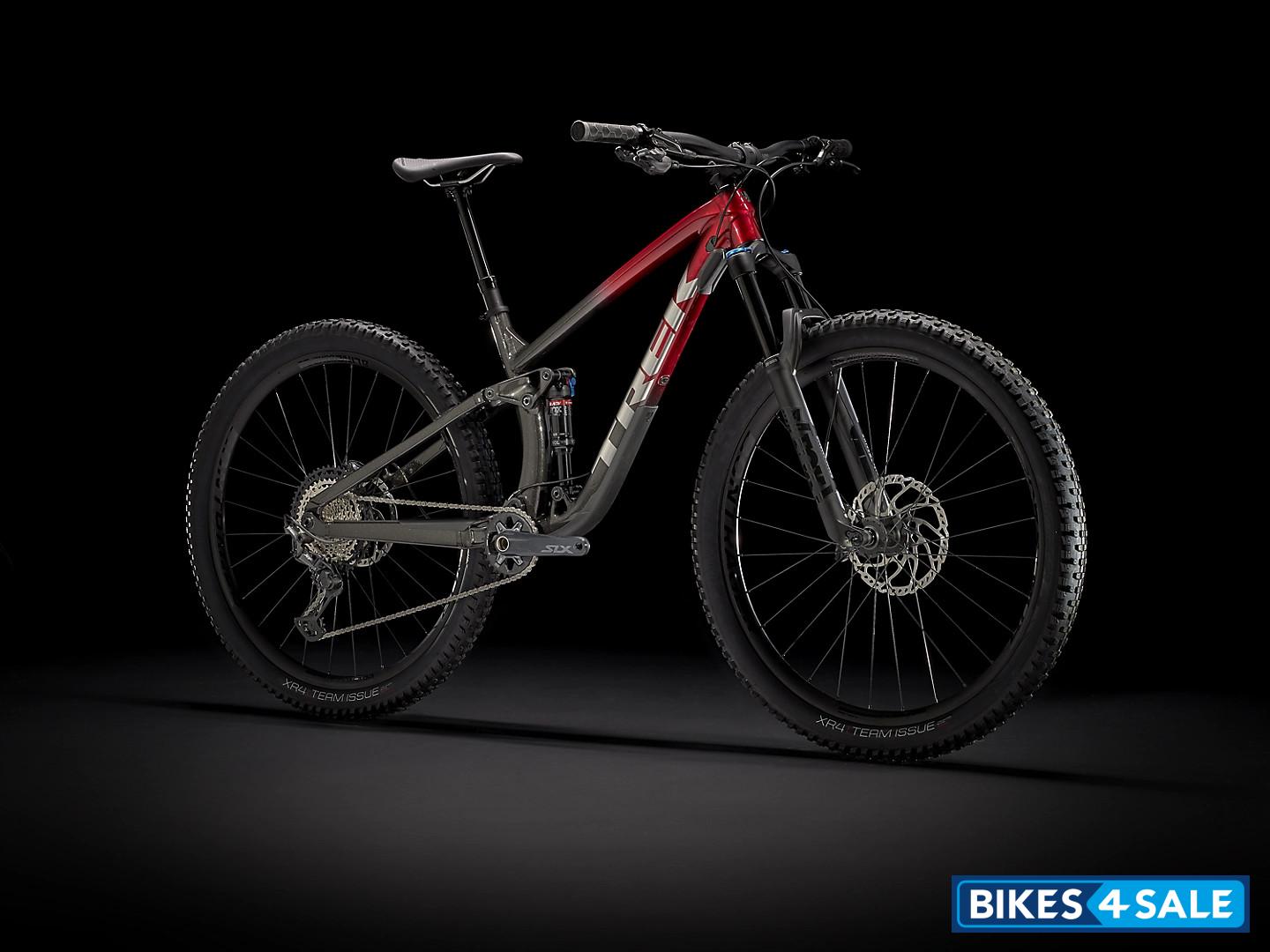

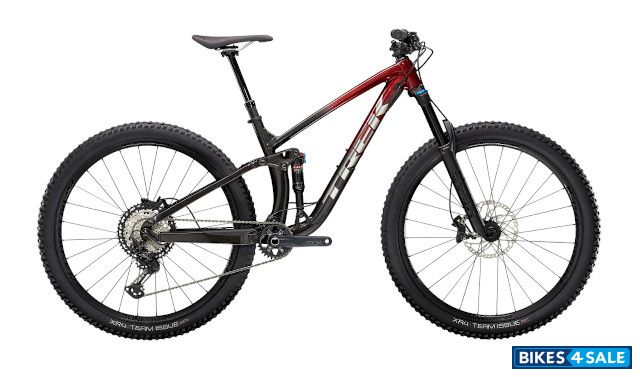

Trek Fuel EX 8 XT

Price, review, features and specs

Rate Trek Fuel EX 8 XT:
4.0/5 (3 votes)
Add To Compare
Write a Review
Trek Fuel EX 8 XT Price $ 3899 [Alabama, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Alabama $ 3899 --
United States, Alaska $ 3899 --
United States, Arizona $ 3899 --
United States, Atlanta $ 3899 --
United States, Austin $ 3899 --
United States, Baltimore $ 3899 --
United States, Boston $ 3899 --
View price in other cities
Buy new Trek Fuel EX 8 XT

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Trek Fuel EX 8 XT.

For Exciting Offers, Book a Test Drive
4073
Features
- Straight Shot w/Knock Block
- Active Braking Pivot
- Control Freak Cable Management
- Complete Tubeless System
- Suspension Calculator
- Mino Link Adjustable Geometry
Colours

Rage Red to Dnister Black Fade

Technical Specifications
Vehicle TypeBicycle
Load Carrying CapacityCombined weight of bicycle, rider, and cargo of 300 pounds (136 kg)
StemSize : XS, S - Bontrager Line, 35 mm, Knock Block, 0 degree, 40 mm length
Size : M, ML, L, XL, XXL - Bontrager Line, 35 mm, Knock Block, 0 degree, 50 mm length
HandlebarSize : XS, S - Bontrager Line, alloy, 35 mm, 27.5 mm rise, 750 mm width
Size : M, ML, L, XL, XXL - Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
ForkFox Rhythm 34, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 mm travel
SeatpostSize : XS, S - Bontrager Line Dropper, 100 mm travel, internal routing, 31.6 mm, 345 mm length
Size : M, ML, L, XL, XXL - Bontrager Line Dropper, 150 mm travel, internal routing, 31.6 mm, 440 mm length
GripBontrager XR Trail Elite, nylon lock-on
CranksetSize : XS, S - Shimano SLX M7100, 30T alloy ring, Boost (52 mm chainline), 170 mm length
Size : M, ML, L, XL, XXL - Shimano SLX M7100, 30T alloy ring, Boost (52 mm chainline), 175 mm length
ChainShimano SLX M7100, 12 speed
ShiftersShimano XT M8100, 12 speed
SaddleBontrager Arvada, hollow chromoly rails, 138 mm width
HeadsetKnock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Derailleur : RearShimano XT M8100, long cage, 51T max cog
Hub : FrontBontrager alloy, sealed bearing, alloy, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Hub : RearBontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
CassetteShimano XT M8100, 10-51, 12 speed
Chainrings34T
Bottom BracketShimano MT500, 92 mm, PressFit
Electricals
Battery
Brakes
Front BrakeShimano hydraulic disc, MT4100 lever, MT420 4-piston caliper
Brake Rotor : Shimano RT66, 6-bolt, 180 mm
Rear BrakeShimano hydraulic disc, MT4100 lever, MT420 4-piston caliper
Brake Rotor : Shimano RT66, 6-bolt, 203 mm
Chassis and Suspension
FrameAlpha Platinum Aluminum, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel
Tyres
Wheels / RimFront : Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Rear : Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12 mm thru axle
Front TyreBontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29 x 2.40''
Rear TyreBontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29 x 2.60''
Dimensions
Length x Width x Height-- x -- x -- mm
Weight13.86 kg
Additional Details
Shock : Fox Performance Float EVOL, 3-position RE:aktiv damper, tuned by Trek Suspension Lab, 210 mm x 55 mm
Max compatible fork travel : 150 mm (561 mm axle-to-crown)
